JNF Less is More DIN Radius Black Bathlock

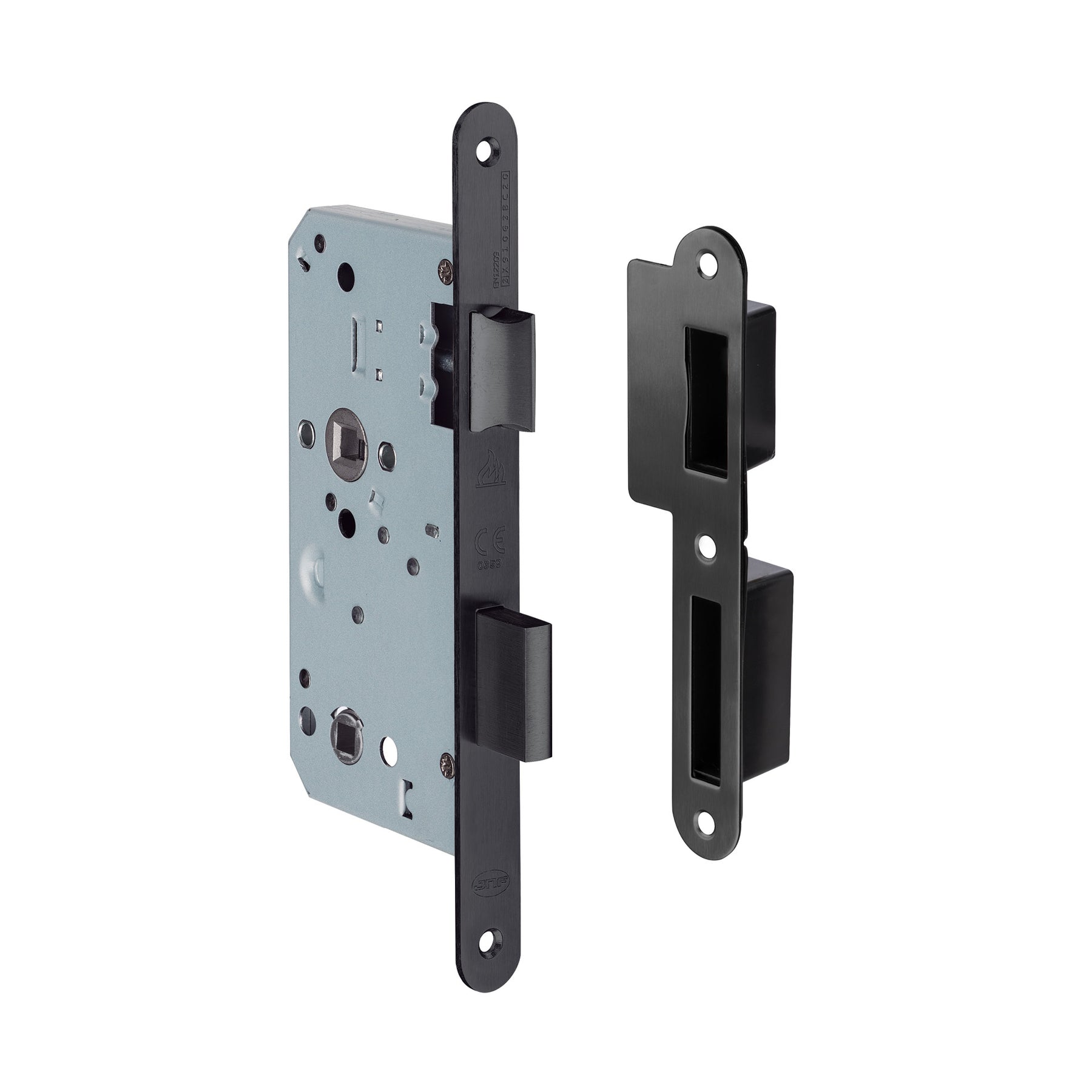

JNF mortice flush mounted grade 3 DIN black adjustable bathlock, supplied with matching radius forend and boxed keep strike plate.
The bathlock has a backset (distance from edge of door to handle/cylinder) of 60mm; suitable for un-sprung lever handles and WC turn and releases with 8mm spindle bars (which can also work with 5mm when using a converter which can be found here)
The distance between the centre of the lever handle and WC set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks.
This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.

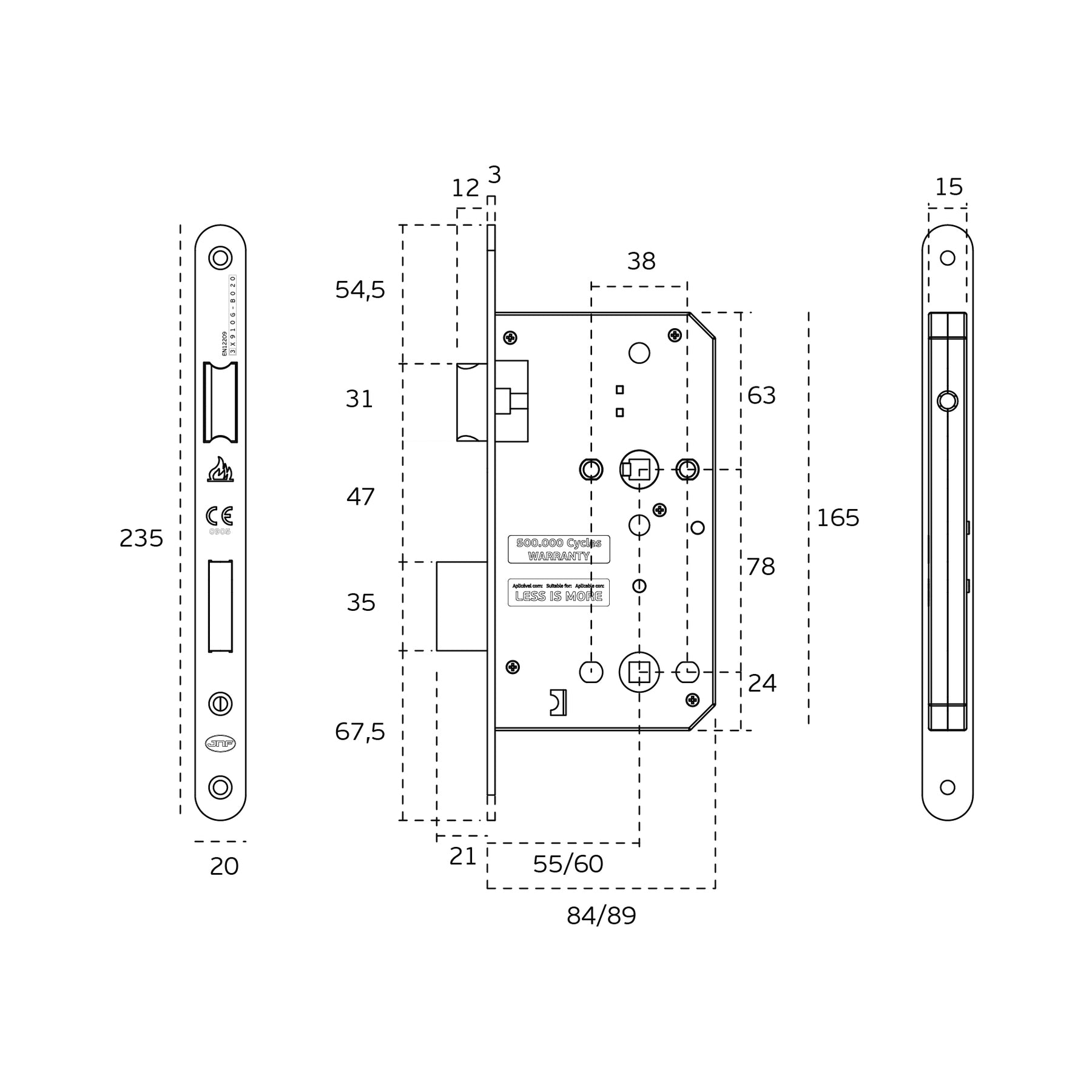

DIMENSIONS:
60mm Backset
78mm Centres
8mm WC Follower
165mm High x 15mm Thick Case
88mm Case Depth
234mm x 20mm Lock Faceplate
