Carlisle Brass Enduro Single Heavy Duty 100 x 76mm Hinge

A single heavy duty Grade 13 ball bearing hinge with square corners to suit maximum door weight 120 kgs per pair, suitable for use on fire doors and commercial buildings, tested and conforming to BSEN 1935:2002, CE Marked, supplied with screws. Certifire Approved

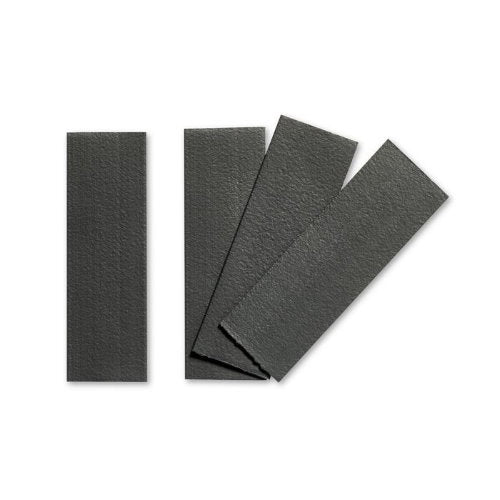

This hinge is suitable for doors that are 44mm thick and suitable for FD30 fire doors when used in conjunction with the intumescent pads (available via the drop-down menu)


Please note that these are sold singly and intumescent pads are sold two per hinge

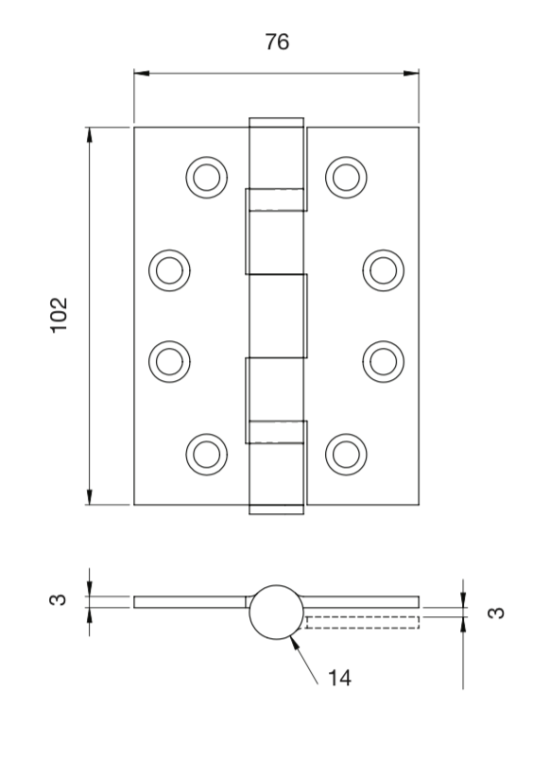

DIMENSIONS:

102mm High
76mm Wide (when open)
3mm Thick

FINISHES:

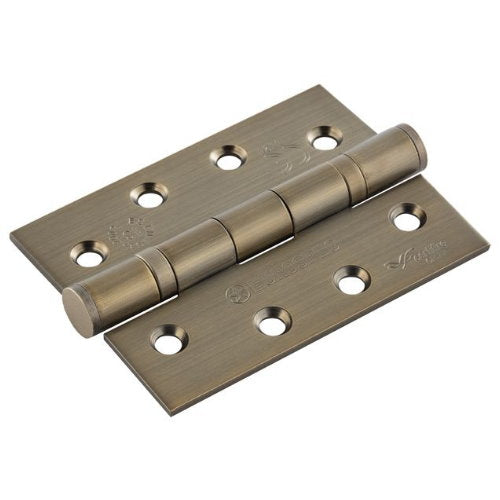

Antique Brass

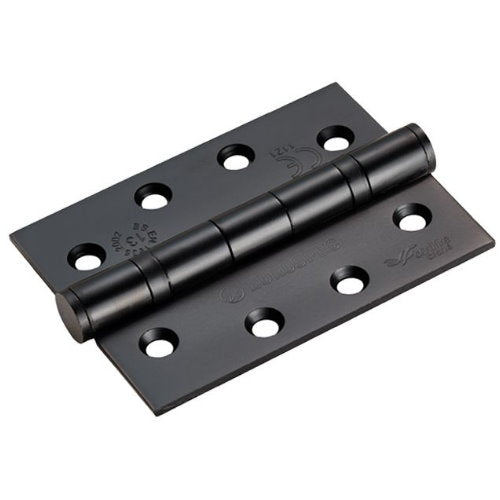

Black

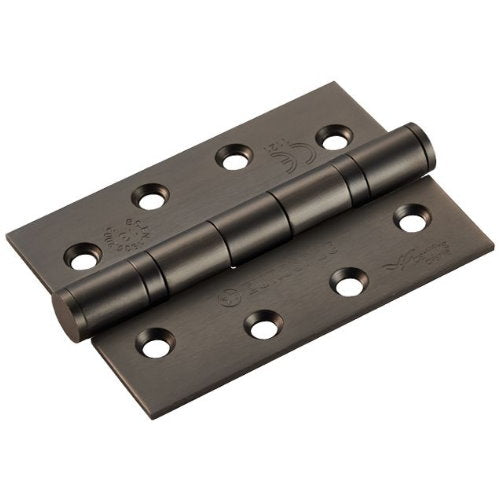

Bronze

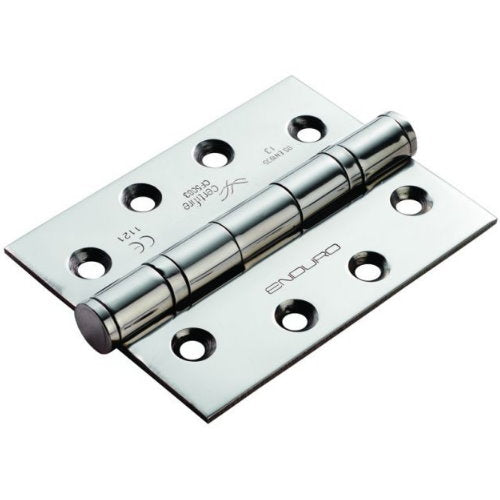

Polished stainless

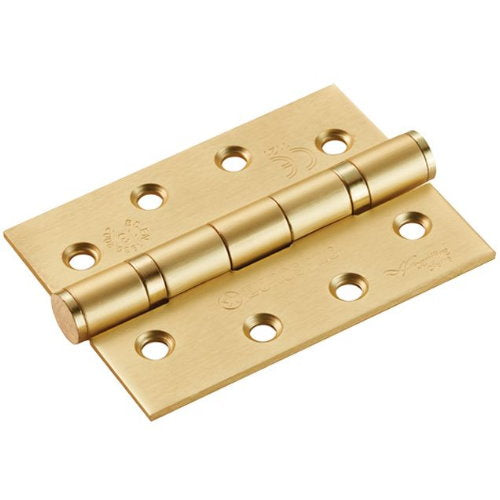

Satin Brass

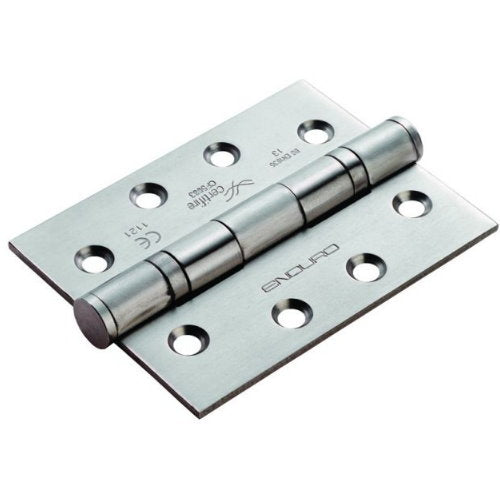

Satin Stainless
