JNF IN.05.203.HO double action 60kgs CAM hydraulic timber door pivot set

JNF IN.05.203.HO Double Action 60kgs Hydraulic Timber Door Pivot Set

The JNF satin grade 304 stainless steel hold open fixed power Size 2, to EN 1154, smooth CAM action DDA compliant hydraulic pivot set which is suitable for timber doors weighing up to 60kgs/850mm wide with a minimum 30mm/maximum 50mm thickness.

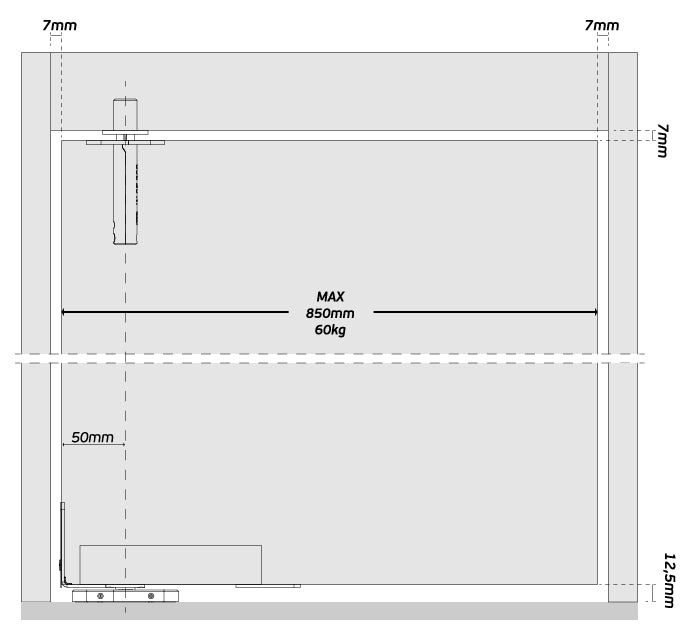

The minimum position for the top and bottom pivot is 50mm from the door edge.

The stainless steel covered bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 7mm top and 12.5mm bottom gap.

The pivot can be held open at 90 degrees and also rotate through 150 degrees with both closing speed and soft closing (last 10 degrees) adjustment made at the door edge.

See Technical-Details Tab for more information
