Zoo Hardware European DIN Radius Bathlock - 2 Piece - 60mm

Zoo Hardware European DIN Radius Bathlock - 2 Piece - 60mm

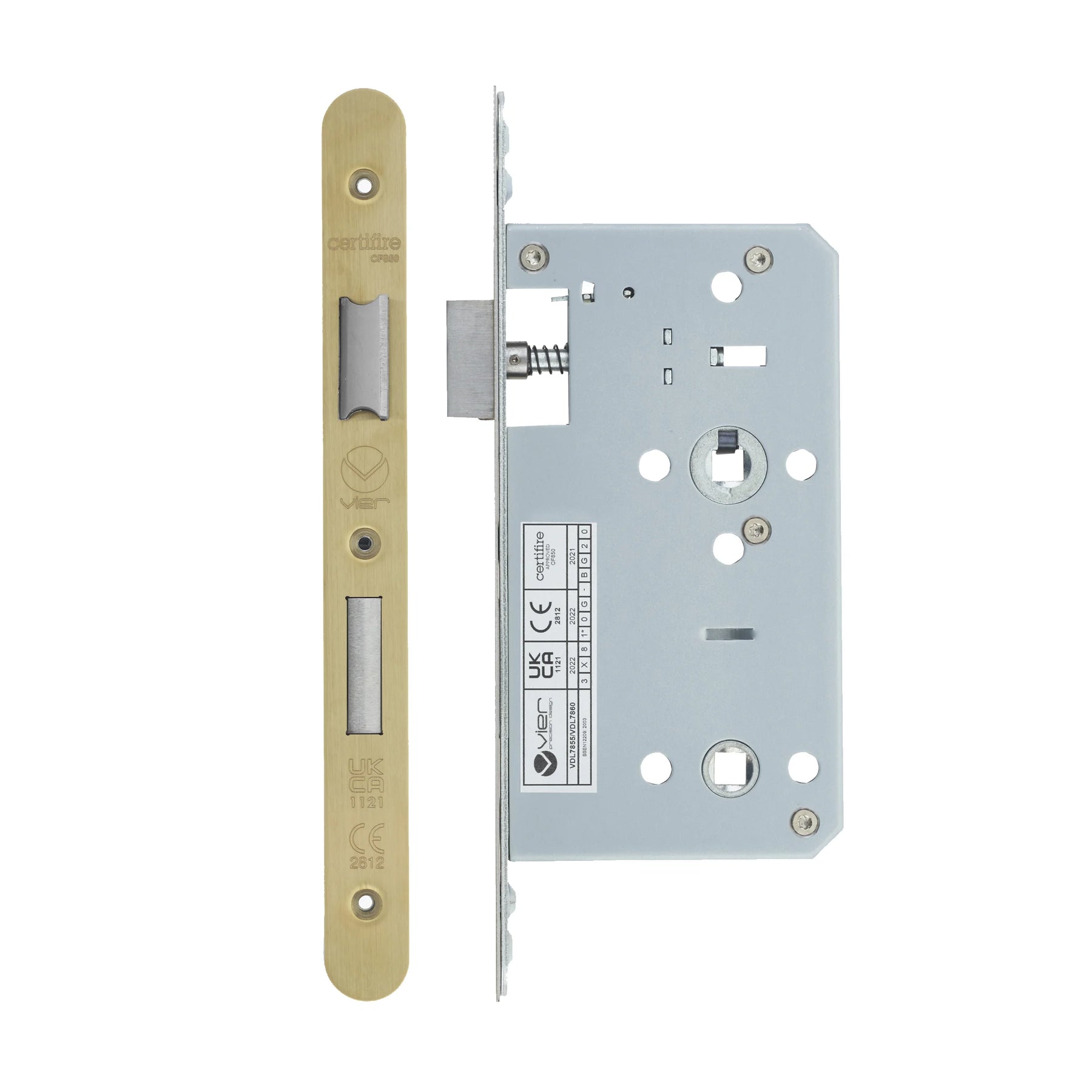

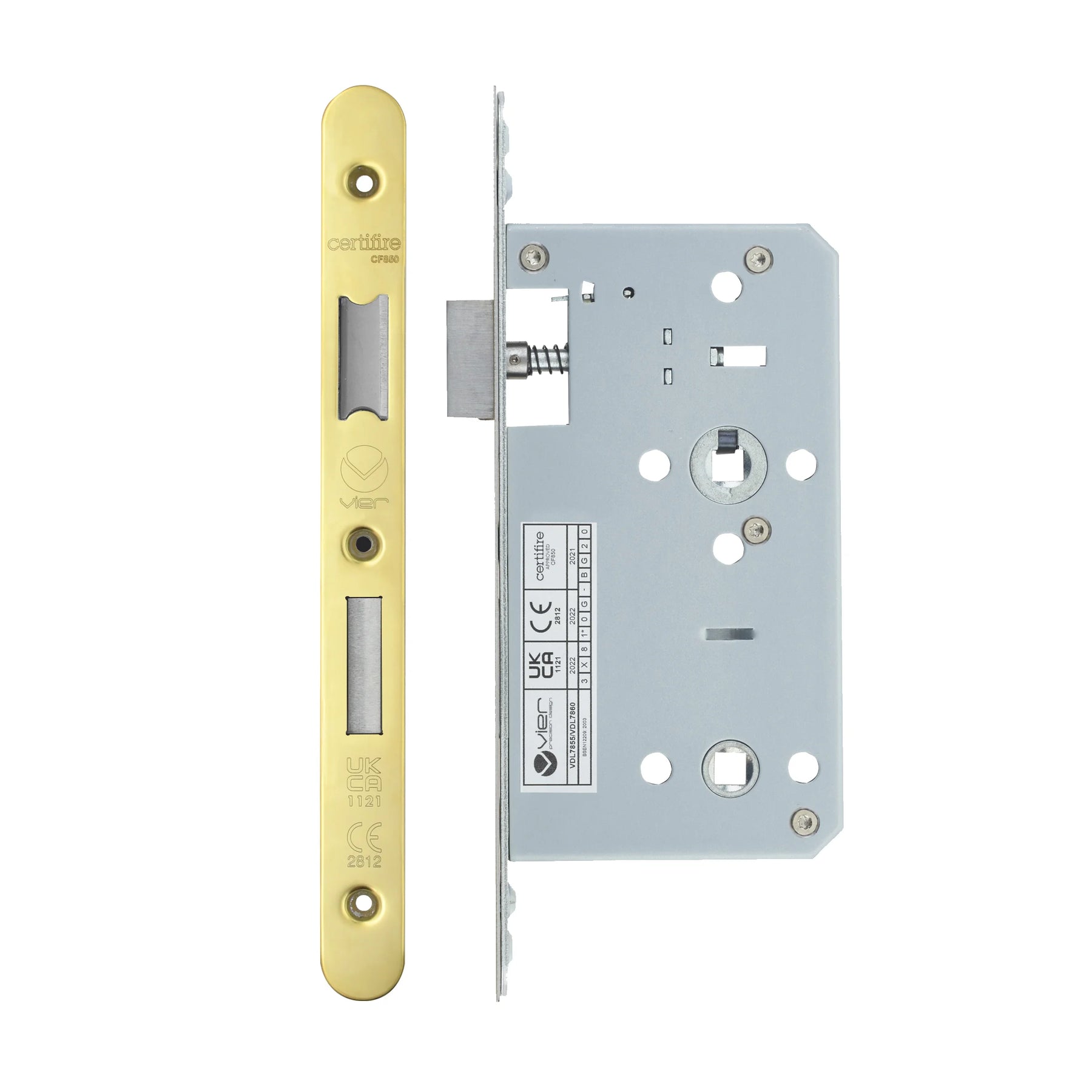

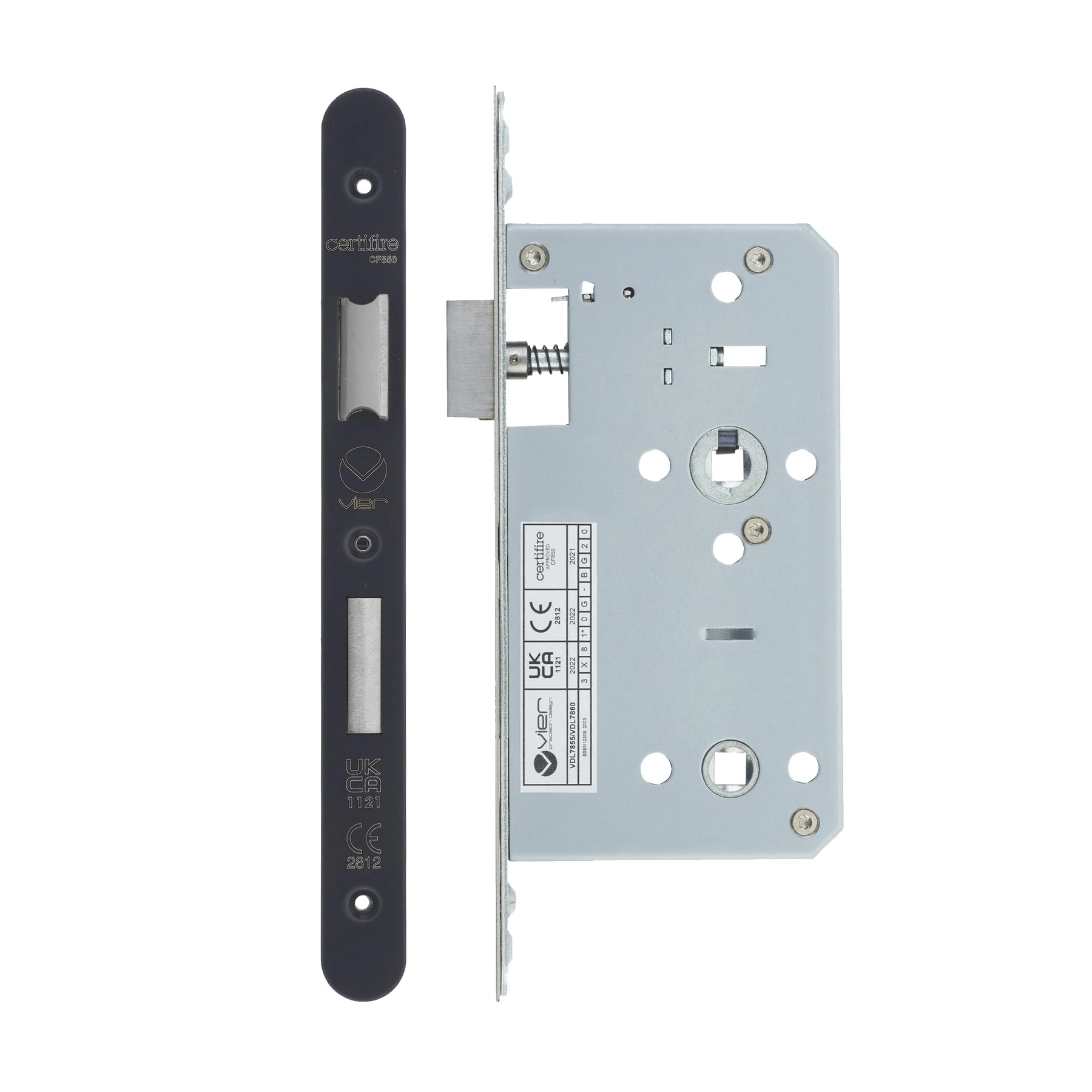

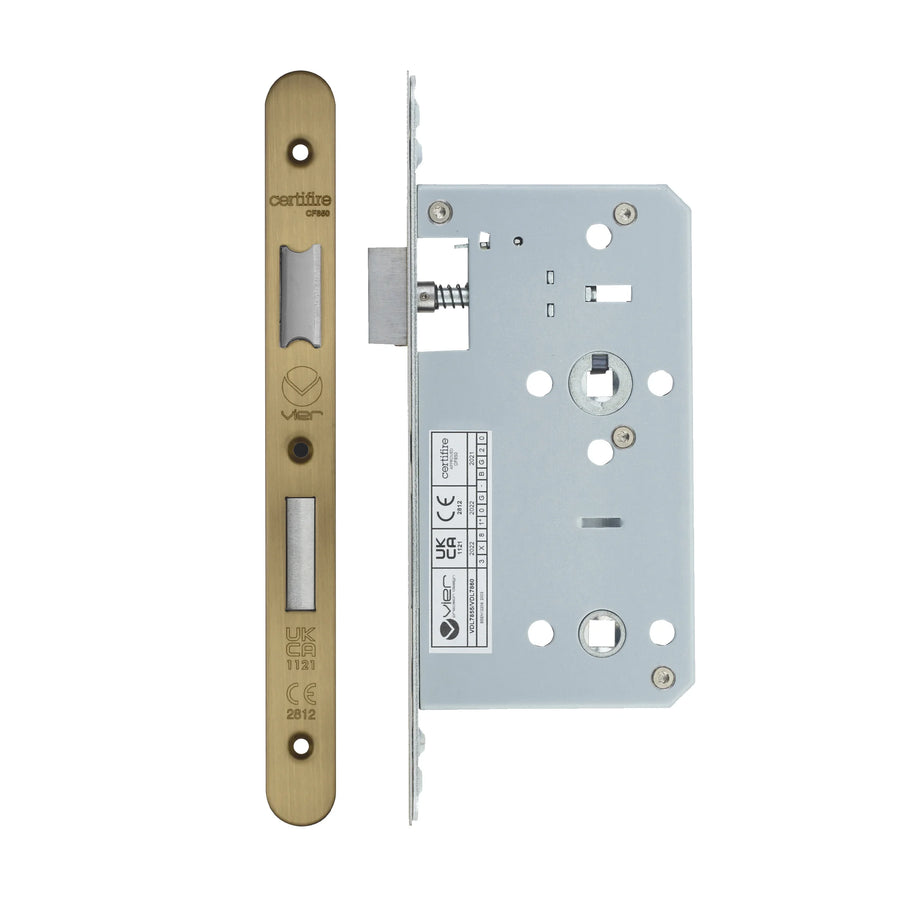

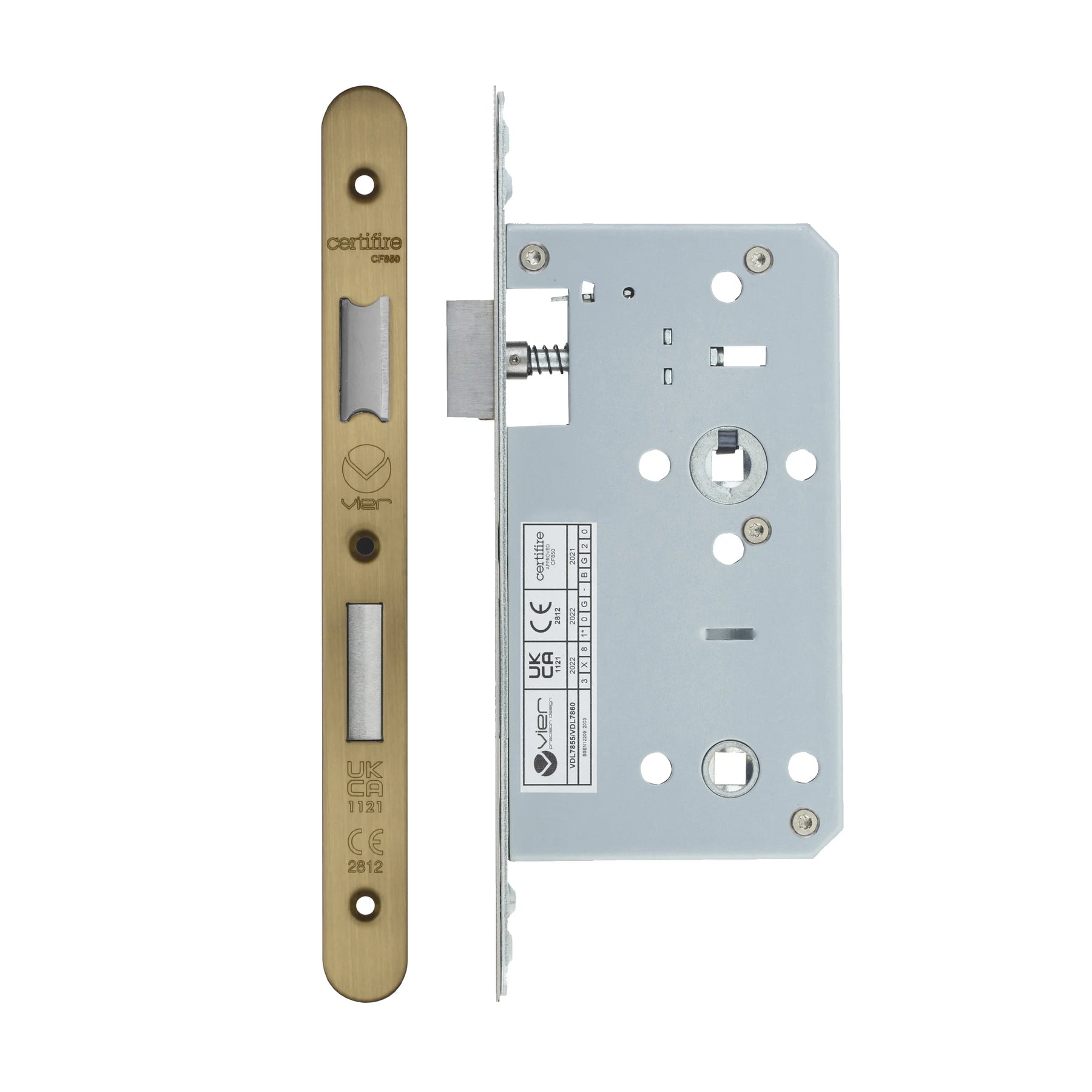

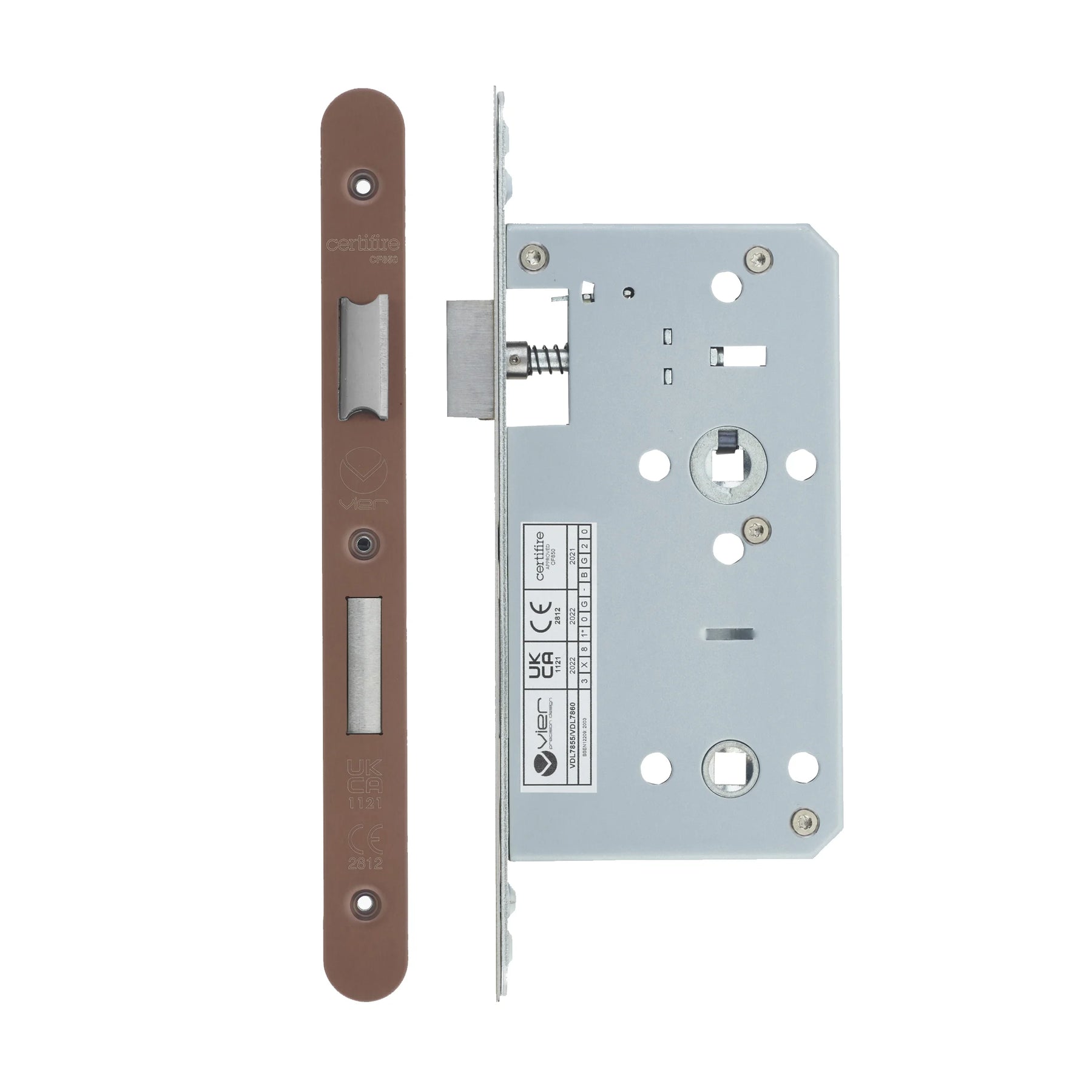

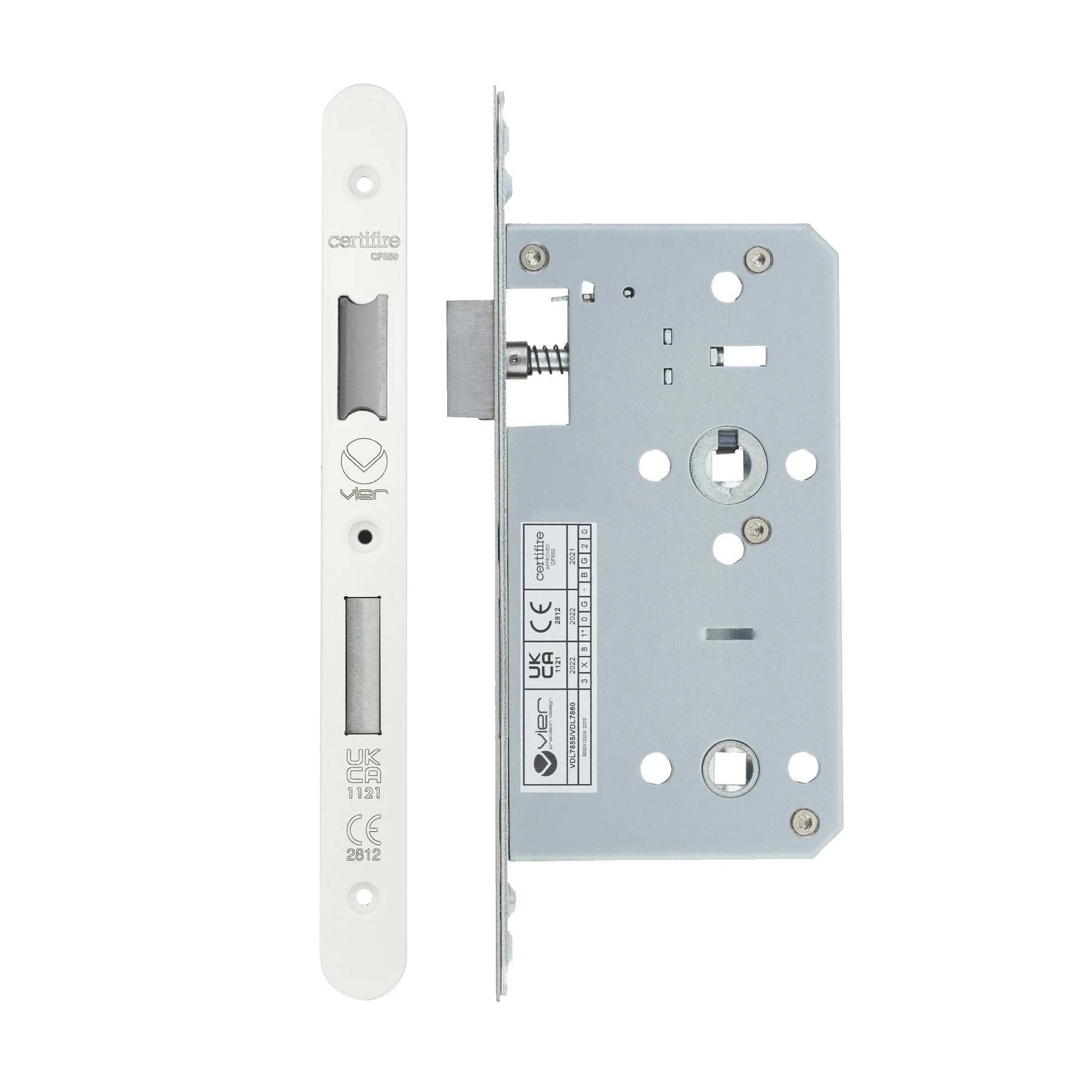

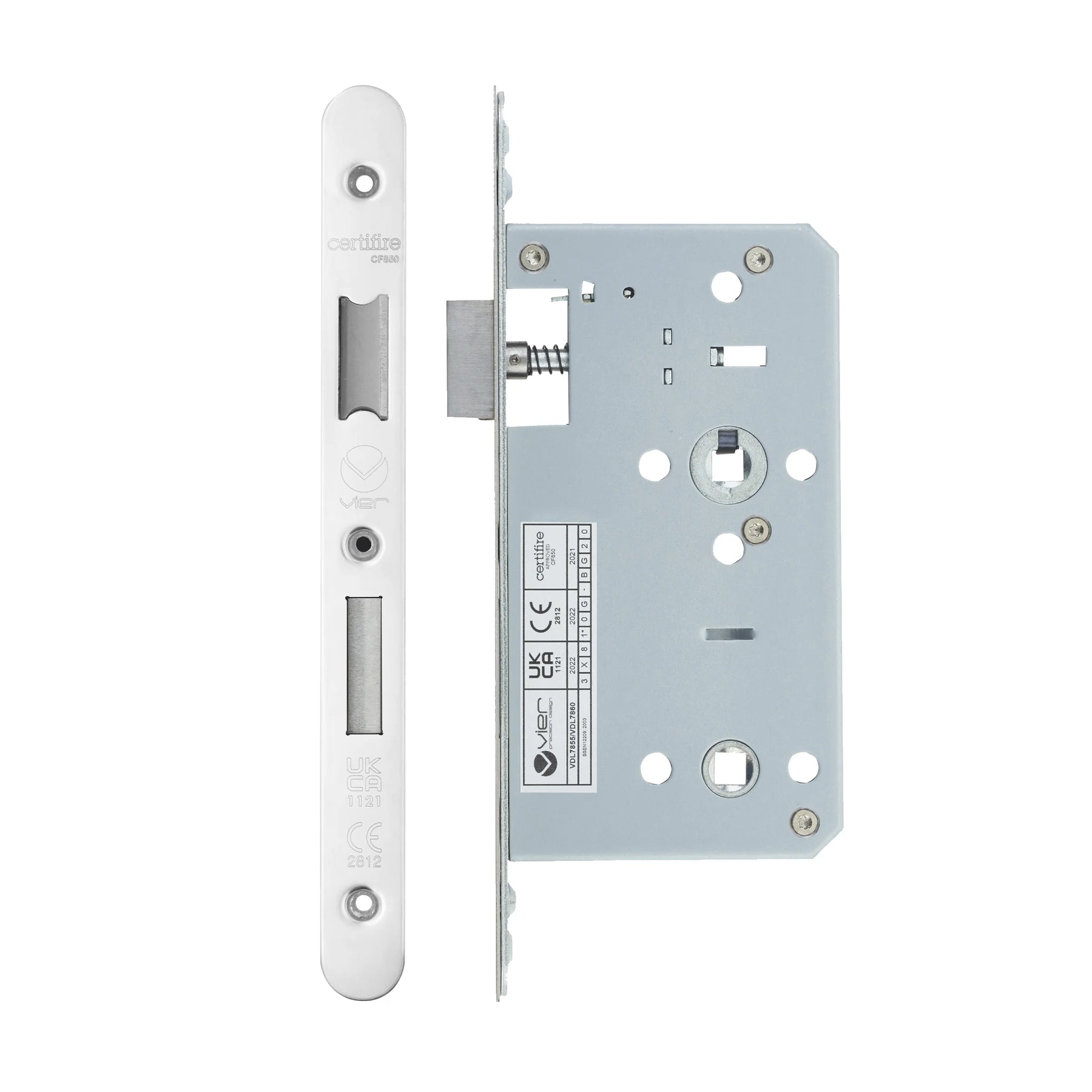

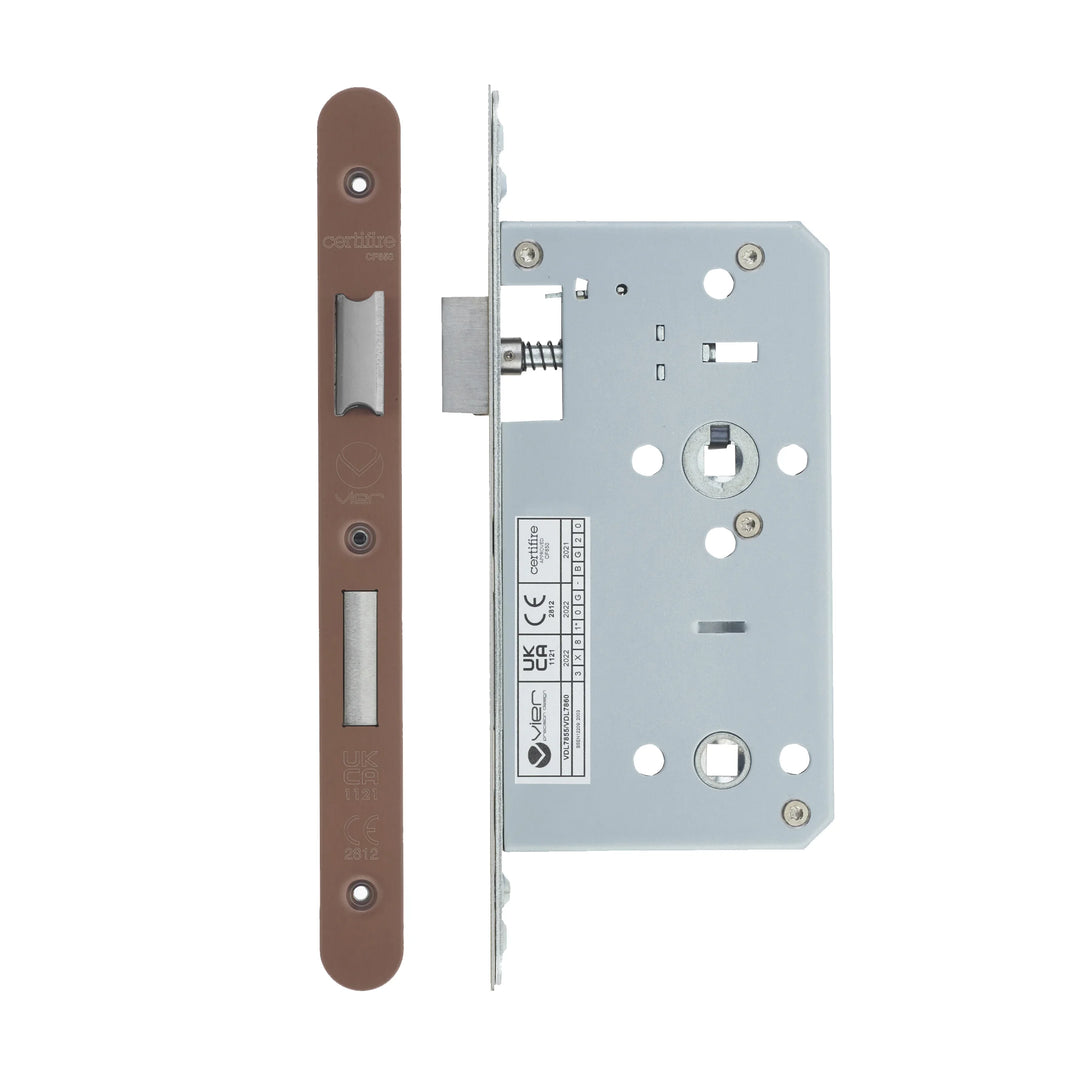

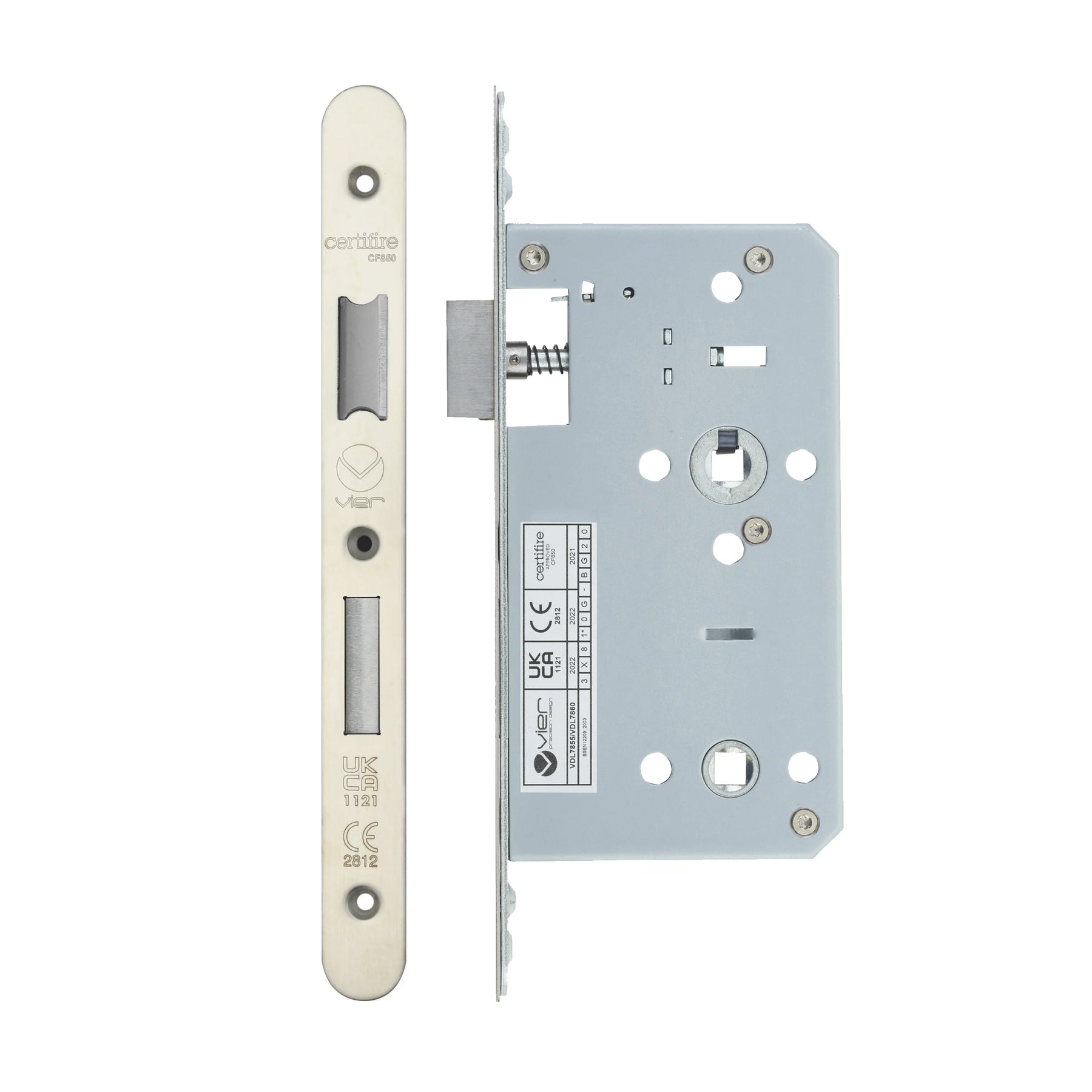

Zoo Hardware European DIN radius bathlock case with stainless steel 22mm wide radius two-piece forend and striking plate, with stainless steel latch and deadbolt which is suitable for domestic and commercial projects.

The bathlock has a backset (distance from edge of door to handle/toilet set) of 60mm and is suitable for un-sprung lever handles and toilet sets with 5 or 8mm spindle bar.

The distance between the centre of the lever handle and toilet set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks.

This strongly sprung bathlock also has a "grip-tight" follower that eliminates the wobble that can felt when operating the lever handles with other makers bathroom locks.

This bathlock is CE Marked and conforms to European standard EN12209:2003 Classification 3X810G-BG20 and to the dimensional characteristics of DIN 18251 and comes with a 5 year guarantee.

Certifire approved (CF850) for use on 30 and 60 minute fire rated doors when used in conjunction with available intumescent packs.

DIMENSIONS:
60mm Backset
90mm Case
78mm Centres

FINISHES:
Antique Brass
Satin Stainless Steel
Polished Stainless Steel
Powder Coated Black
PVD Satin Black
PVD Satin Brass
PVD Satin Bronze
PVD Satin Gold
Powder Coated White
