Zoo Hardware European DIN Radius Bathlock - 2 Piece - 55mm

Zoo Hardware European DIN Radius Bathlock - 2 Piece - 55mm

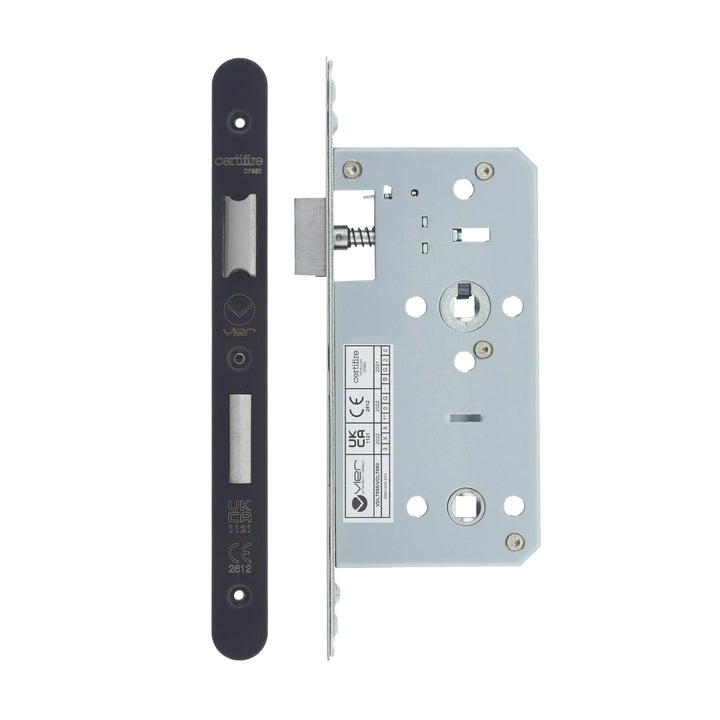

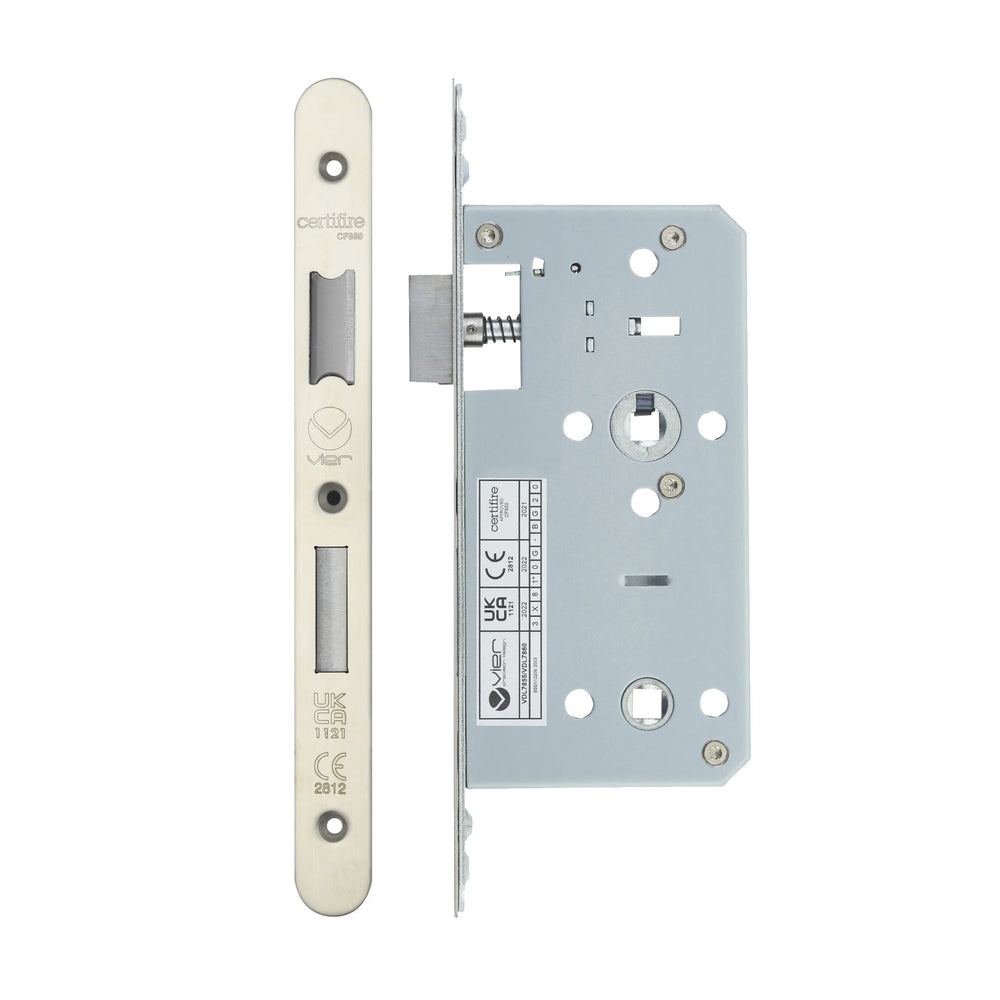

Zoo Hardware European DIN radius bathlock case with stainless steel 22mm wide radius two-piece forend and striking plate, with stainless steel latch and deadbolt which is suitable for domestic and commercial projects.

This strongly sprung bathlock has a backset (distance from edge of door to handle/toilet set) of 55mm and is suitable for un-sprung lever handles and toilet sets with 5 or 8mm spindle bar.

The distance between the centre of the lever handle and toilet set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks.

This bathlock also has a "grip-tight" follower that eliminates the wobble that can felt when operating the lever handles with other makers bathroom locks.

This bathlock is CE Marked and conforms to European standard EN12209:2003 Classification 3X810G-BG20 and to the dimensional characteristics of DIN 18251 and comes with a 5 year guarantee.

Certifire approved (CF850) for use on 30 and 60 minute fire rated doors when used in conjunction with available intumescent packs.

FINISHES:

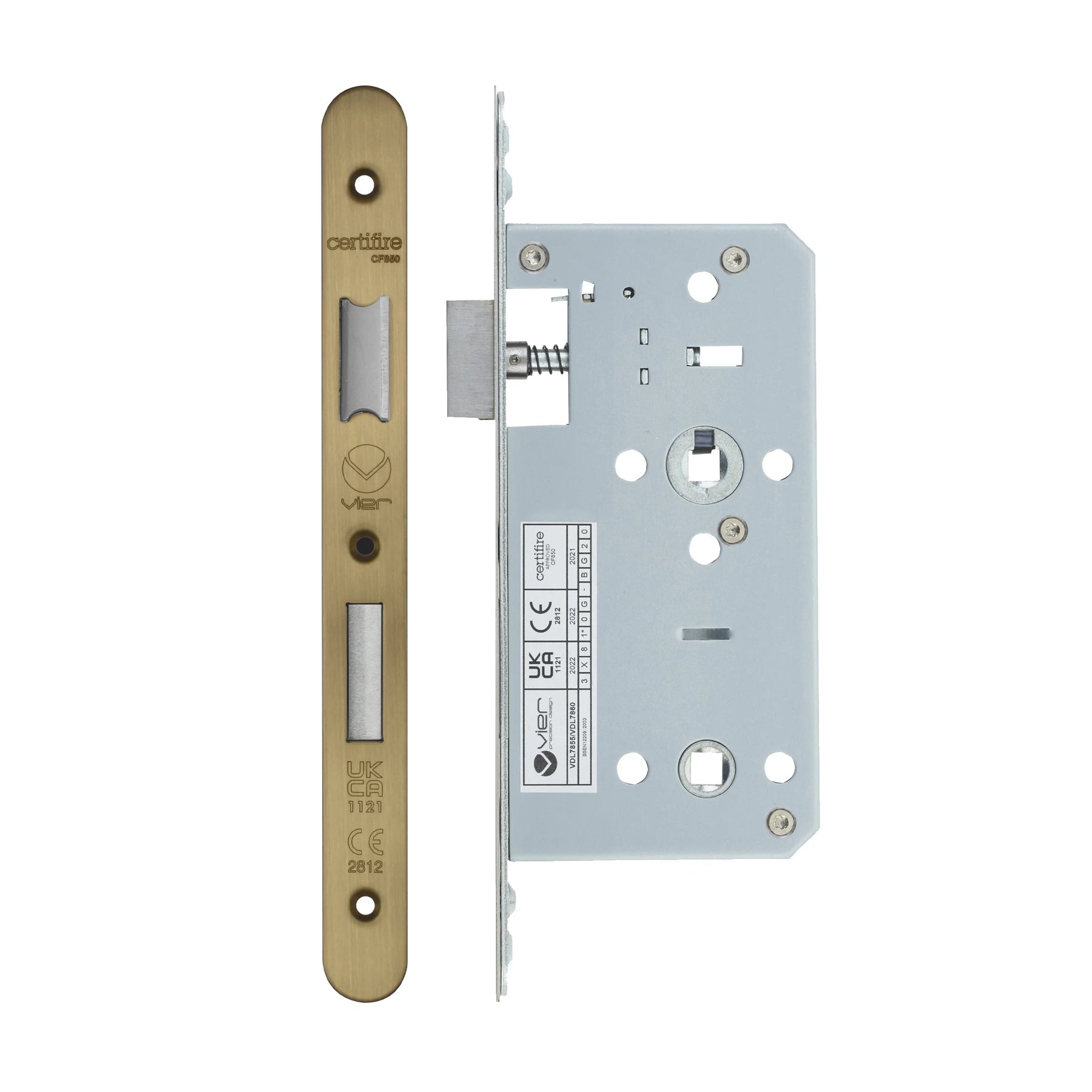

Antique Brass

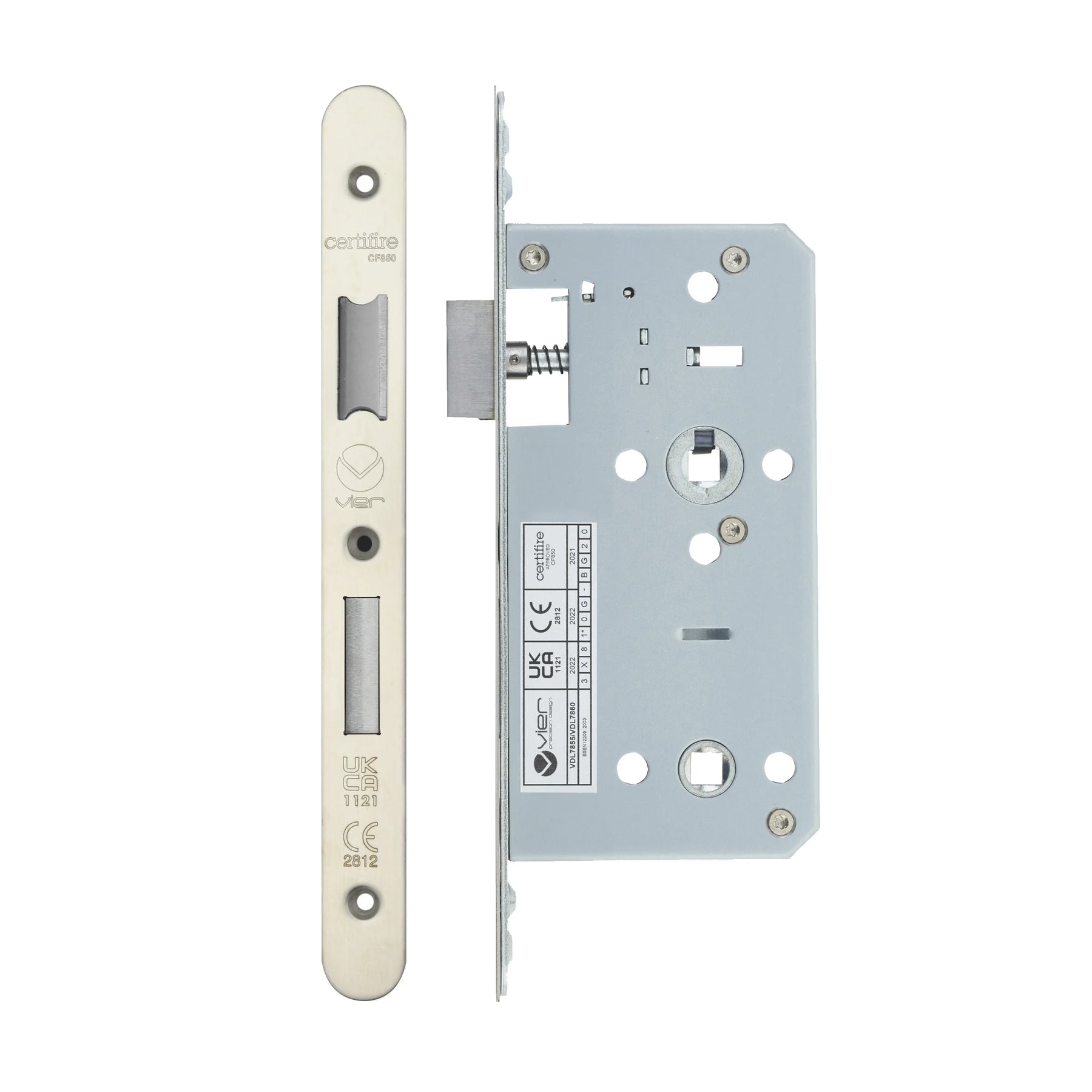

Satin Stainless Steel

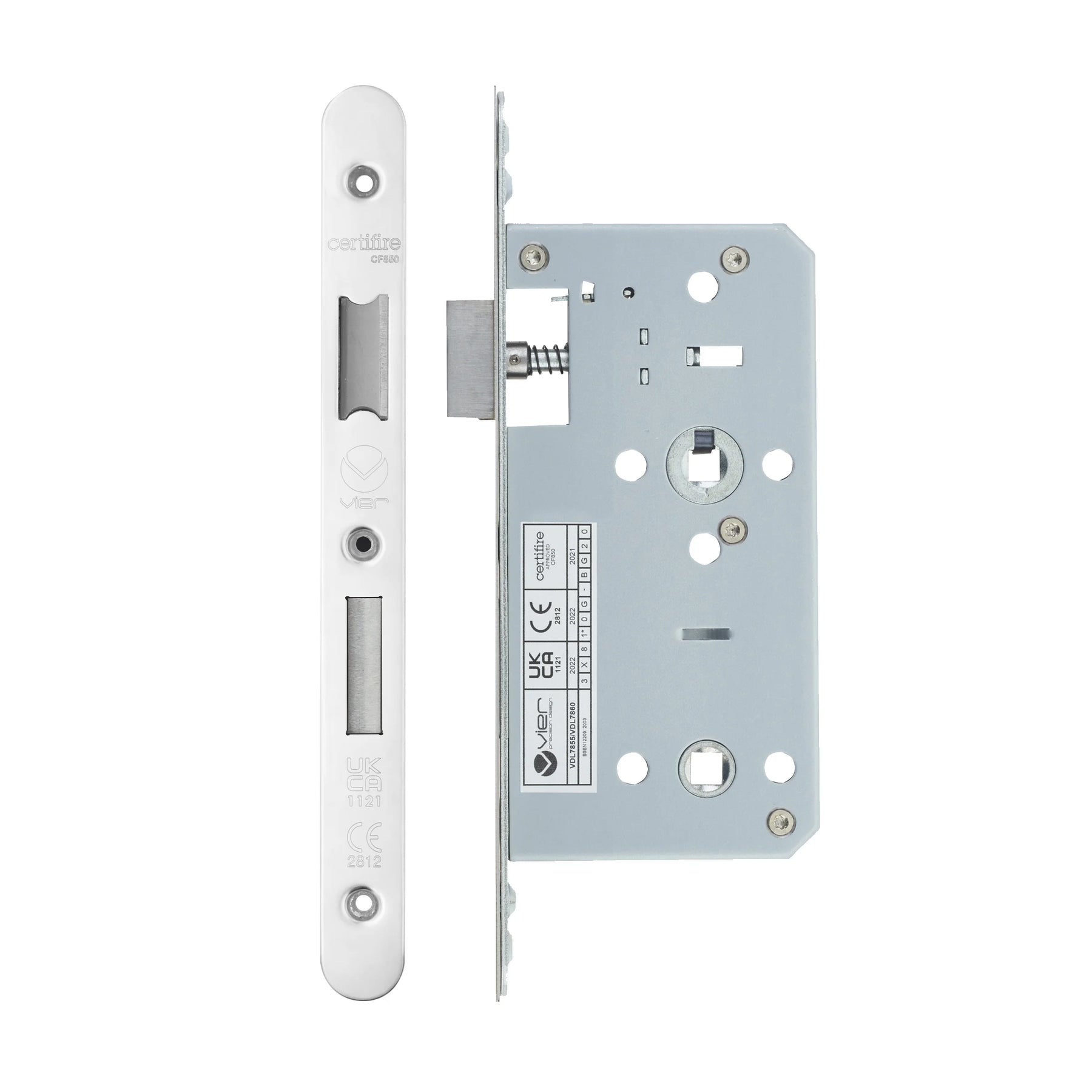

Polished Stainless Steel
Powder Coated Black

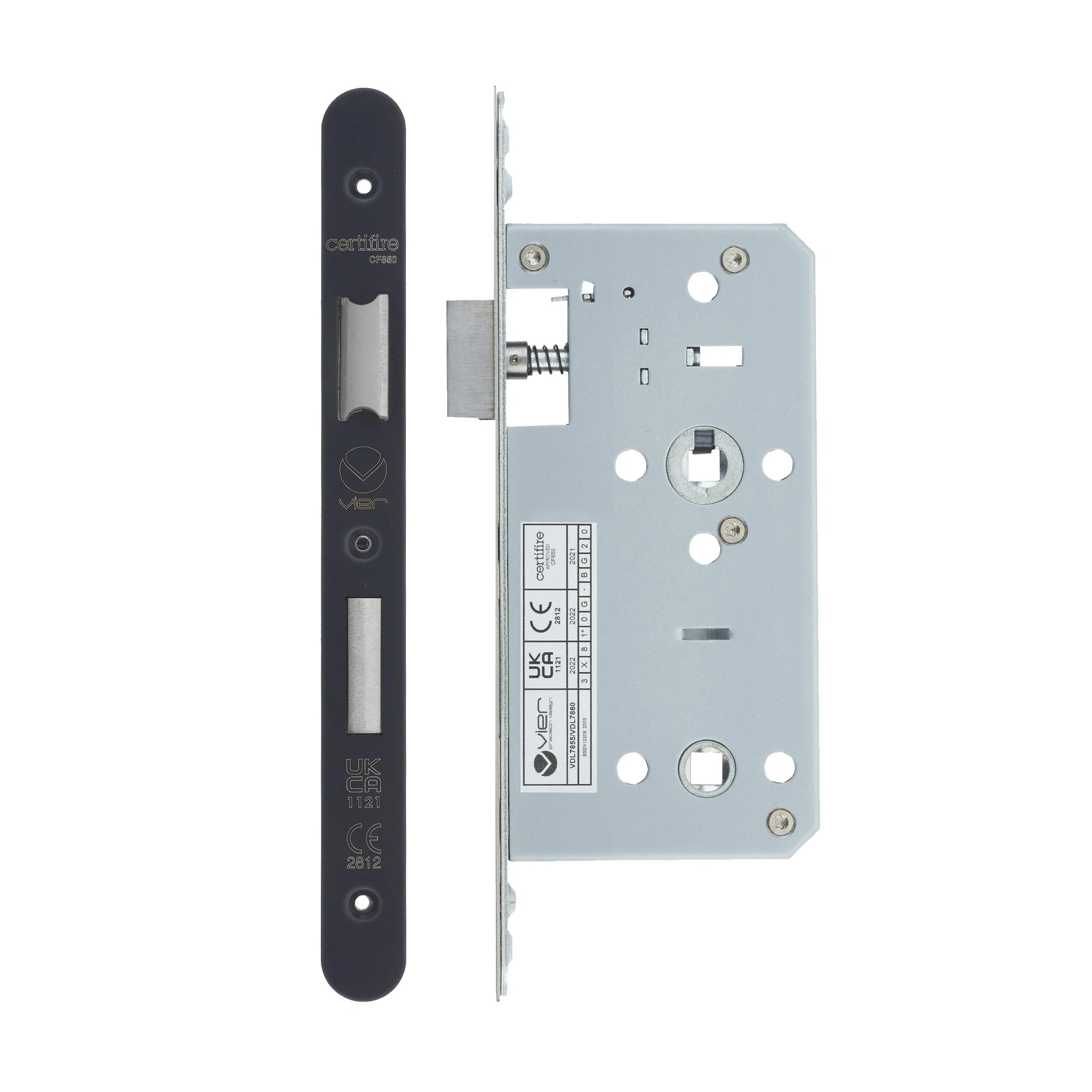

PVD Satin Black

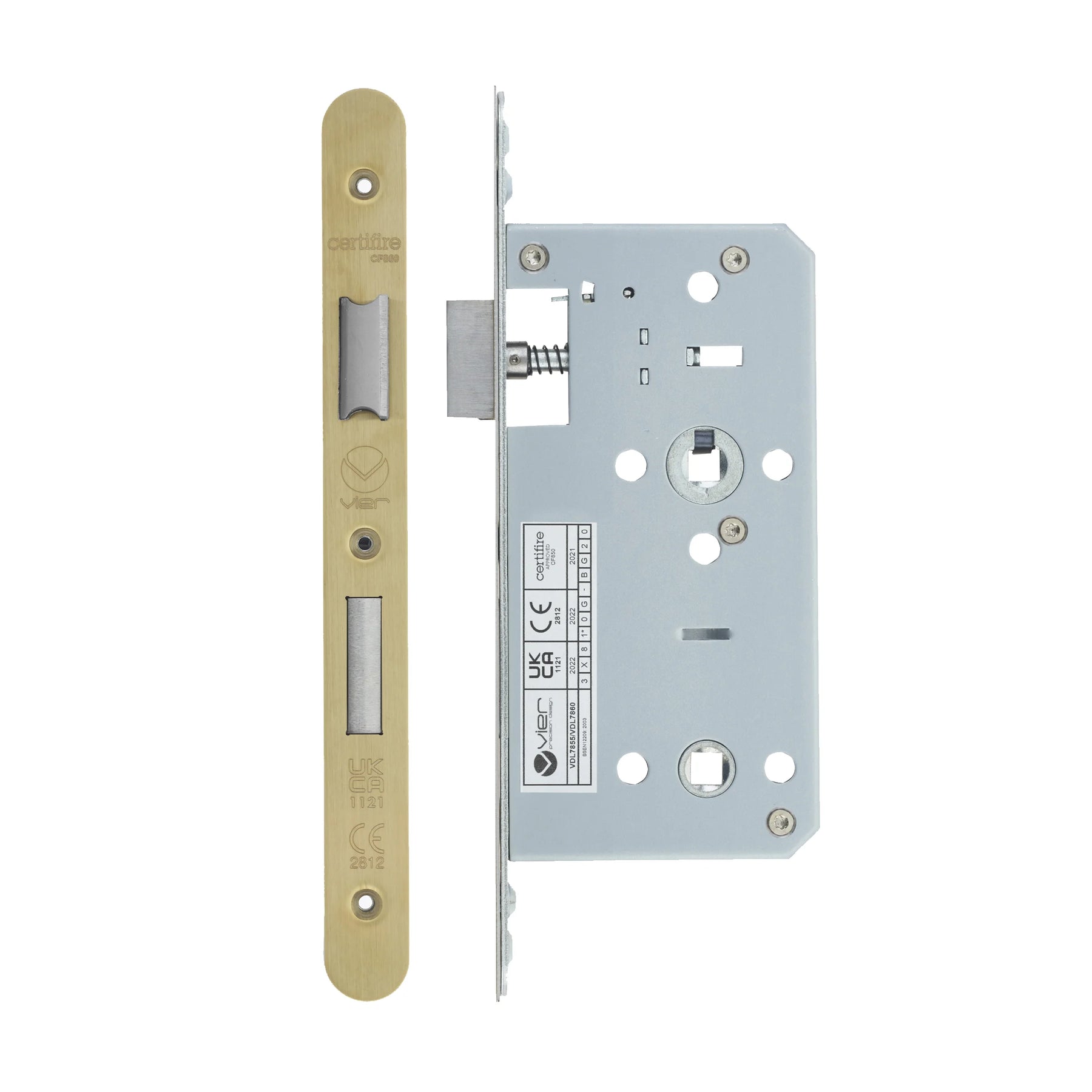

PVD Satin Brass

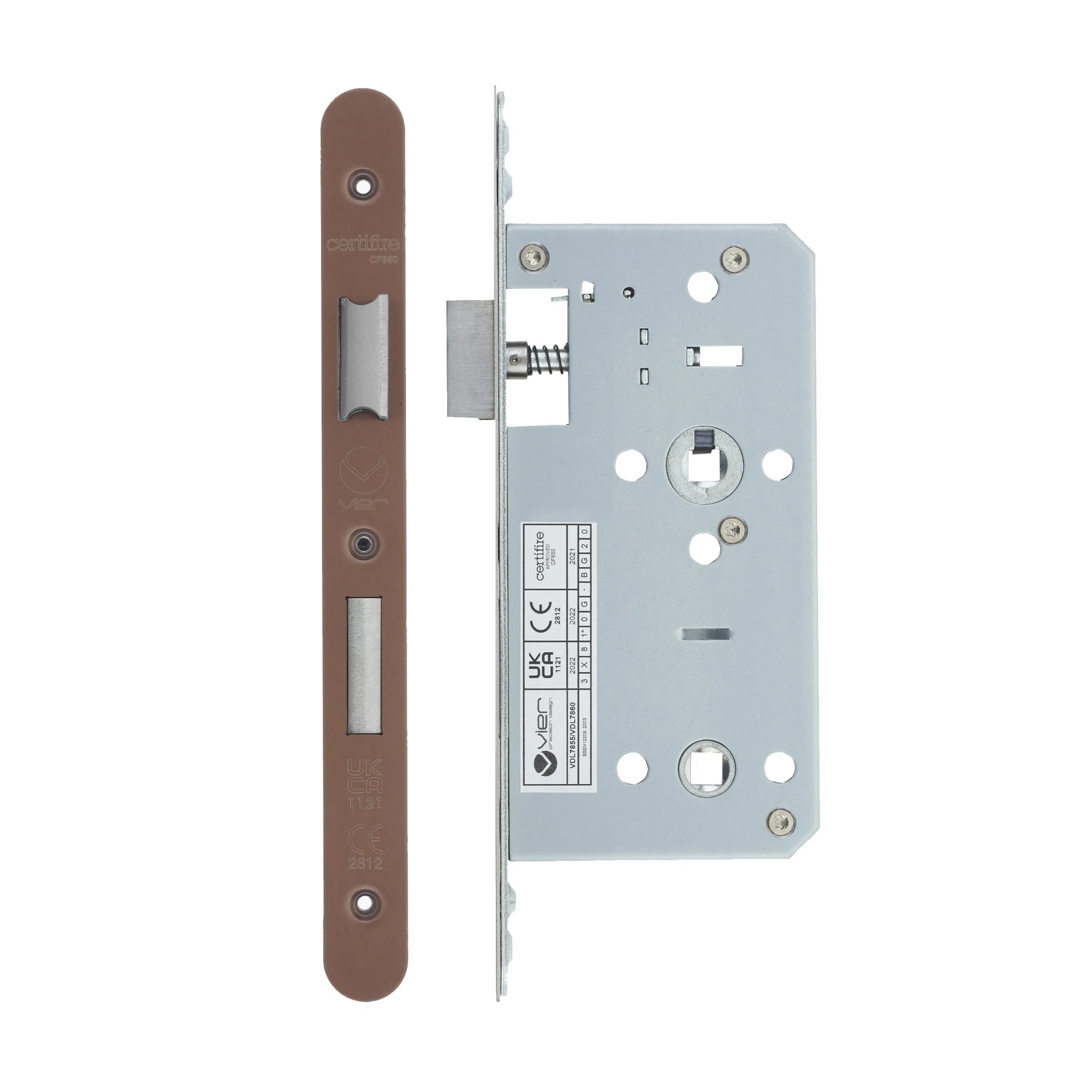

PVD Satin Bronze

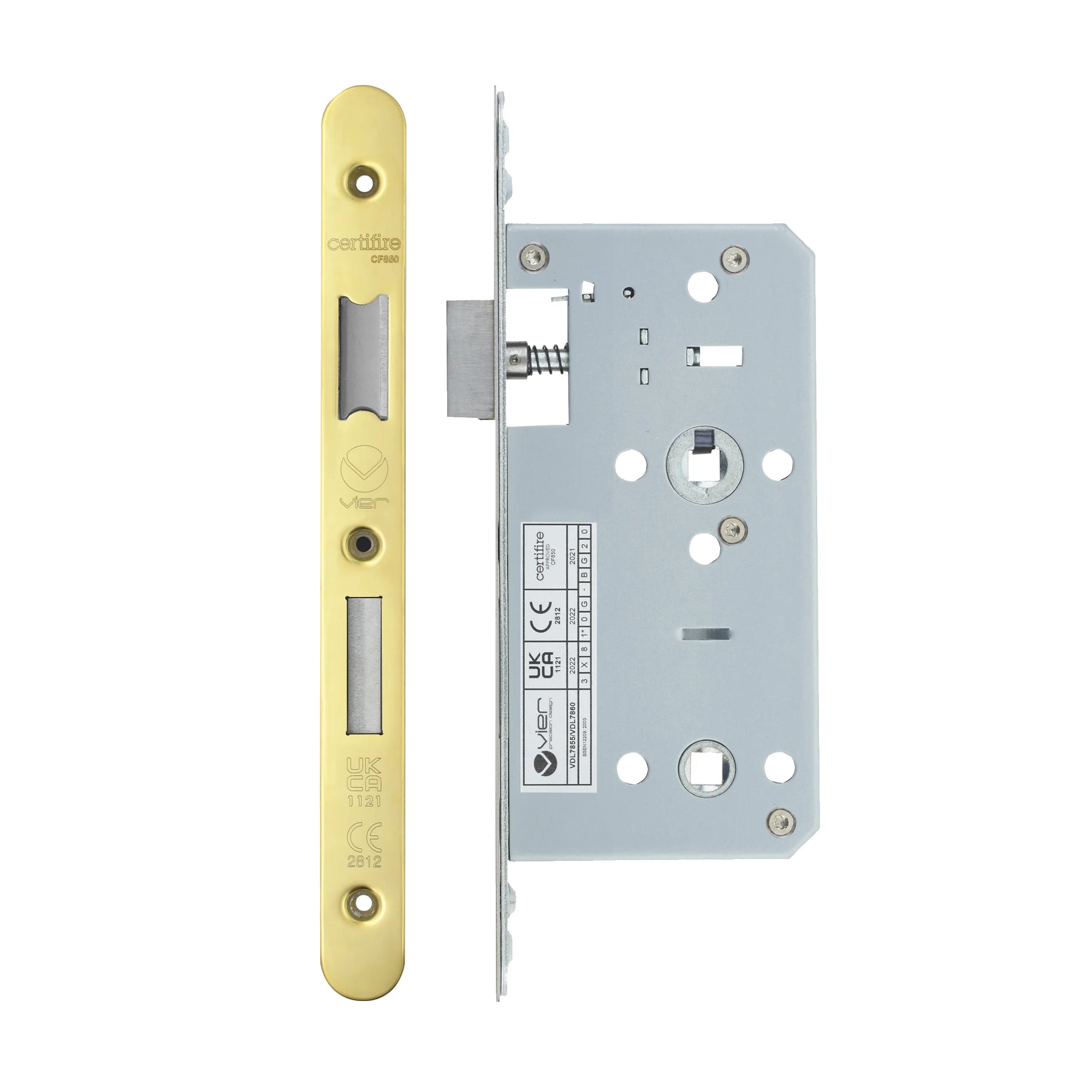

PVD Satin Gold

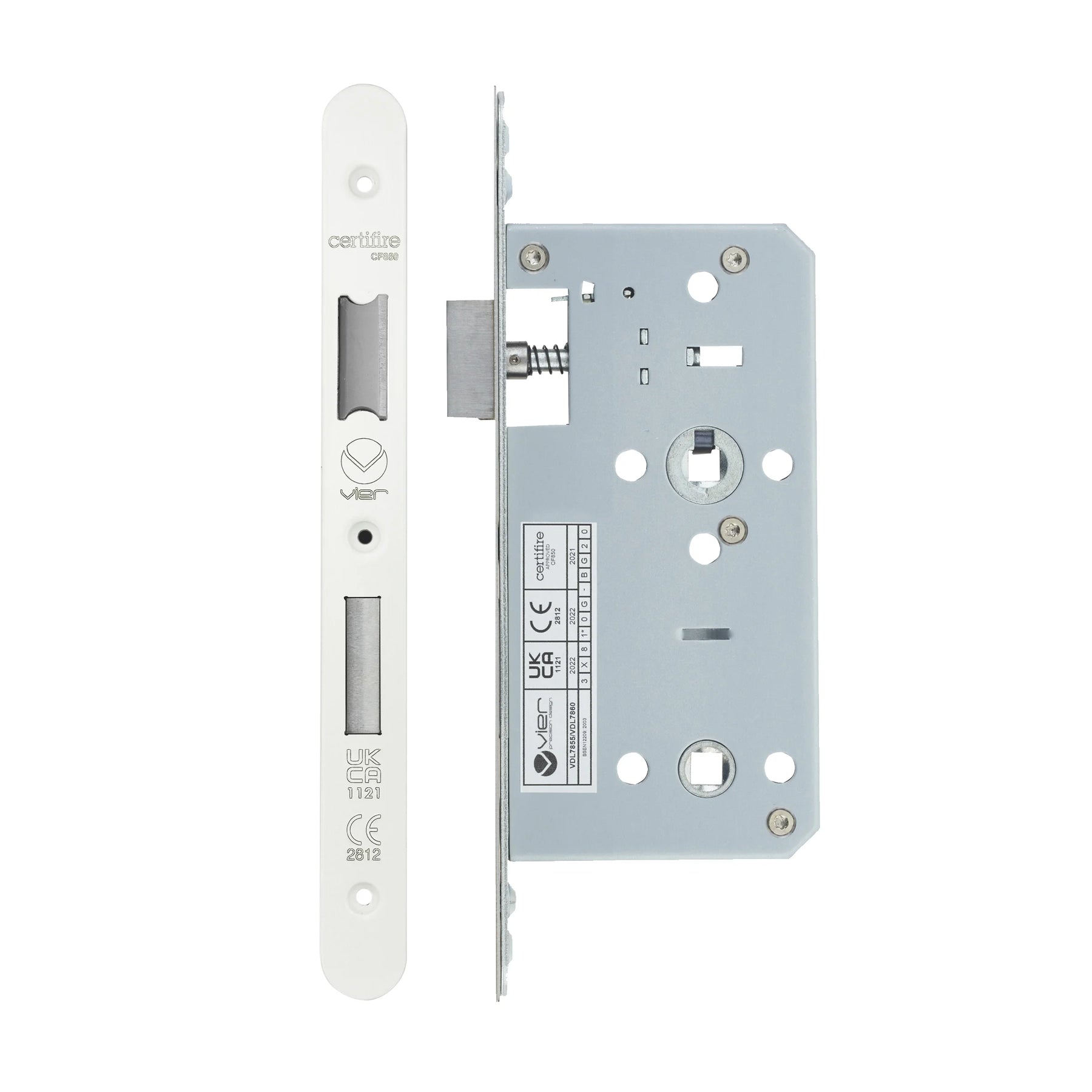

Powder Coated White

Please select file below to view more information about this product
