Simonswerk TE540 3D Concealed Hinge - 120kgs

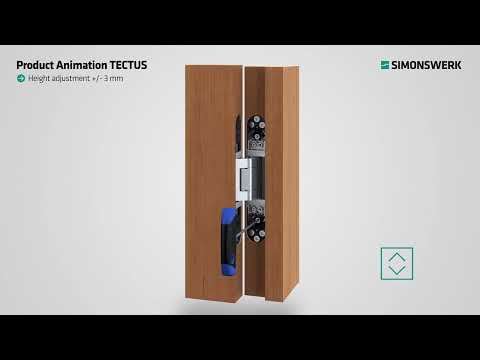

The Tectus TE540 3D hinge suits doors up to 120kgs based on two hinges per door leaf size 2000mm high x 1000mm wide with a minimum door thickness of 40mm. Suitable for timber, steel or aluminium frames with 3 dimensional adjustment (+/-3mm side and height and +/-1.5mm compression). 180 degree opening angle.
There are two versions available for selection - Non-fire rated and fire rated to suit FD30 fire doors (with integrated intumescent kit where three hinges must be fitted) which can be selected via the drop down.
Supplied with fixings.
Please note that these are sold singly

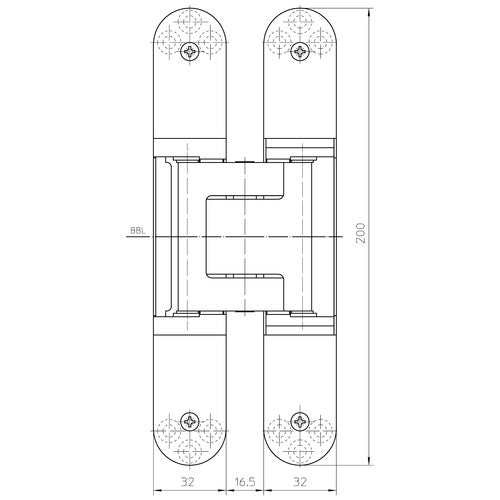

DIMENSIONS:
200mm High
32mm Frame Width
32mm Door Width
FINISH:

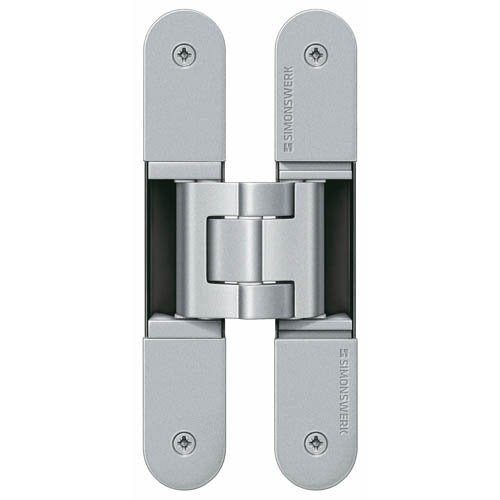

Satin Chrome Look (F1/SW 124)

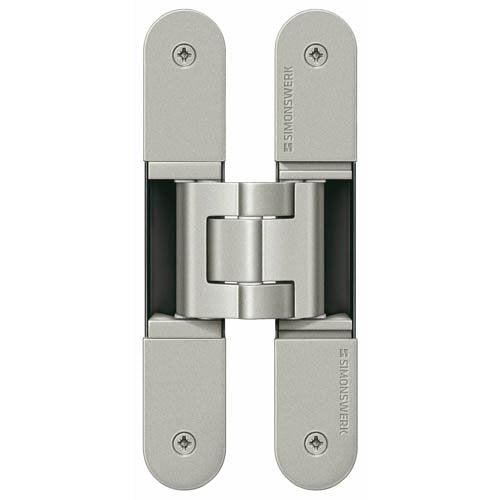

Satin Nickel Look (F2/SW 125)

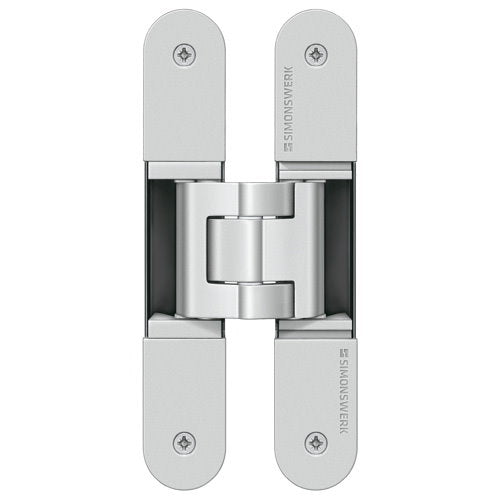

Stainless Steel Look (SW 126)

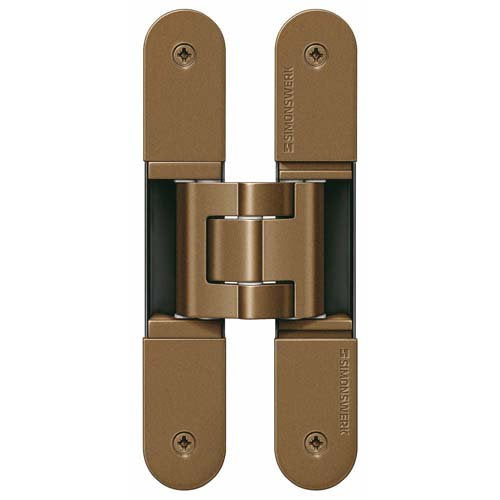

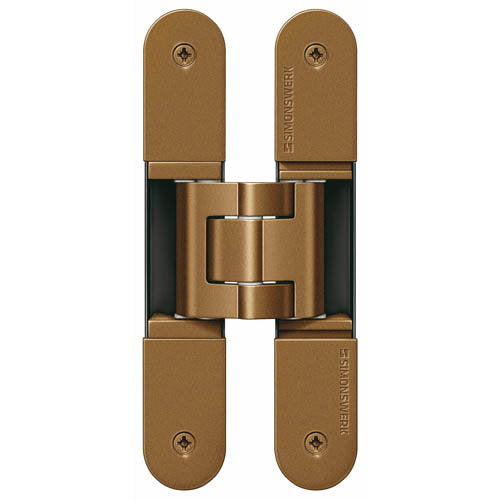

Bronze Metallic (SW 168)

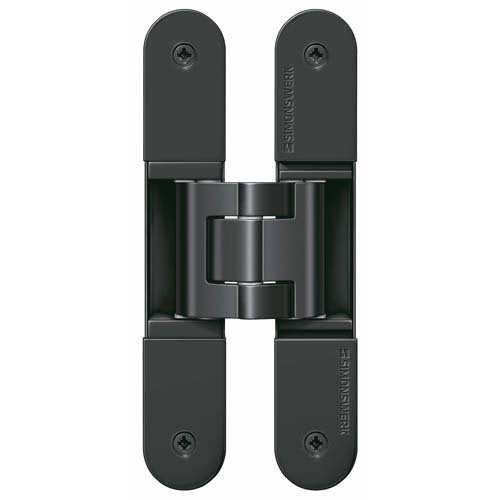

Matt Black - RAL9005 (SW 107)

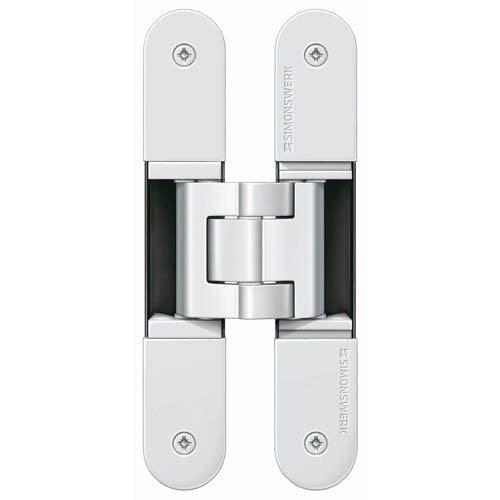

Traffic White - RAL9016 (SW 070)
Rustic Umber (SW 156)

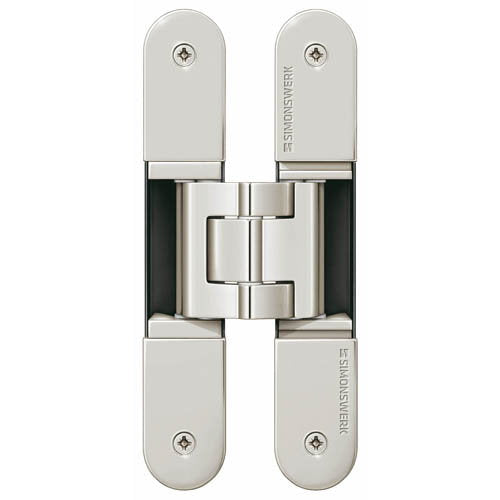

Polished Nickel (SW 038)

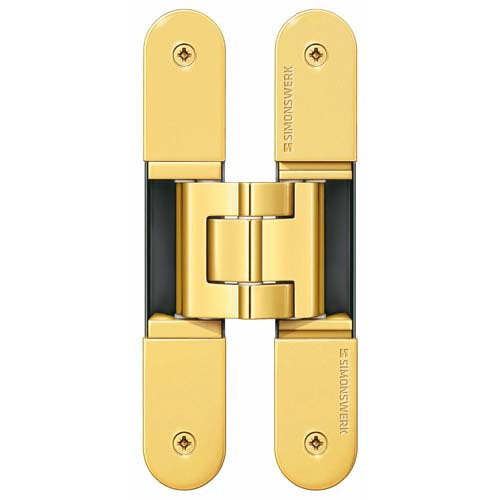

Polished Brass (SW 030)

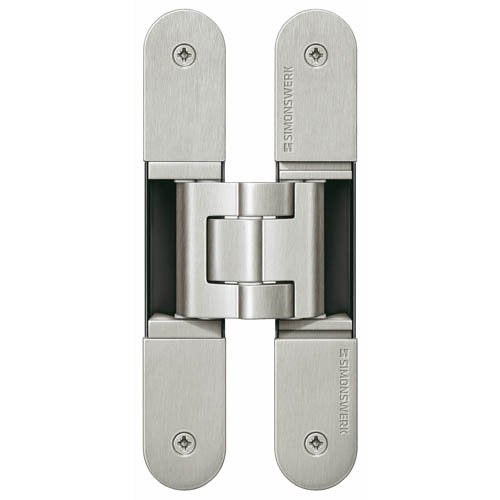

Satin Nickel (SW 144)

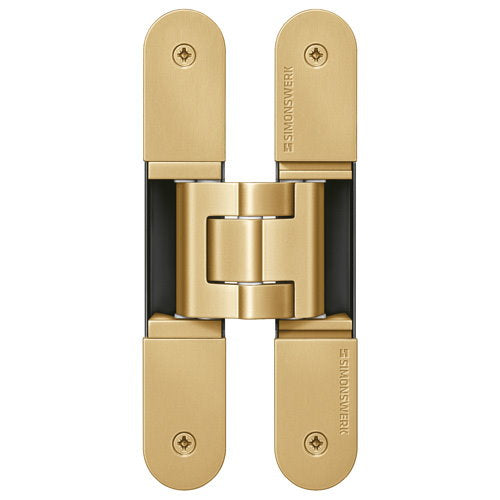

Satin Brass (SW 047)

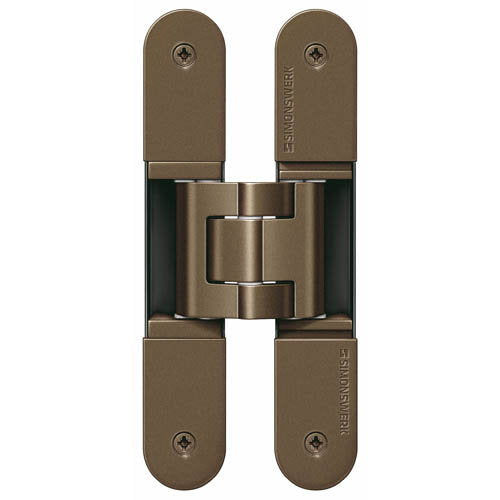

Light Bronze Finish (SW 175)
Mid Bronze Finish (SW 174)

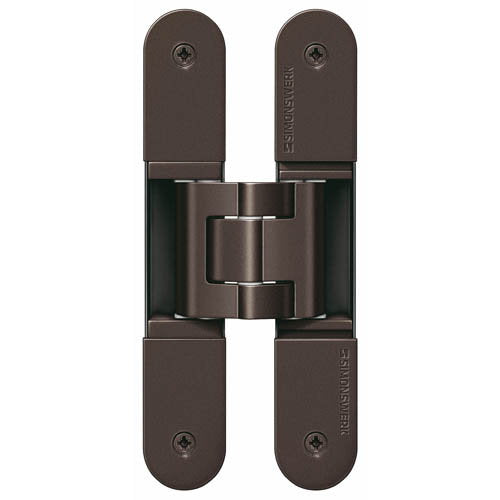

Dark Bronze Finish (SW 176)
