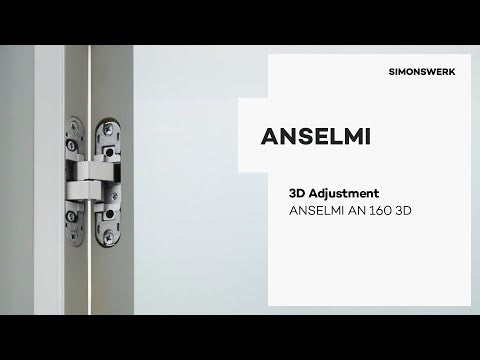

The Simonswerk Anselmi AN150 3D hinge, for unrebated residential doors suits doors up to 40kgs based on two hinges per door leaf size 2100mm high x 900mm wide with a minimum door thickness of 30mm. Suitable for timber or aluminium frames with 3 dimensional adjustment (+/-1.5mm side and +/-2.5mm height and +/-1.0mm compression). 180 degree opening angle with 21mm reduced hinge frame part.
This is a non-fire rated and therefore not suitable for fire doors.
Supplied with fixings.
Please note that these are sold singly

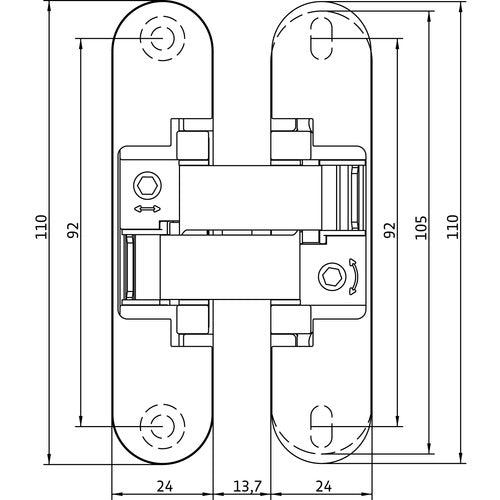

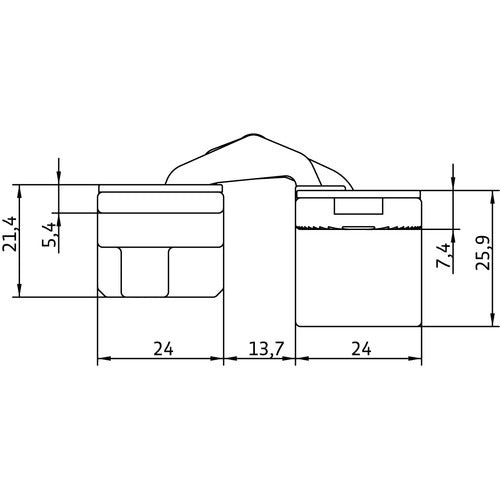

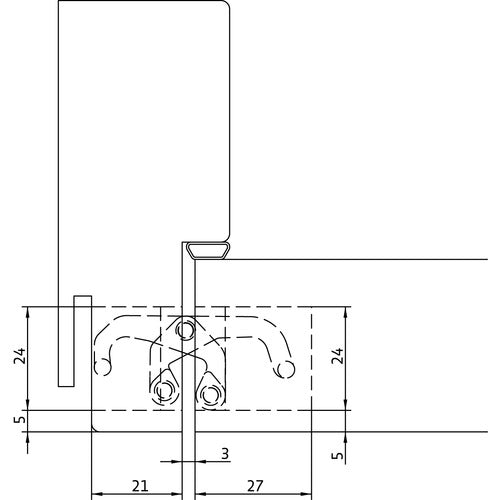

DIMENSIONS:
110mm High
24mm Frame Width
24mm Door Width
FINISH:

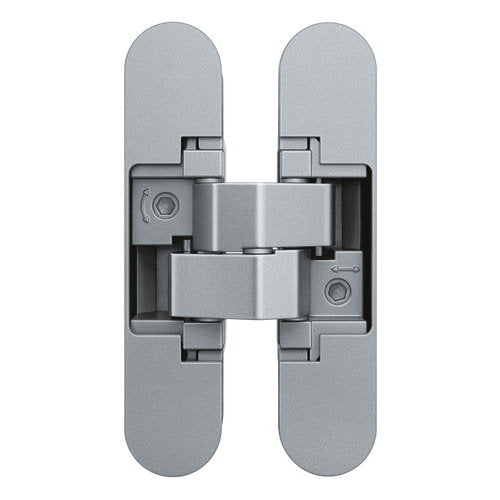

Satin Chrome

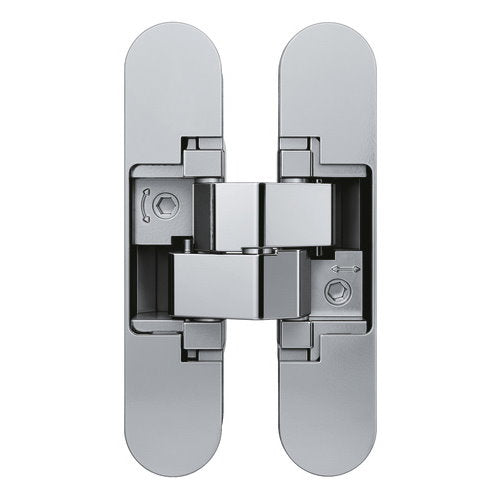

Polished Chrome

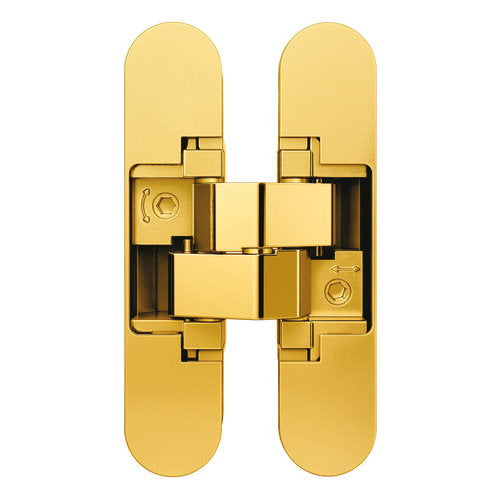

Polished Brass

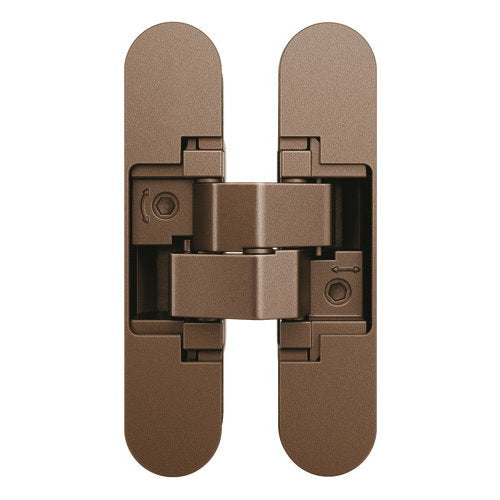

Antique Bronze

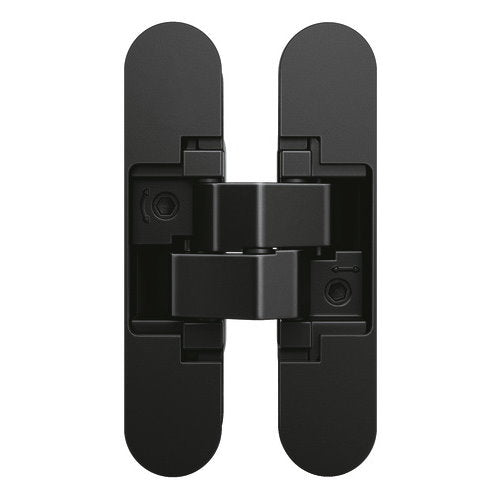

Black

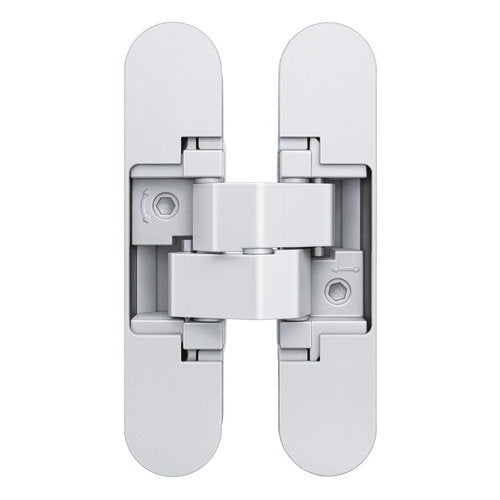

Traffic White (RAL9016)
