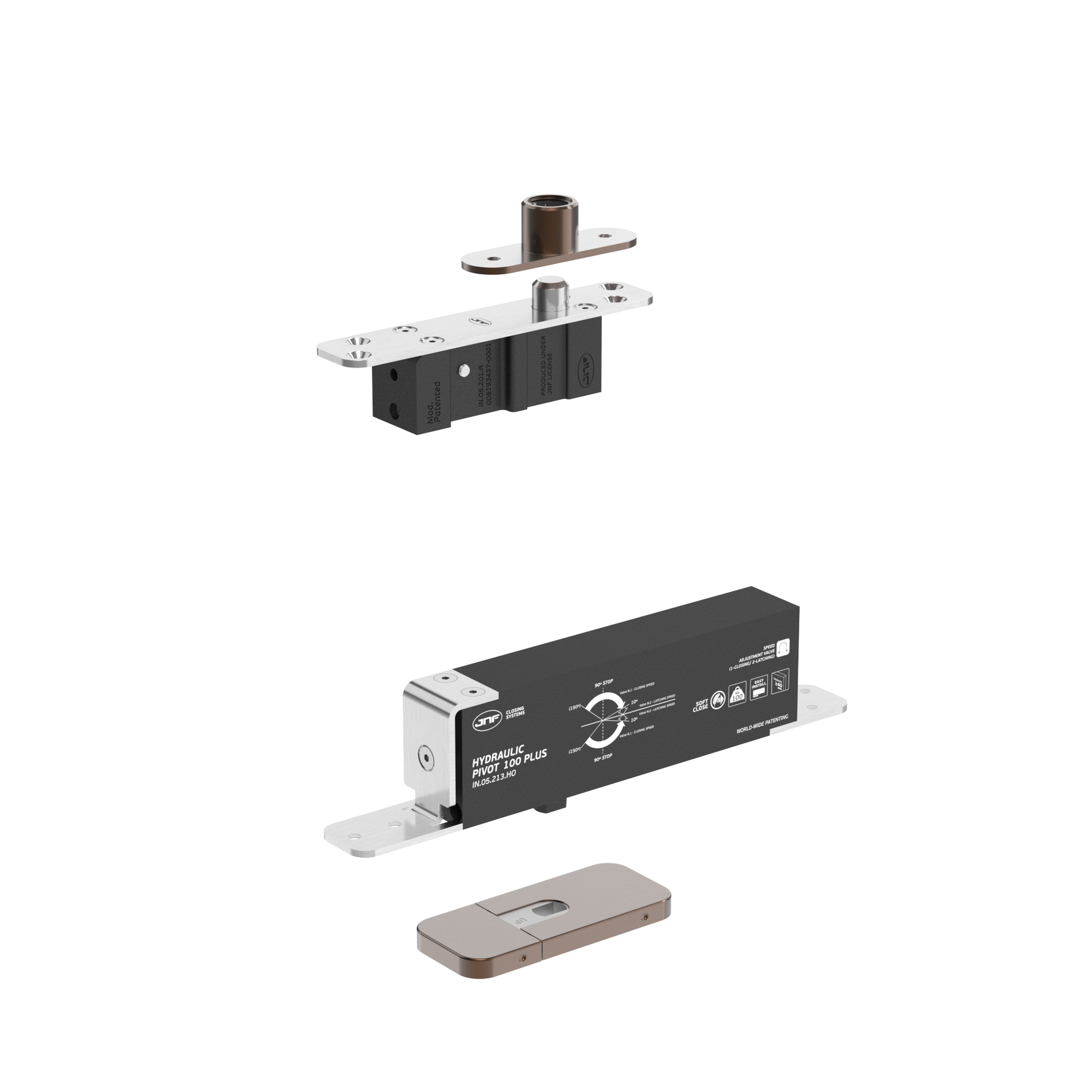

JNF IN.05.213.HO.BH3UP5 double action 100kgs CAM hydraulic timber door offset pivot set - Hold Open

JNF IN.05.213.HO.BH3UP5 Double Action 100kgs CAM Hydraulic Timber Door Offset Pivot Set - Hold Open

The JNF satin grade 304 stainless steel hold open fixed power Size 3, to EN 1154, smooth CAM action DDA compliant hydraulic offset pivot set which is suitable for timber doors weighing up to 100kgs/1500mm wide with a minimum 40mm thickness.

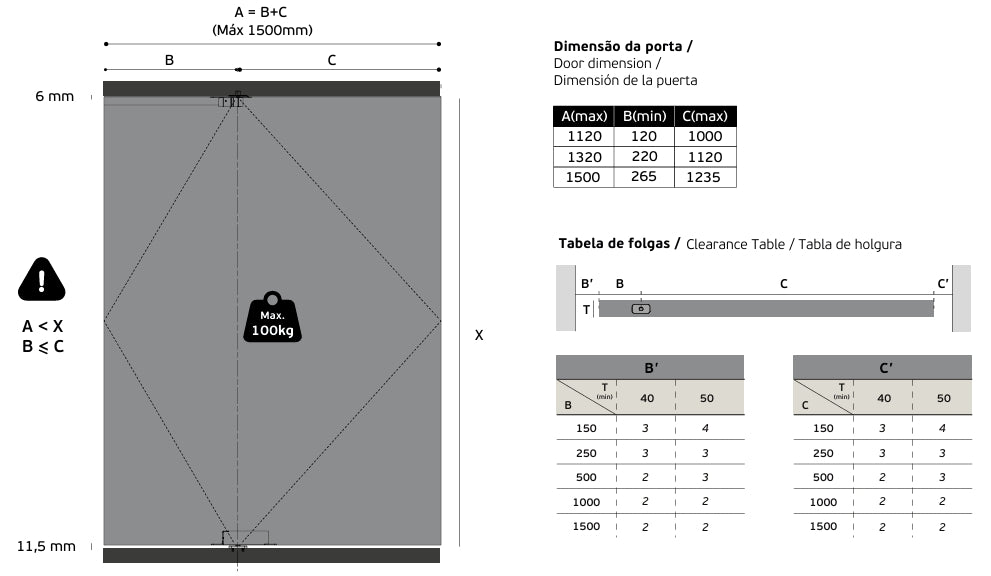

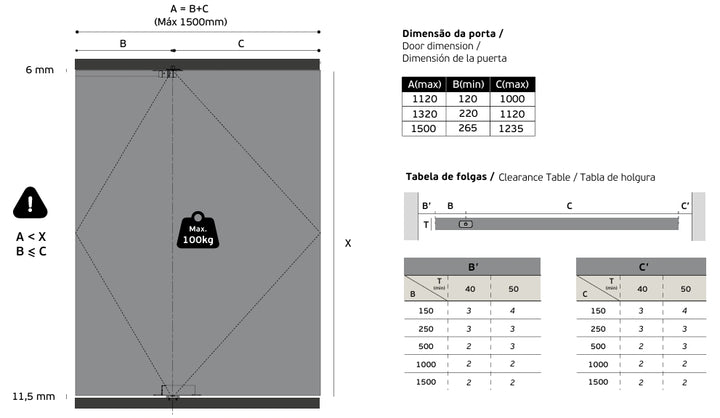

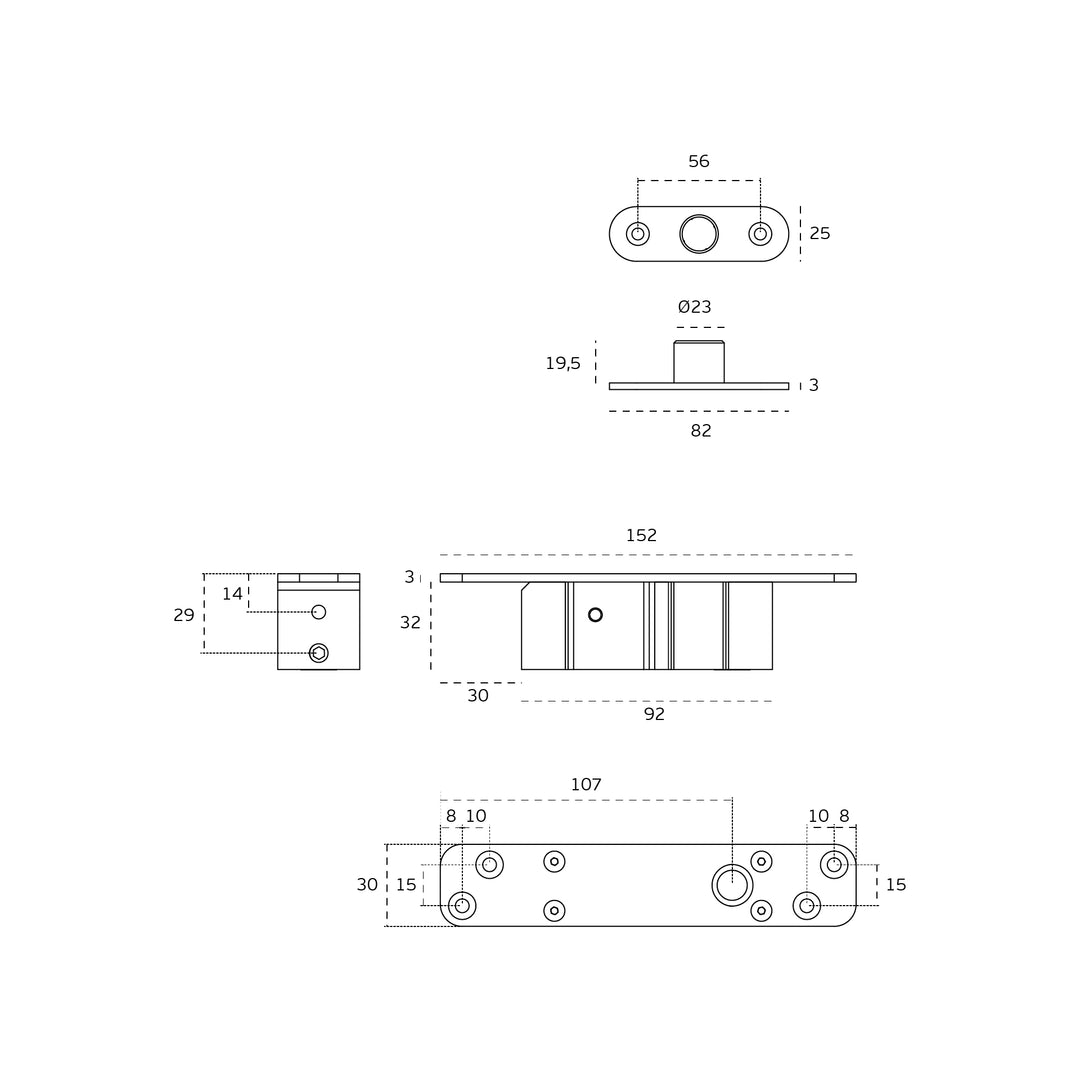

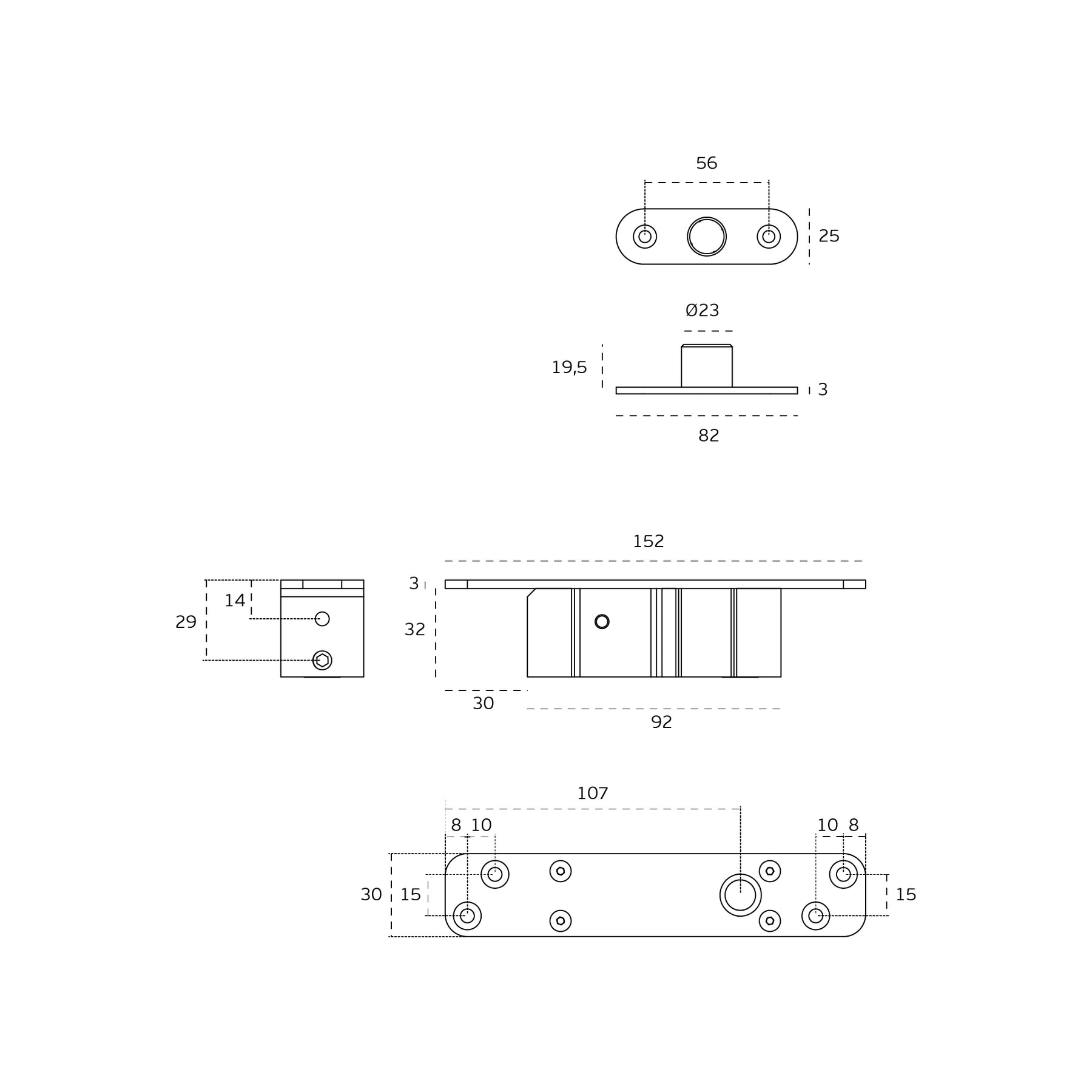

This pivot suits installations where the measurement from the door edge is a minimum of 120mm and maximum 265mm and is supplied with top frame pivot and 25mm deep frame support.

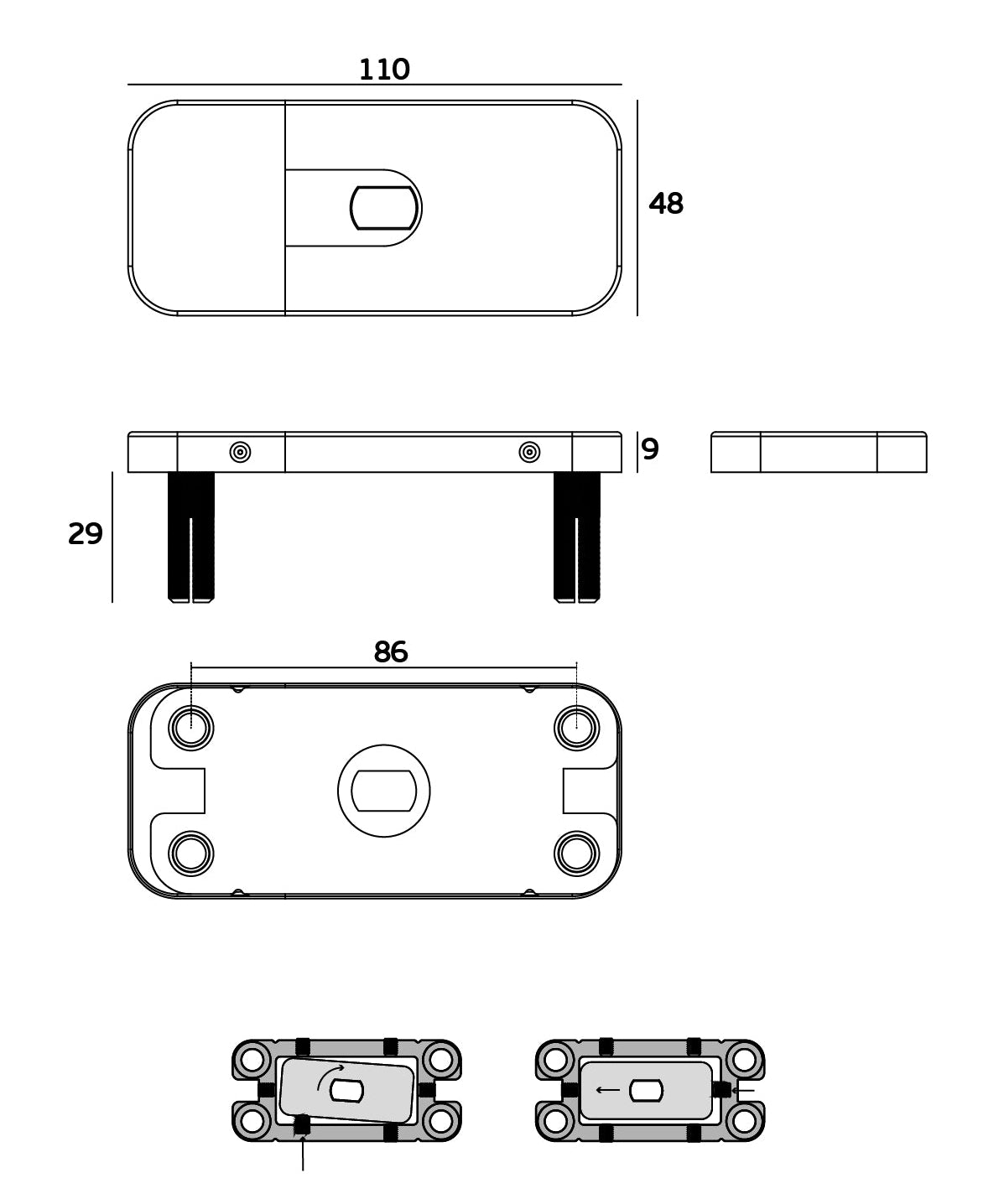

The stainless steel or PVD finished covered BH3 110 x 48mm bottom plate is suitable for concrete and timber floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 6mm top and 11.5mm bottom gap.

The pivot can be held open at 90 degrees and also rotate through 110 degrees with both closing speed and soft closing (last 15 degrees) adjustment made at the door edge.

The JNF Dualmag Pro magnet with 52kgs holding force can be used in order to assist in keeping the door closed at 0 degrees in case of high pressure variations.

View the Technical-Details Tab above for more information or check out the new JNF PivotLab selector website here

FINISH:
Satin Stainless Steel

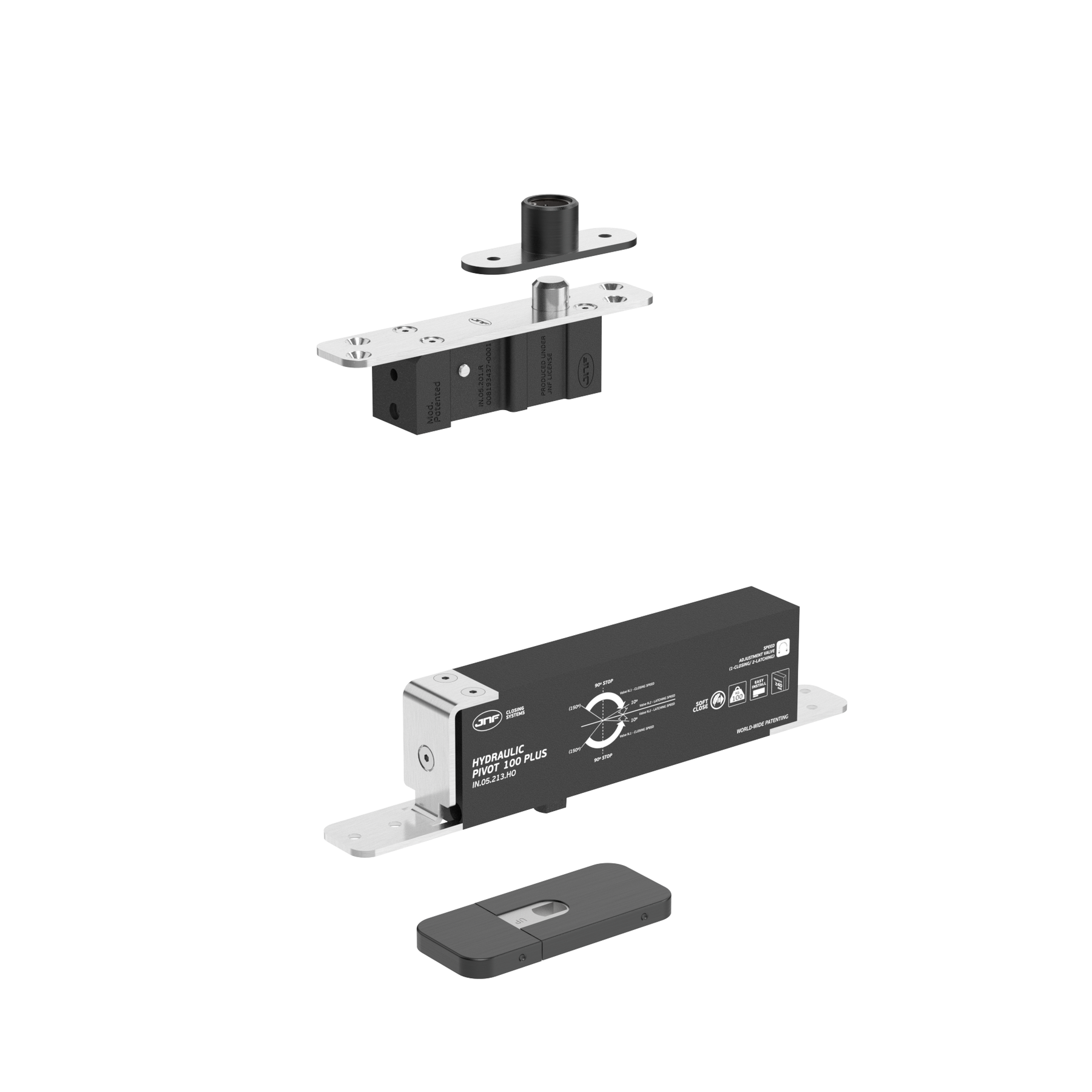

PVD Black
PVD Chocolate

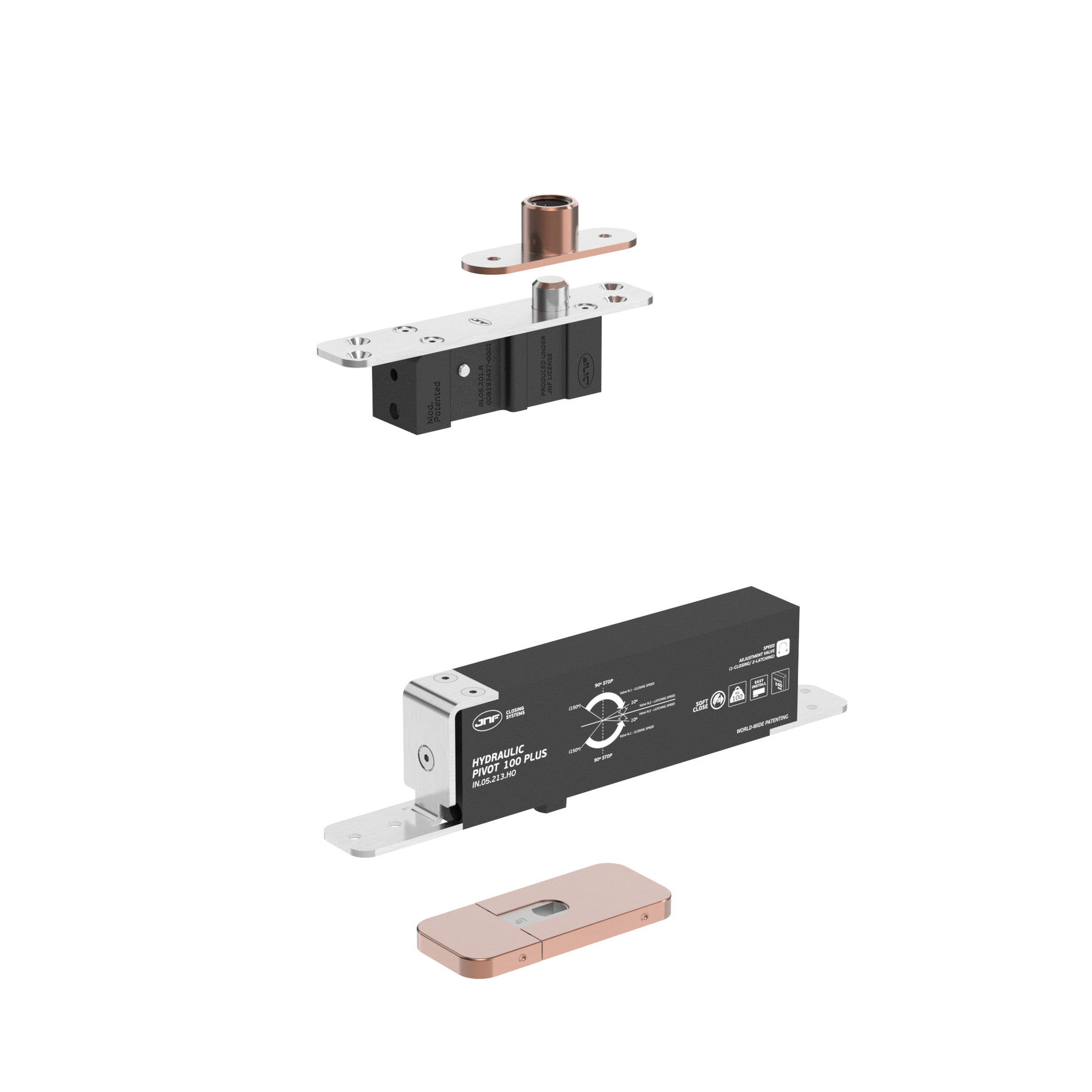

PVD Copper

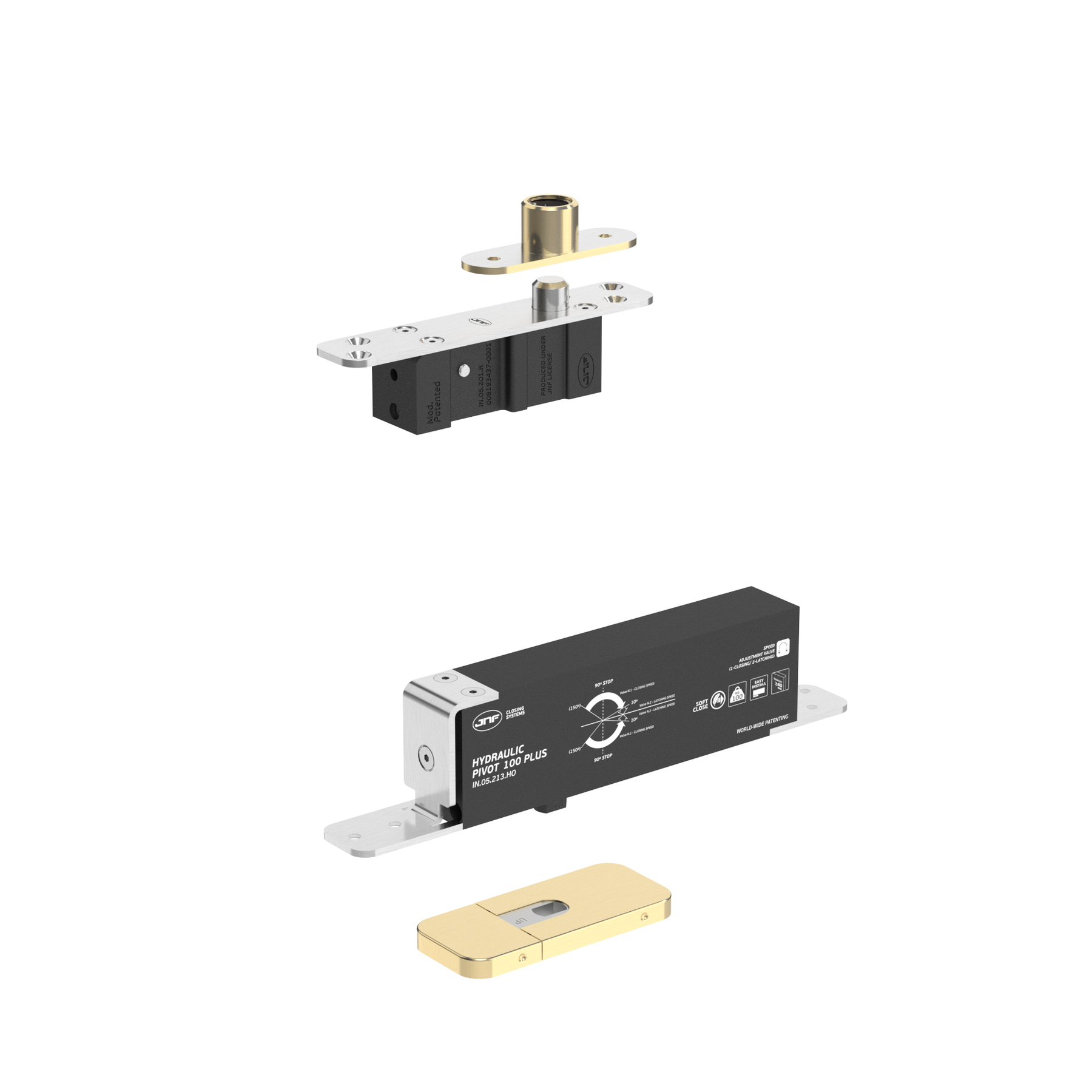

PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
