JNF IN.05.224.HO BH3 Plus Double action 100kgs hydraulic timber door pivot set - Hold Open

JNF IN.05.224.HO.BH3 Plus Double action 100kgs hydraulic pivot set - Hold Open

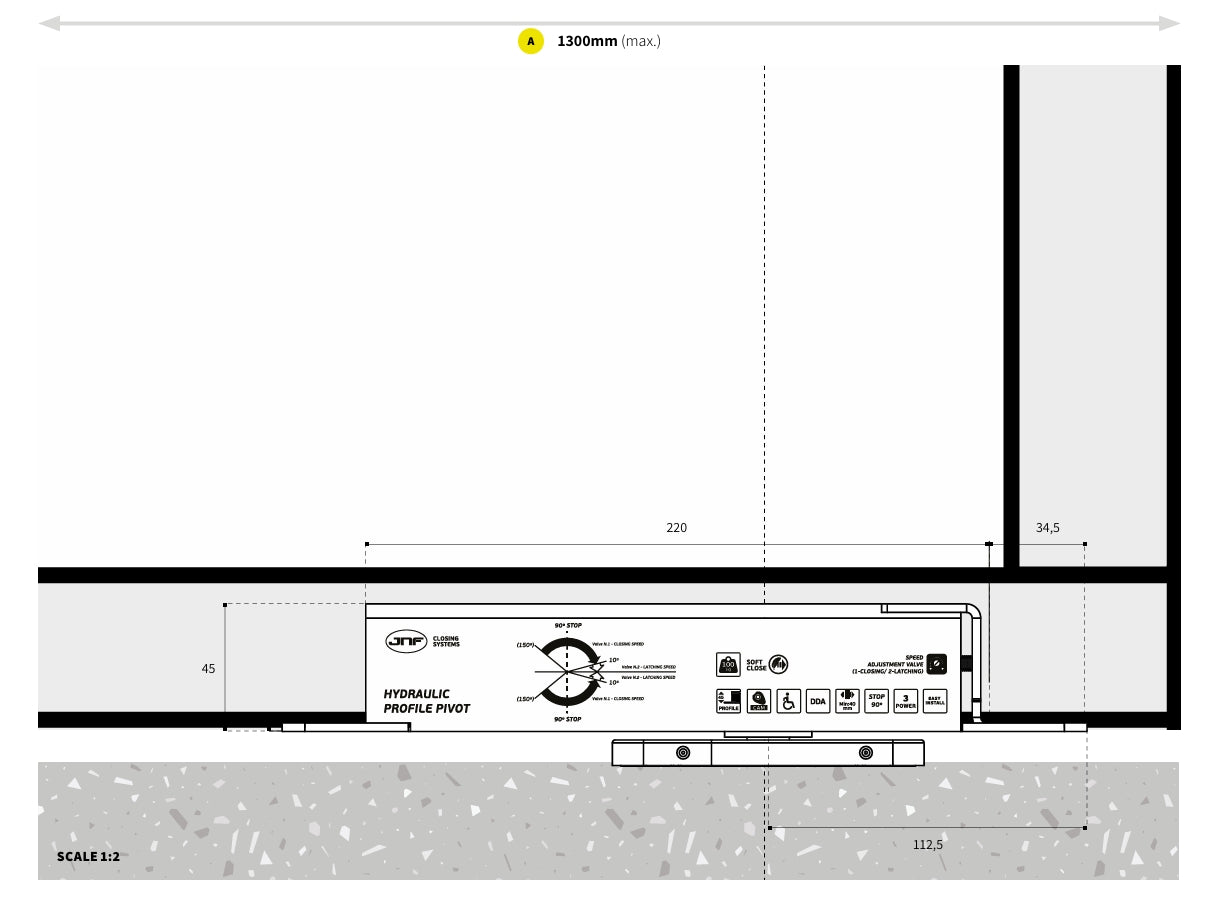

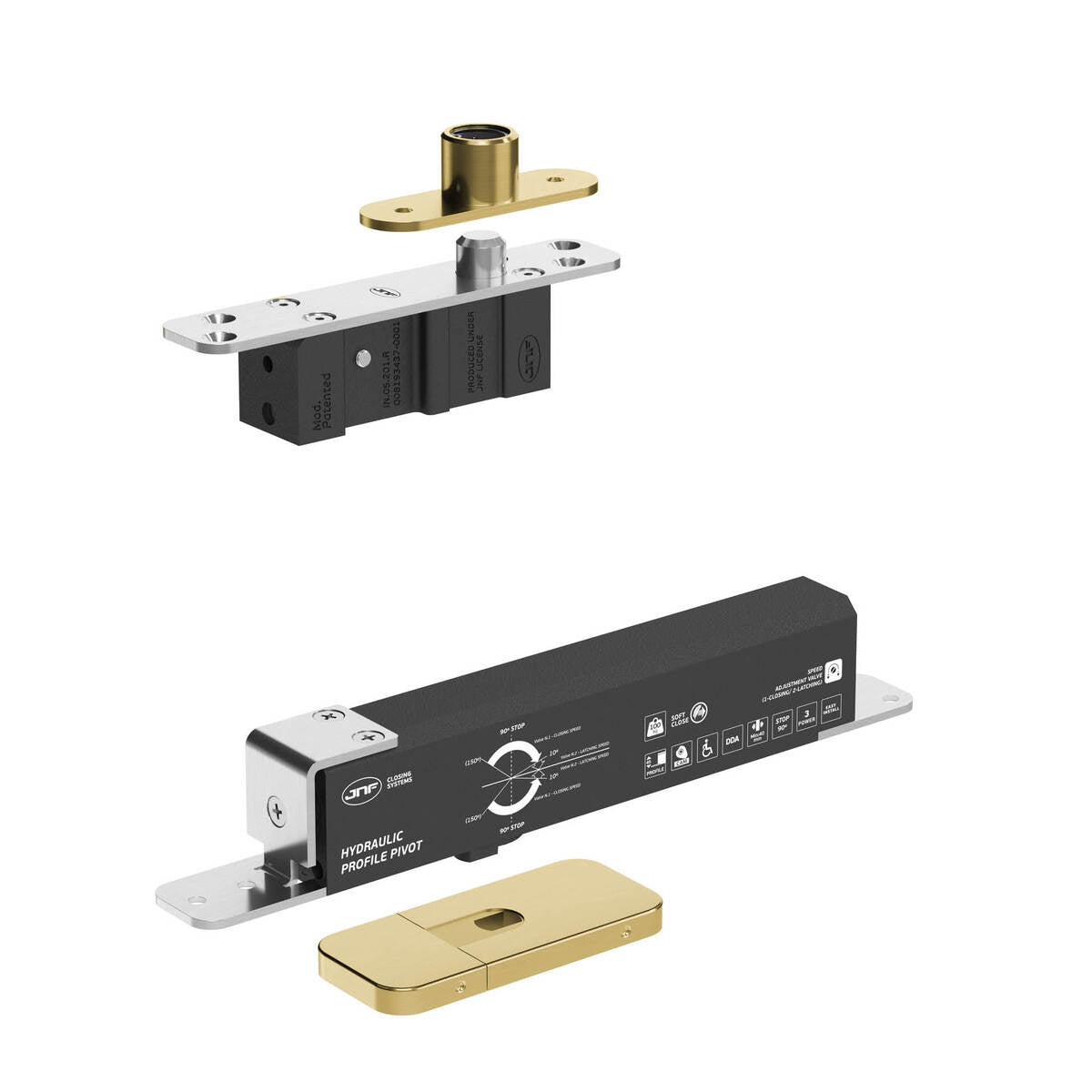

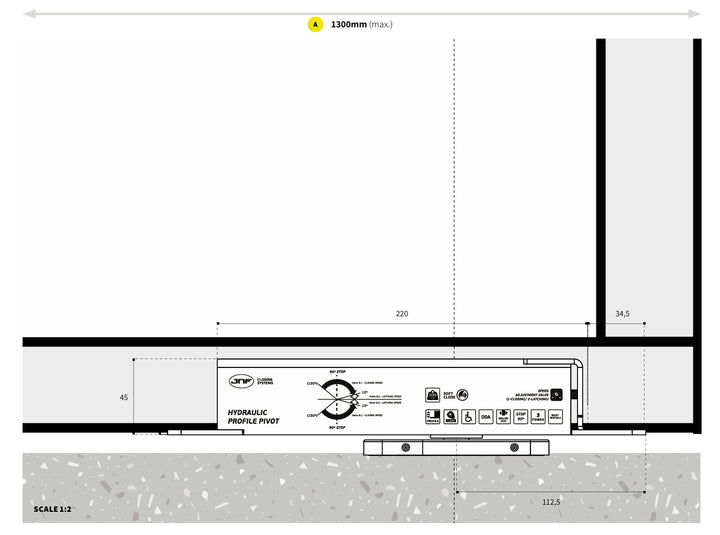

The JNF double CAM action action 100 Plus hydraulic hold open heal pivot set is suitable for timber or metal doors weighing up to 100kgs/1300mm wide and with a minimum 40mm/maximum 50mm thickness.

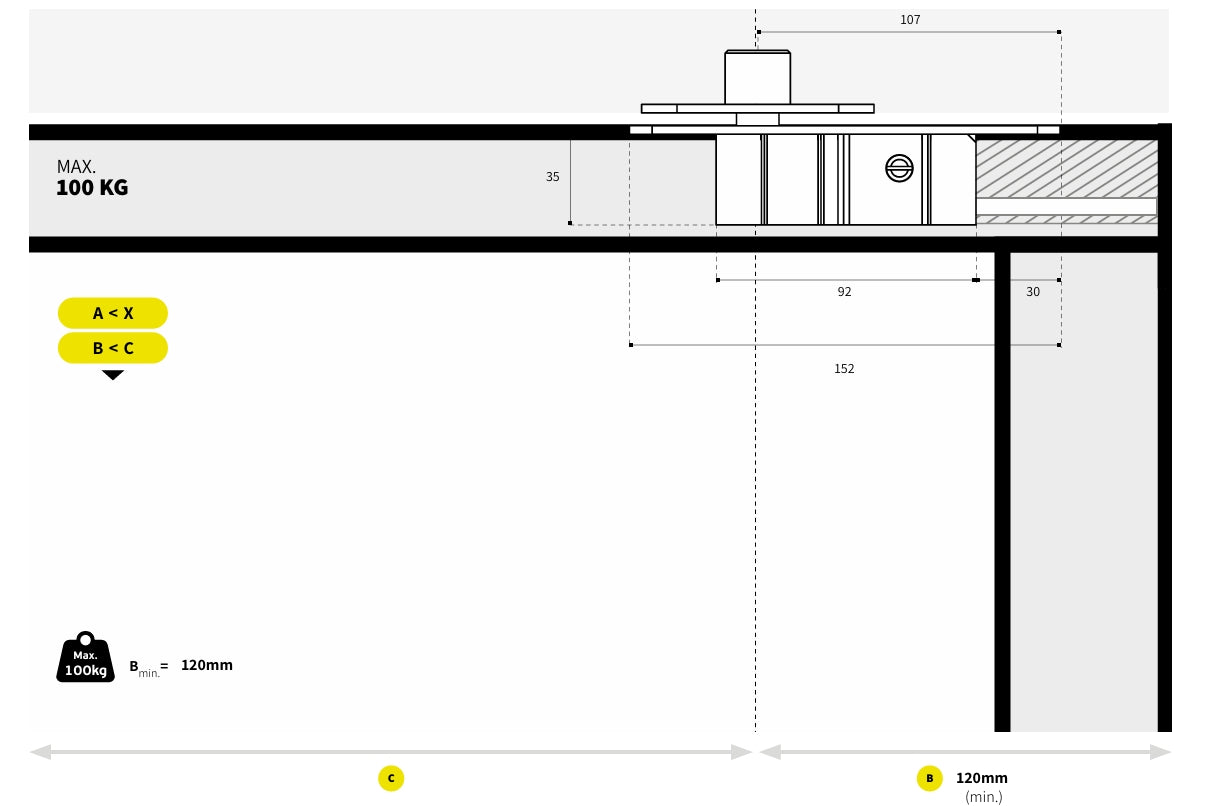

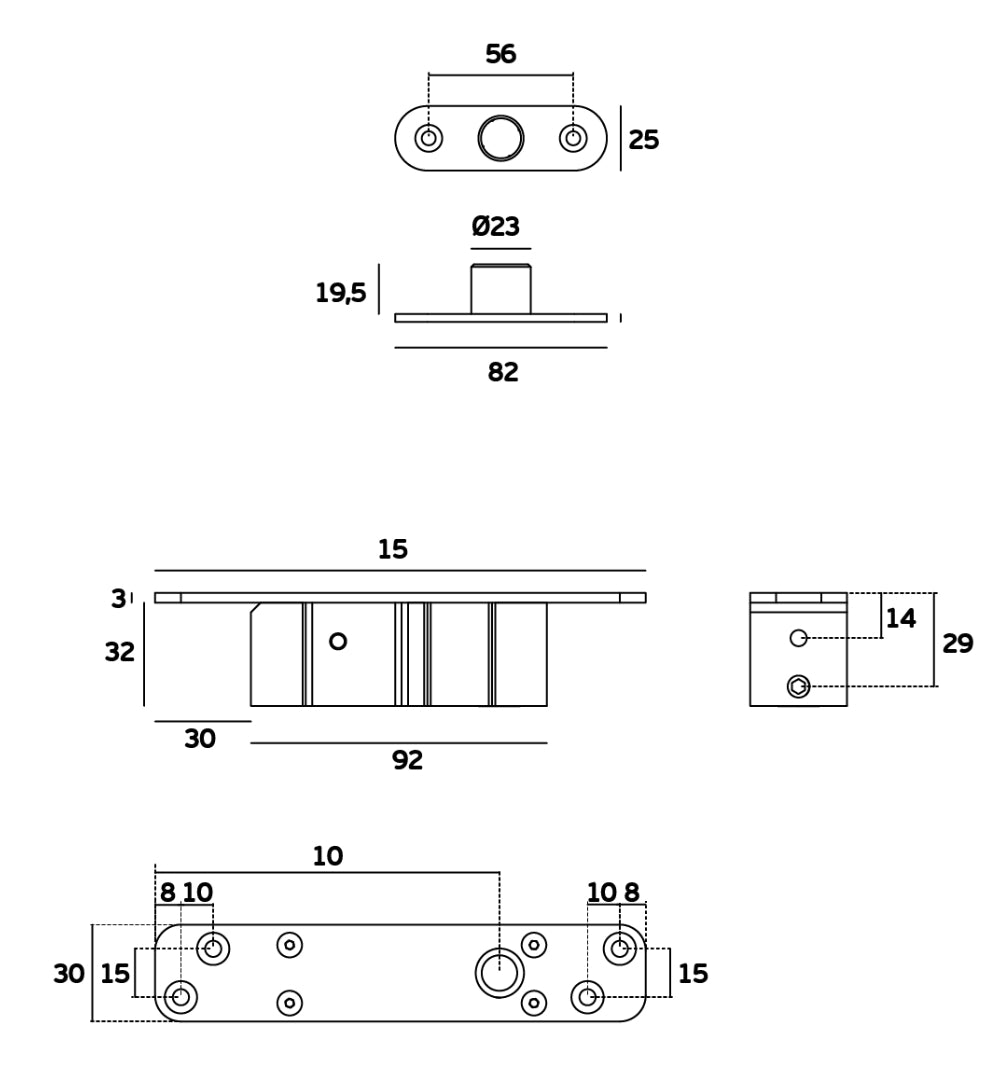

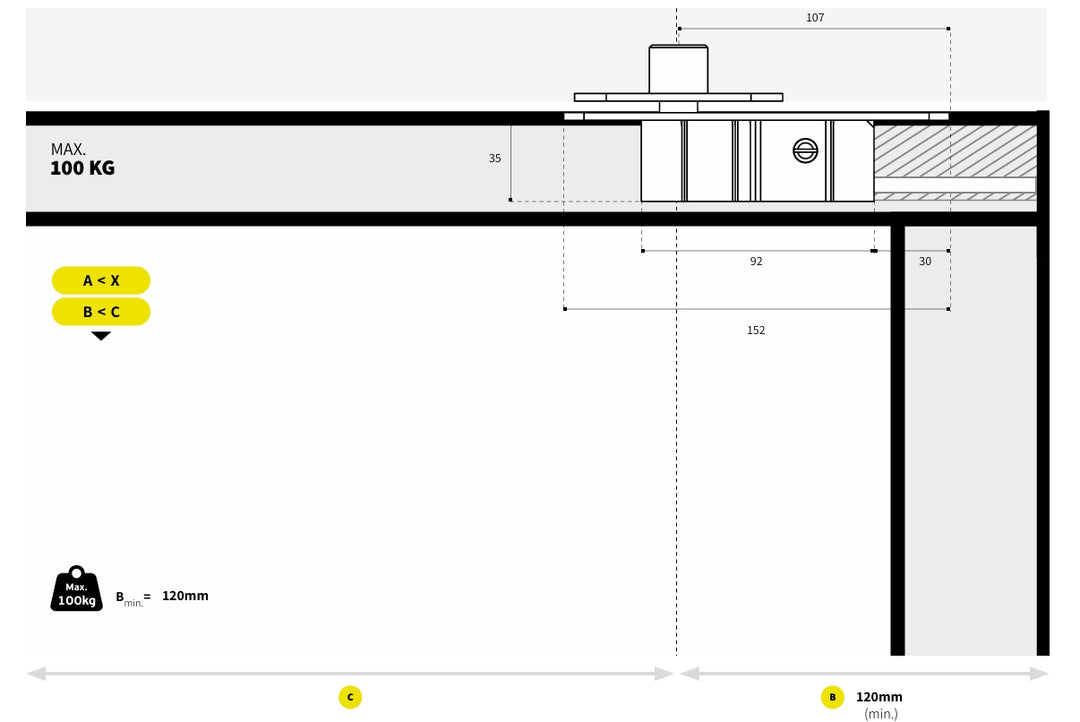

The minimum position for the top and bottom pivot is 127mm from the door edge.

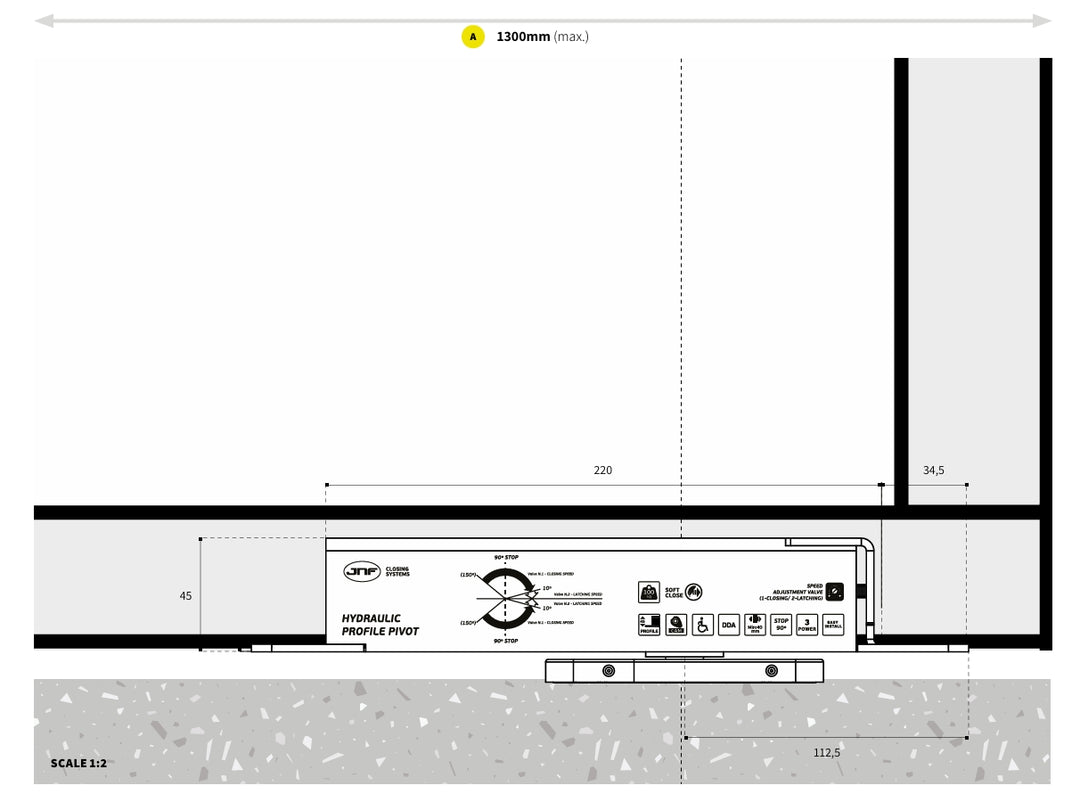

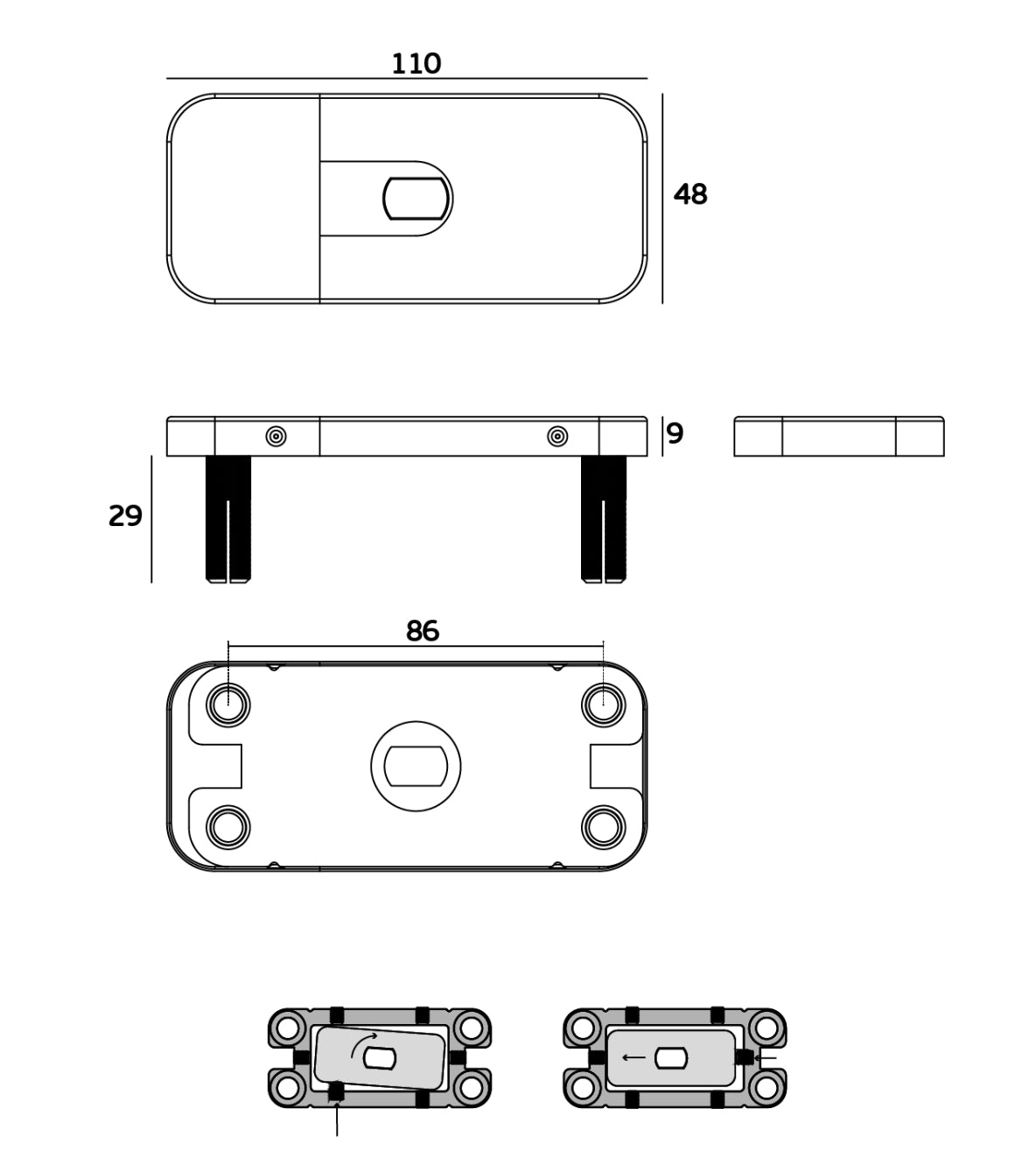

The stainless steel or PVD finished covered BH3 110 x 48mm bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 6mm top and 11.5mm bottom gap.

The pivot can be held open at 90 degrees and also rotate through 110 degrees with with both closing speed and soft closing (last 15 degrees) adjustment made at the door edge.

View the Technical-Details Tab above for more information or check out the new JNF PivotLab selector website here

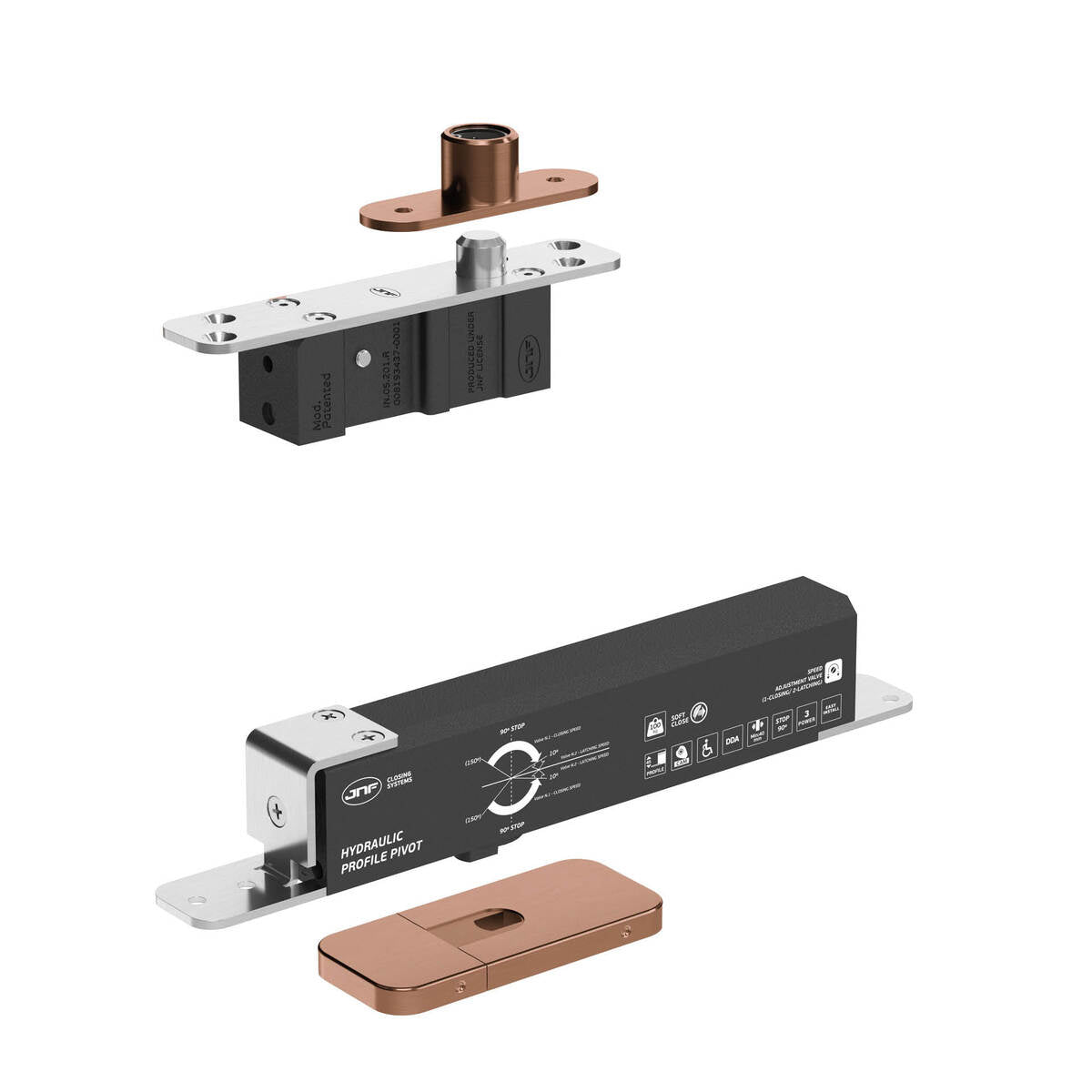

FINISHES:

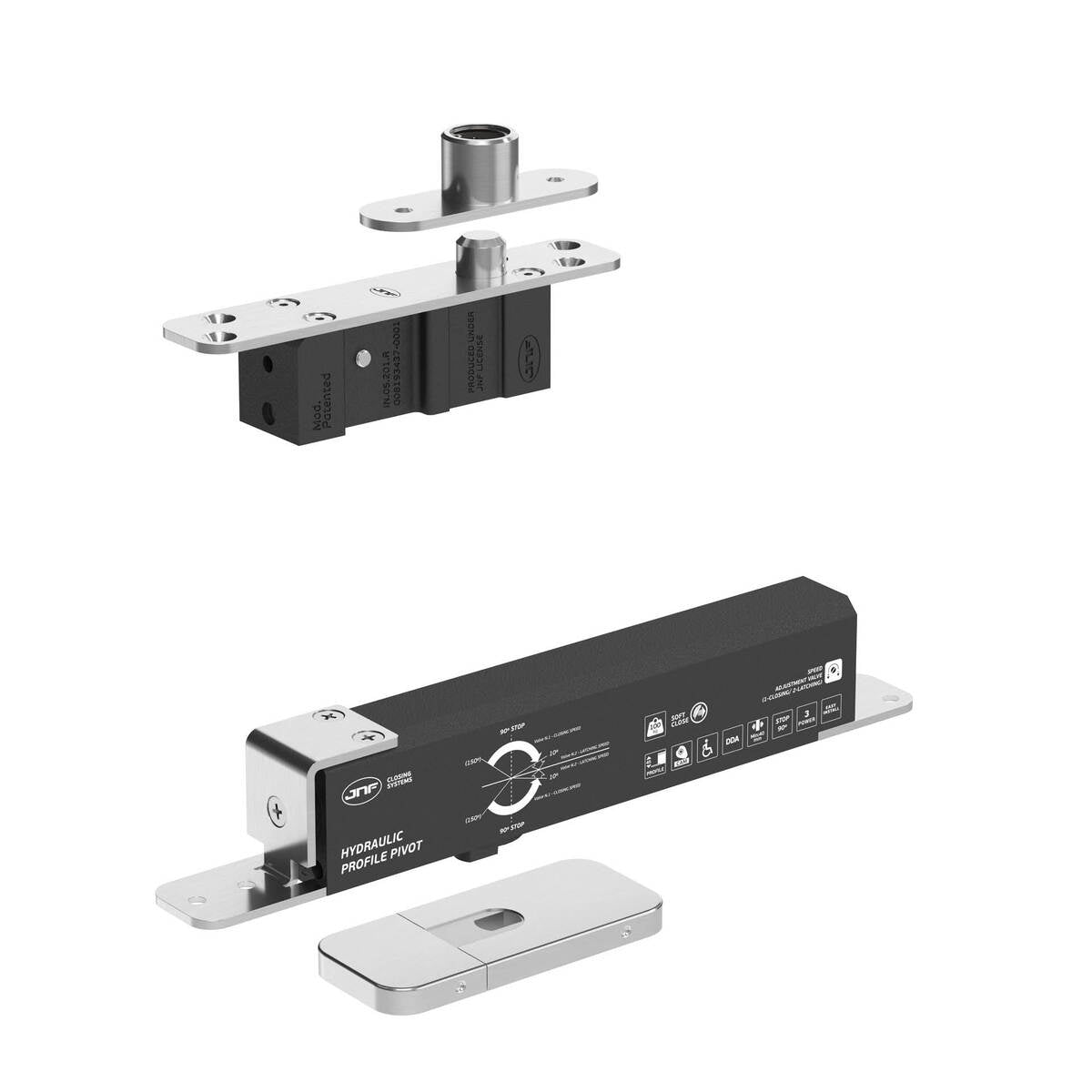

Satin Stainless Steel
PVD Black

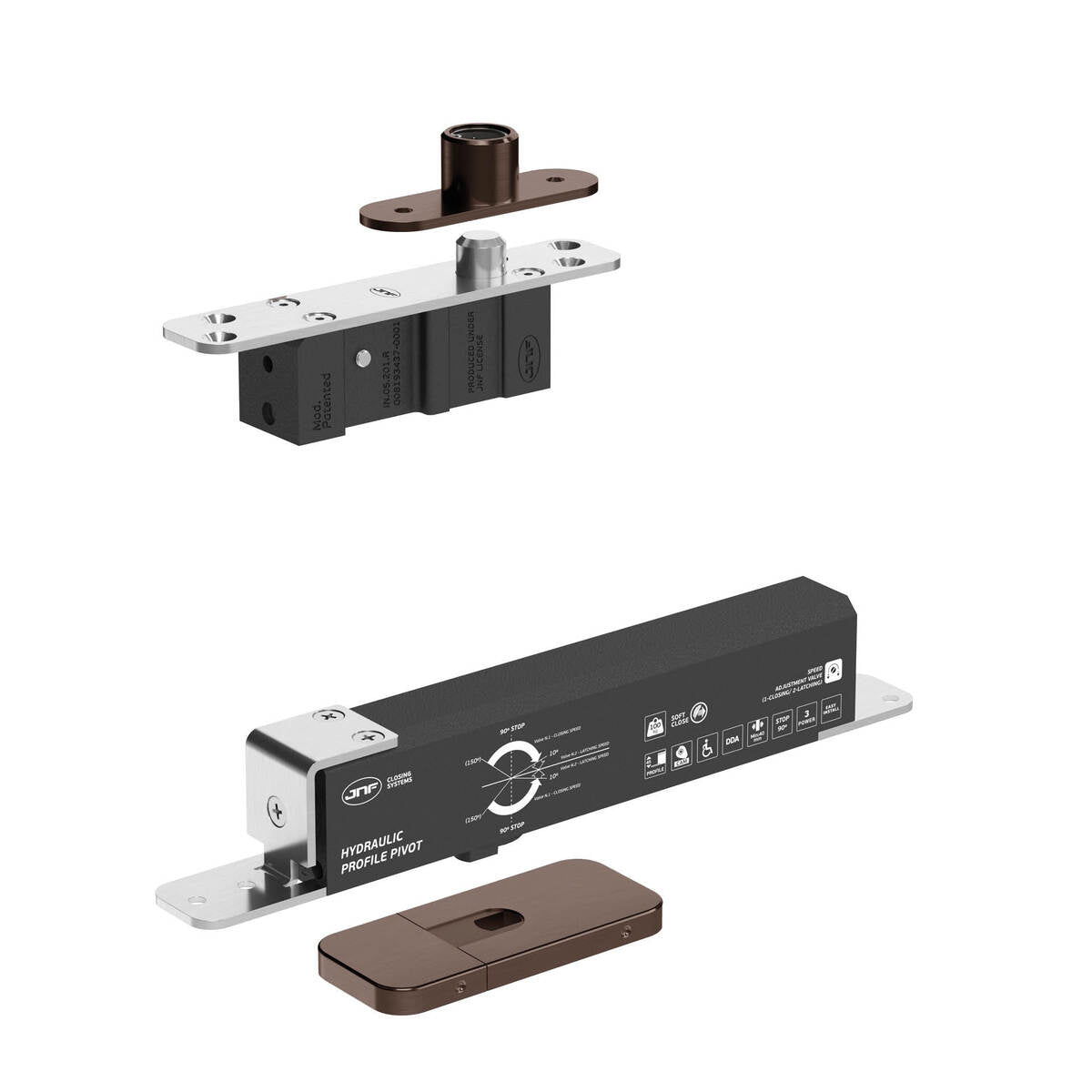

PVD Chocolate
PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
