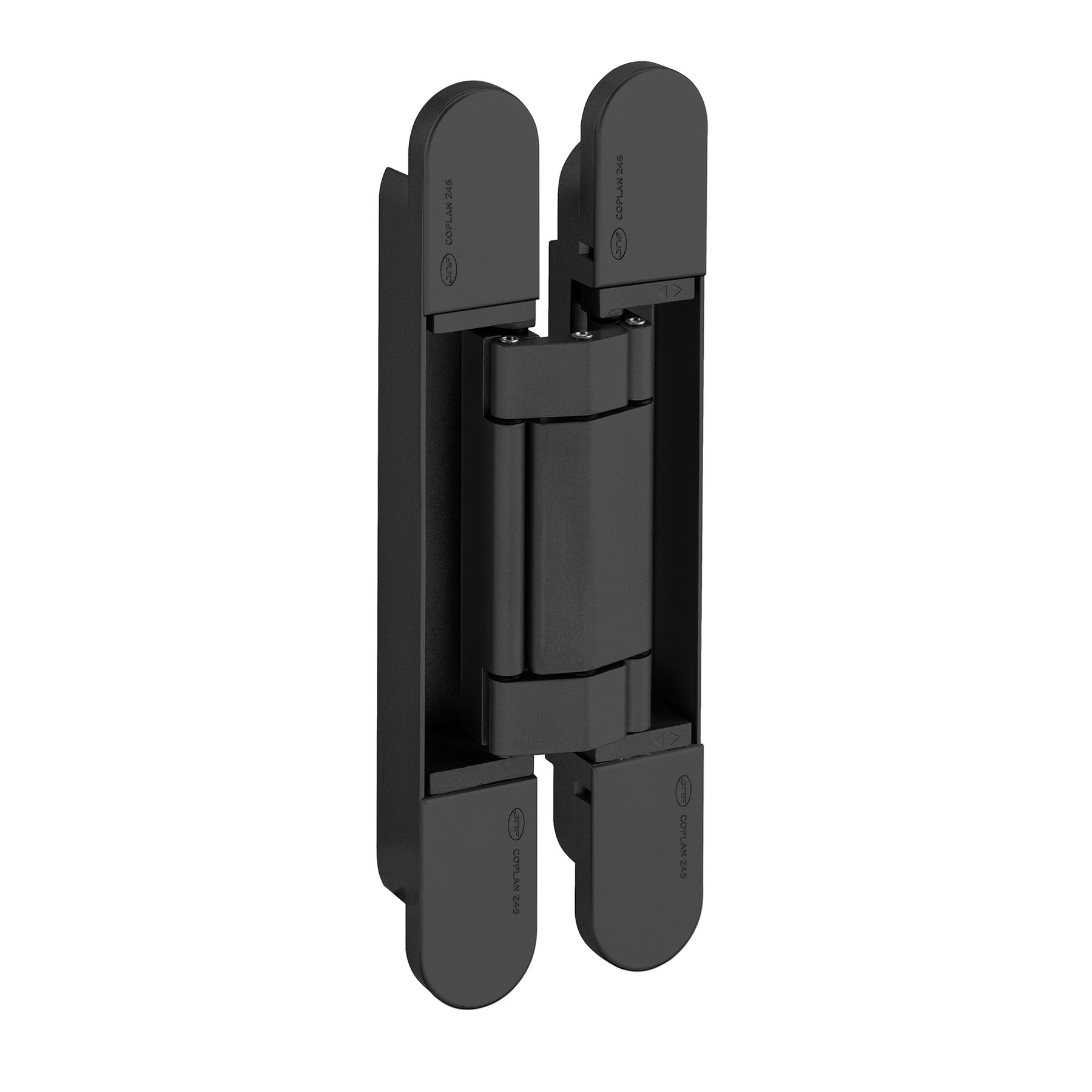

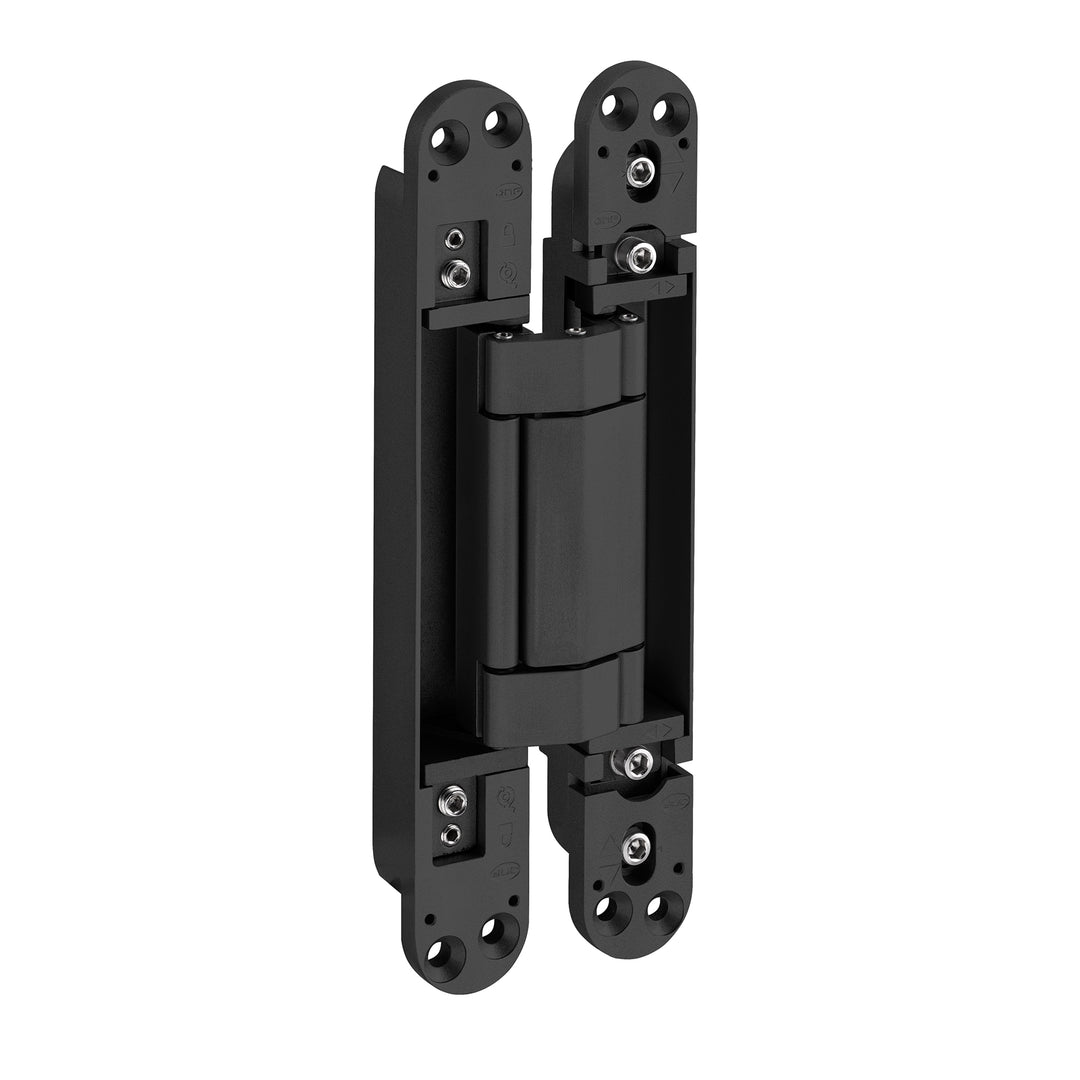

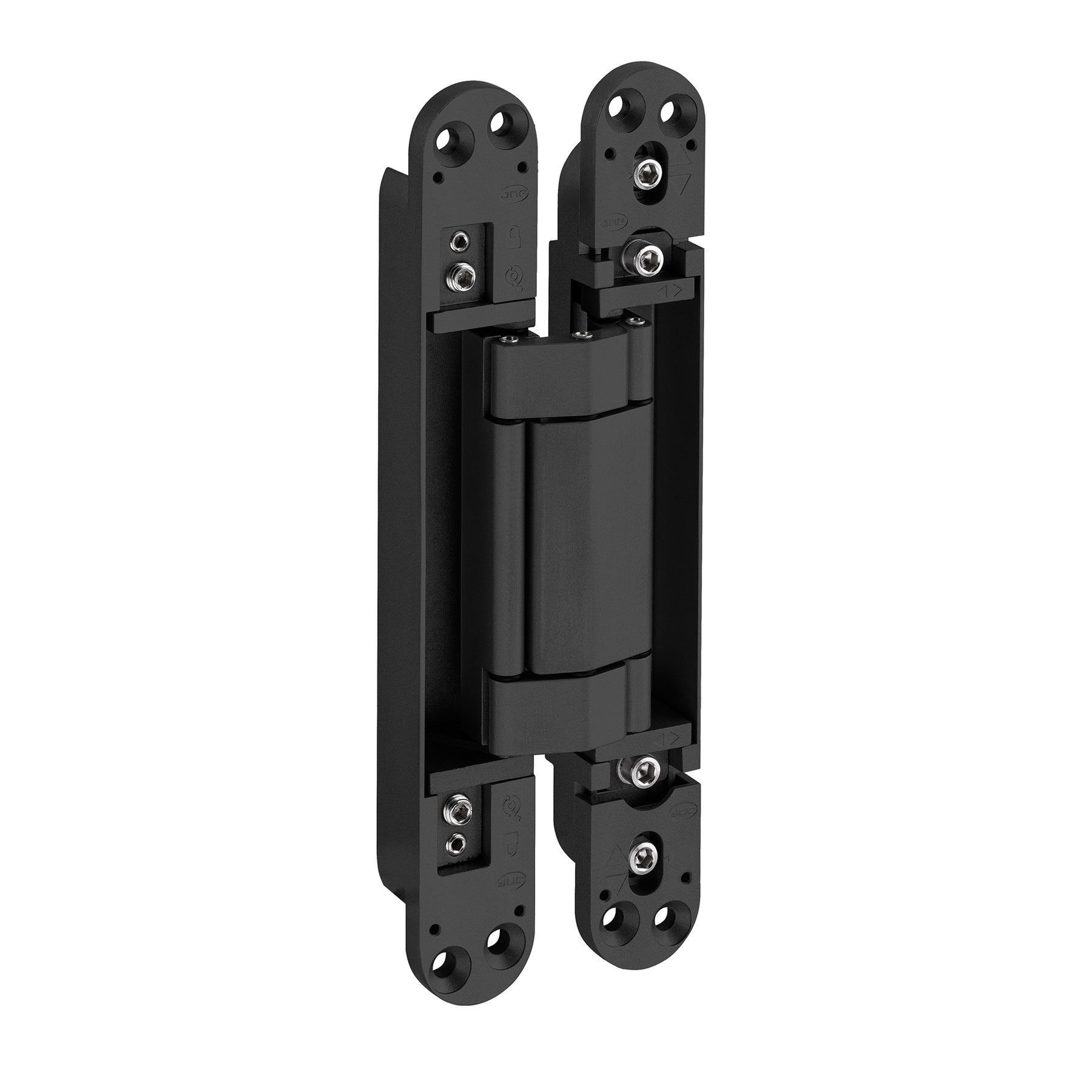

JNF Coplan Series 245 3D Single Concealed Hinge - 130/190kgs
The JNF Coplan 3D single concealed hinge, in powder coated finishes, suits doors up to 130kgs (two hinges per door) or 190kgs (three hinges per door), to suit max leaf size 2000mm high x 1000mm wide with a minimum door thickness of 40mm.

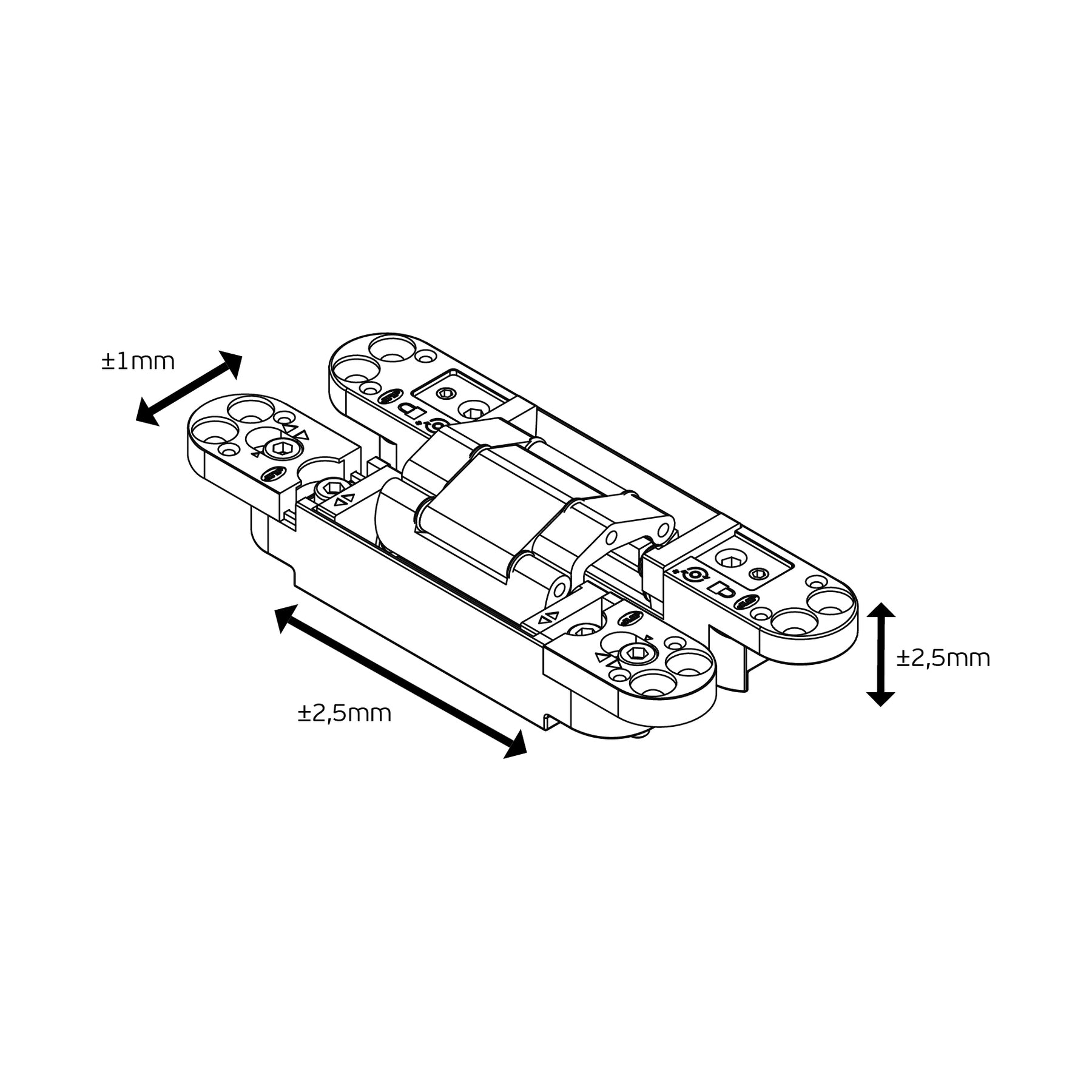

Suitable for timber, steel or aluminium frames with 3 dimensional adjustment (+/-2.5mm side and height and +/-1.5mm compression). 120 degree opening angle.
Also available is a FD30 intumescent pack to suit each single hinge.
Please note that three hinges must be fitted when used on fire doors
Please note that these are sold singly

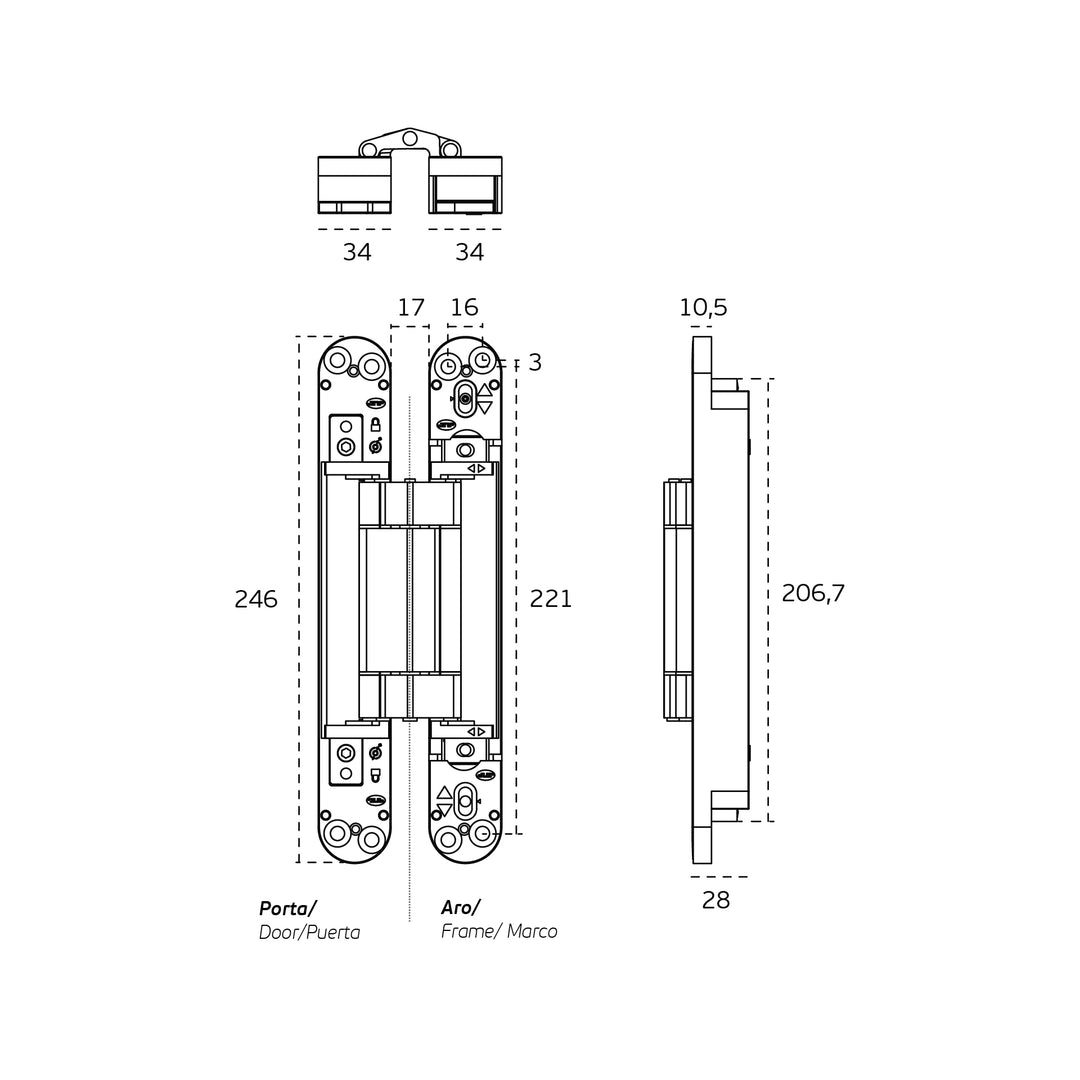

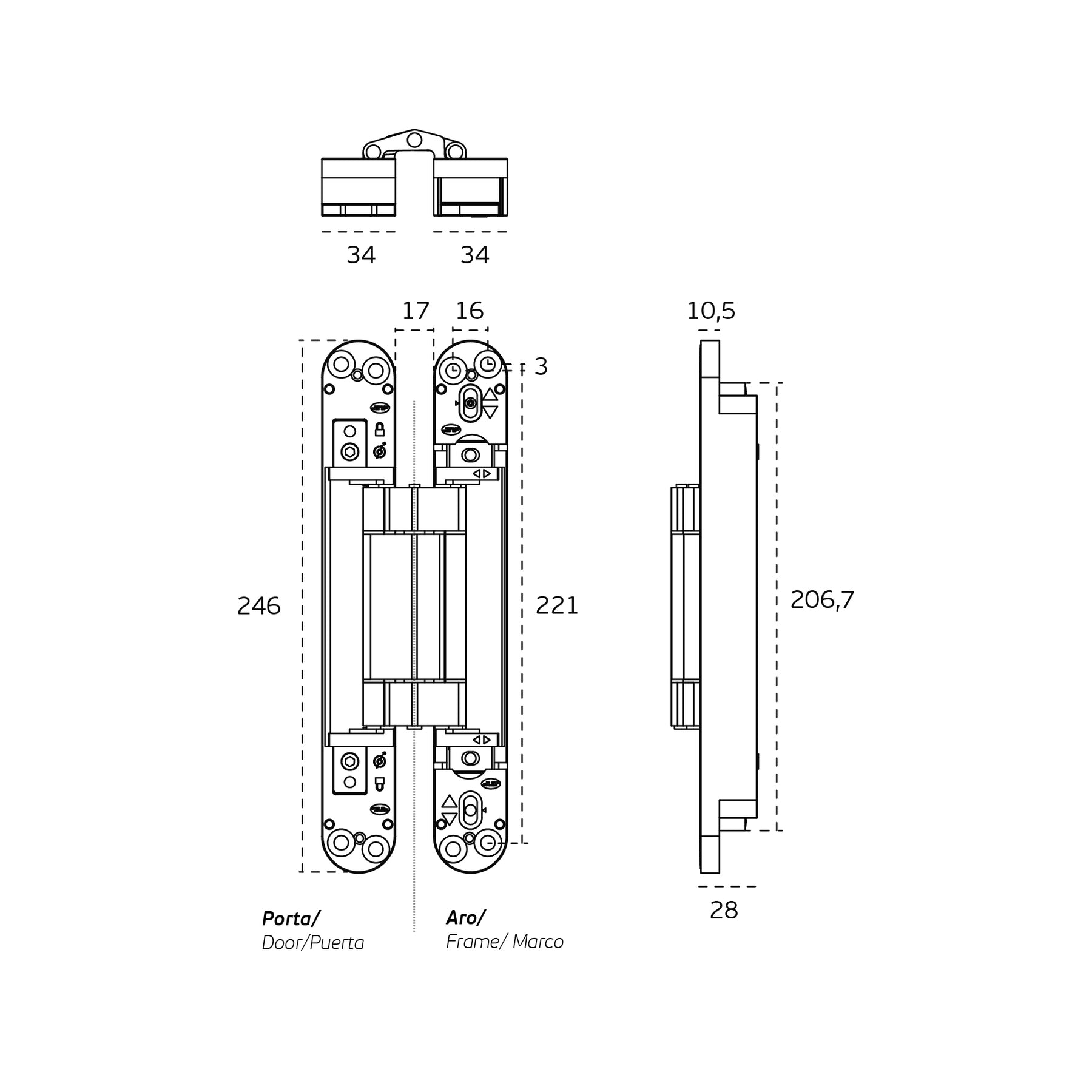

DIMENSIONS:
246mm Door Height
221mm Frame Height
34mm Frame Width
34mm Door Width
FINISH:
Black (RAL 9005)

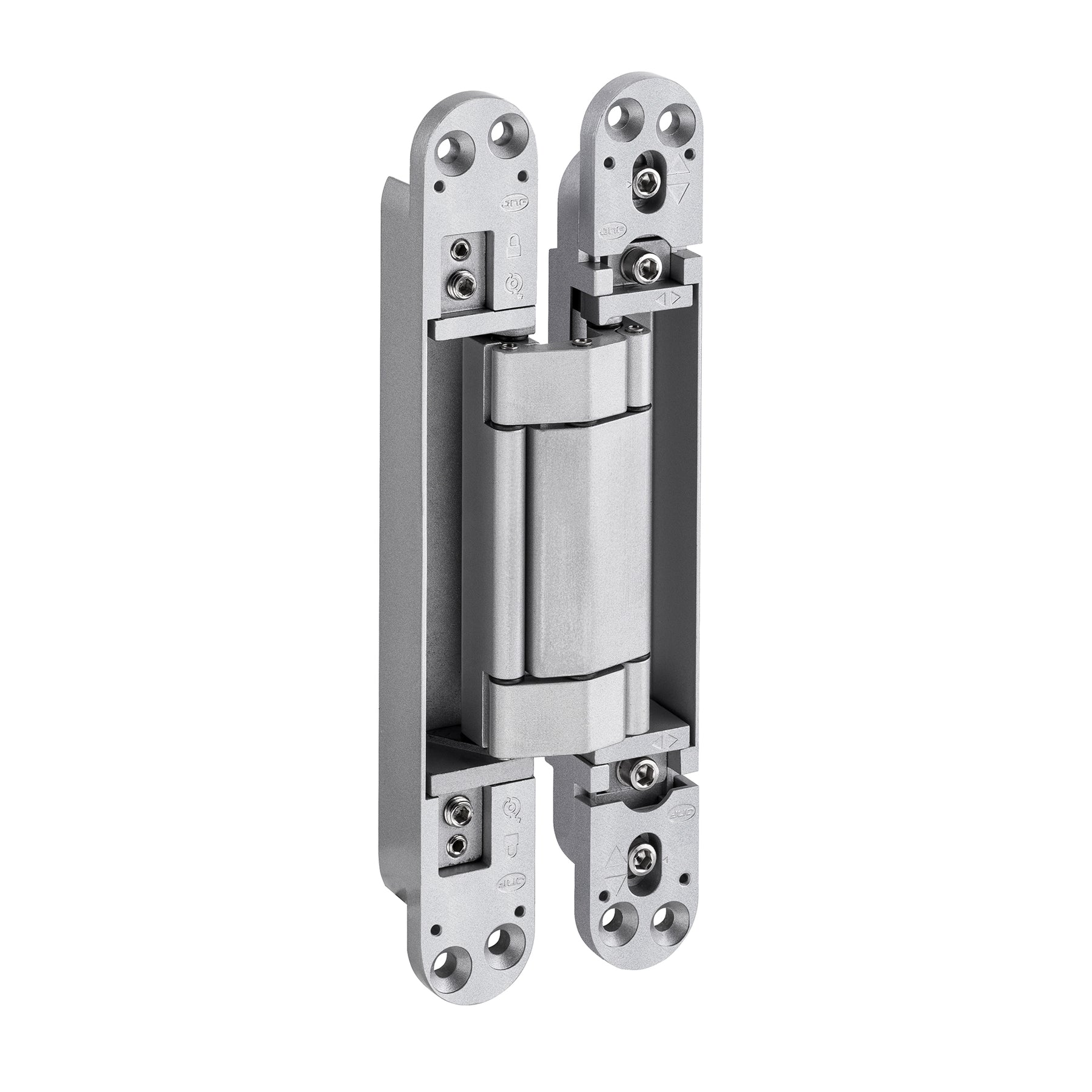

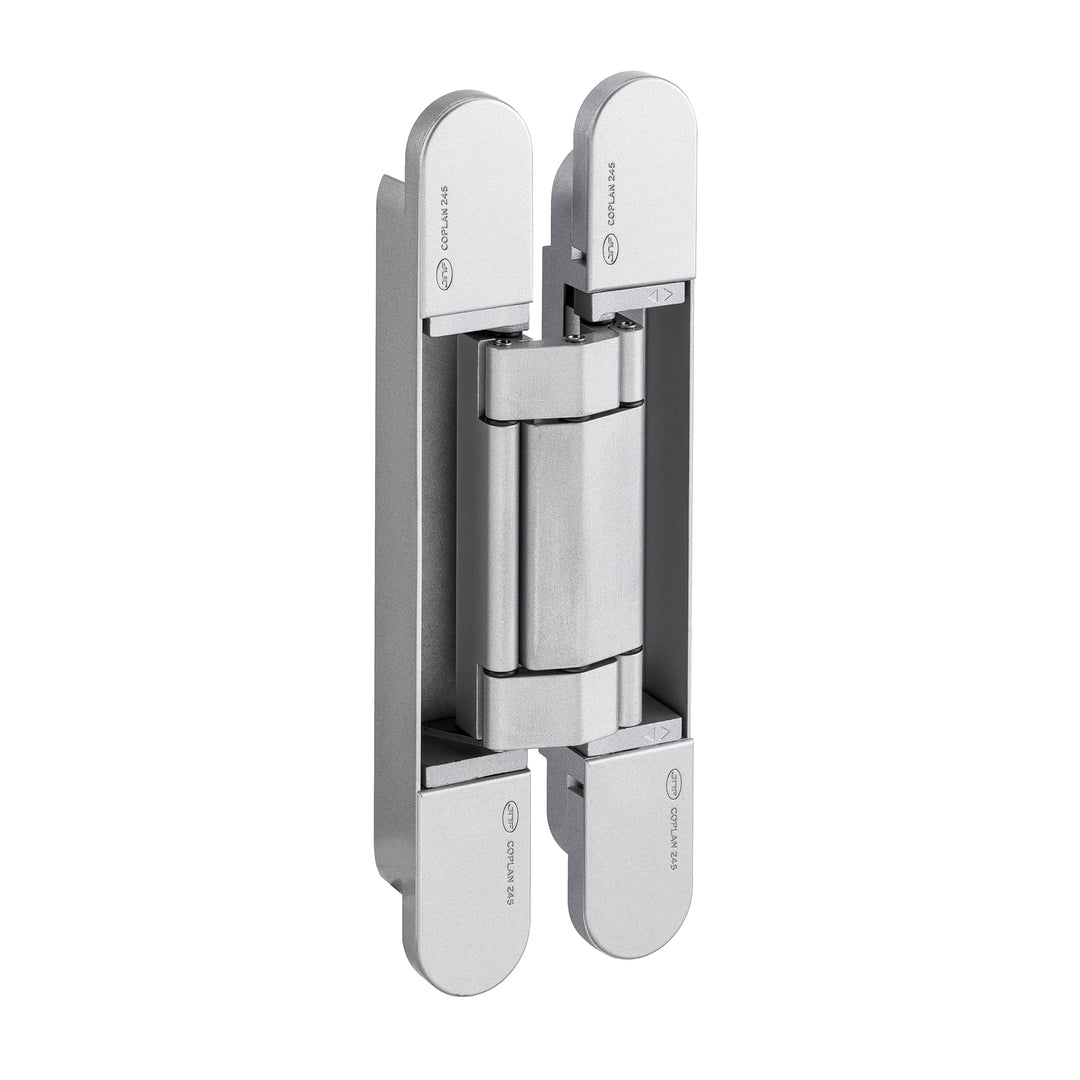

Grey (RAL 9006)
