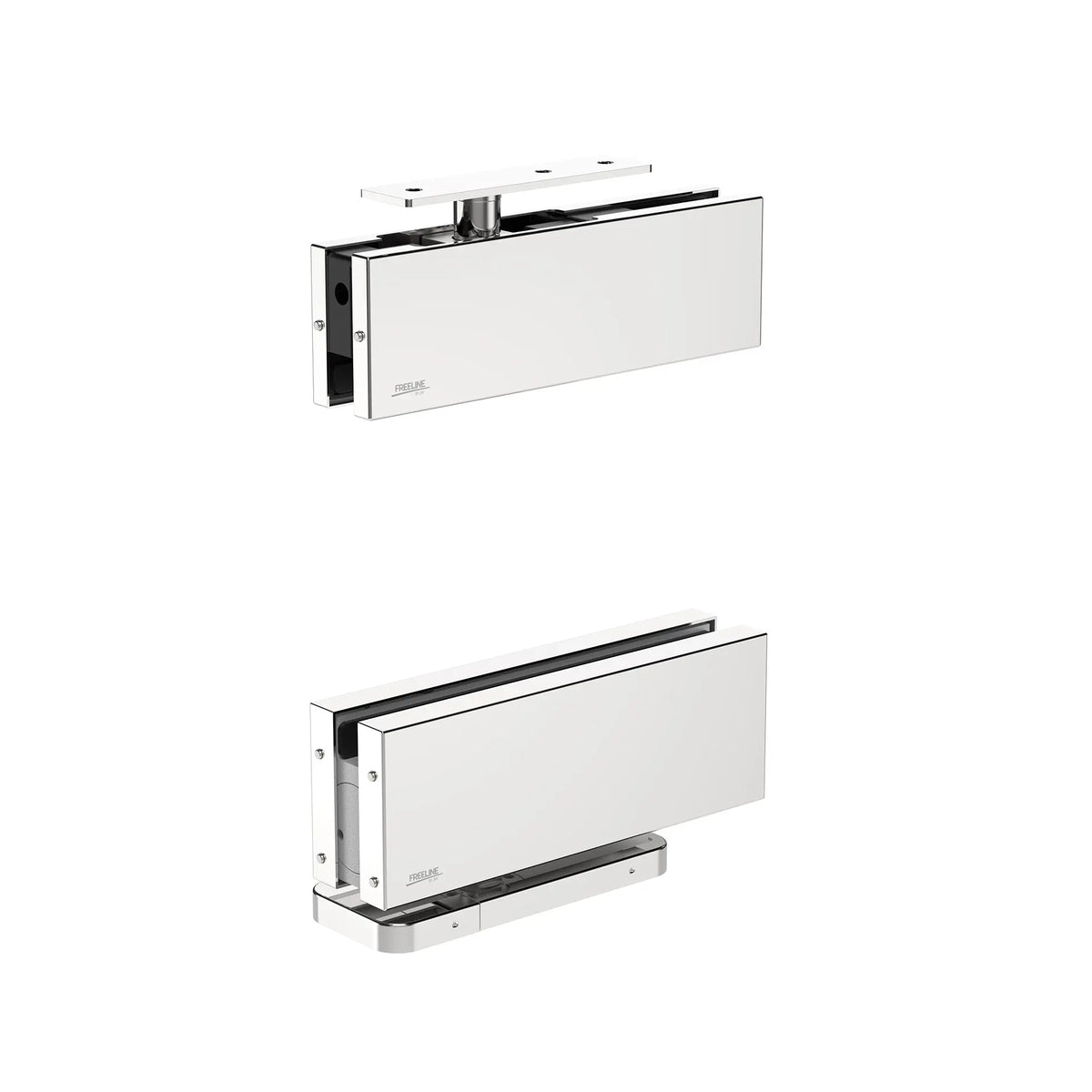

JNF IN.81.202 Double action CAM hydraulic glass door pivot patch set - 50kgs
The JNF double action fixed power Size 2, to EN1154, smooth CAM action DDA approved hydraulic sprung pivot patch set is suitable for glass doors weighing up to 50kgs/850mm wide and 10mm glass thickness.
The stainless steel covered bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the glass door to go tight to the ceiling noting that there will be a 6mm top and 13mm bottom gap.

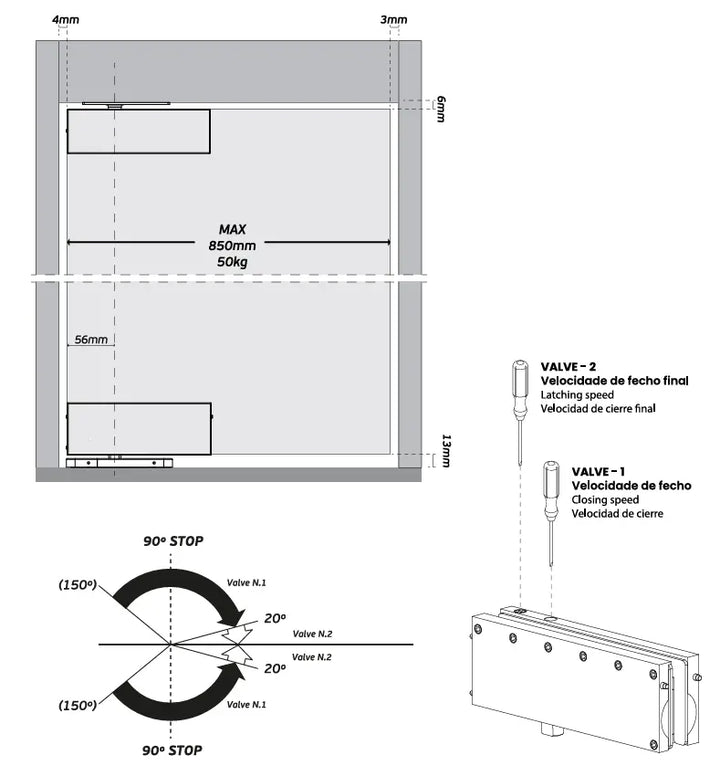

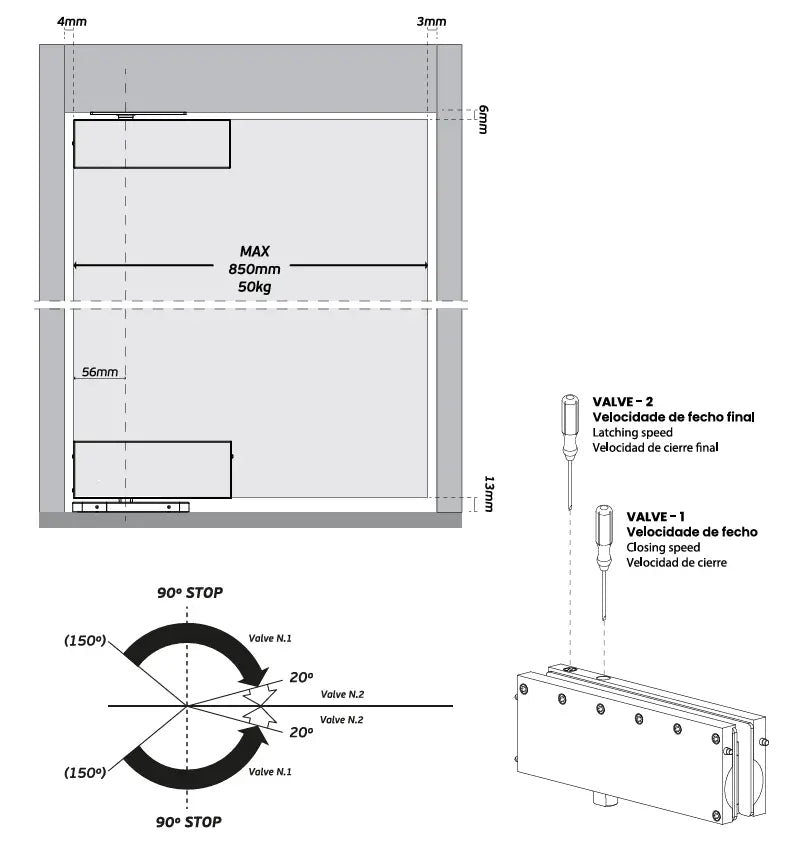

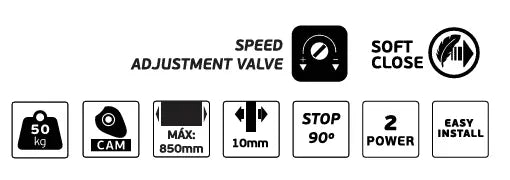

The pivot can rotate through 150 degrees in both directions with hold open at 90 degrees in either direction with both closing speed (between 110-20 degrees) and soft closing (last 20 degrees), both of which can be made on the top of the bottom patch fitting.

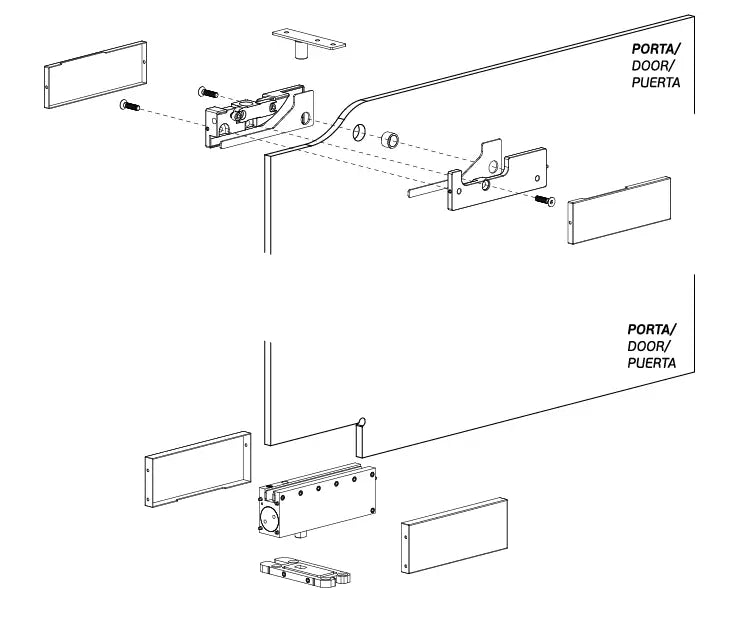

See Technical-Details Tab for more information

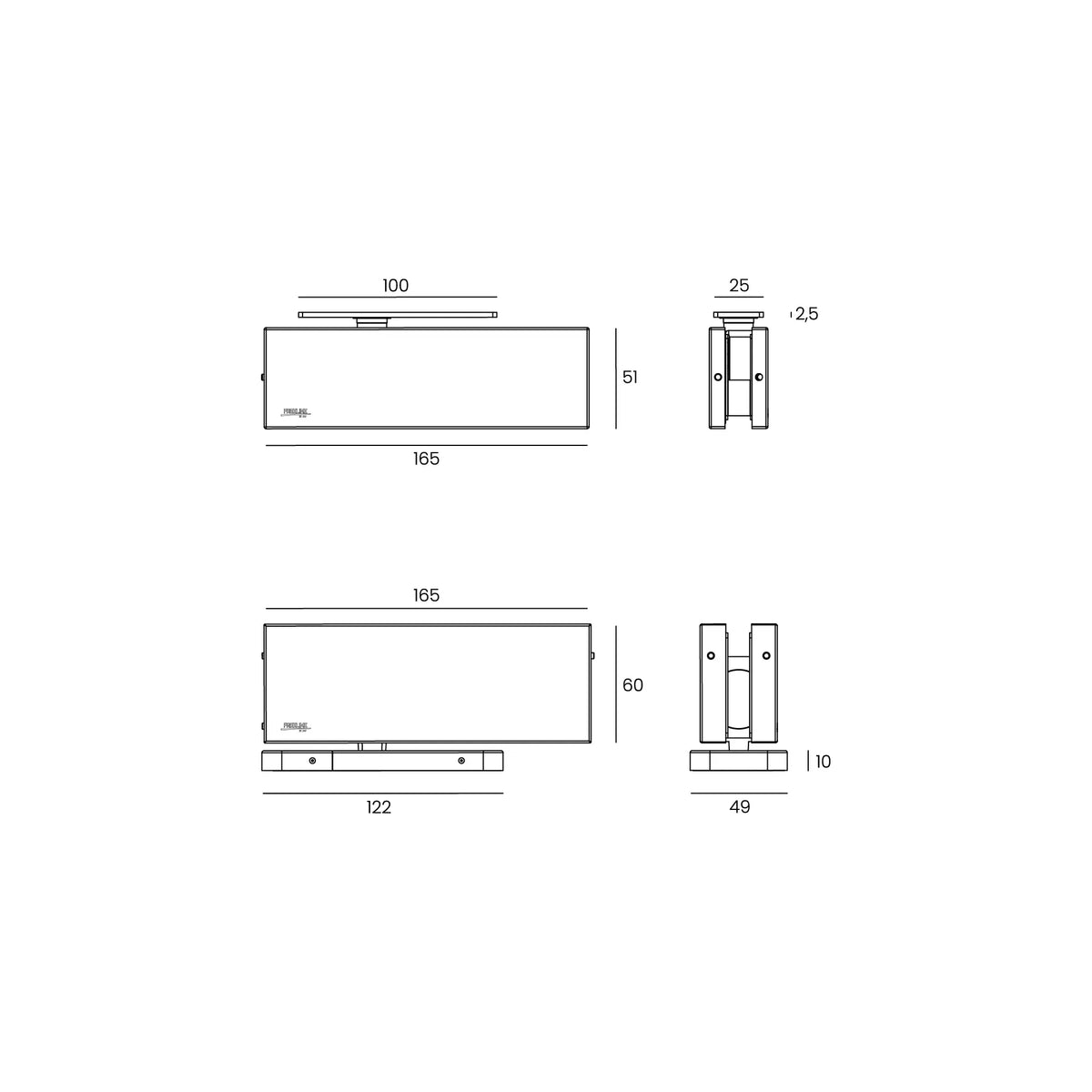

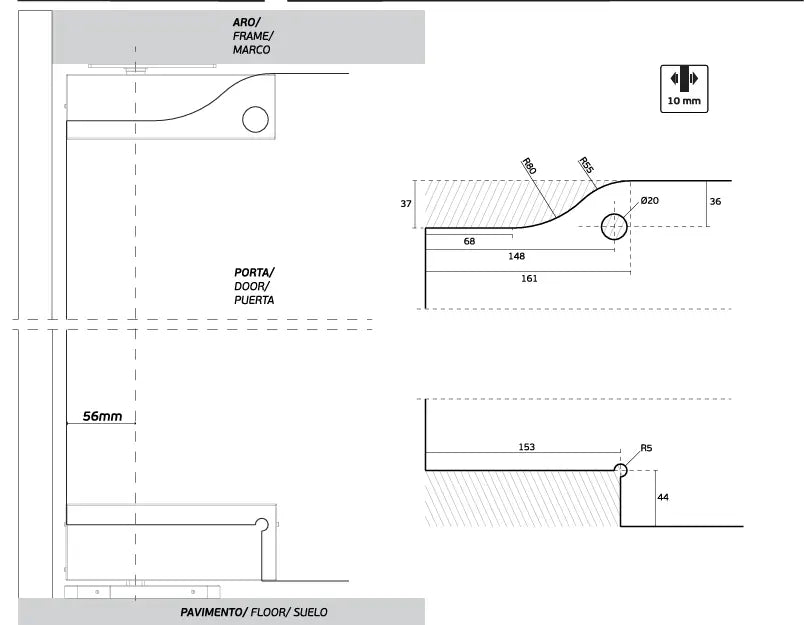

DIMENSIONS:
Top Patch Fitting
165mm Long
51mm High
Bottom Patch Fitting
165mm Long
60mm High
Frame Pivot
122mm Long
49mm Wide
10mm Thick
Bottom Floor Pivot
110mm Long
9mm High
48mm Wide
FINISHES:

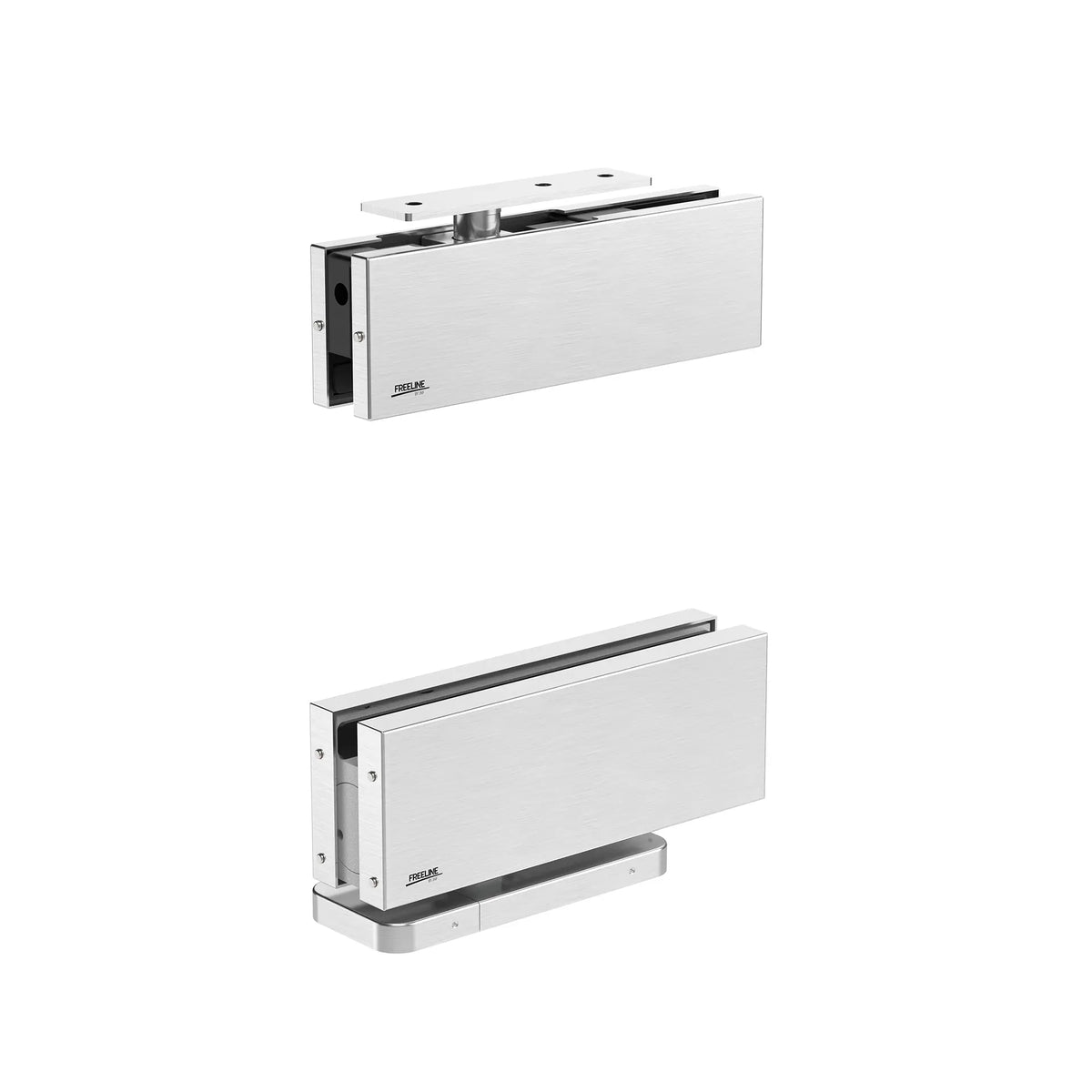

Satin Stainless Steel
Polished Stainless Steel

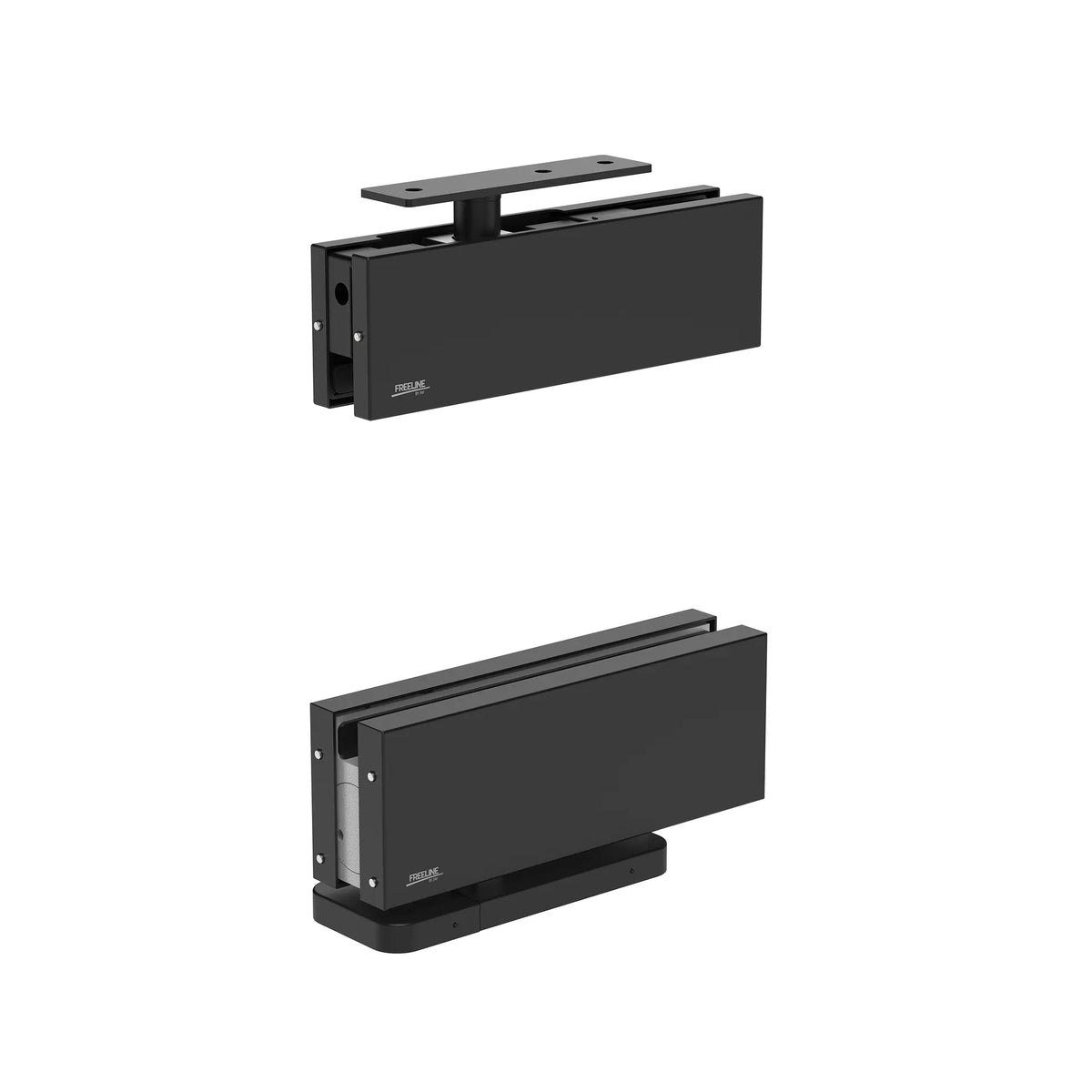

Black RAL 9005
