JNF 400 Narrow Stile Satin Stainless Sashlock

JNF 400 Narrow Stile Satin Stainless Sashlock

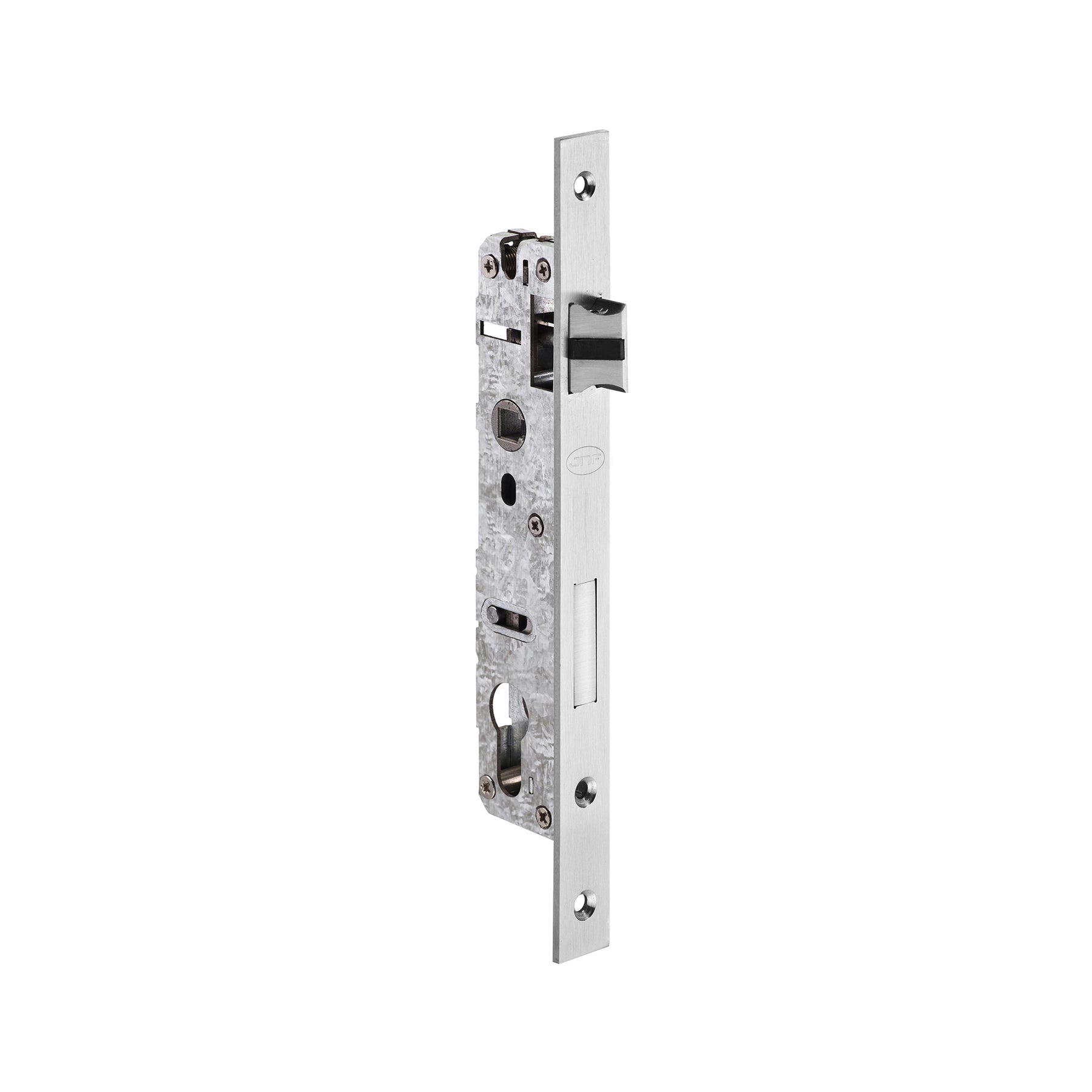

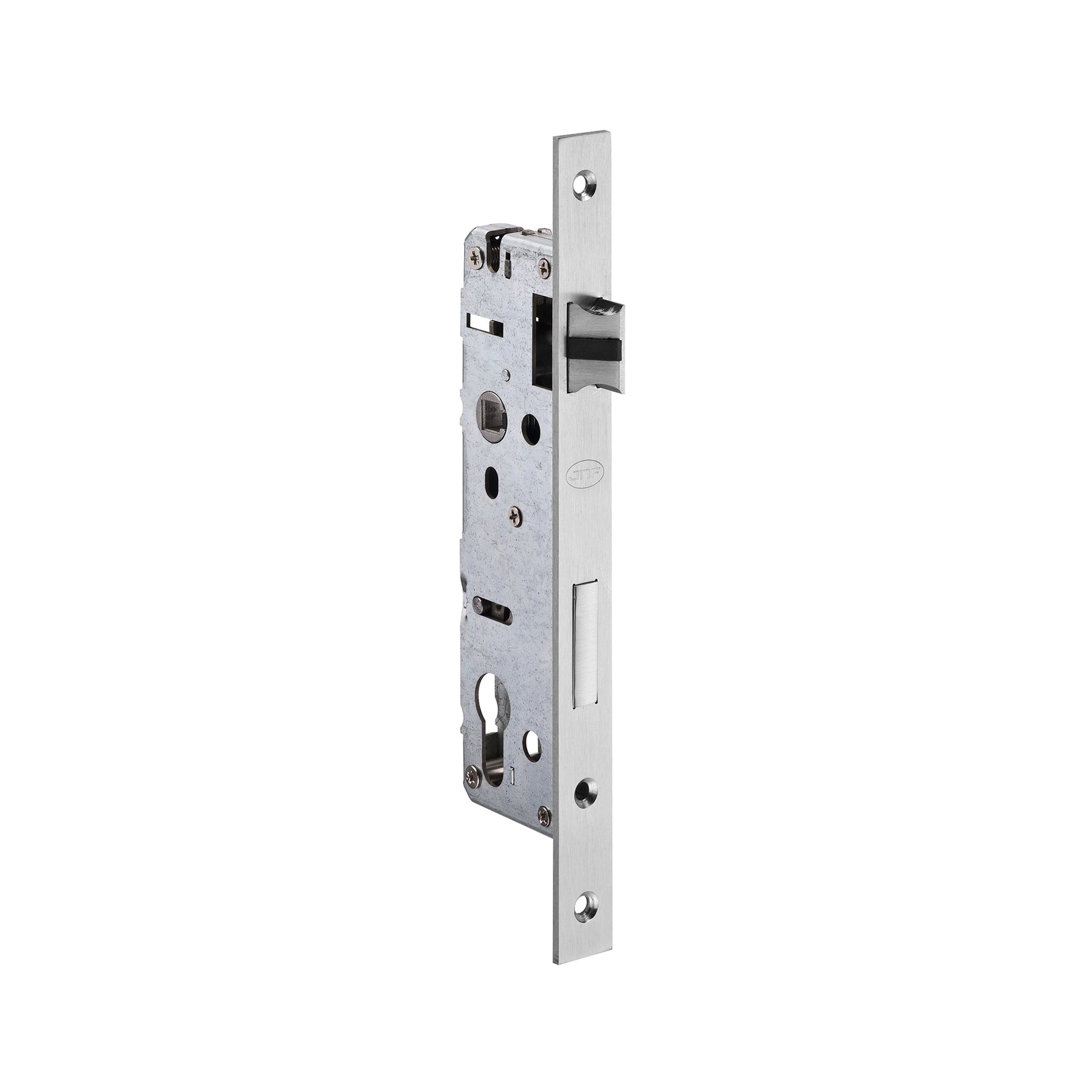

JNF mortice narrow stile satin grade 304 stainless steel Grade 3 sashlock to suit hollow and narrow profile section doors with reversible silent ABS insert latch bolt, supplied with flat keep plate.

The cylinder sashlock has various backsets (distance from edge of door to handle/cylinder) and is suitable for un-sprung lever handles and euro-profile cylinders.

The distance between the centre of the lever handle and cylinder is 85mm which aesthetically when viewed on a door is less cramped than conventional UK locks.

This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.

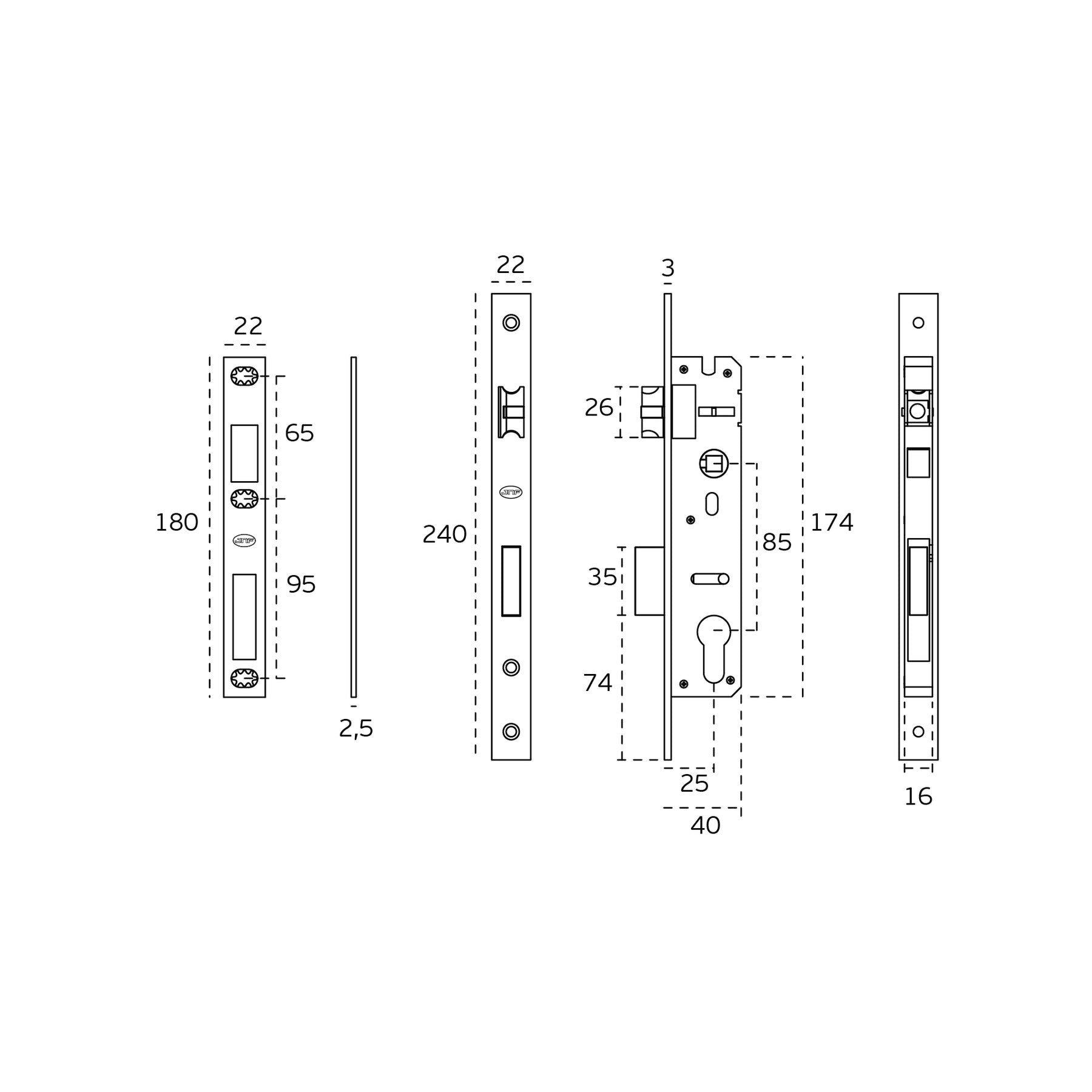

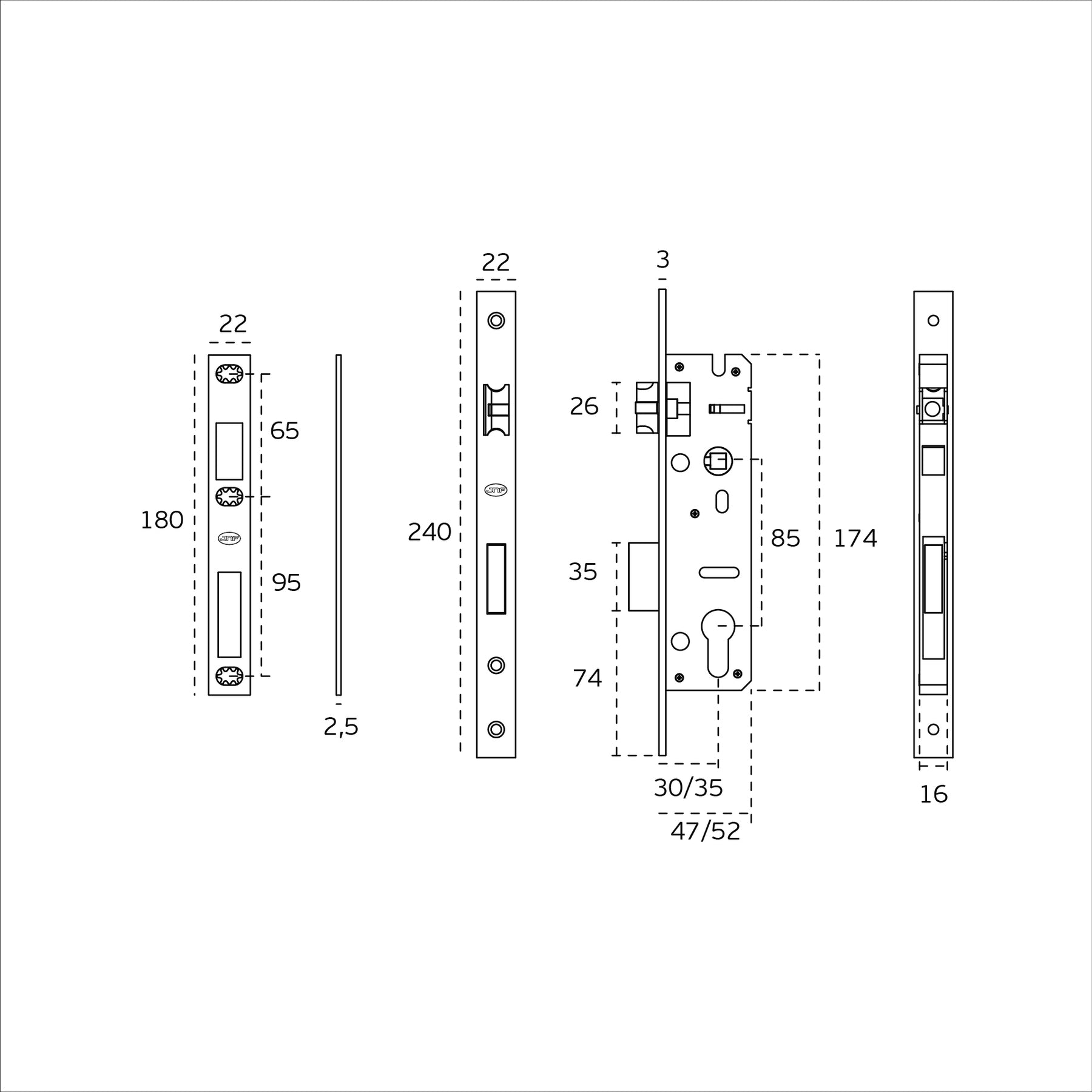

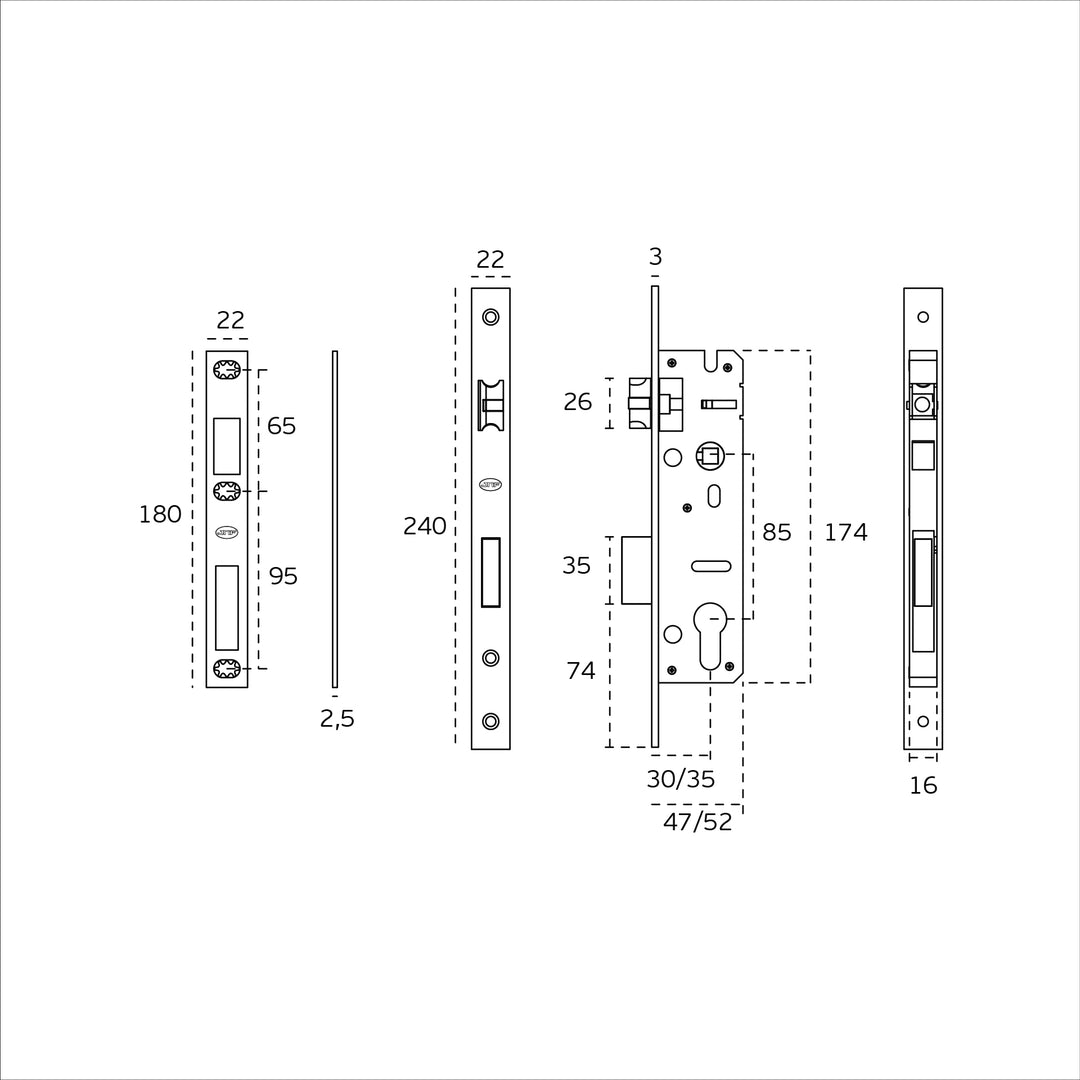

DIMENSIONS:
85mm Centres
174mm High x 16mm Thick Case
240mm x 22mm Lock Faceplate
180mm x 22mm Flat Receiver plate

BACKSET/CASE:
25mm/40mm
30mm/47mm
35mm/52mm

Please select file below to view more information about this product
