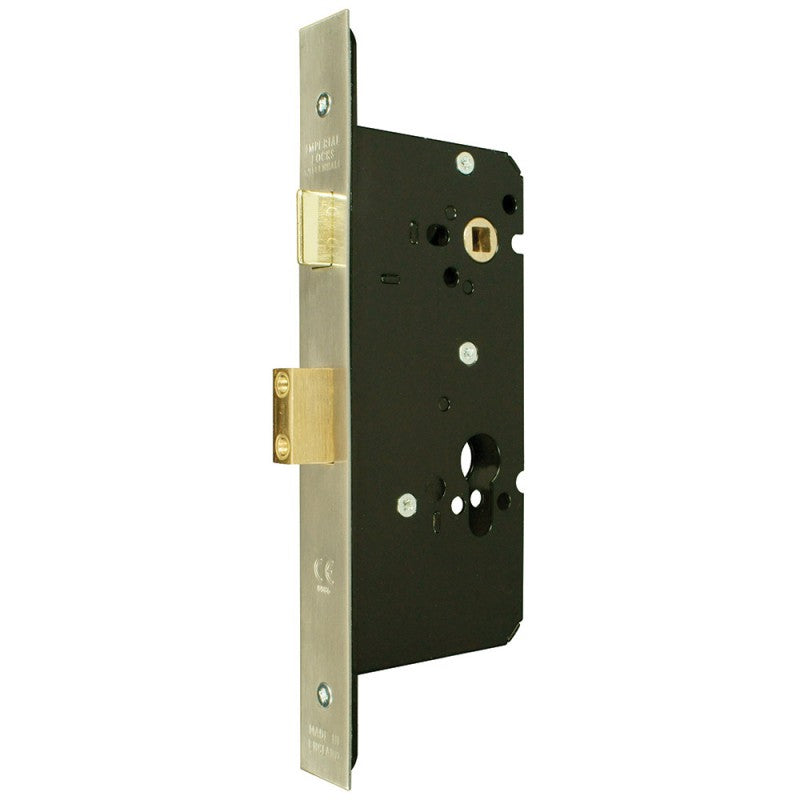

Imperial Locks G72-7000 Euro Profile Cylinder Sashlock - Standard Spring
Mortice DDA compliant europrofile cylinder sashlock case with two-piece 25mm wide forend and striking plate with brass latch and deadbolt; suitable for domestic and commercial projects. Supplied with matching finished screws and strike plate to suit 44mm thick doors.
The sashlock has standard springing making it ideal for sprung furniture only with various backsets (distance from edge of door to centre line of lever handle/spindle) and a 14mm throw deadbolt and works only with euro-profile cylinders.
This sashlock is CE Marked and Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209.
Suitable for use on 30 and 60 minute fire rated doors, when used in conjunction with available intumescent packs, which can be selected above.
These locks are to special order.

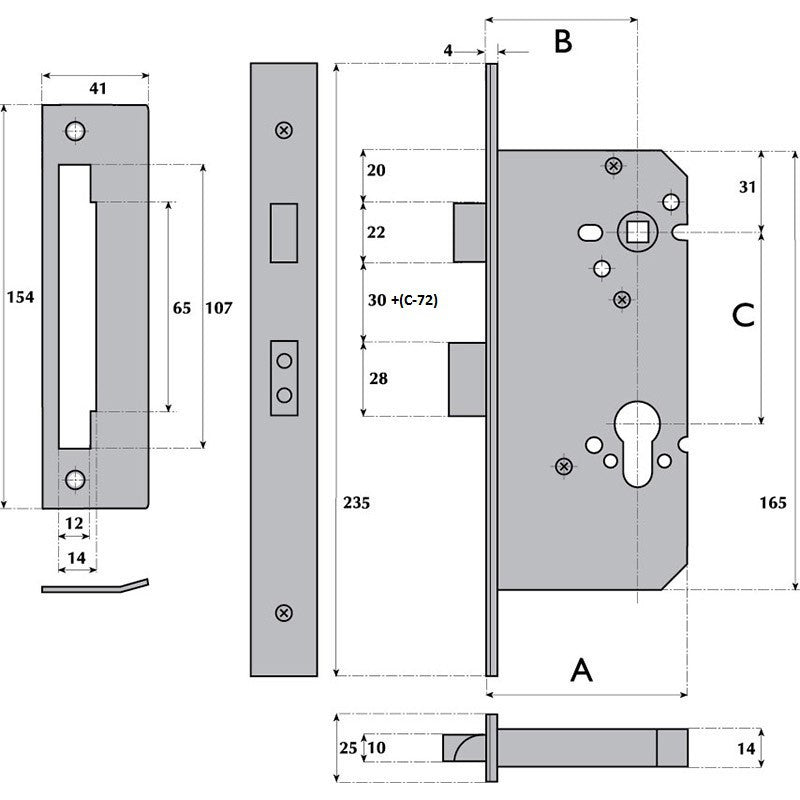

DIMENSIONS:
B=Backset 45mm/A=Case depth 63mm
B=Backset 57mm/A=Case depth 76mm
B=Backset 82mm/A=Case depth 101mm
C=Centres 72mm
Other Centres - 82/92/101mm available on request
FINISHES:
Satin Stainless Steel
Polished Stainless Steel
Satin Brass
Polished Brass
Black
Antique Brass
Bronze Metal Antique (BMA)
