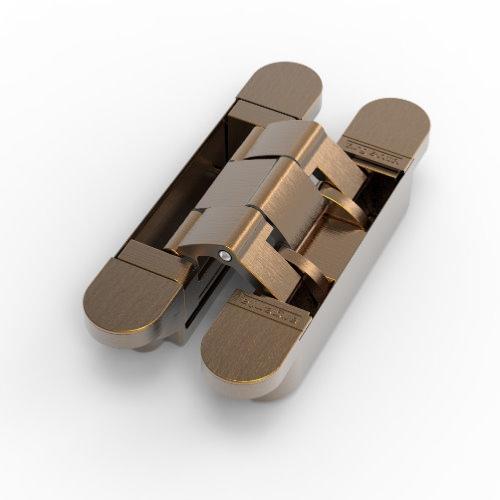

ARGENTA NEO L-7 3D Concealed Invisible Hinge
The Argenta Invisible NEO is a series of hinges with an exceptionally high finish: not a single screw is visible. You can adjust these hinges with precision easily, flexibly, and quickly, thanks to the built-in height-adjustment system. This unique system means you no longer need to put any wedges under the door to set the height. The hinge casing in the door can be assembled beforehand in the workshop.
Pure and qualitative design
No visible screws.
Universal: For Left and Right hand opening doors
"Easy-Hook": Installation and 3D adjustable by one person
Extra simplified height adjustment: No wedge required
180 degree opening angle
3D adjustable (height, width, and depth) without removing the door.

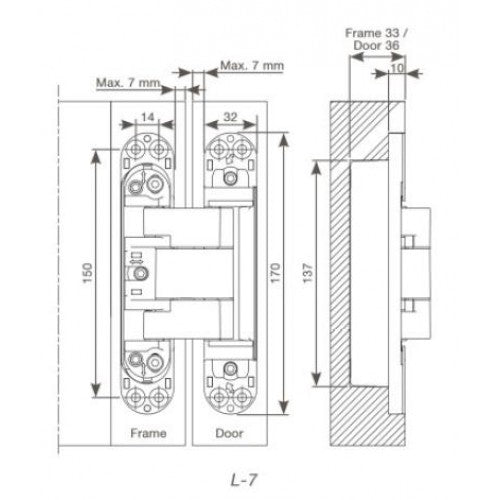

DIMENSIONS:
170mm Long x 32mm Wide
Door Thickness: min. 40 mm
Door Weight (2 pcs) : up to 100kg
Door Weight (3 pcs) : up to 150kg
Height Adjustment: -3,0 / +3,0 mm
Width Adjustment: -3,0 / +4,0 mm
Depth Adjustment: -1,5 / +1,5mm
Fire Resistant: EI30 & EI60 (NEO-L7 EI30/Finish* & NEO-L7 EI60/*) 3 hinges required for FD30 & FD60
Screw Diameter: max. 5mm
There are three versions available for selection - Non-fire rated, Fire rated EI30 models are supplied complete with the Intumescent to suit and Fire rated EI60 models are also supplied with the relevant intumescent but it also has FR60 stamped on the hinge so you know it's 60 minute fire rated.
Please note that these are sold singly
FINISH:

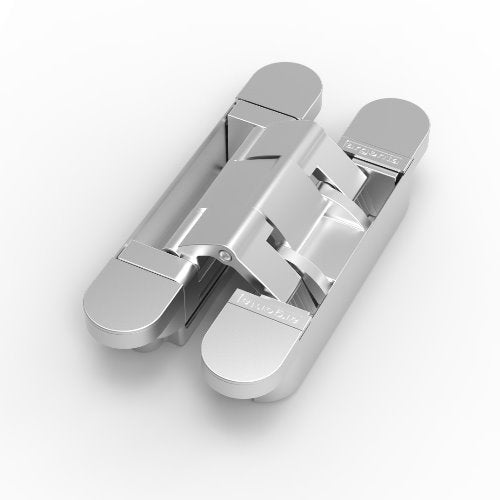

Matt Chrome
Polished Chrome

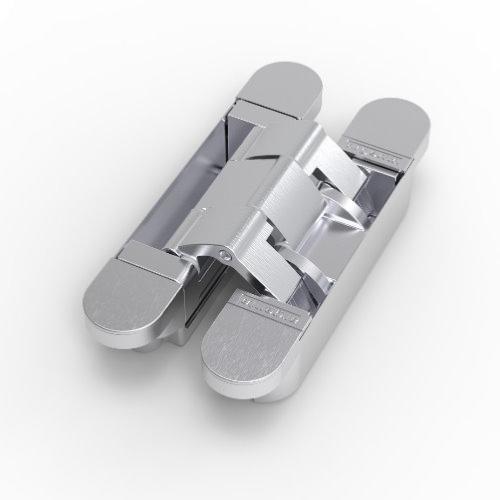

Satin Stainless Steel Look

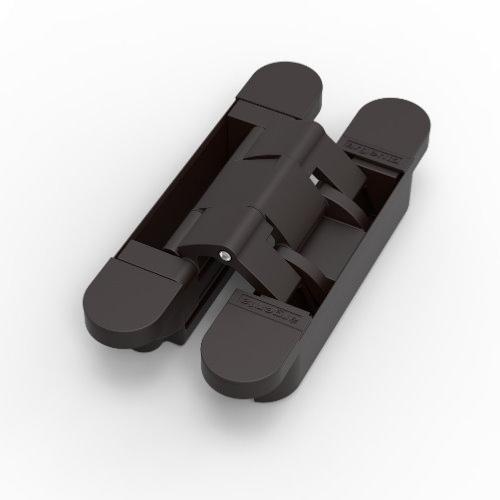

Black

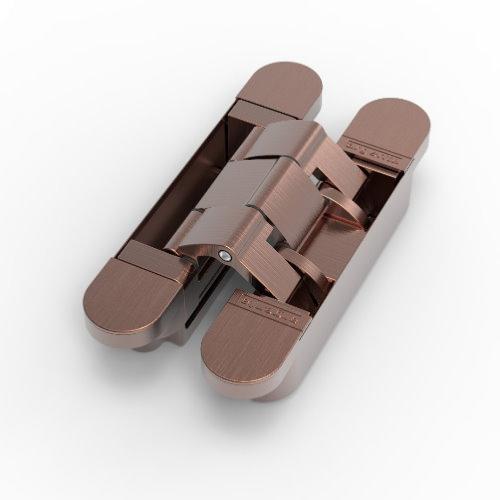

Copper Bronze

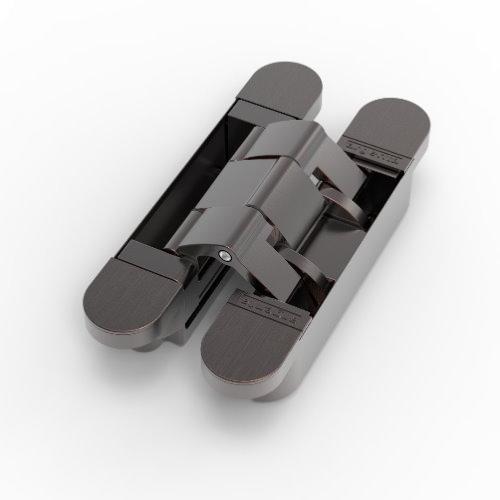

Dark Bronze
Antique Brass

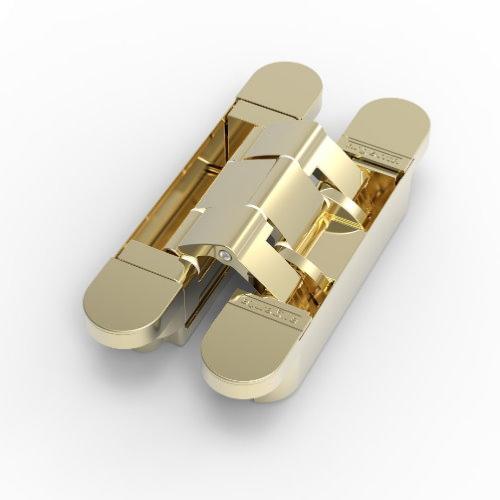

PVD Polished Brass
