JNF IN.05.501.BH2UP2 Free Swing 500kgs Pivot Set

JNF IN.05.501.BH2UP2 Free Swing 500kgs Pivot Set

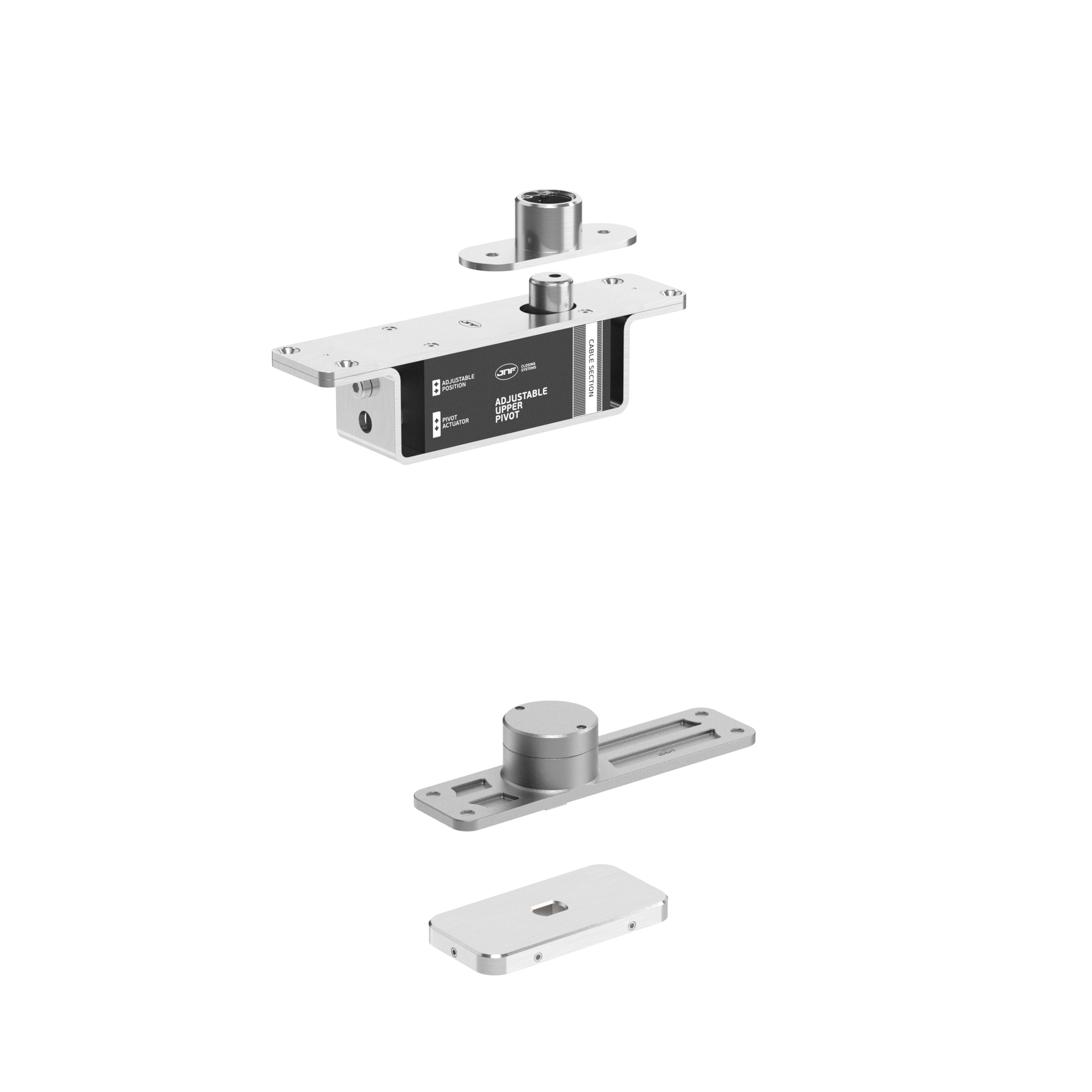

JNF satin stainless steel grade 304 heavy duty free swing pivot set to suit single or double action timber doors weighing up to 500kgs, to suit 45mm thickness, with wiring cable pass through channel.

The stainless steel or PVD finished covered BH2 100 x 50mm bottom plate is suitable for concrete, timber and floors with underground heating door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 7mm top and 12.5mm bottom gap.

View the Technical-Details Tab above for more information or check out the new JNF PivotLab selector website here

DIMENSIONS:
Top Frame
82mm Long
30mm Wide
22mm Deep
Top Pivot
180mm Long
40mm Wide
44mm Deep
Bottom Bearing
160 Long
40mm Wide
25mm Deep

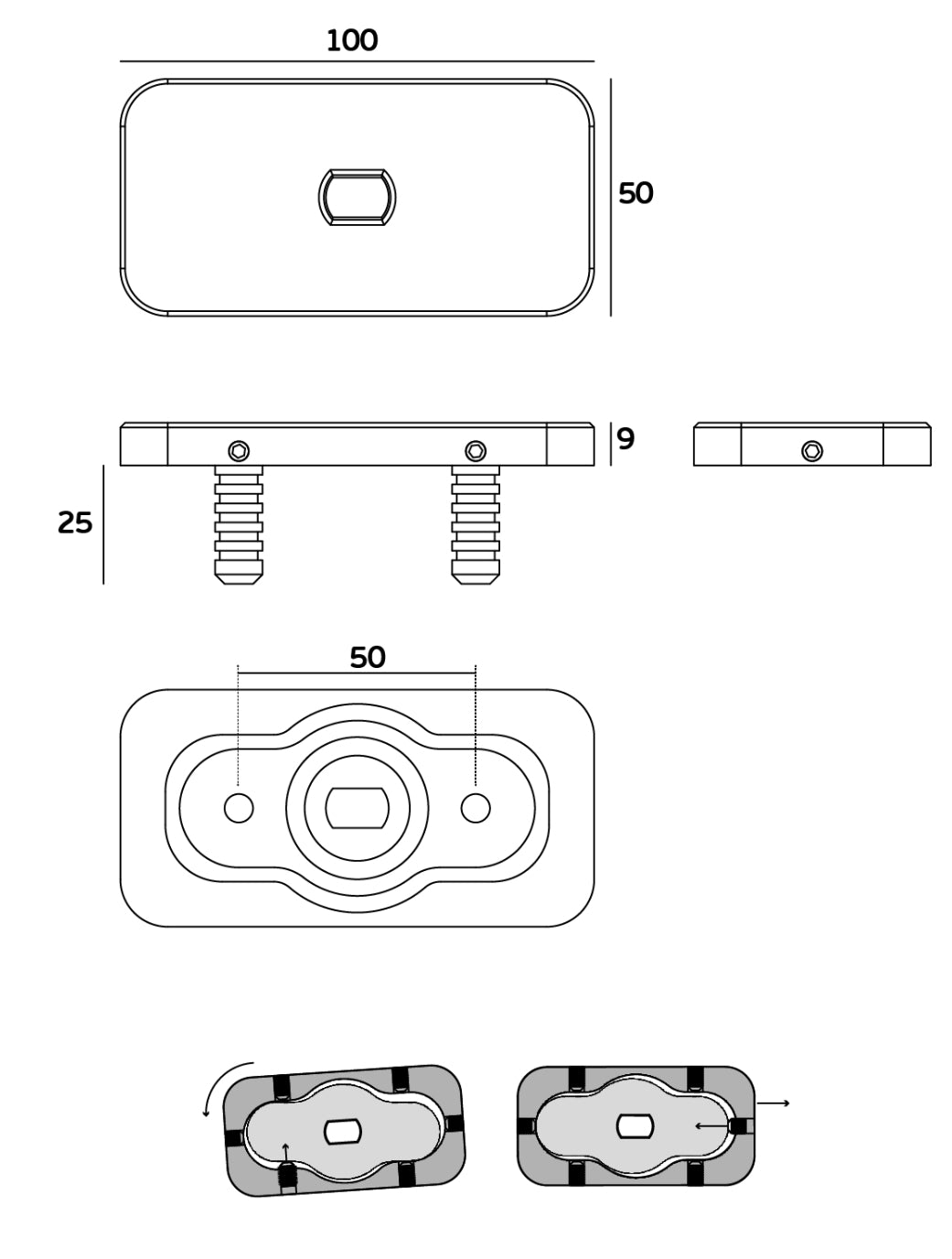

BH2 Floor Plate
100mm Long
50mm Wide
9mm Thick
25mm Fixing Depth

FINISHES:
Satin Stainless Steel

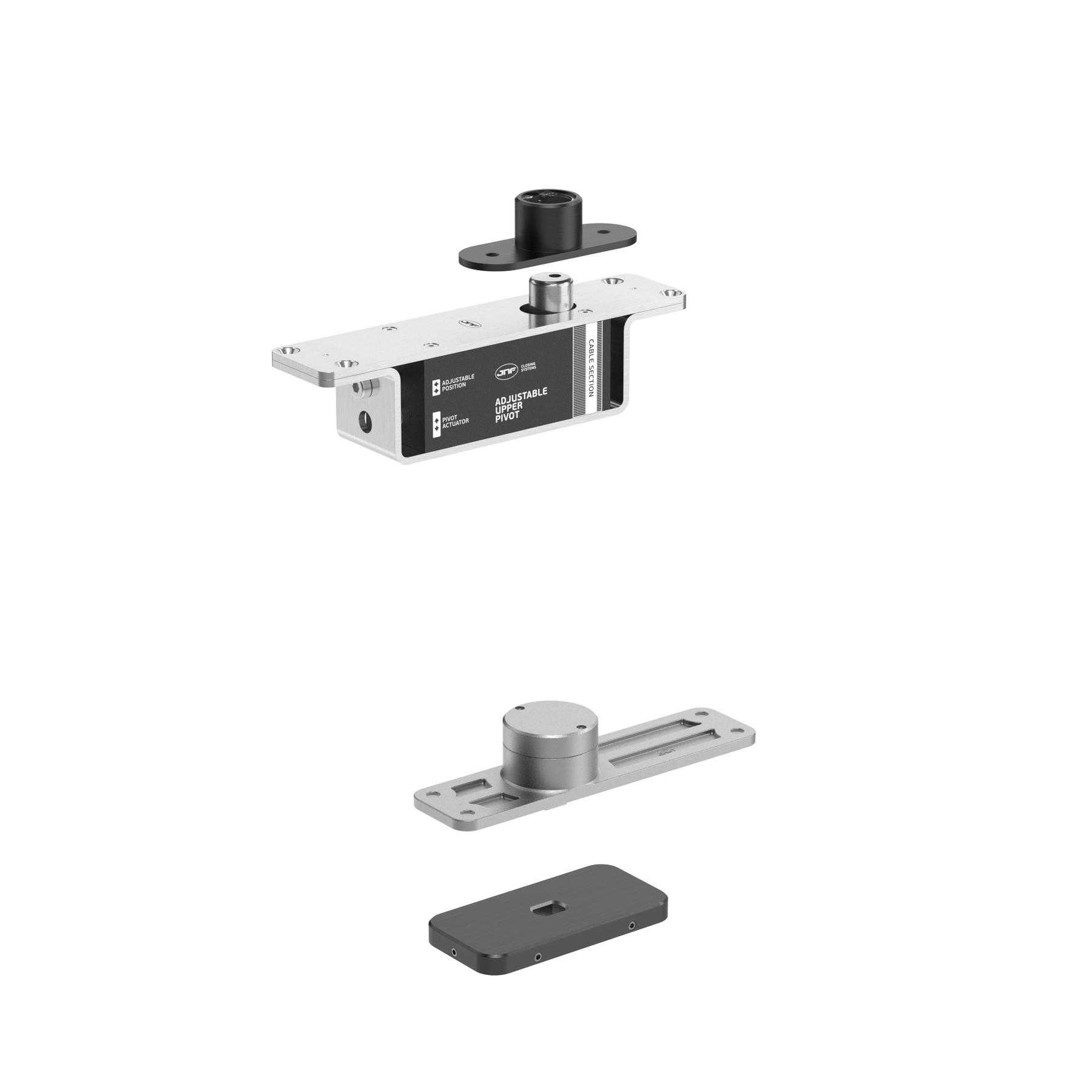

PVD Black

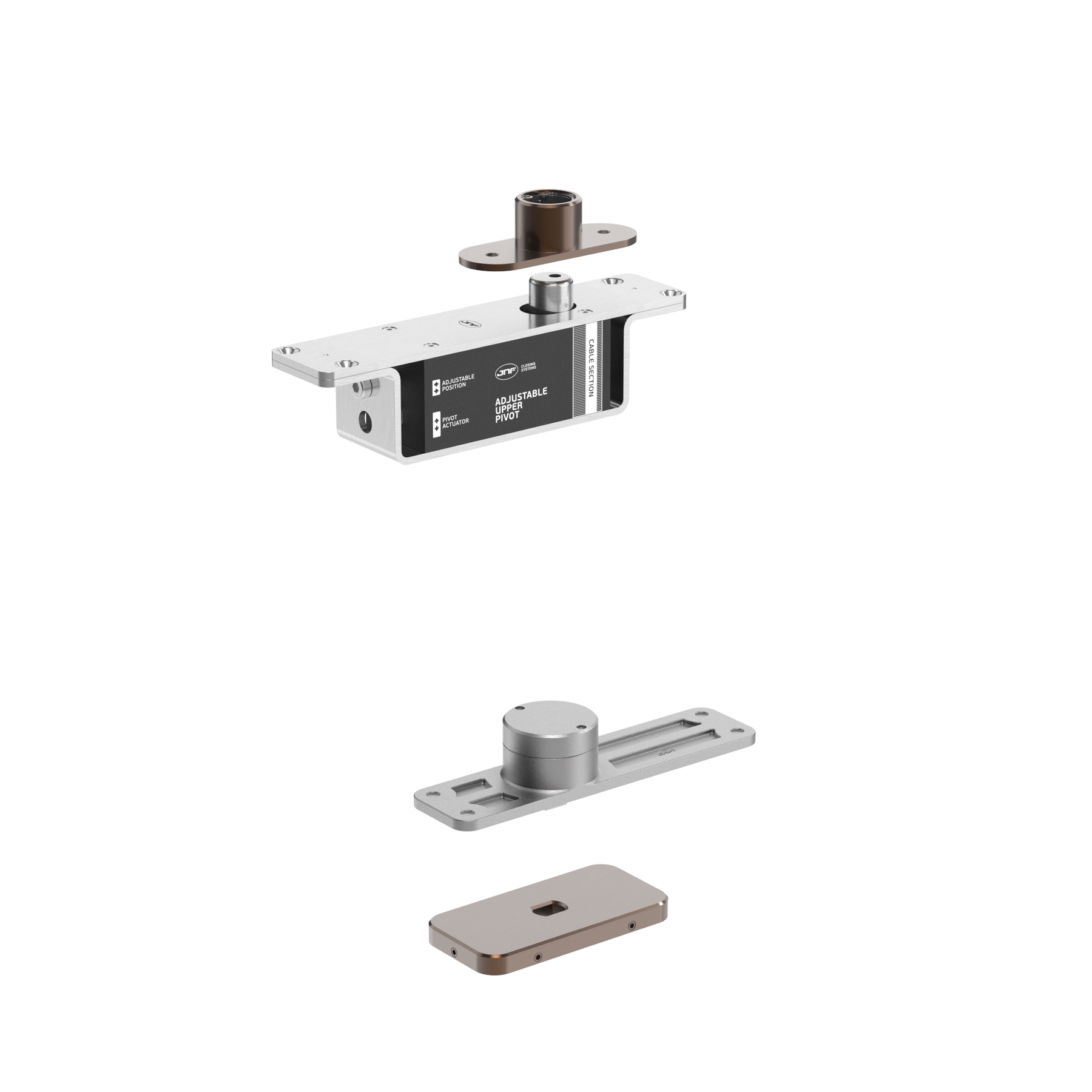

PVD Chocolate

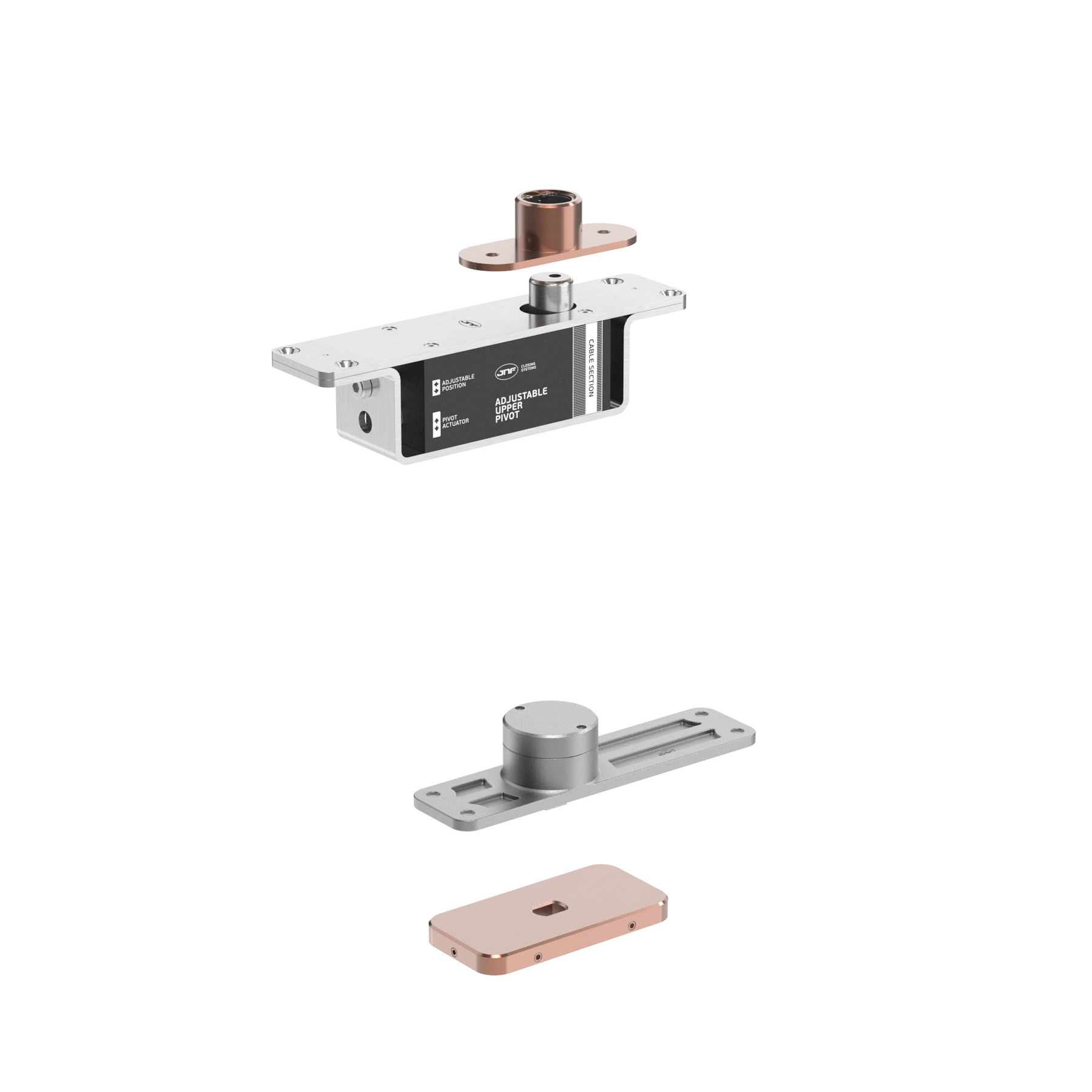

PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process
