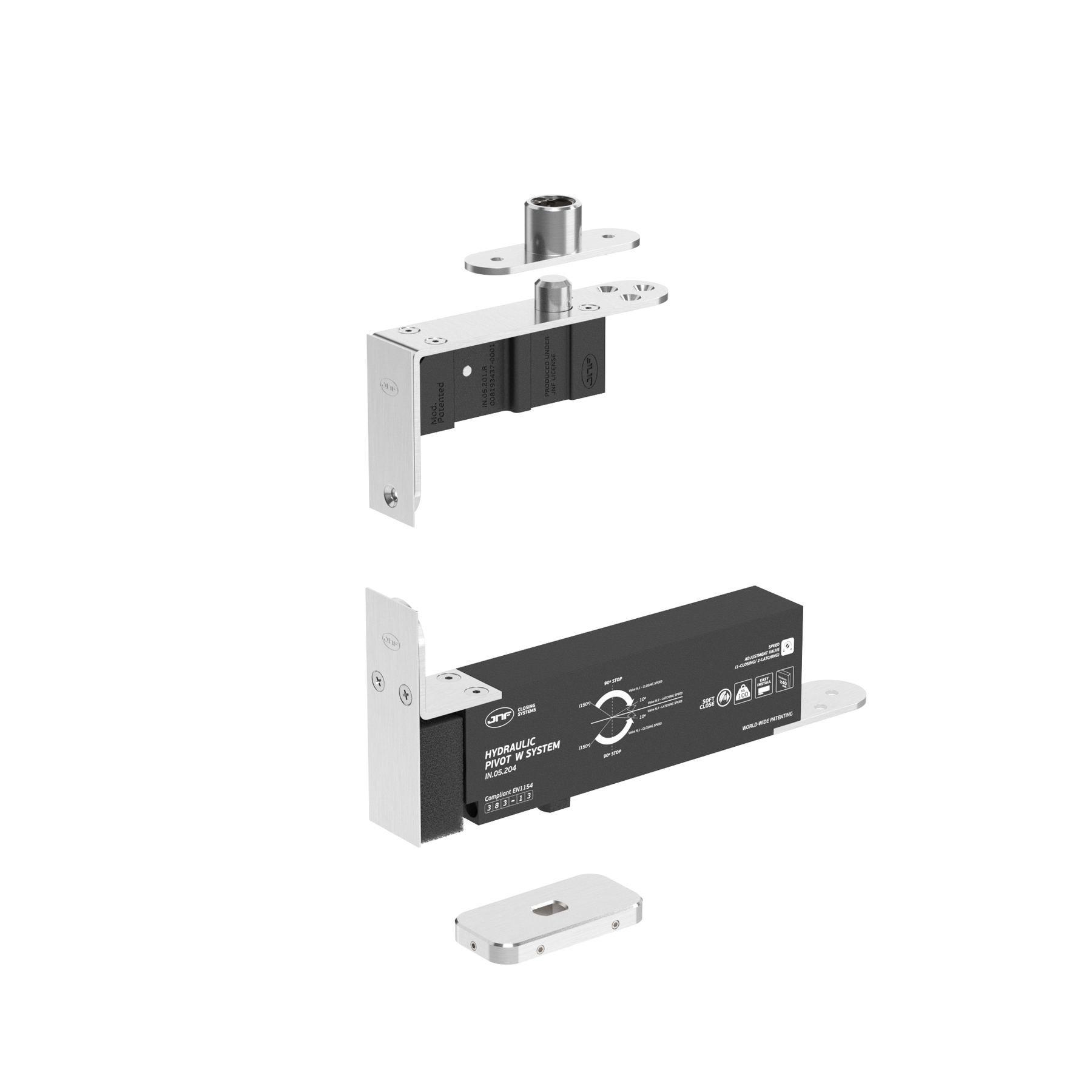

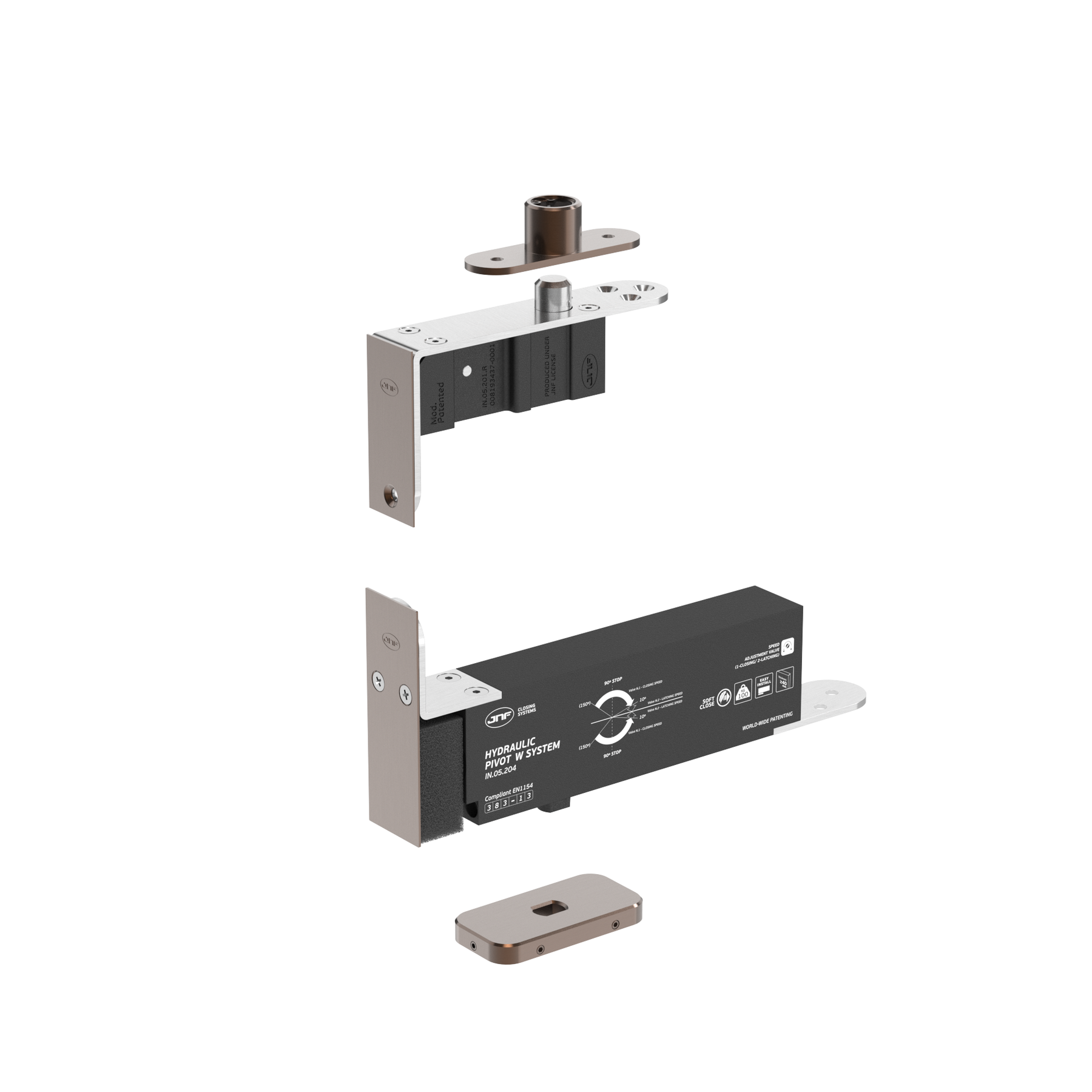

JNF IN.05.204.HO.BH1UP4 Edge Double action 100kgs hydraulic timber door pivot set - Hold Open

JNF IN.05.204.HO.BH1UP4 Edge Double action 100kgs hydraulic pivot set - Hold Open

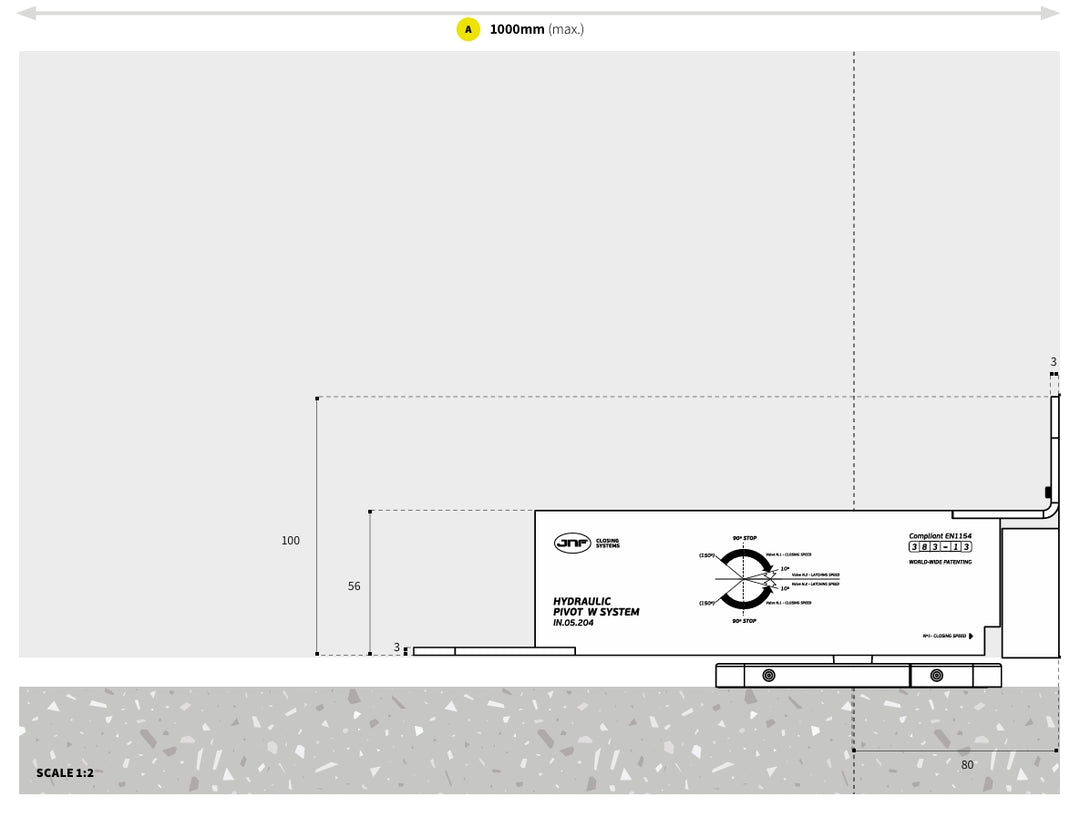

The JNF double CAM action hydraulic hold open edge heal pivot set is suitable for timber doors weighing up to 100kgs/1000mm wide and with a minimum 40mm/maximum 50mm thickness,

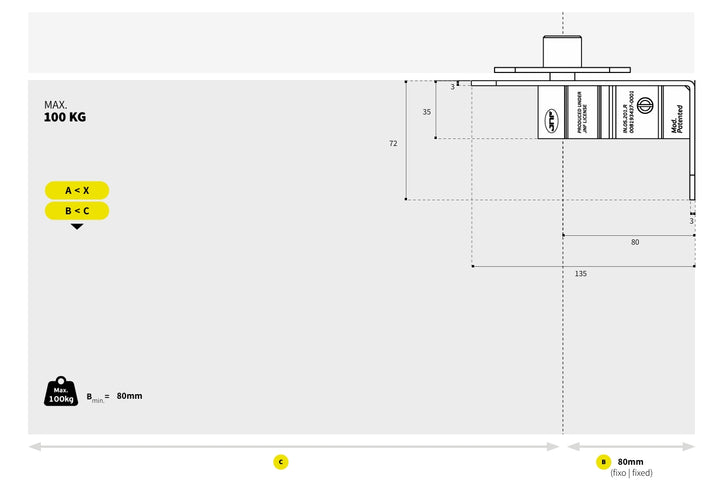

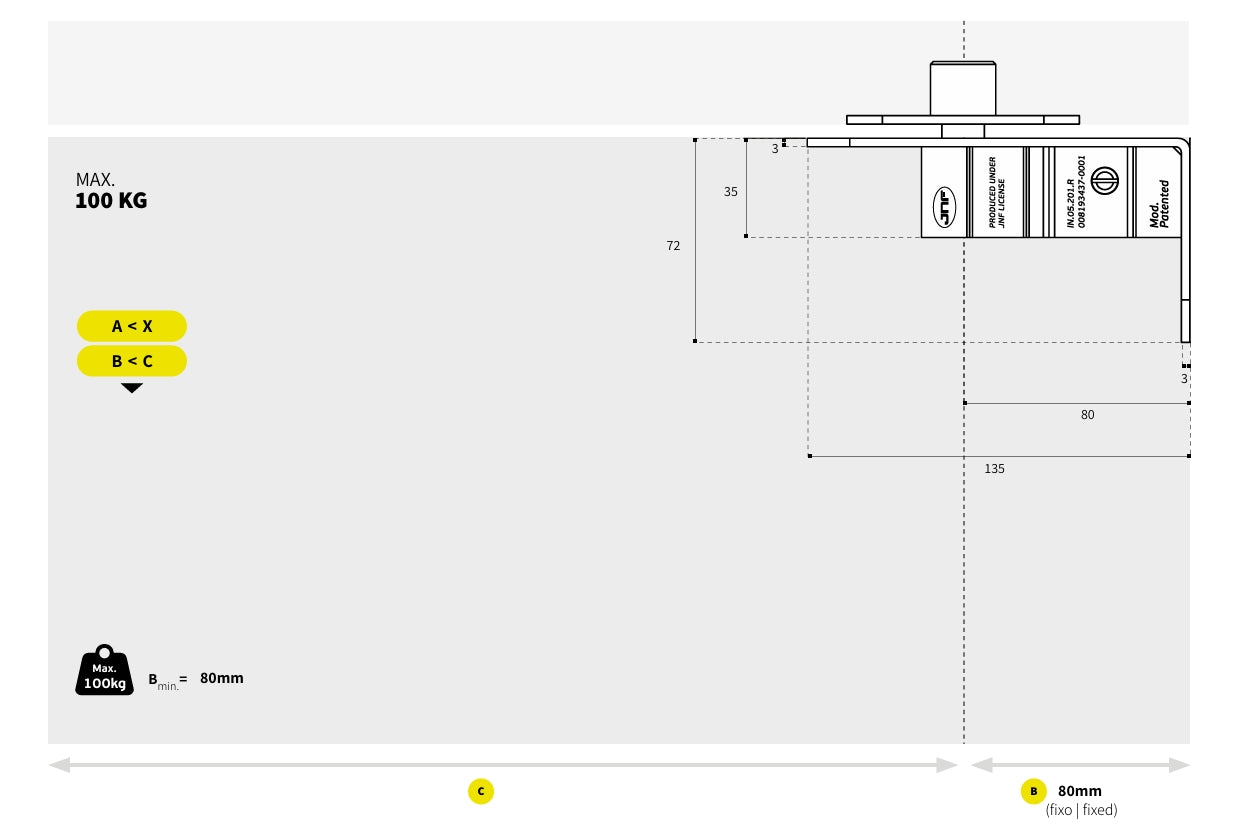

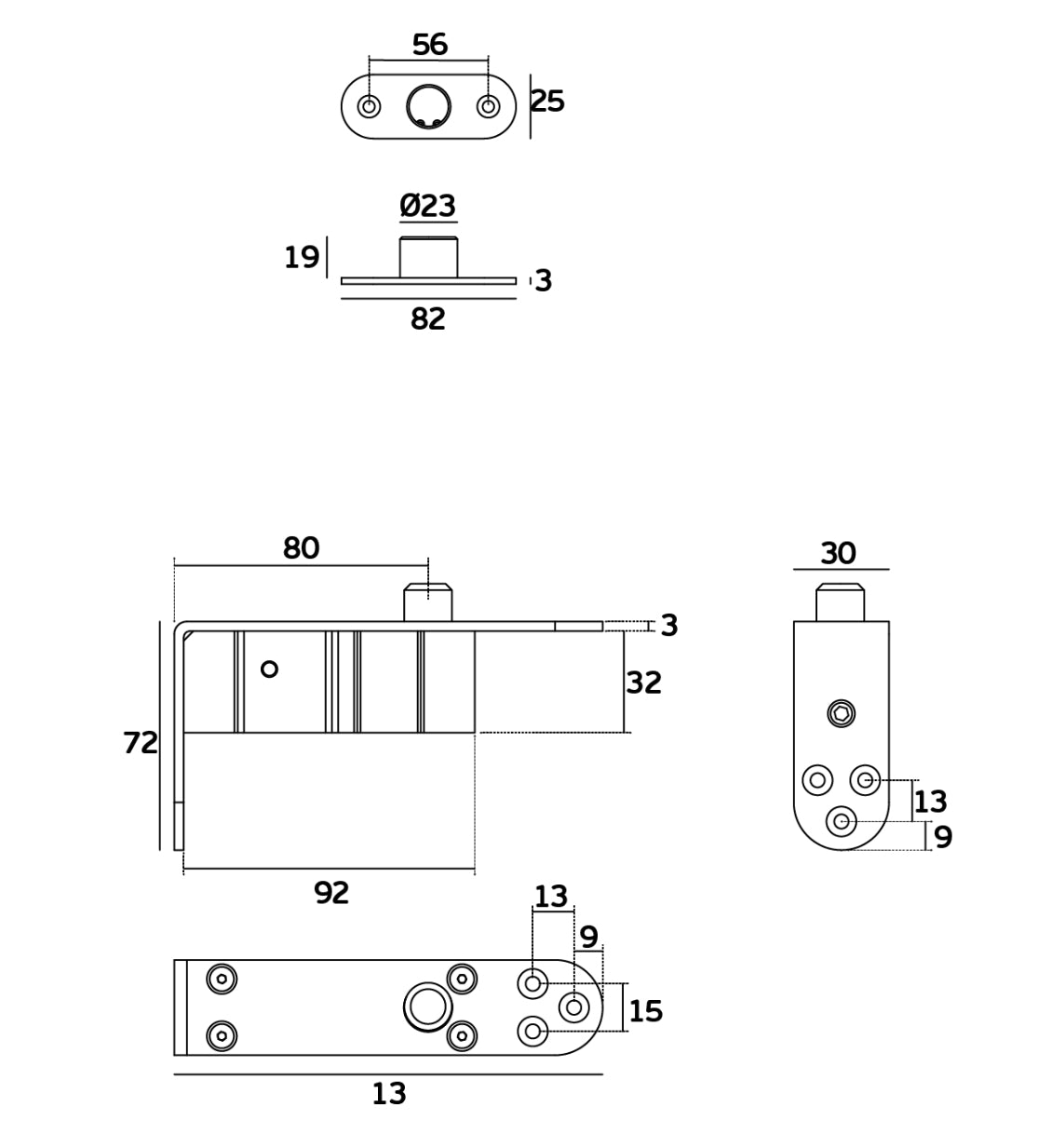

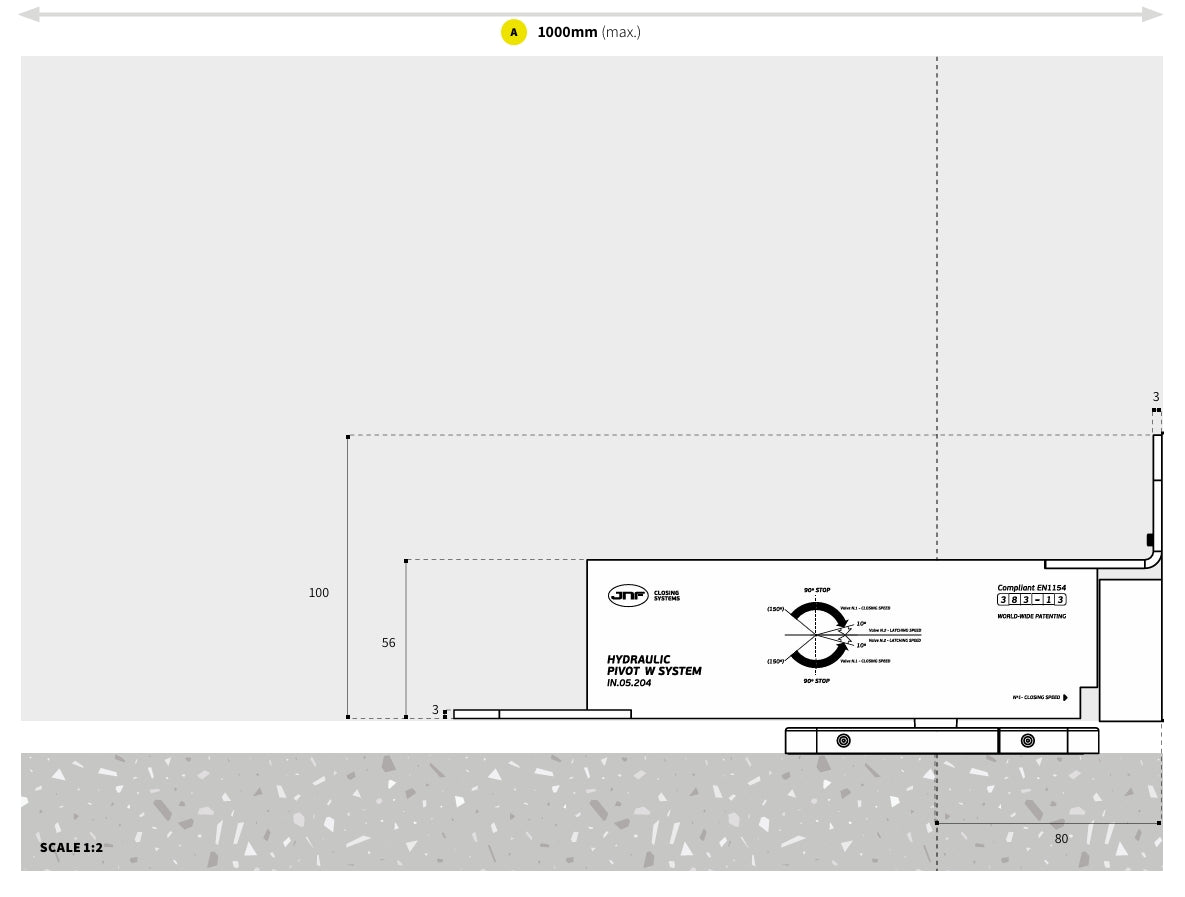

The minimum position for the top and bottom pivot is 80mm from the door edge.

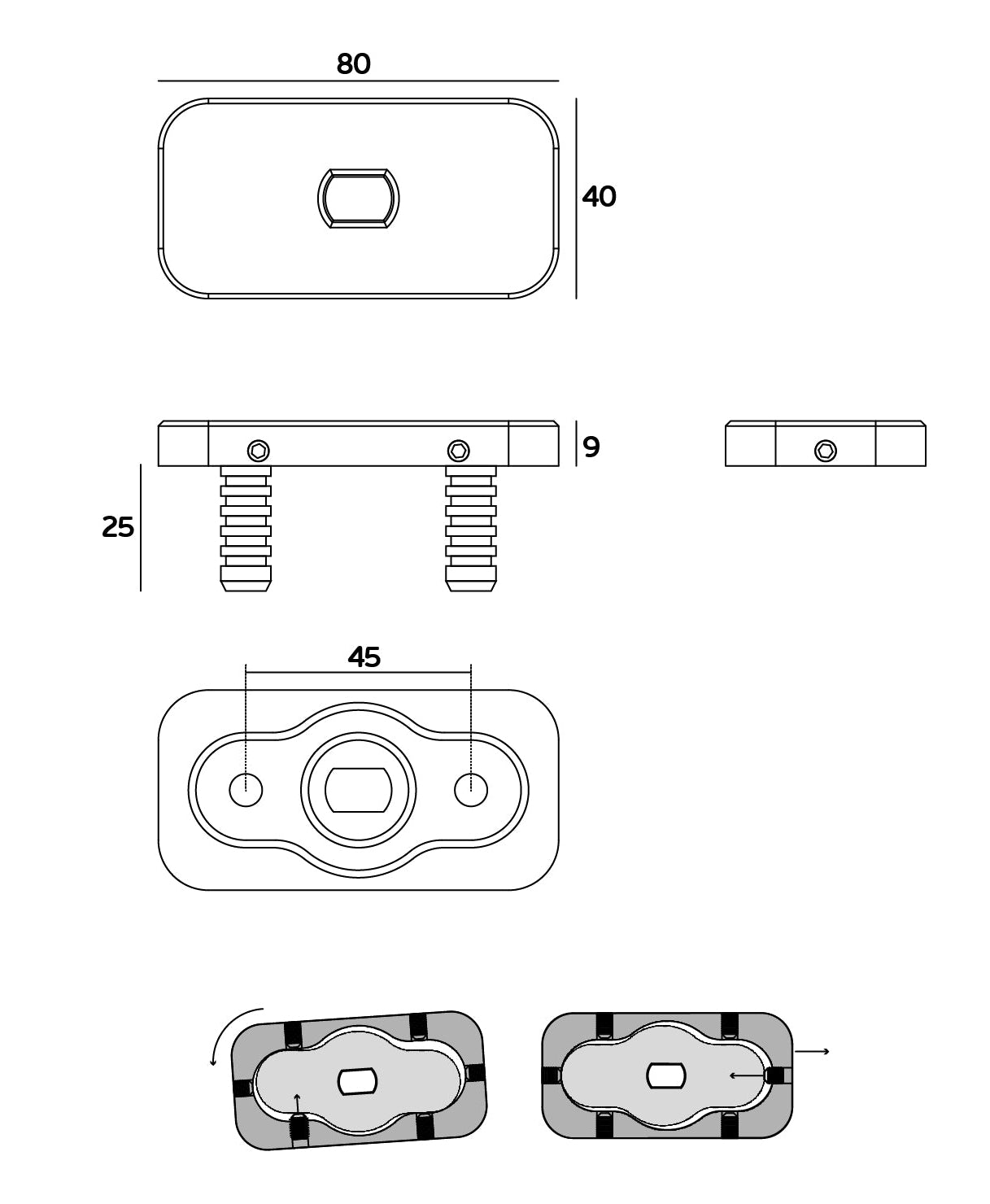

The stainless steel or PVD finished covered BH1 80 x 40mm bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 6mm top and 11.5mm bottom gap.

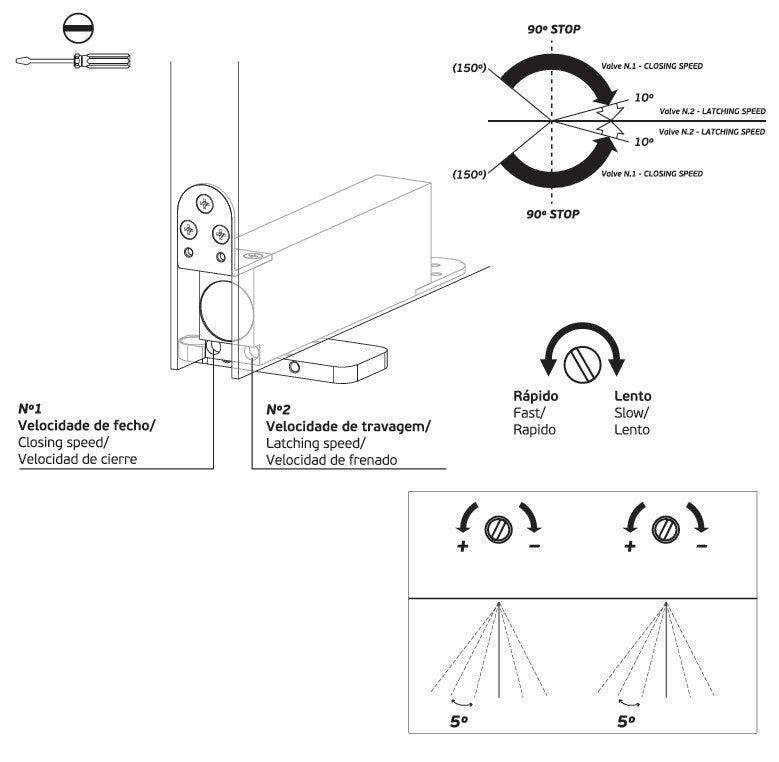

The pivot can be held open at 90 degrees and also rotate through 150 degrees with with both closing speed and soft closing (last 10 degrees) adjustment made at the door edge.

View the Technical-Details Tab above for more information or check out the new JNF PivotLab selector website here

FINISH:
Satin Stainless Steel

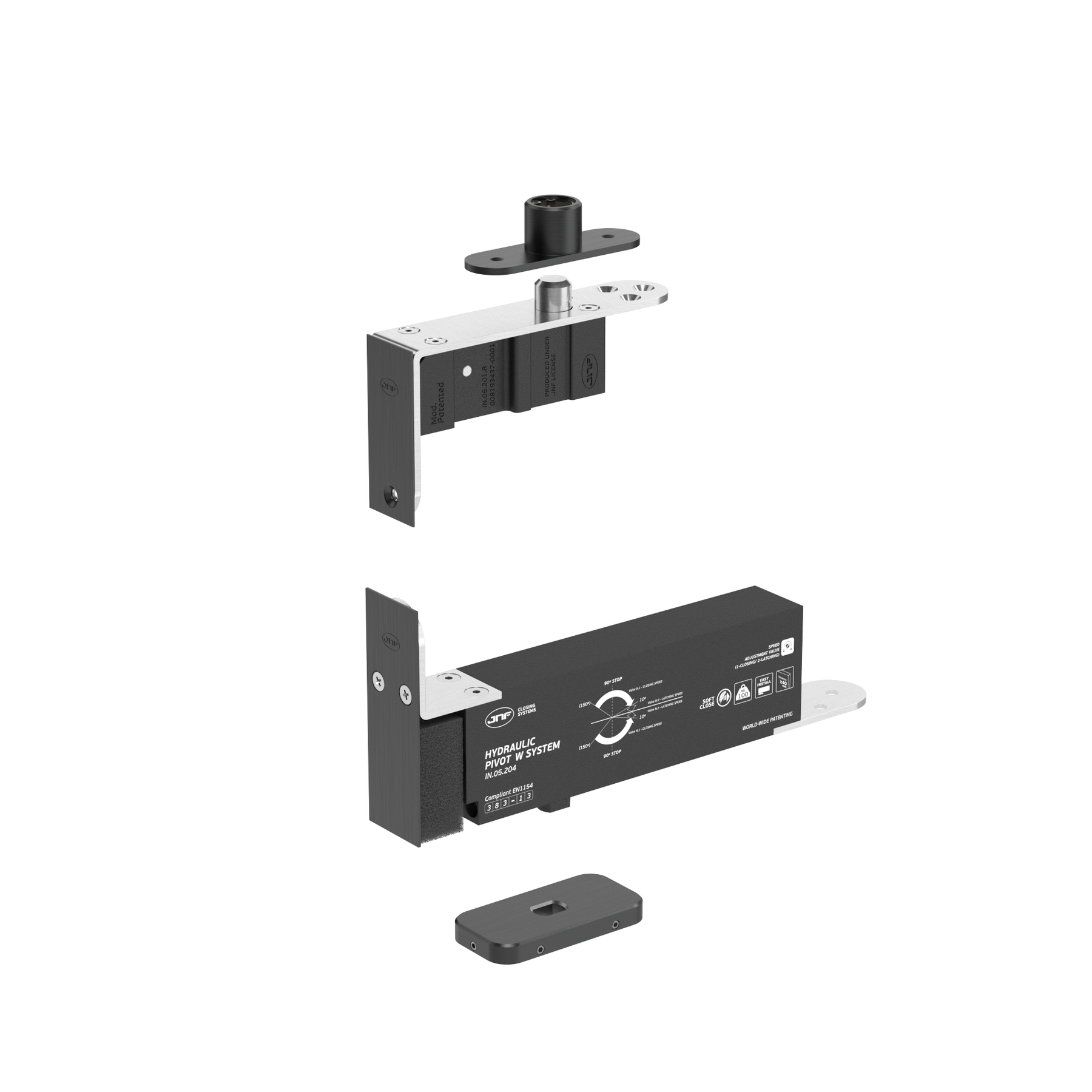

PVD Black
PVD Chocolate

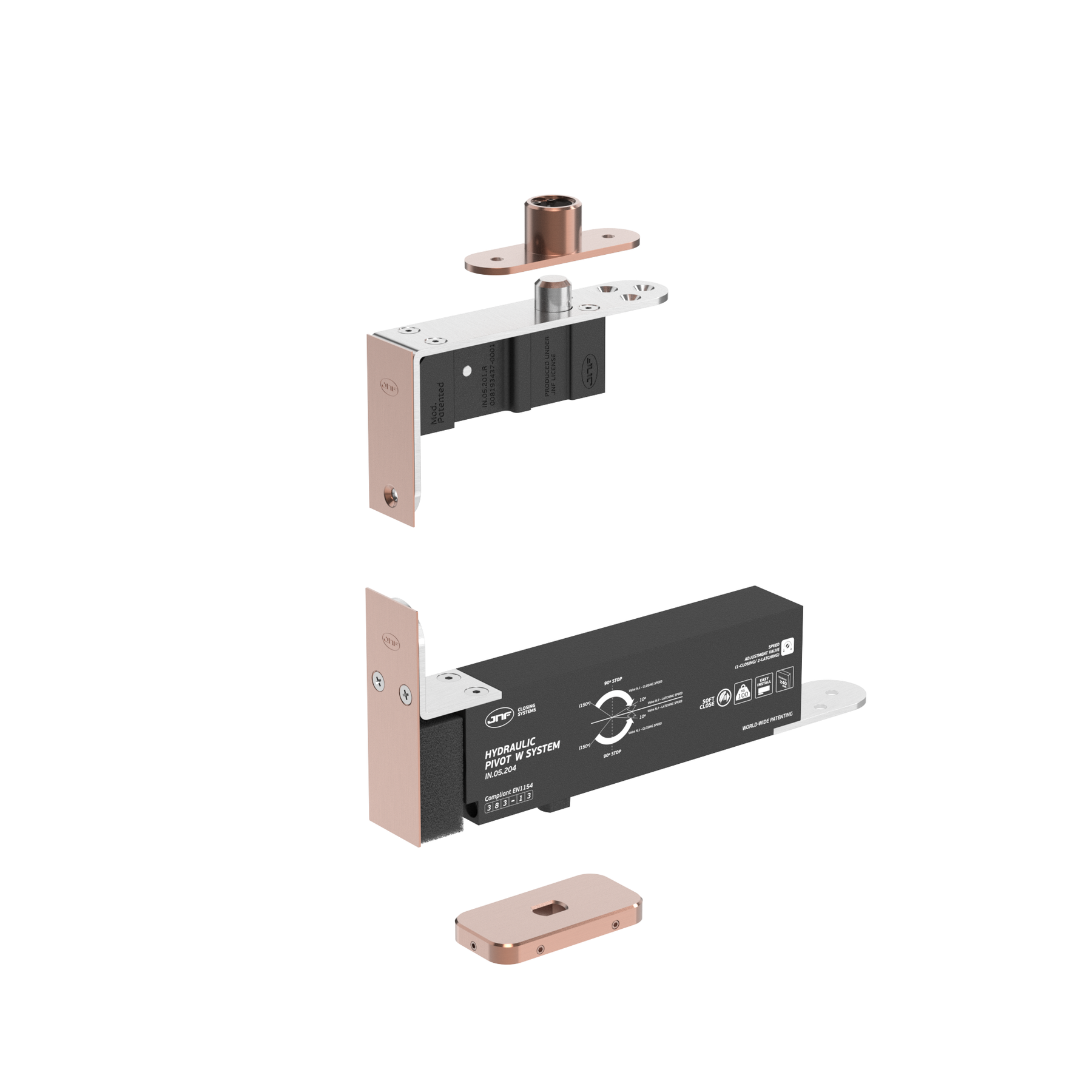

PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
