Carlisle Brass H2N1900 Double Action Pivot Set
The Carlisle Brass grade 304 satin stainless steel double action pivot set, with maintenance free oil impregnated bronze bearings, allows doors to swing in both direction; suitable for use with standalone doors or when used in conjunction with their H2N1950 emergency stop release allows you to open the door outwards in the event of an emergency.
The bottom bracket is designed to be fitted to the door frame with 44mm minimum door thickness/maximum 80 kg door weight when floor mounted/maximum door width 1100 mm, when jamb mounted.
44 mm thick doors require R9 radius on pivot edge.
54 mm thick doors require R12 radius on pivot edge.

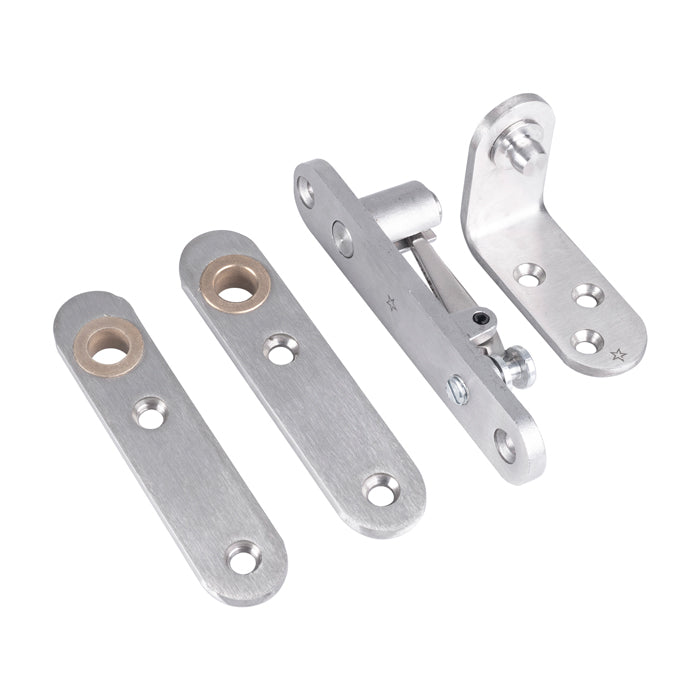

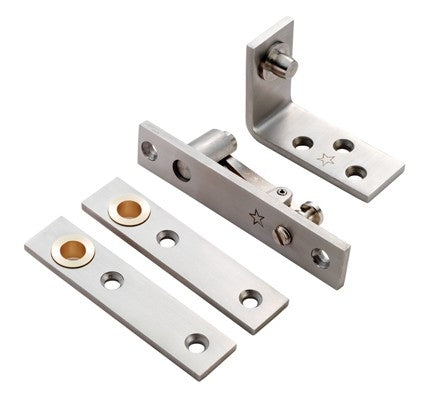

Set includes door bottom pivot, top centre and 5mm thick door bracket and available in either square or radiused versions.
DIMENSIONS:
Top plate - 130 x 25 x 5mm
Top pivot - 130 x 25 x 5mm
Bottom plate - 110 x 25 x 5mm
Frame mounted bottom pivot bracket - 58.5 x 32 x 79 x 5mm
