ARKITUR Double action CAM Hydraulic 150kgs sprung pivot set
The Arkitur double action CAM operated hydraulic heal pivot set is suitable for timber doors weighing up to 1250mm wide/150kgs and with a minimum 50mm thickness.
UL Listed, CE Marked. EN1154 + EN1634-1 Fire Tested. EN Power Size 5.

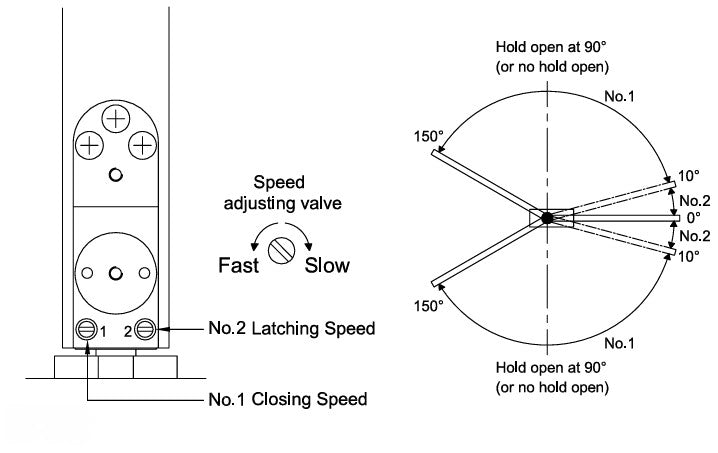

The pivot can rotate through 150 degrees with opening and closing speed adjustment (at the edge of the door) together with soft closing within the last 10 degrees and is suitable for FD30 Fire doors when used in conjunction with the intumescent pack sold separately.

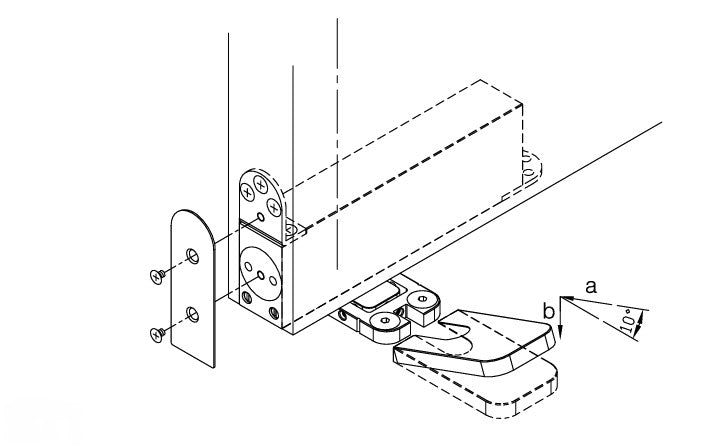

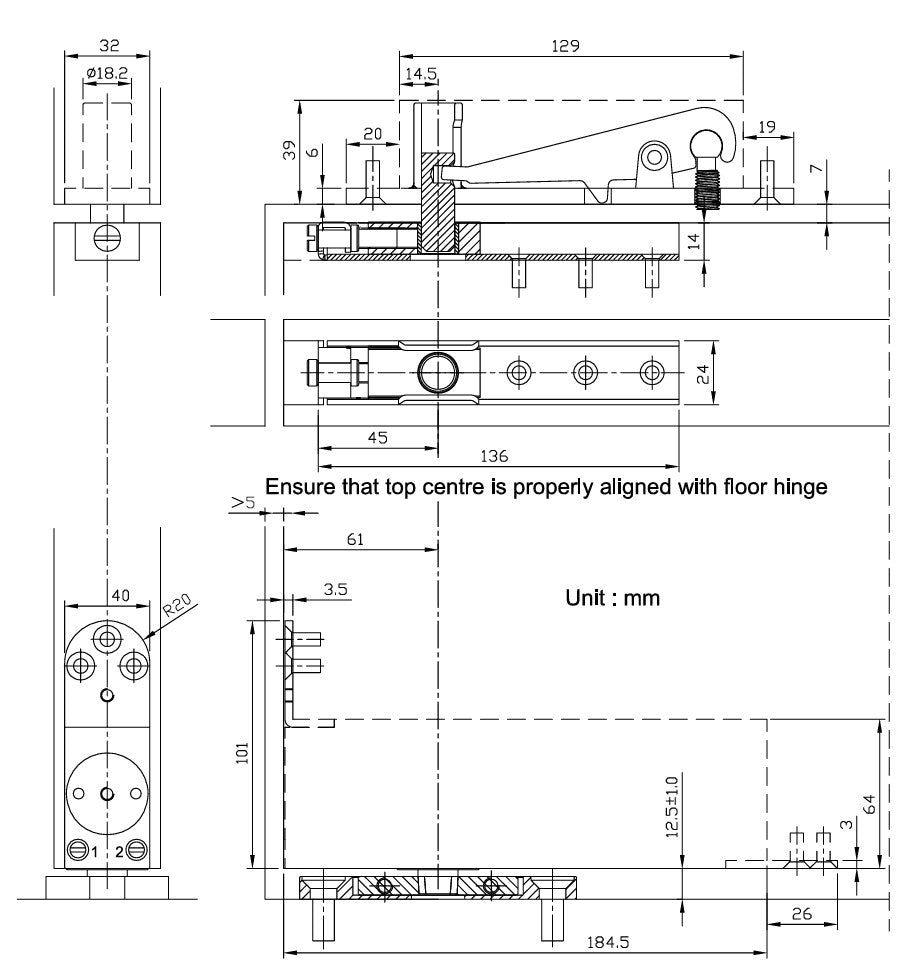

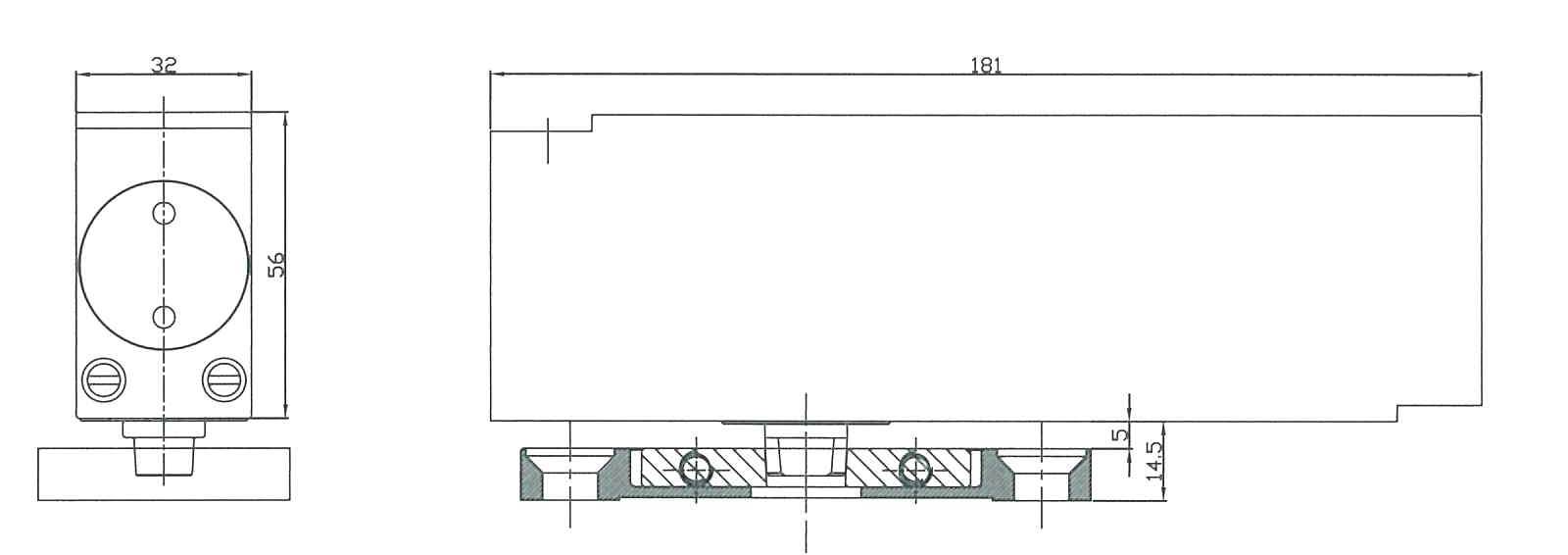

The stainless steel covered floor plate is fixed to the floor with 4 x 30mm deep fixings and the top pivot depth into the frame is 23mm with the stainless steel top plate being 181mm long x 37mm wide.
