Simonswerk Tectus TE440 3D Single Concealed Hinge - 100kgs

Simonswerk TE440 3D Concealed Hinge - 100kgs

The Tectus TE440 3D hinge suits unrebated doors up to 100kgs based on two hinges per door leaf size 2000mm high x 1000mm wide with a 36mm minimum door thickness.

Suitable for timber, steel or aluminium frames with 3 dimensional adjustment (+/-3mm side and height and +/-1mm compression). 180 degree opening angle.

Please note that these are sold singly and price shown is per hinge.

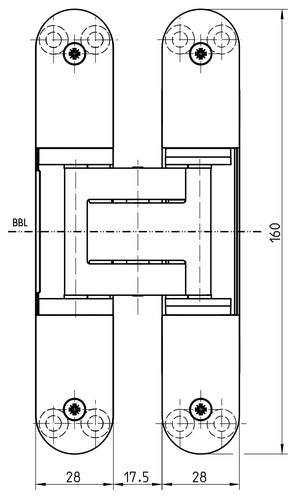

DIMENSIONS:
160mm High
28mm Frame Width
28mm Door Width

FINISH:
Satin Chrome Look (F1/SW 124)
Satin Nickel Look (F2/SW 125)

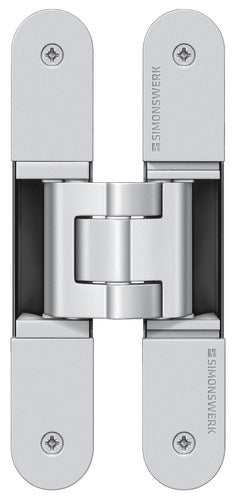

Stainless Steel Look (SW 126)

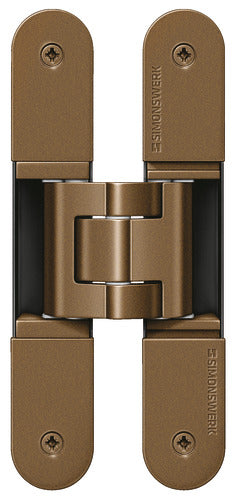

Bronze Metallic (SW 168)

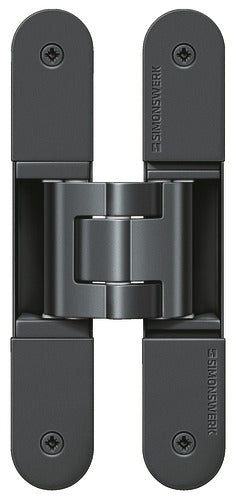

Matt Grey (SW 088)

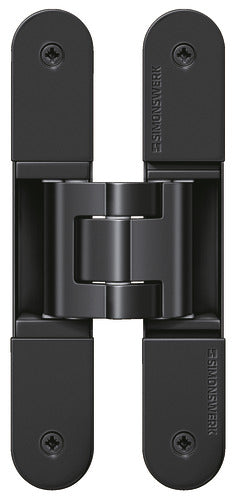

Matt Black - RAL9005 (SW 107)

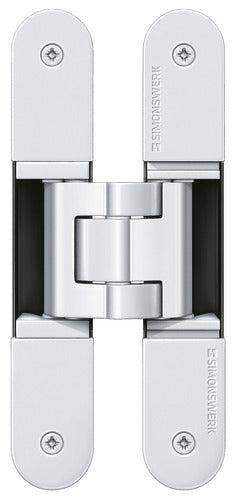

Traffic White - RAL9016 (SW 070)

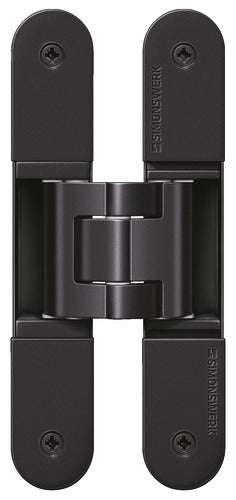

Rustic Umber (SW 156)

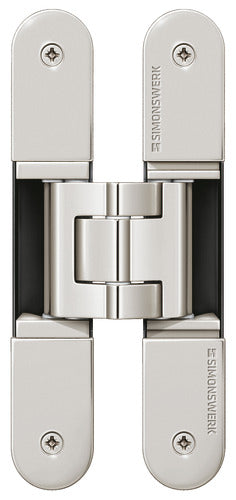

Polished Nickel (SW 038)

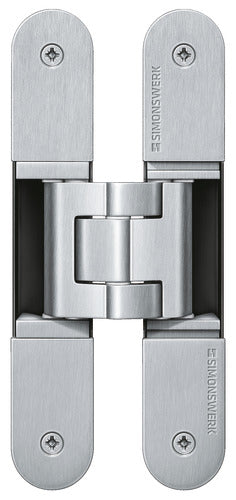

Satin Chrome (SW 146)
Satin Nickel (SW 144)

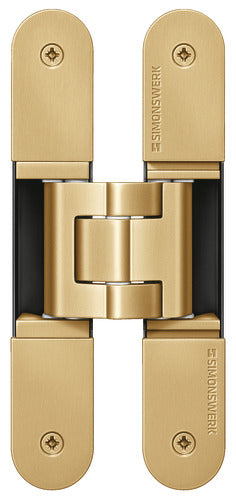

Satin Brass (SW 047)

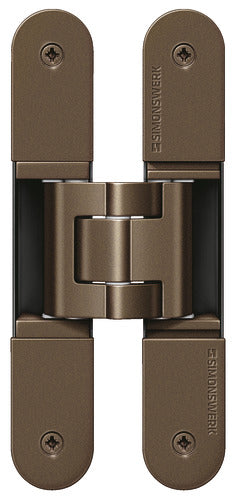

Light Bronze Finish (SW 175)

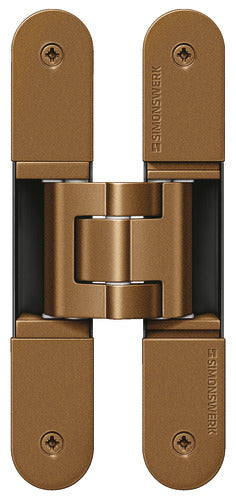

Mid Bronze Finish (SW 174)

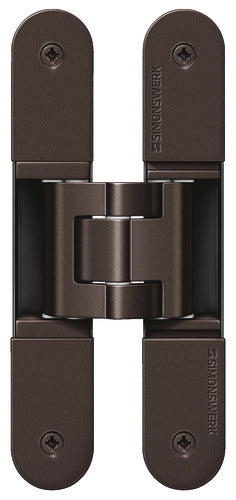

Dark Bronze Finish (SW 176)

Please select files below to view more information about this product
