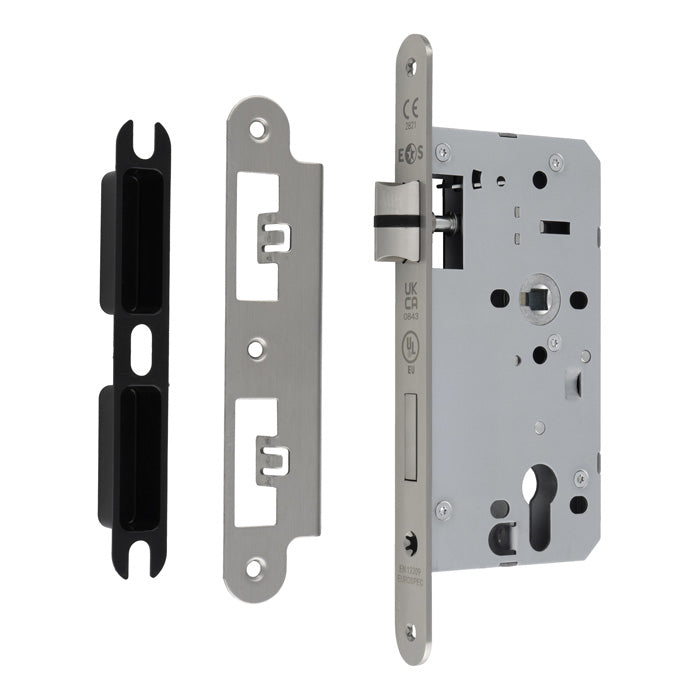

Carlisle Brass Eurospec DIN DLX European Radius Cylinder Sashlock - 55mm

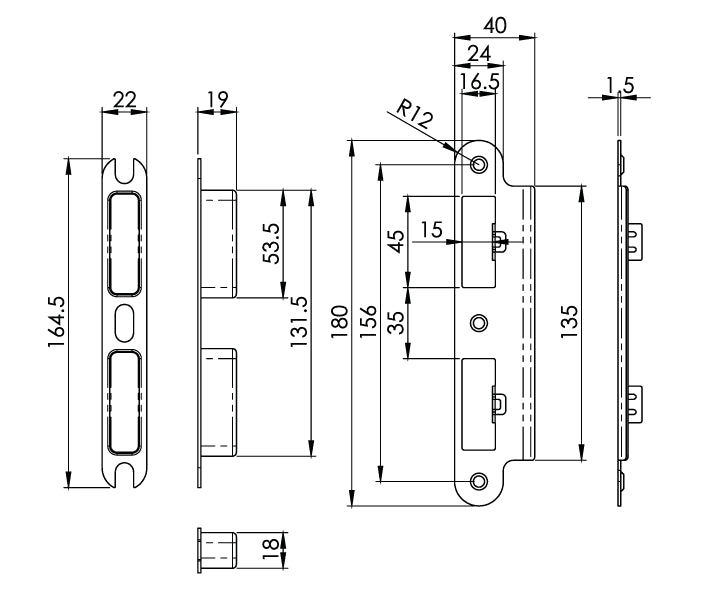

Heavy duty DIN European mortice strongly sprung (Grade X) europrofile cylinder sash lock case with 22mm radius wide forend and anti-rattle striking plate (with black boxed keeps), with stainless steel silent ABS insert latch bolt and deadbolt; suitable for domestic and commercial projects. and deadbolt; suitable for domestic and commercial projects.

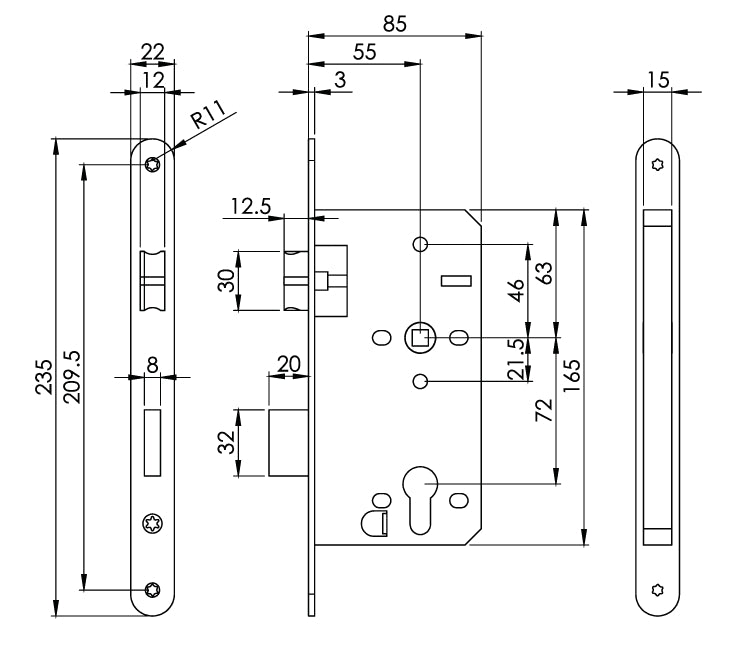

The cylinder sashlock has a backset (distance from edge of door to handle/cylinder) of 55mm with 20mm single throw deadbolt and is suitable for un-sprung lever handles and euro-profile cylinders.
The distance between the centre of the lever handle and cylinder is 72mm which aesthetically when viewed on a door is less cramped than conventional UK locks. This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.
This sashlock is CE and UKCA Marked and conforms to European standard EN12209:2003 Classification 3X810G2BC00 and conforms to the dimensional characteristics of DIN 18251, Third party accredited using the UL-EU safety mark and comes with a 10 year mechanical guarantee.
Certifire approved (CF850) for use on 30 and 60 minute fire rated doors when used in conjunction with available intumescent packs.
FINISH:
Satin Stainless Steel
