Hard and Ware BCL-5L-KEY 5 Lever Sashlock

Hard and Ware BCL-5L-KEY 5 Lever Sashlock

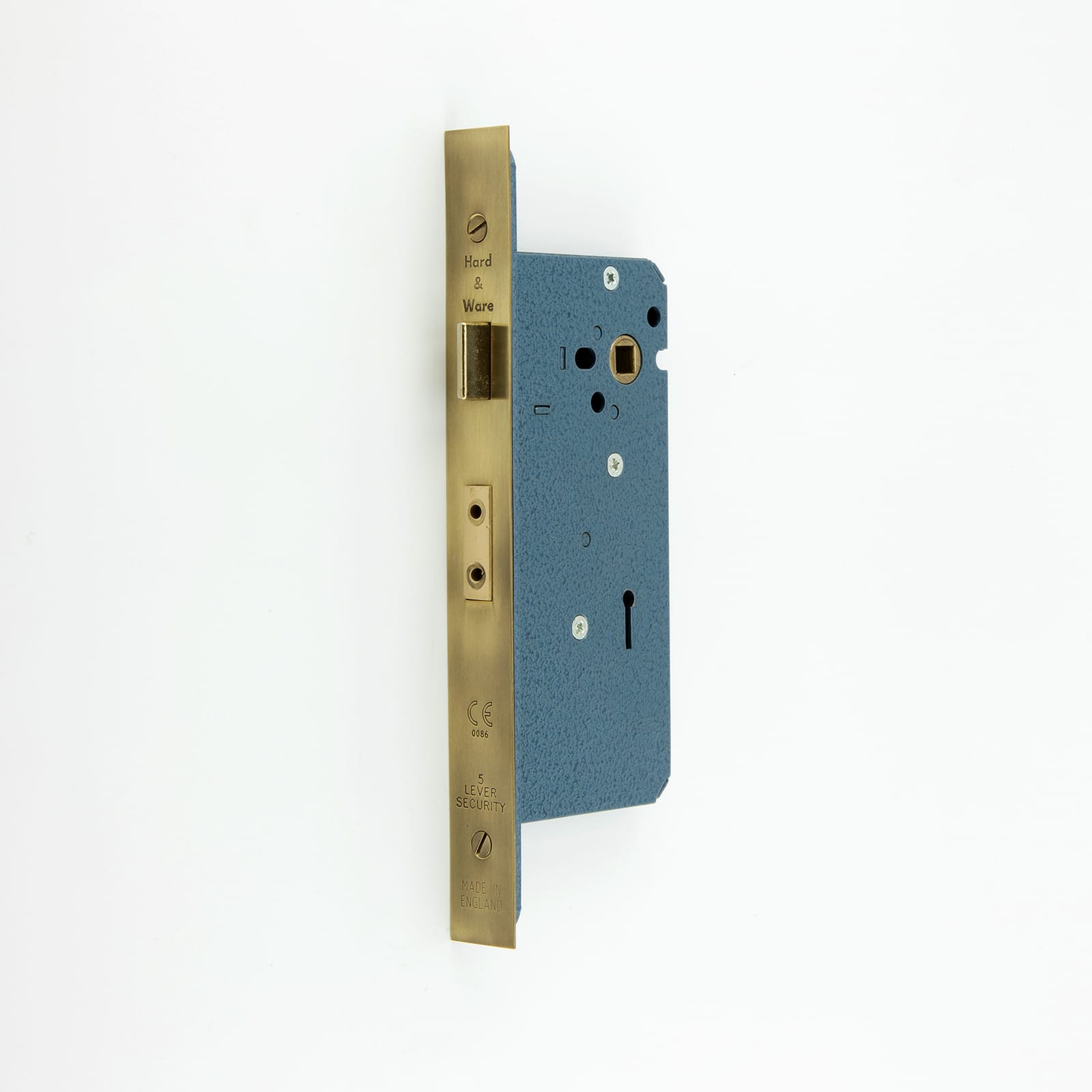

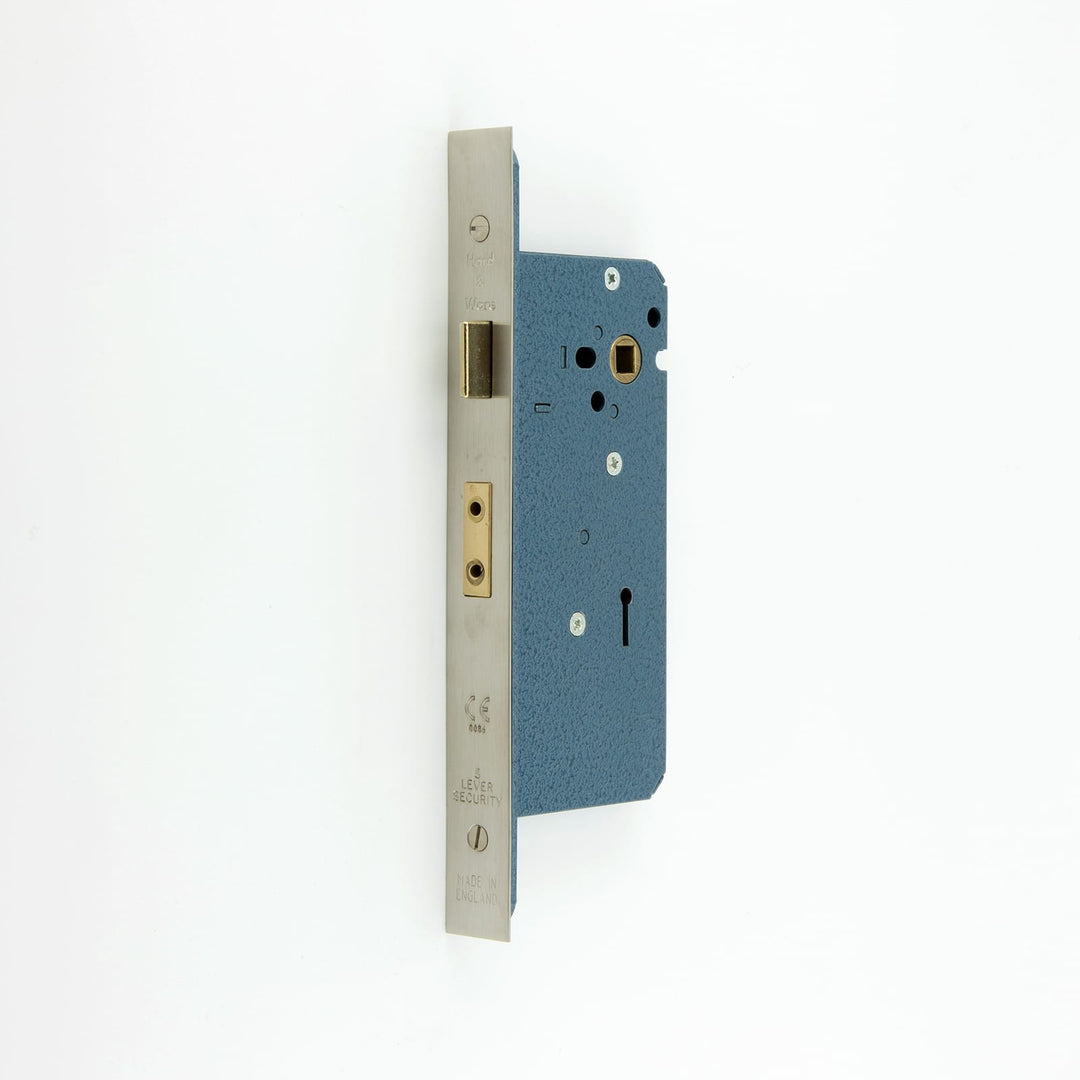

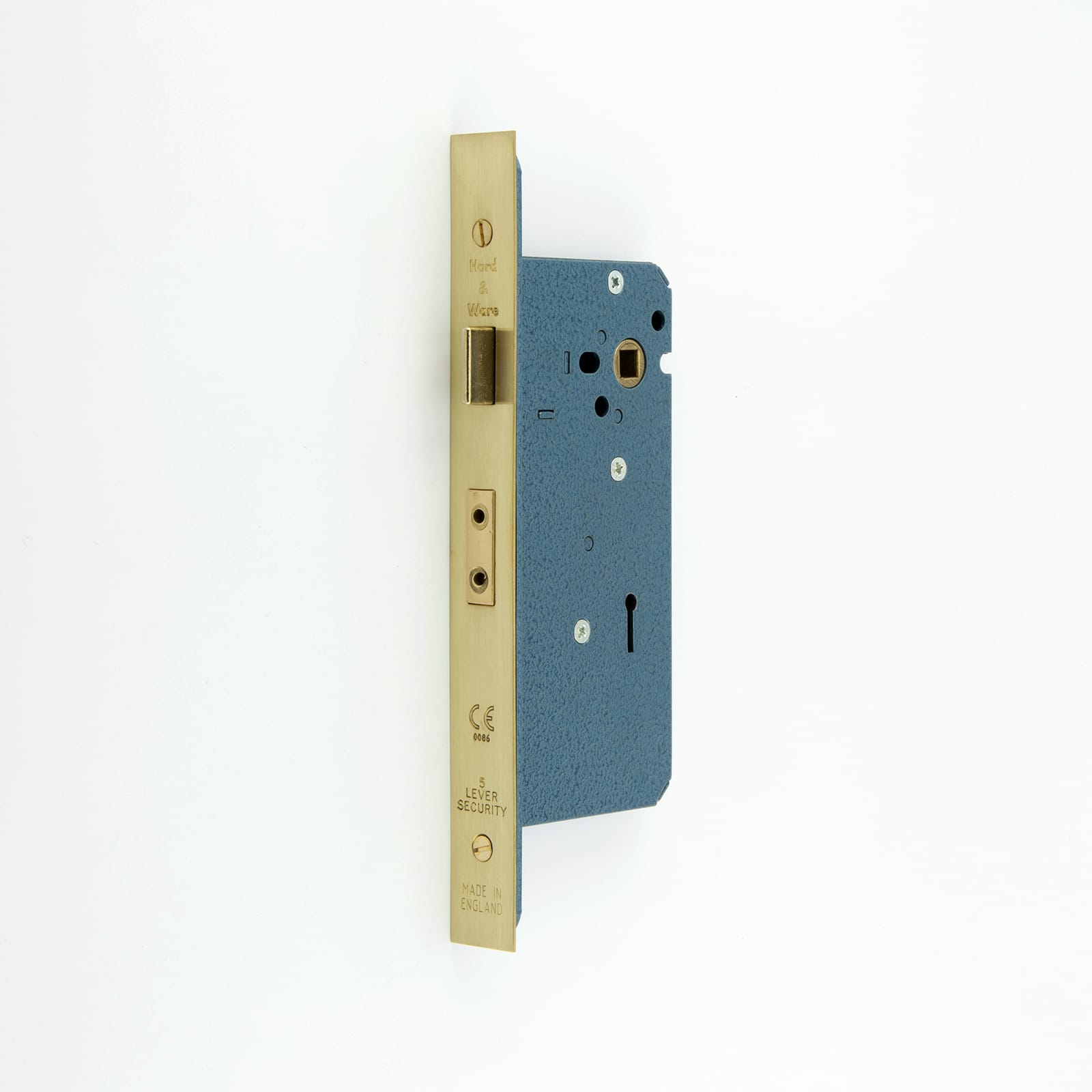

Heavy duty mortice DDA compliant 5 Lever sash lock case with two-piece 25mm wide forend and striking plate with brass latch and deadbolt; suitable for domestic and commercial projects. Supplied with 2 keys, matching finished slotted screws and strike plate dust box.

The sash lock has heavy duty springing making it ideal for un-sprung furniture with various backsets (distance from edge of door to centre line of lever/cylinder) and a 14mm throw deadbolt.

This sash lock is CE Marked and Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209.

Suitable for use on 30 and 60 minute fire rated doors, when used in conjunction with available intumescent packs, which can be selected above.

These locks are to special order.

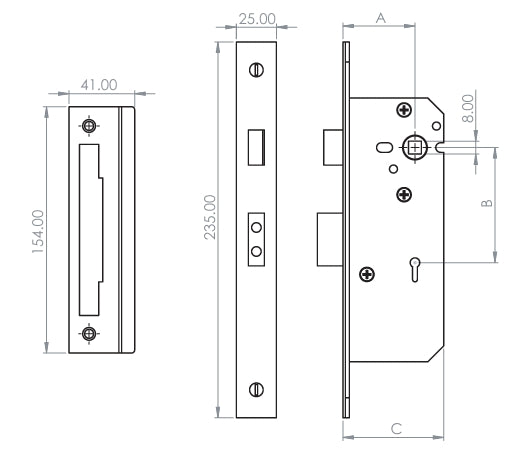

DIMENSIONS:
A=Backset 45mm/C=Case depth 63mm
A=Backset 57mm/C=Case depth 76mm
A=Backset 82mm/C=Case depth 101mm

B=Centres 72mm

FINISHES:
Antique Brass

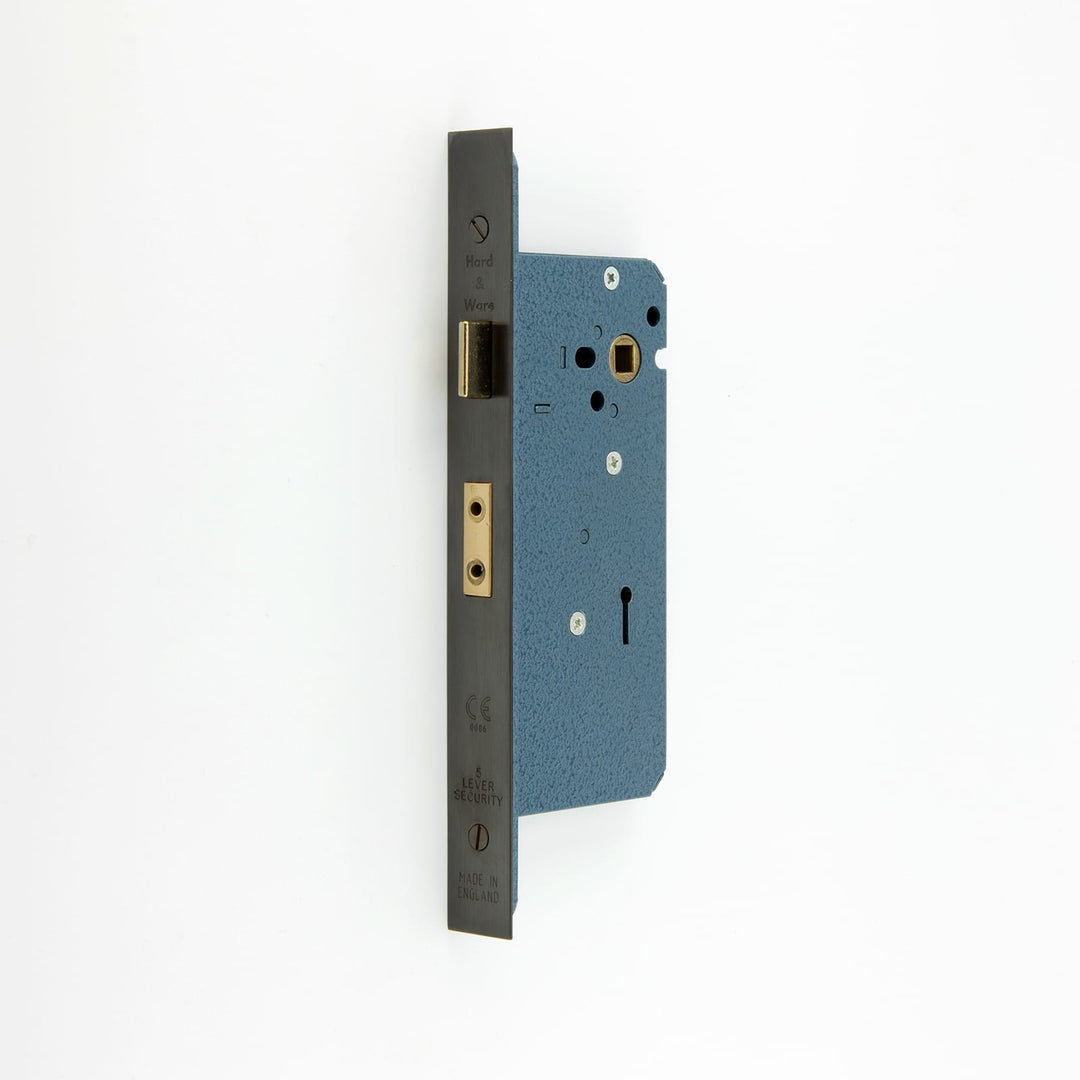

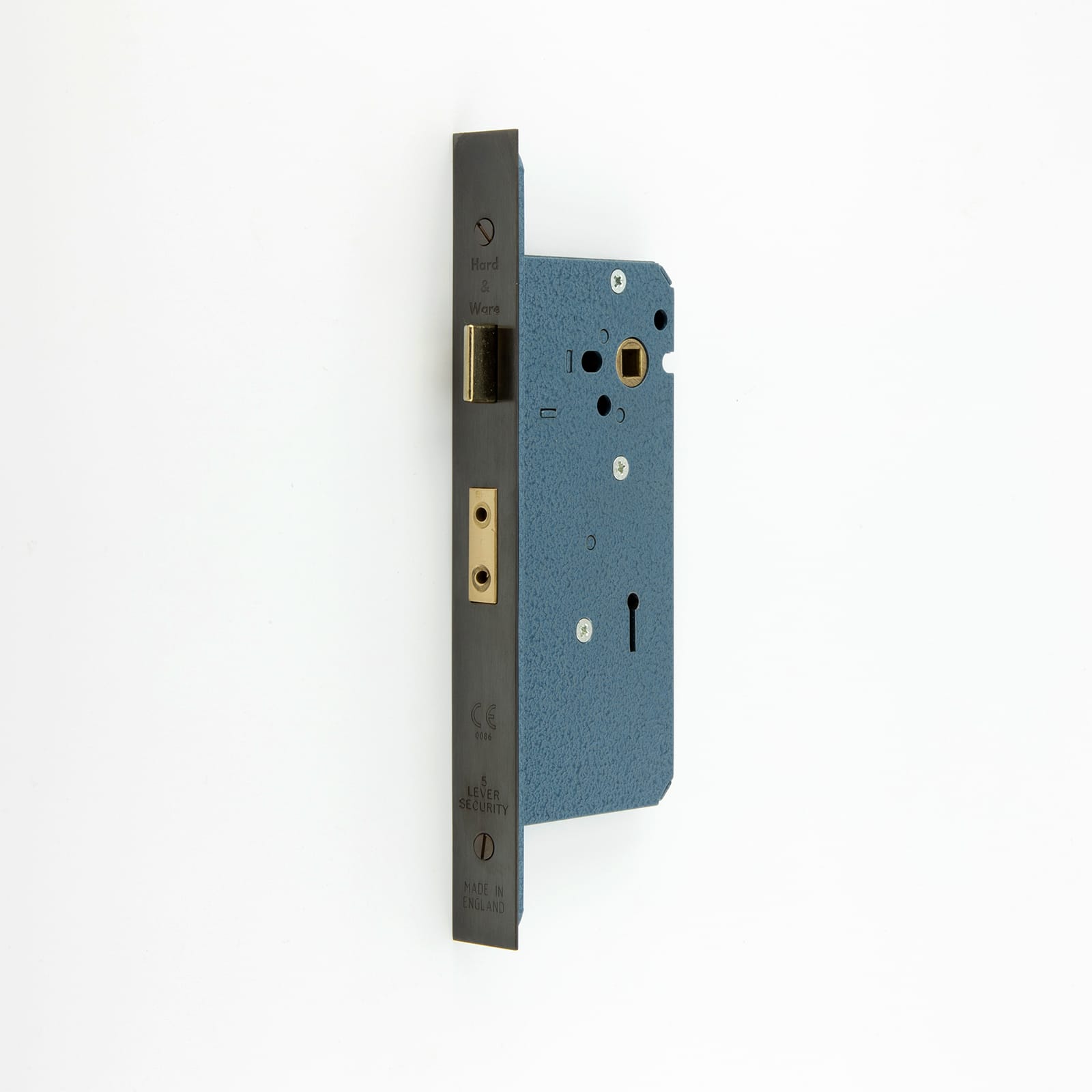

Dark Bronze

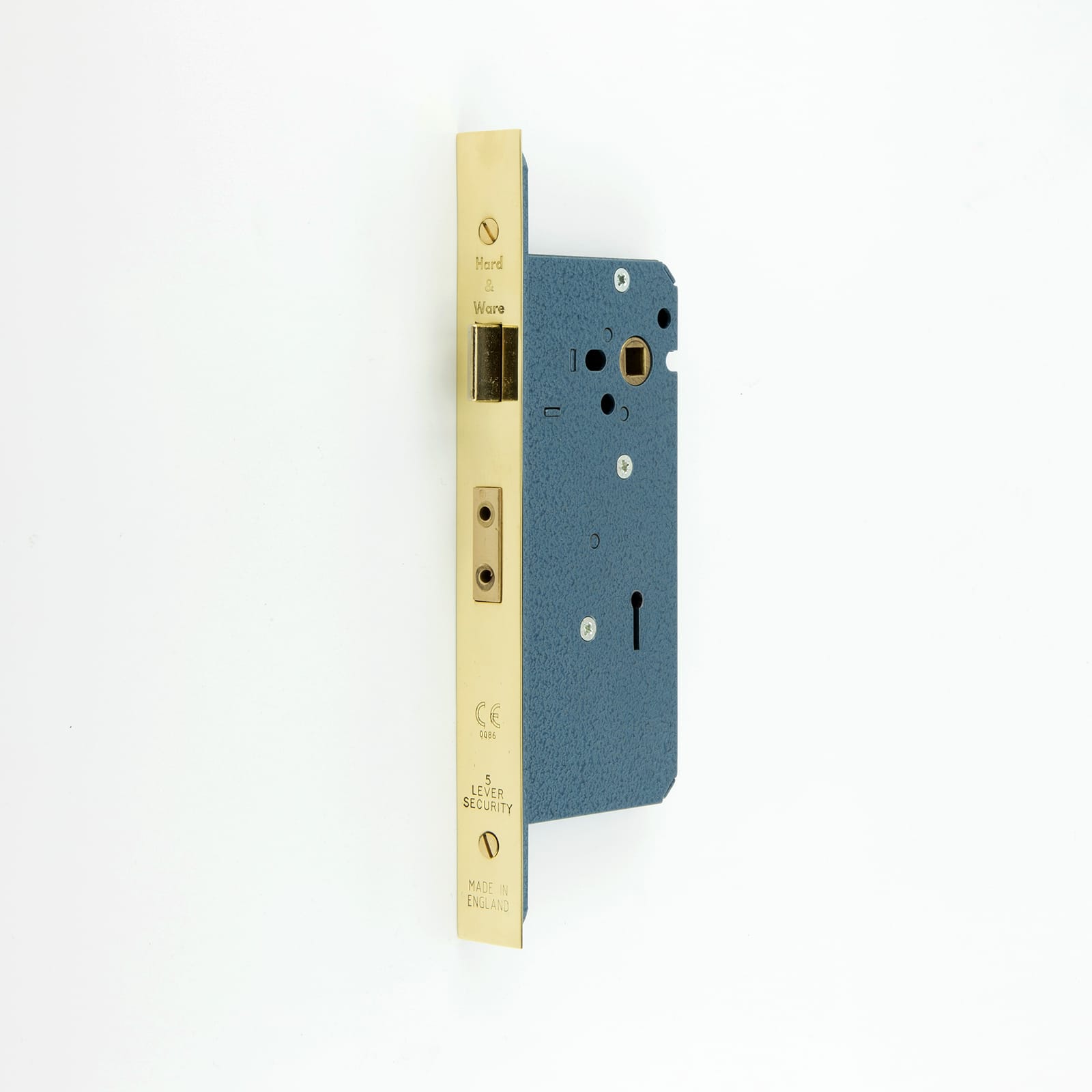

Polished Brass

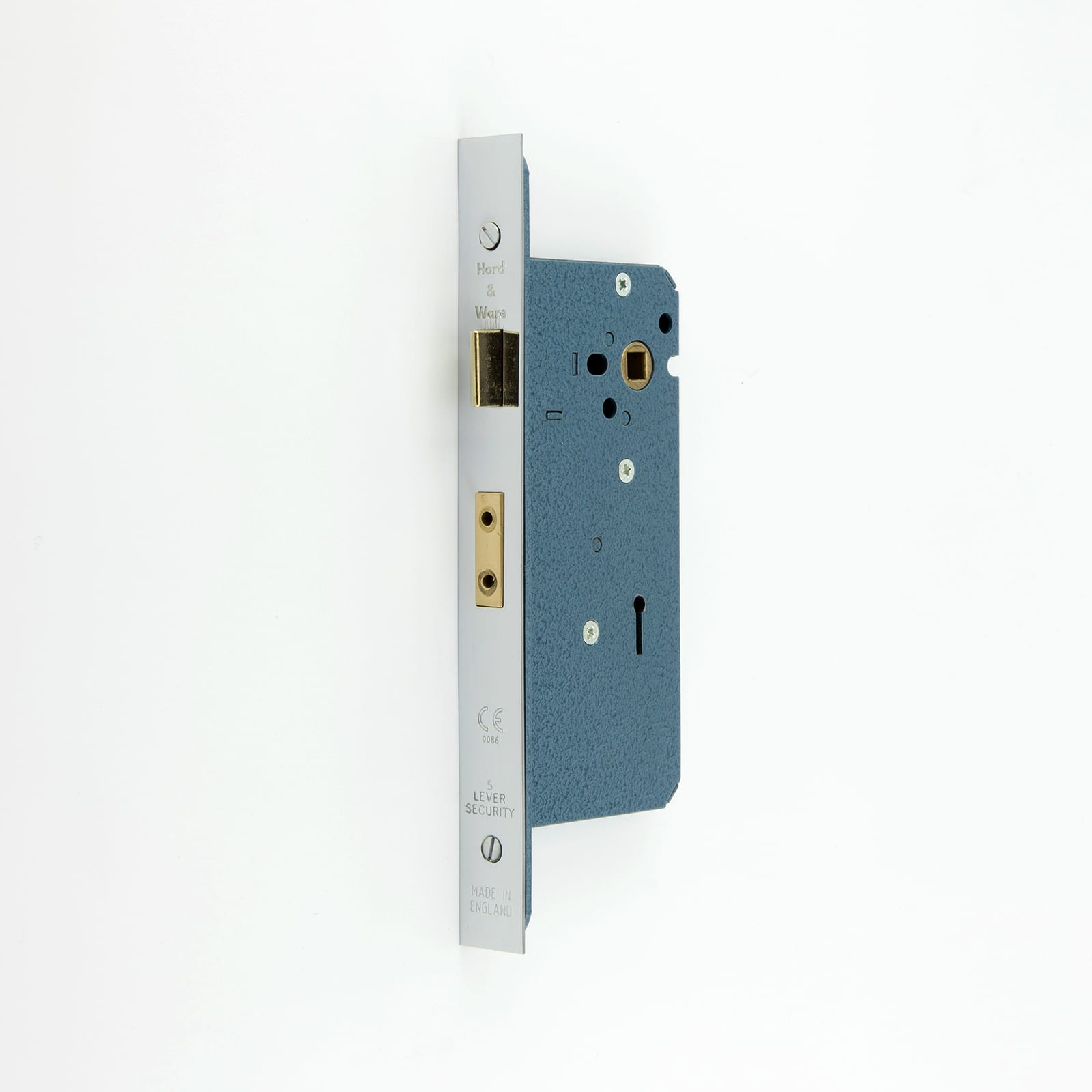

Polished Chrome
Polished Nickel
Satin Brass

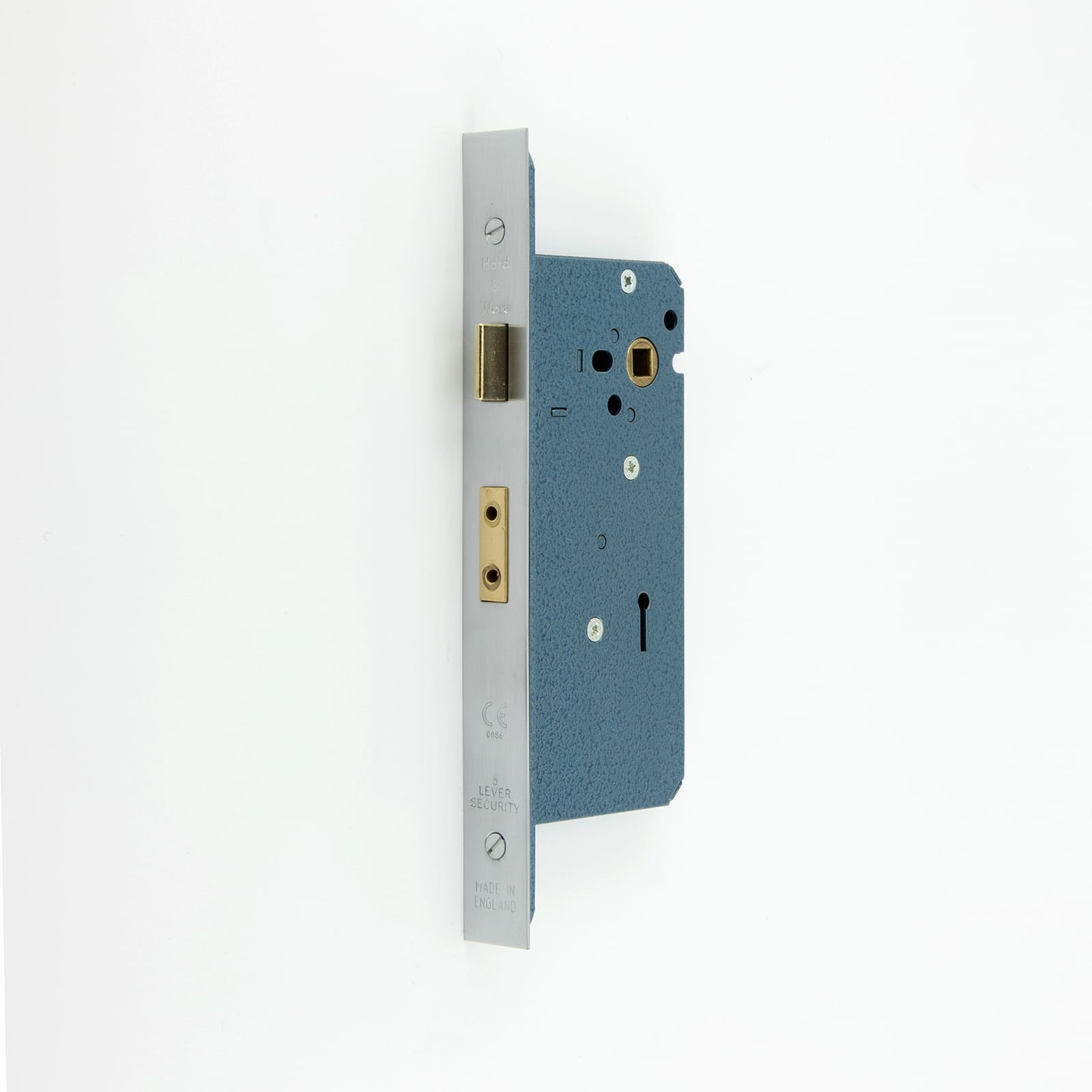

Satin Chrome

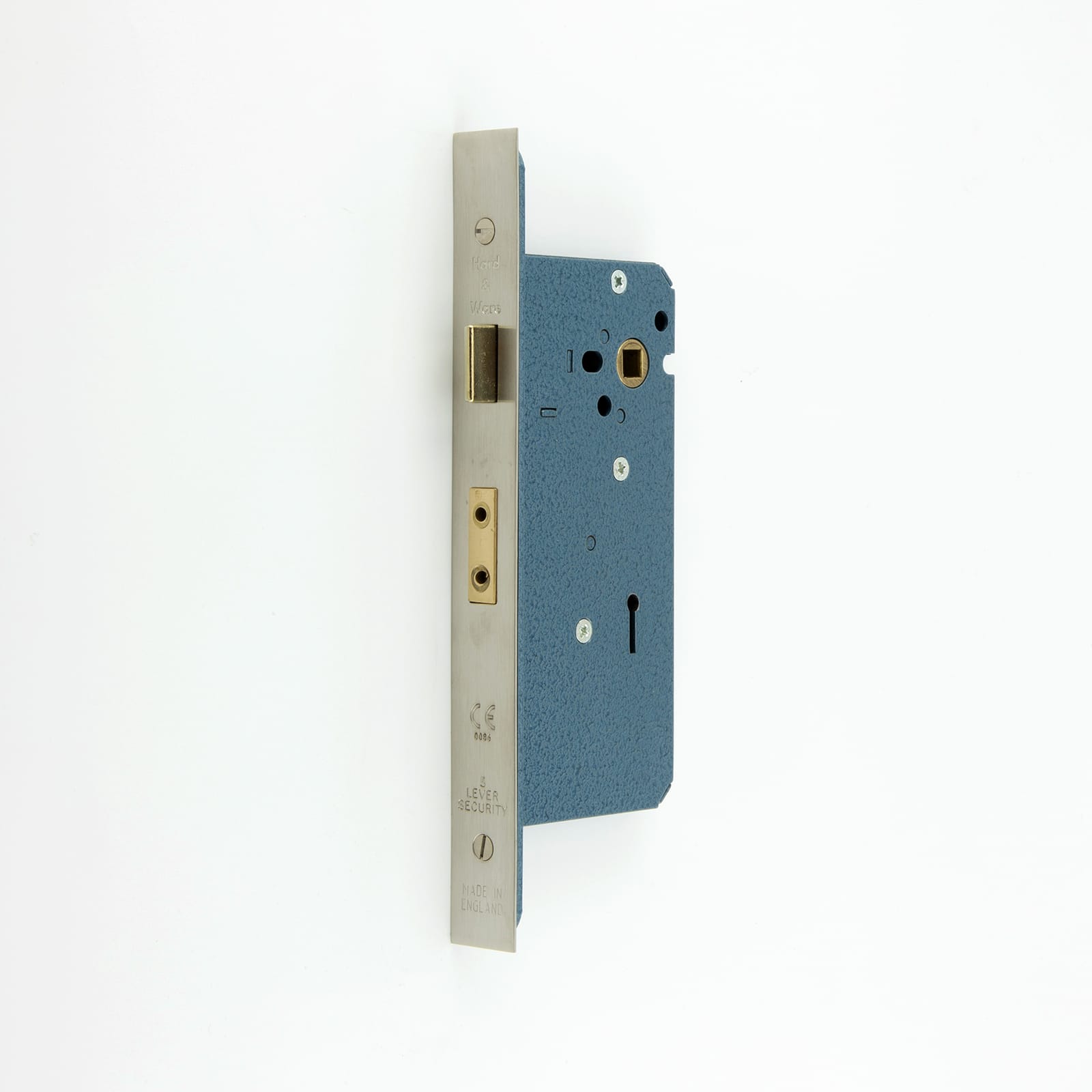

Satin Nickel

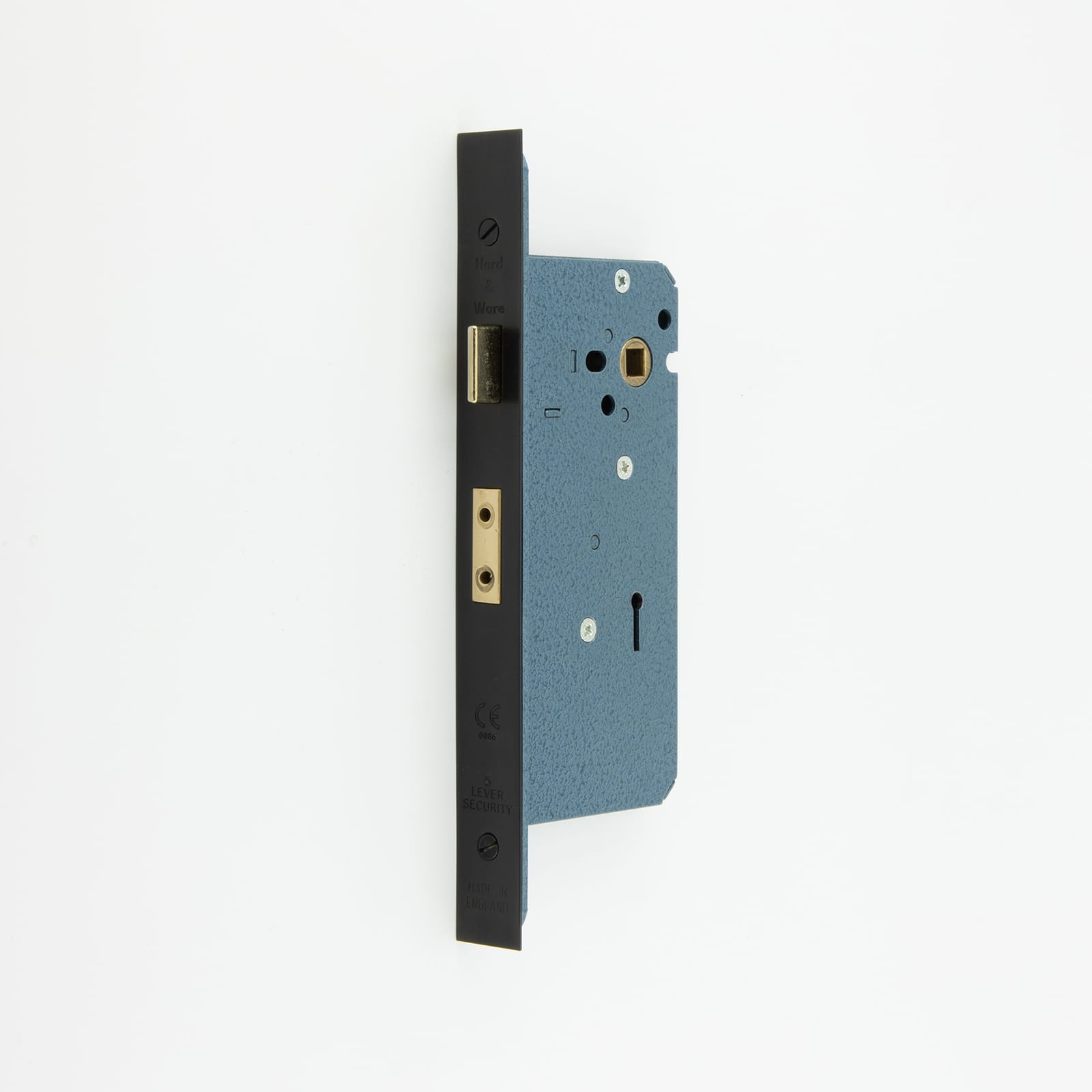

Matt Black

Please select file below to view more information about this product
