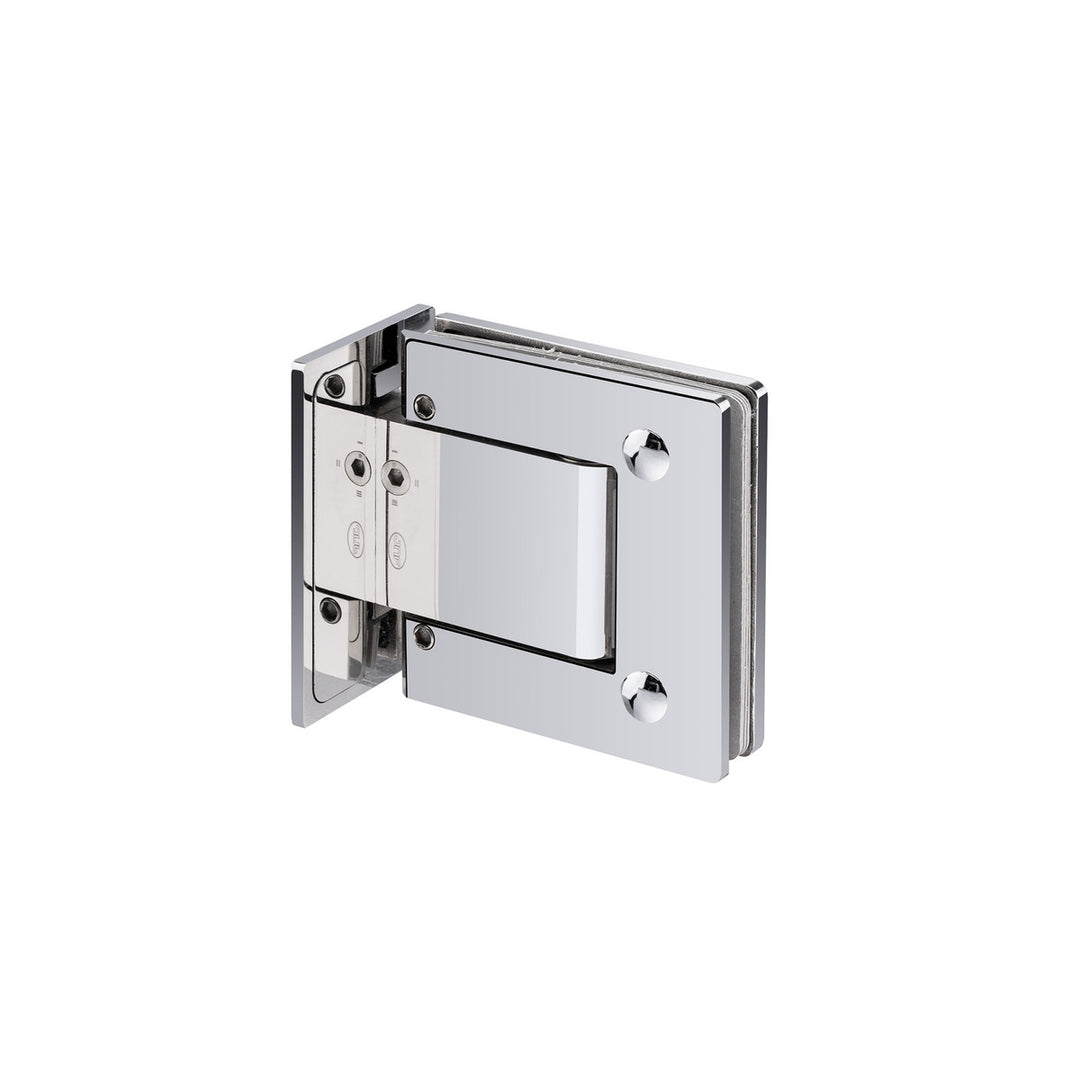

JNF 60kgs Hydraulic Wall to Glass Shower Hinge

JNF 60kgs hydraulic wall to glass mounted shower hinge

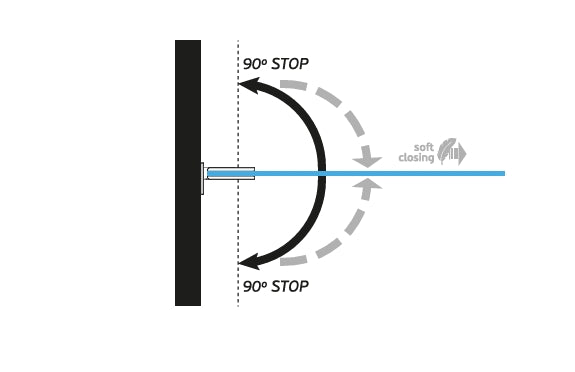

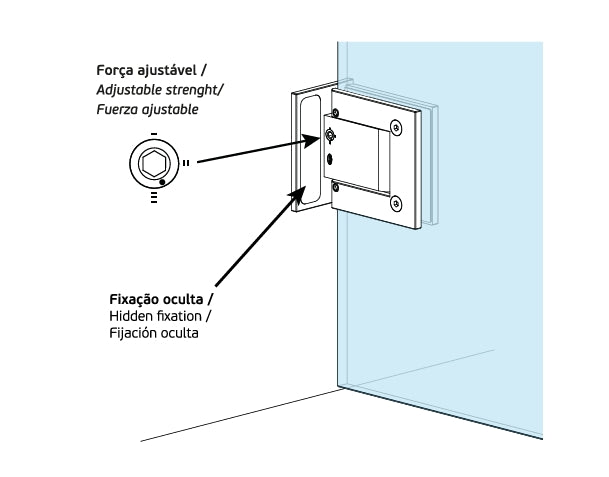

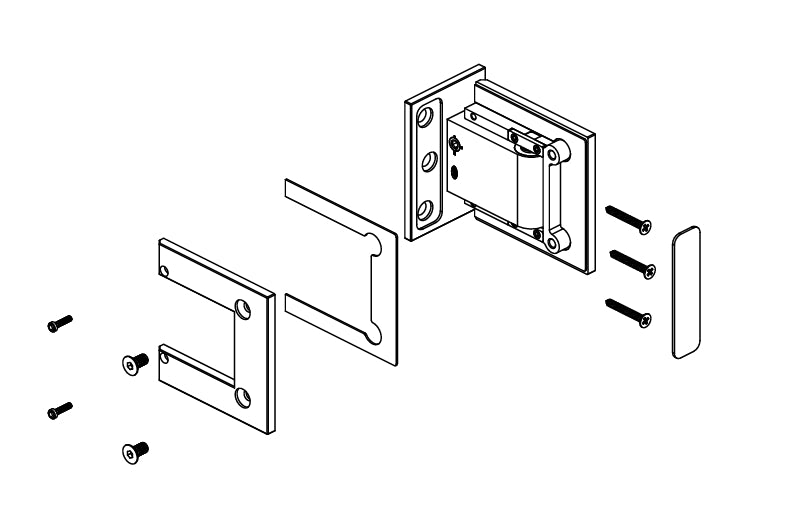

A single JNF hydraulic offset wall to glass power adjustable soft close shower hinge with visible fixing covers to suit 8-10mm Tempered glass thickness (GC119 cut-out) and concealed fixing wall mounting plate.

When using two hinges, these will suit glass panels up to 45kgs, maximum 2400mm high and maximum 800mm wide; for three hinges this will suit glass panels up to 60kgs, maximum 2500mm high and maximum 1000mm wide.

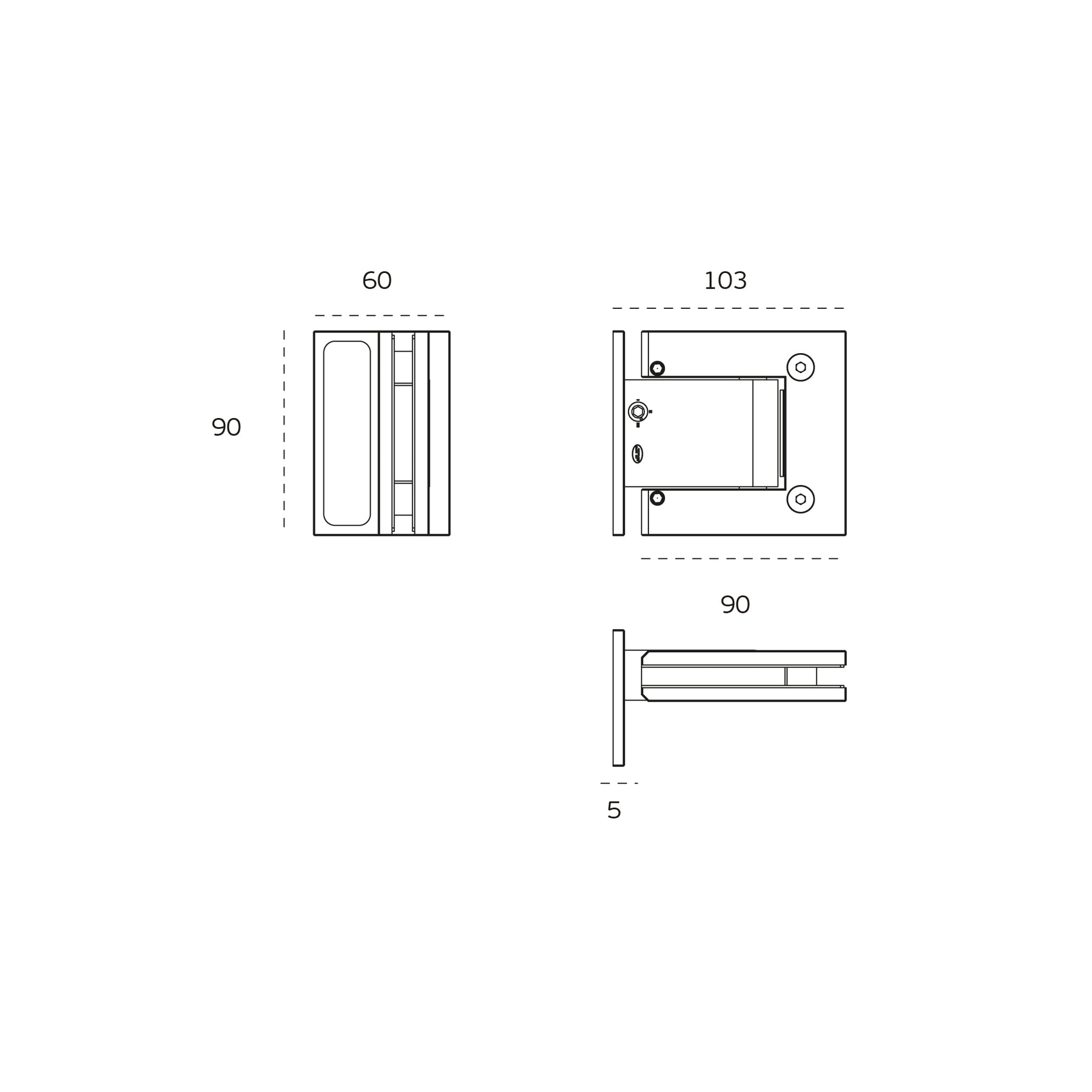

DIMENSIONS:
103mm Projection
90mm High
60mm Wide x 5mm Thick Mounting plate

FINISHES:

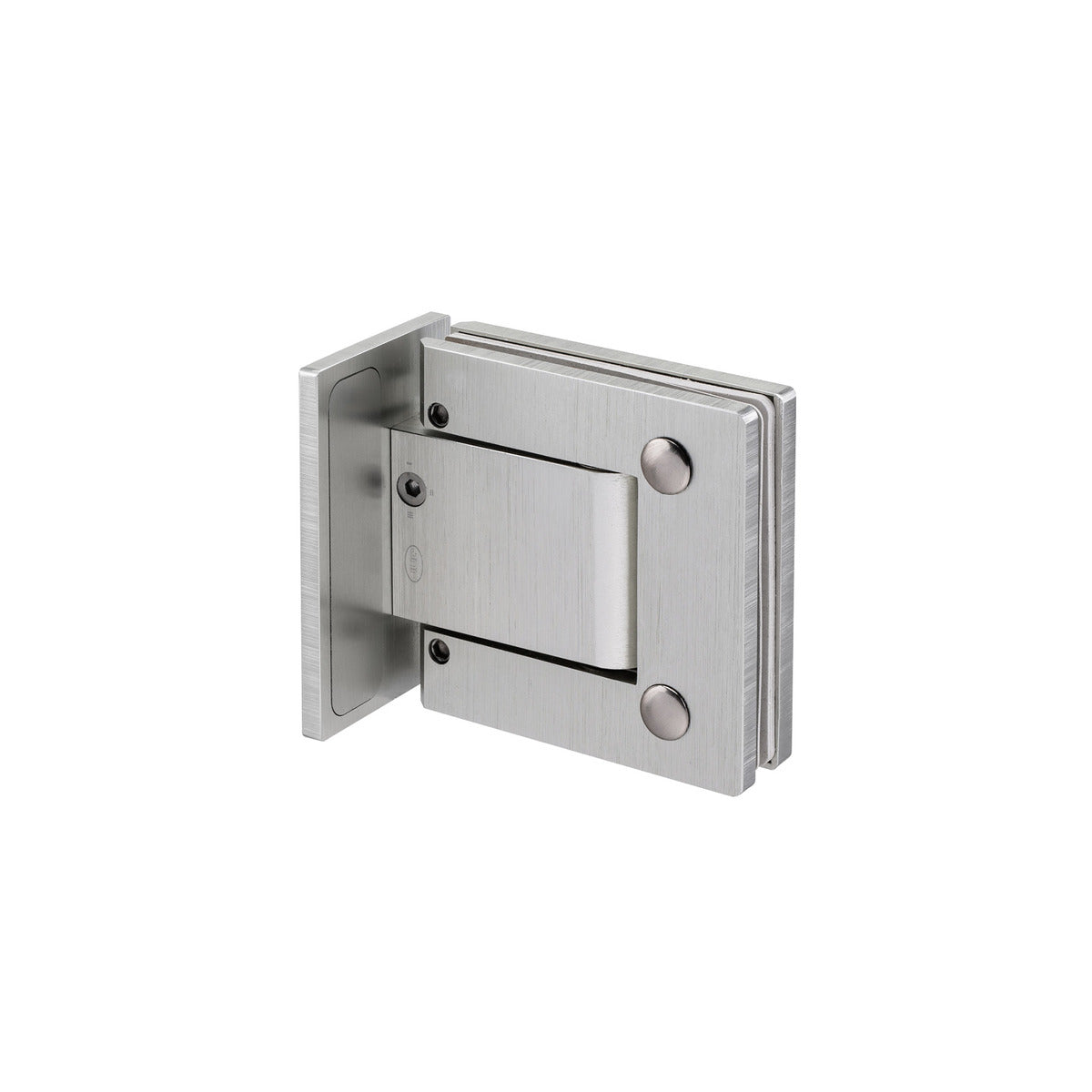

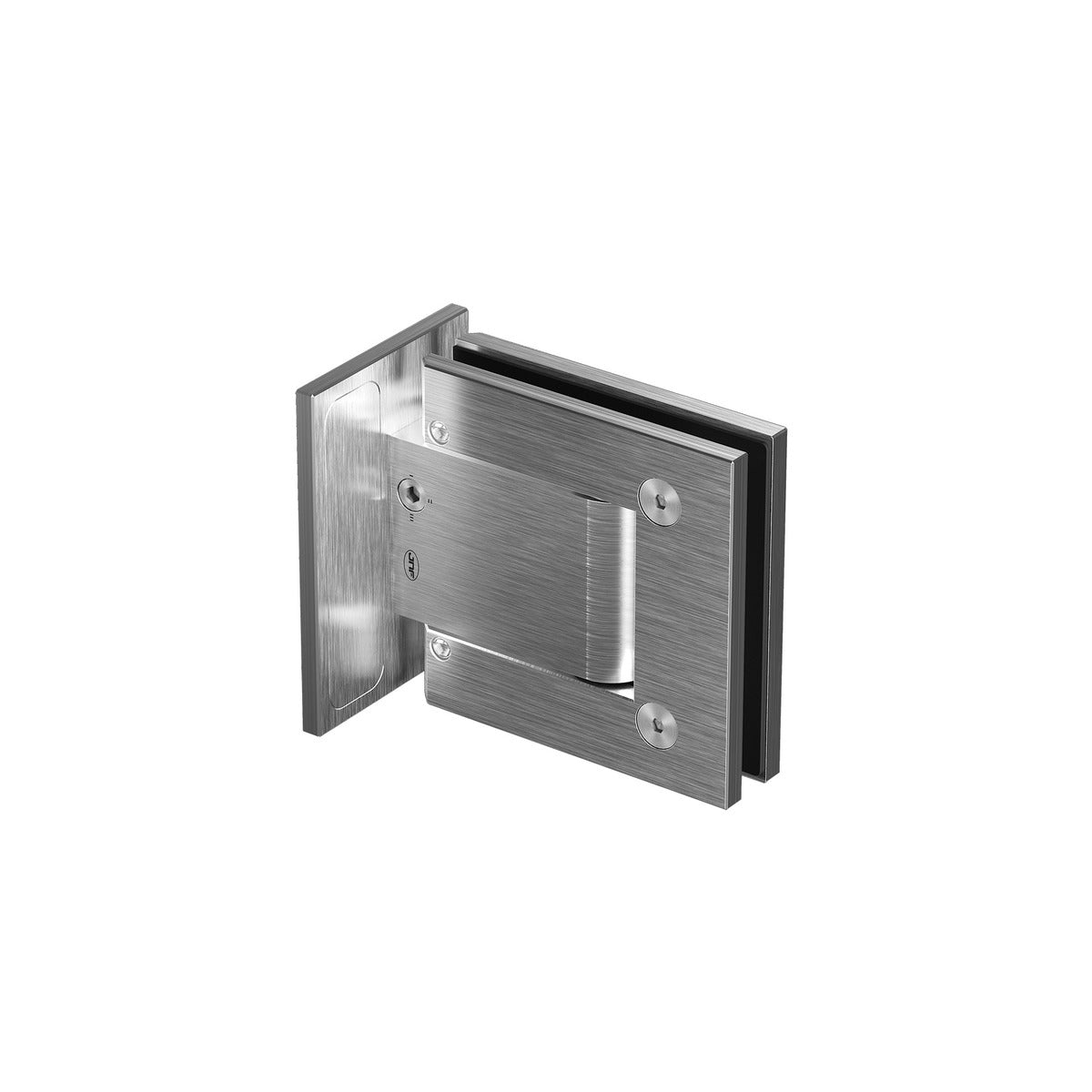

Satin Stainless Steel

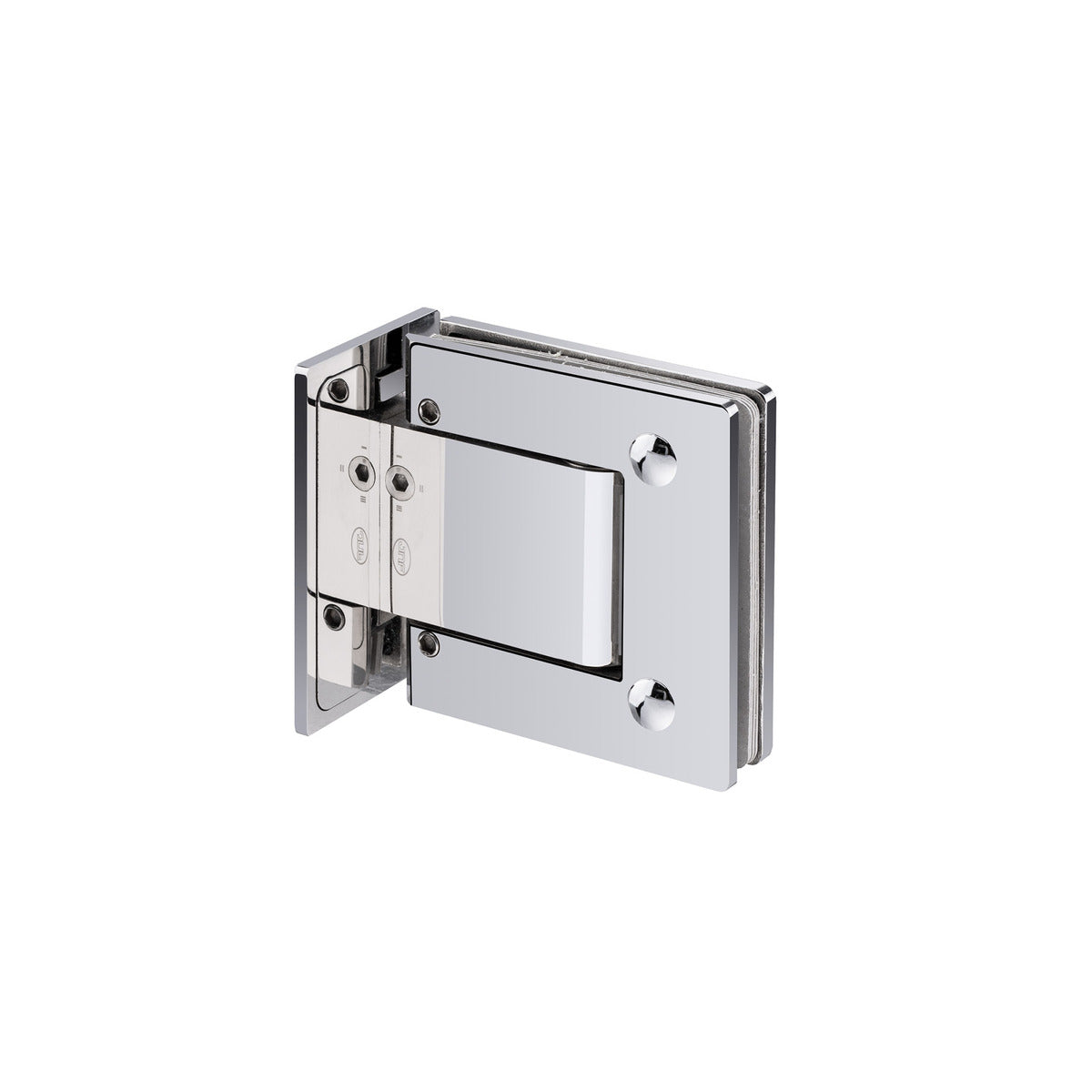

Polished Stainless Steel
Satin Nickel

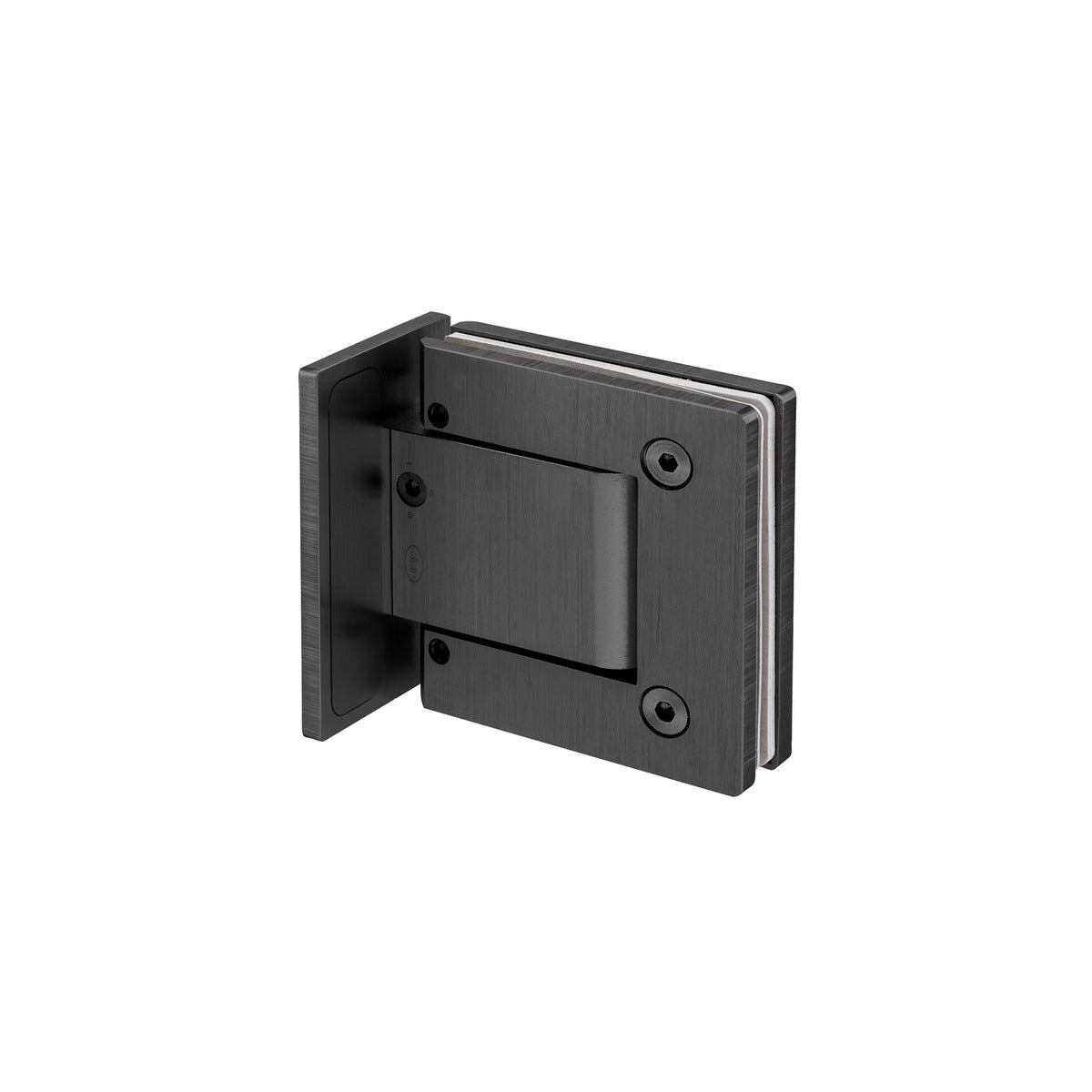

PVD Black

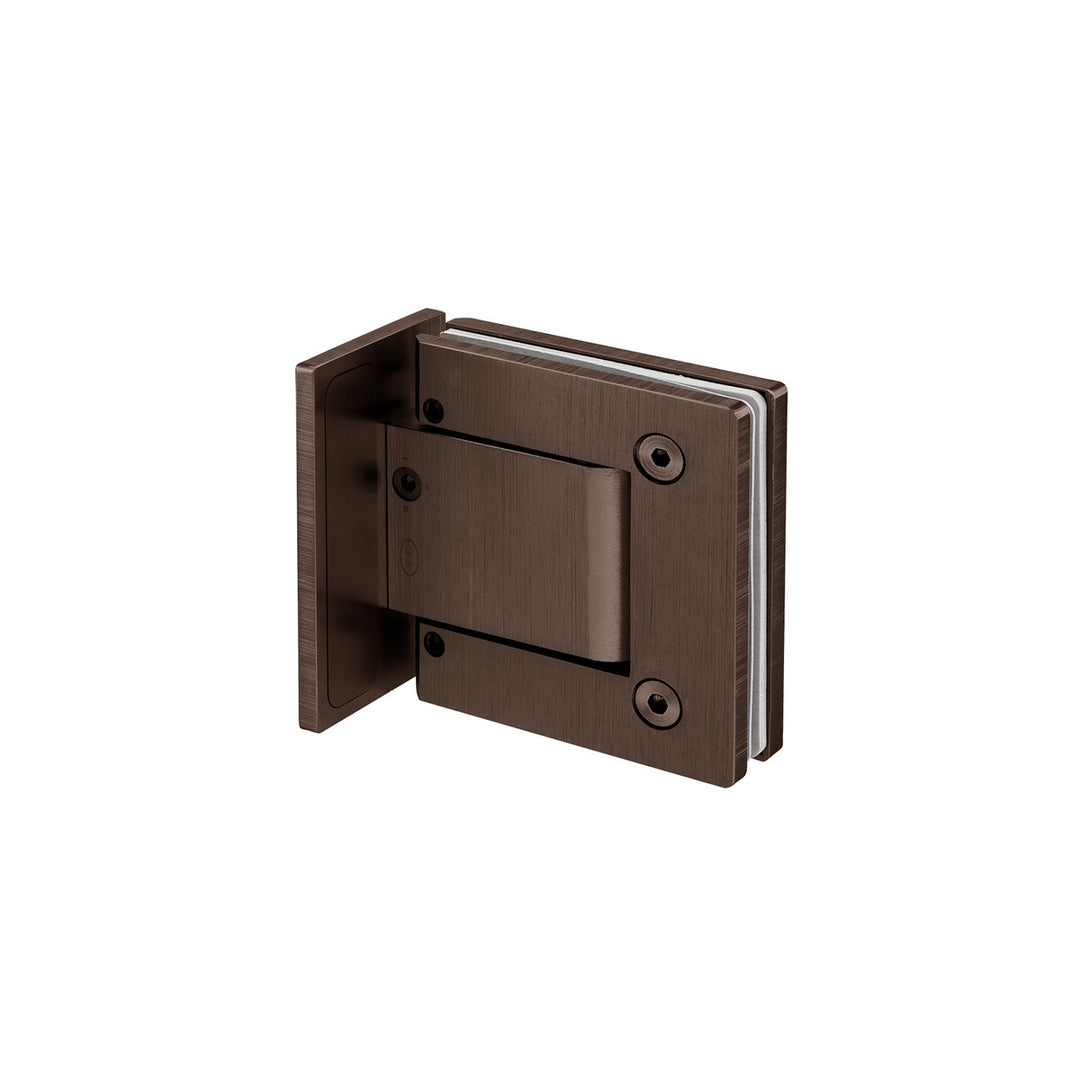

PVD Chocolate

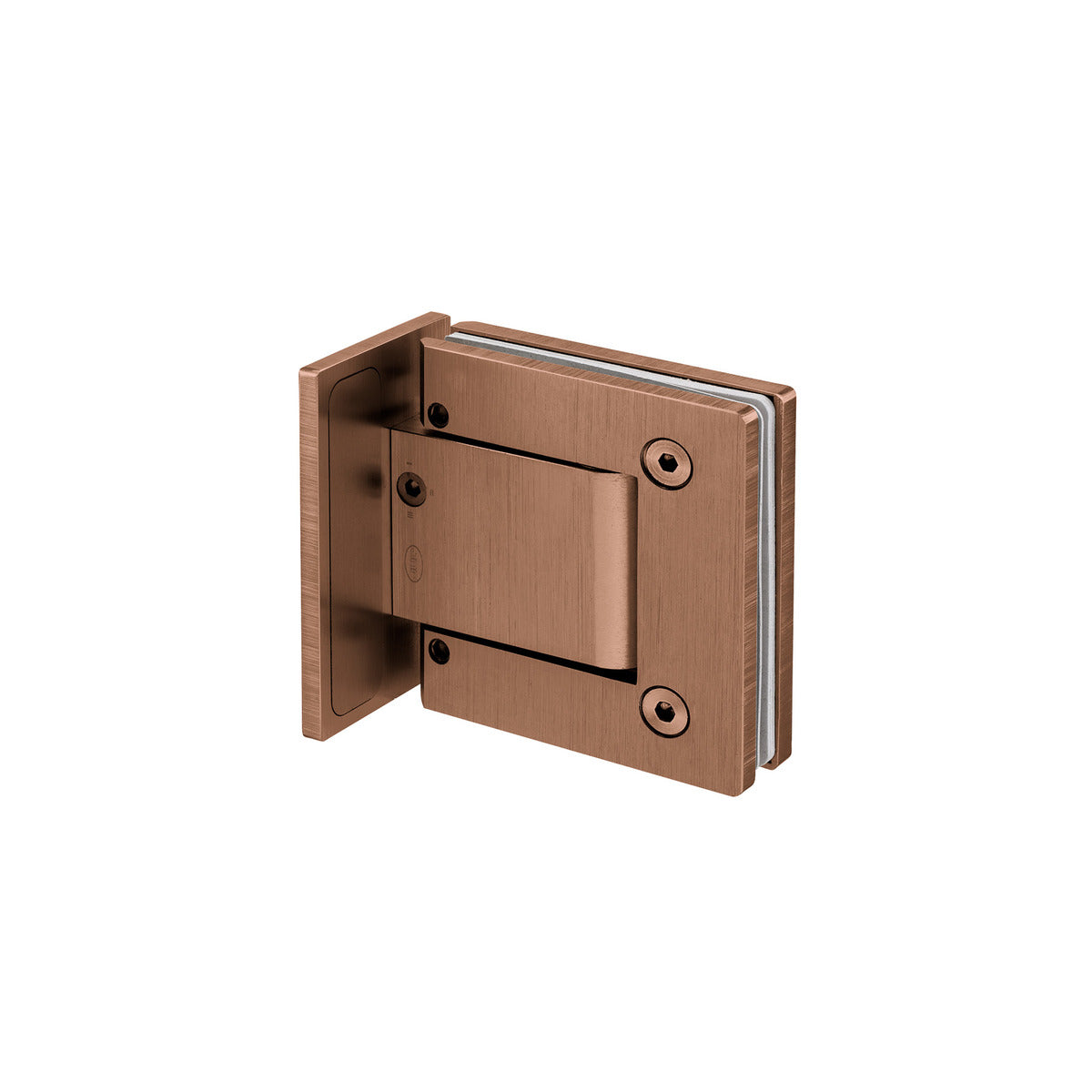

PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
