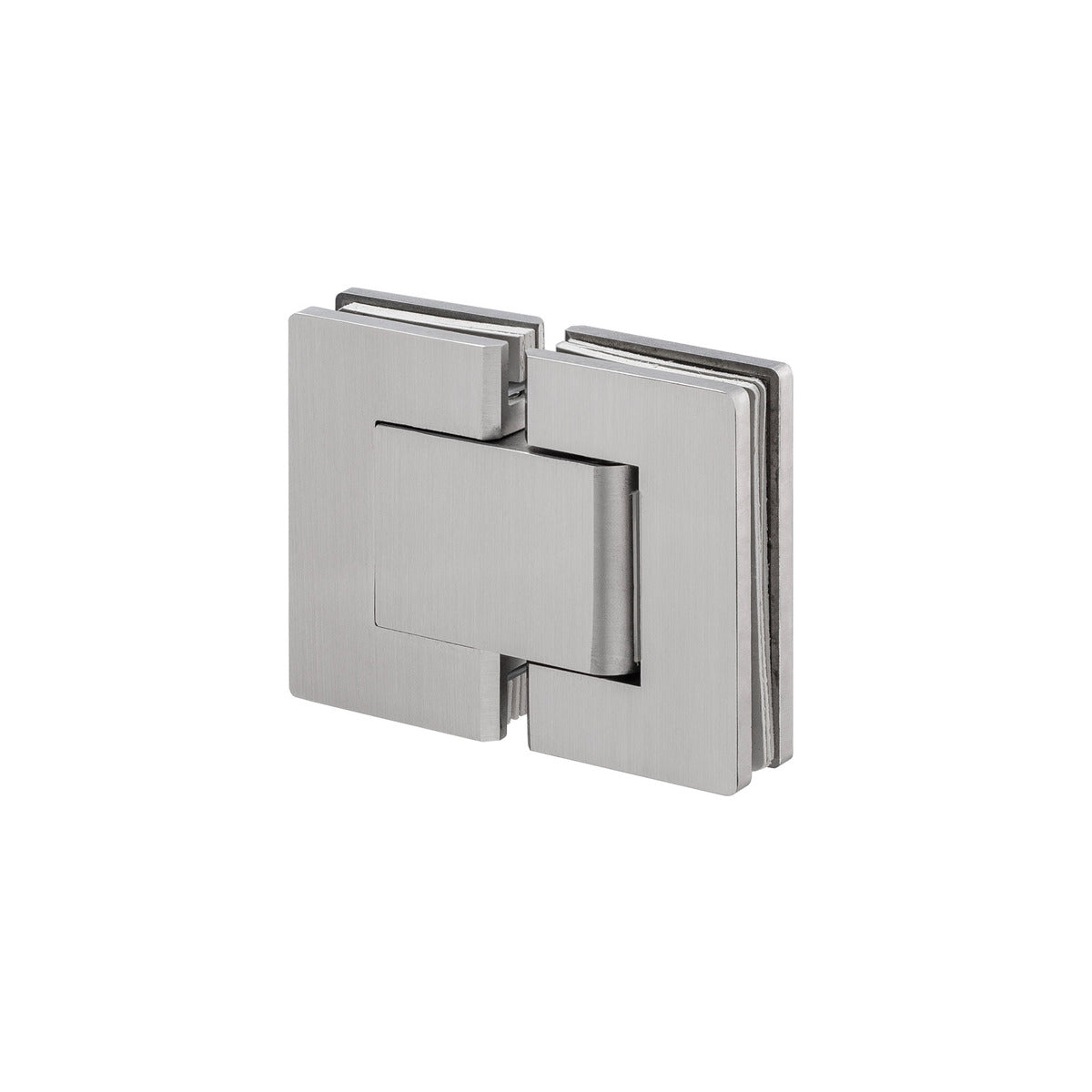

JNF 60kgs Hydraulic Glass to Glass Shower Hinge

JNF 60kgs hydraulic glass to glass shower hinge

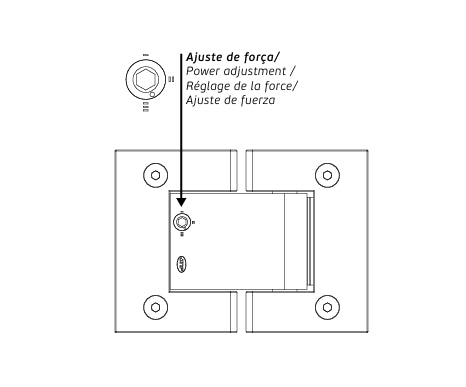

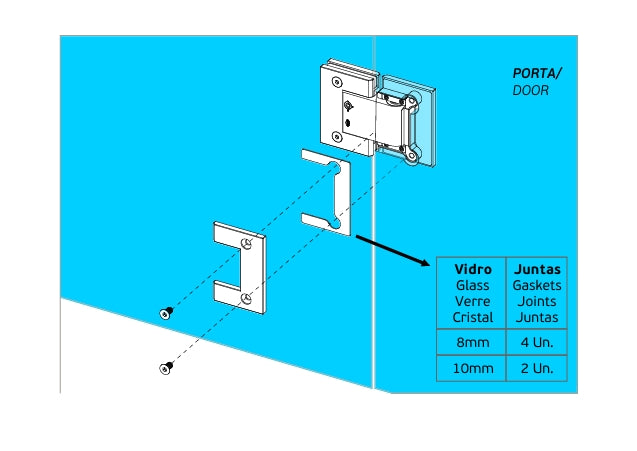

A single JNF hydraulic glass to glass power adjustable soft close shower door hinge with single side visible fixing and concealed cover to suit 8-10mm Tempered glass thickness (GC120 cut-out).

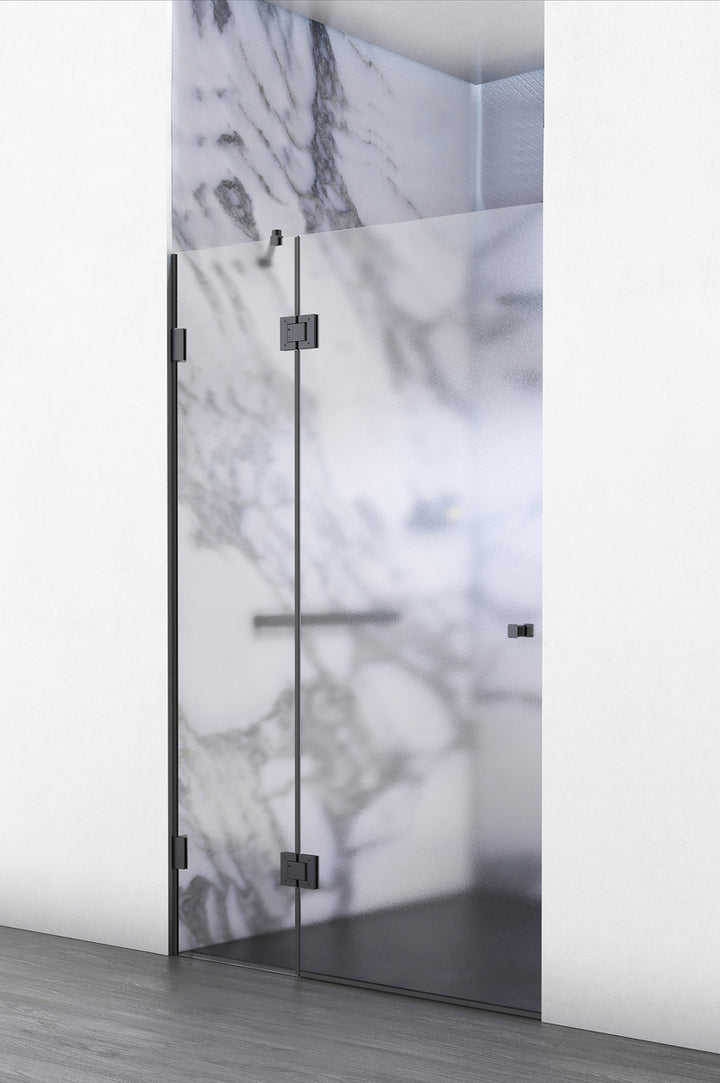

When using two hinges, these will suit glass panels up to 45kgs, maximum 2400mm high and maximum 800mm wide; for three hinges this will suit glass panels up to 60kgs, maximum 2500mm high and maximum 1000mm wide.

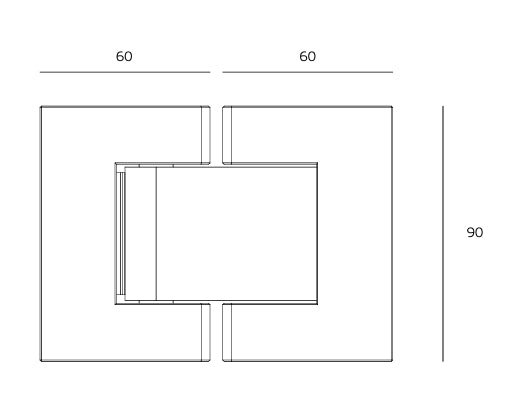

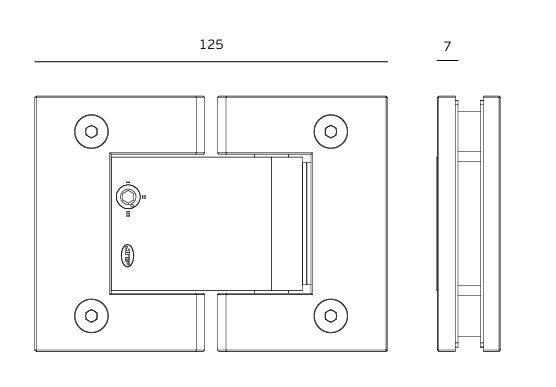

DIMENSIONS:
125mm Overall Length
90mm High
54mm Wide x 5mm Thick Mounting plate
12mm Thick Cover plates to either side

FINISHES:
Satin Stainless Steel
PVD Black

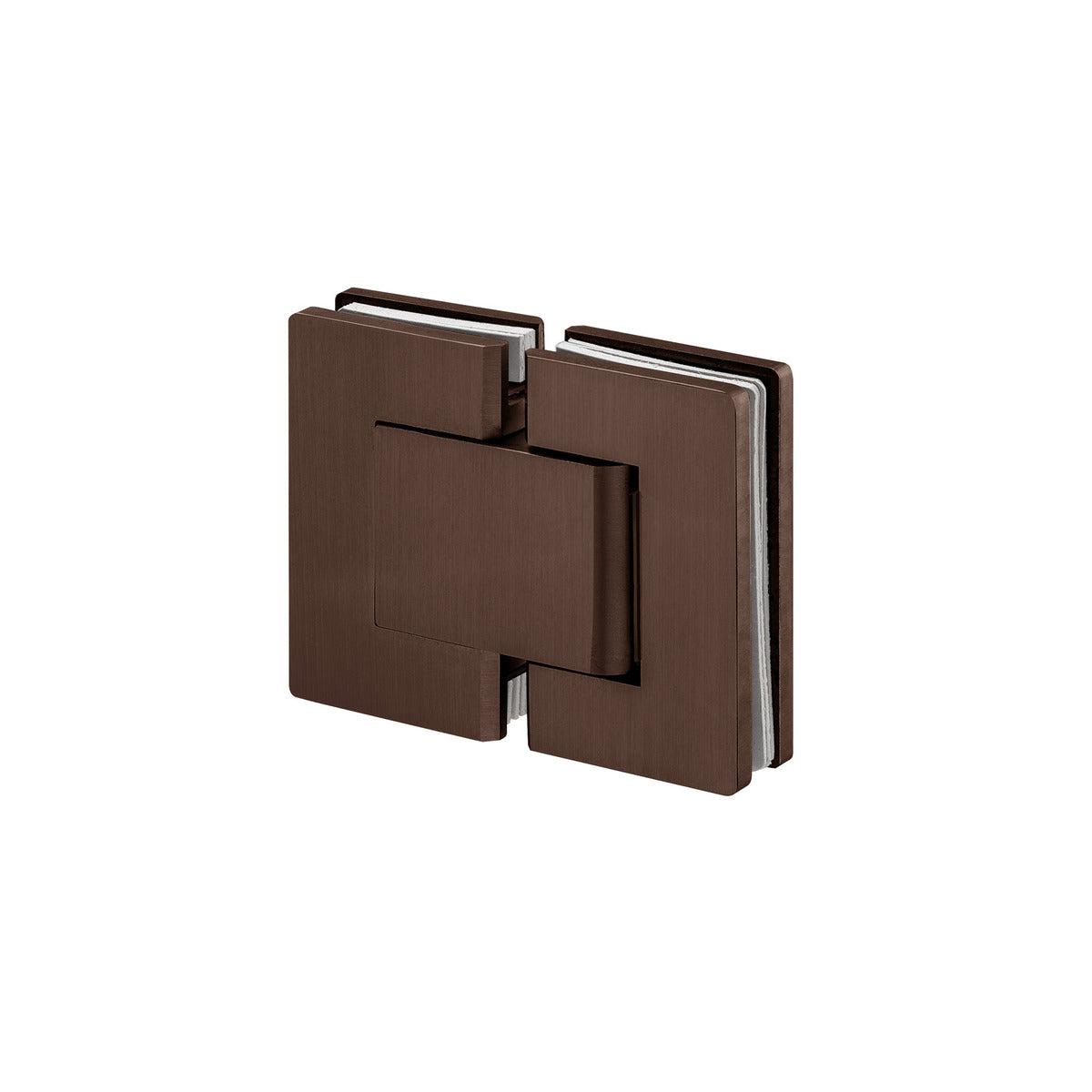

PVD Chocolate
PVD Copper

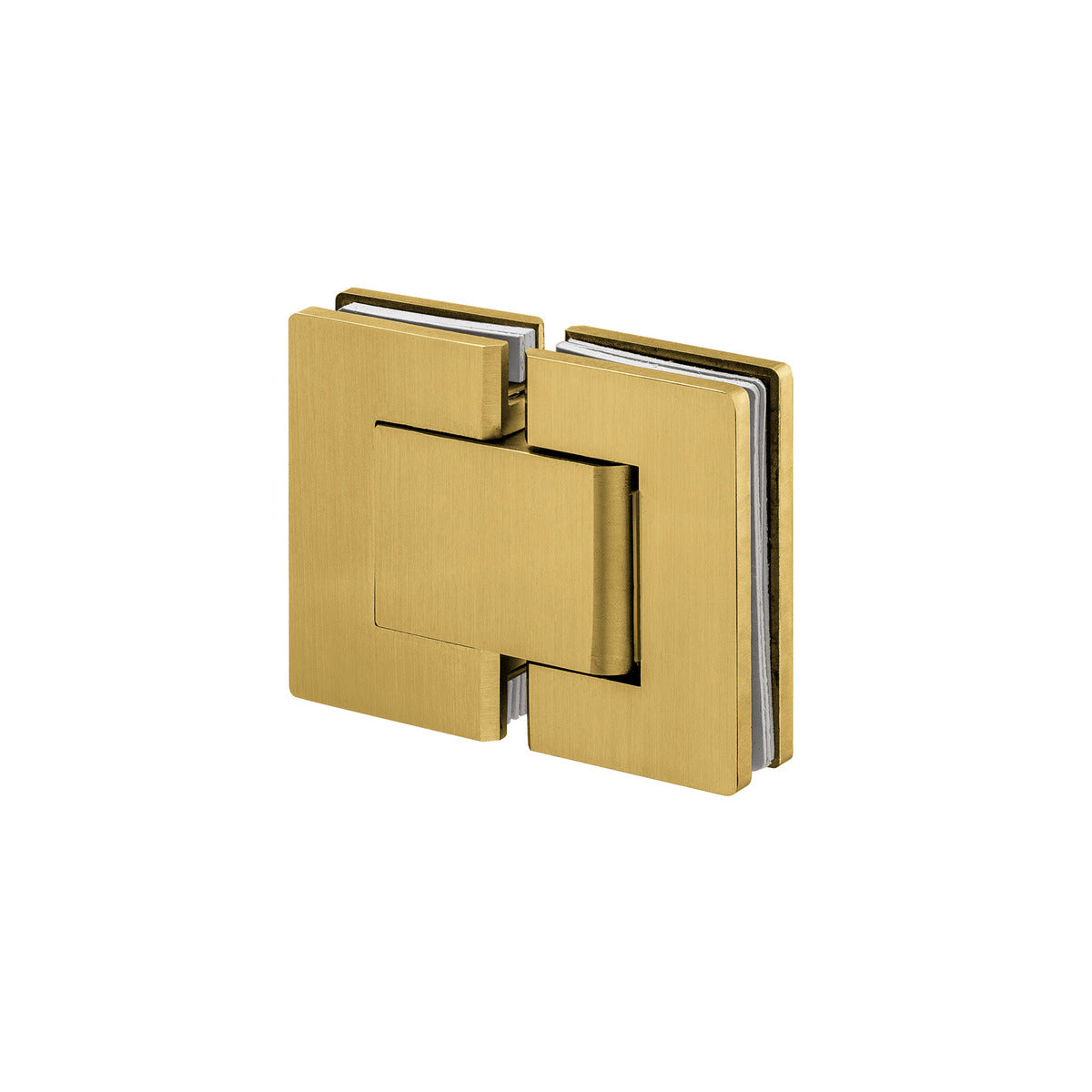

PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.

Please select files below to view more information about this product

Delivery is free for all orders over £130 (Goods Value) to the UK Mainland, excluding VAT.

Our charges are banded and calculated by the goods value which, dependant on the weight/country location, are either sent by Royal Mail First or Second Class Signed For, Hermes, Special Delivery Next Day (Before 1pm), FedEx Next Day (UK only), International Signed For, DPD International, DHL, UPS, TNT or FedEx.

As we do not have live stock information, we may have your item in stock or able to get this quicker than the Lead Time shown above.

Please contact us if you require an item more urgently and we will endeavour to help.

Where products are shown with Lead Time: (TO SPECIAL ORDER*), these are non-stocked products that need to be specially made, therefore returns are not accepted.
