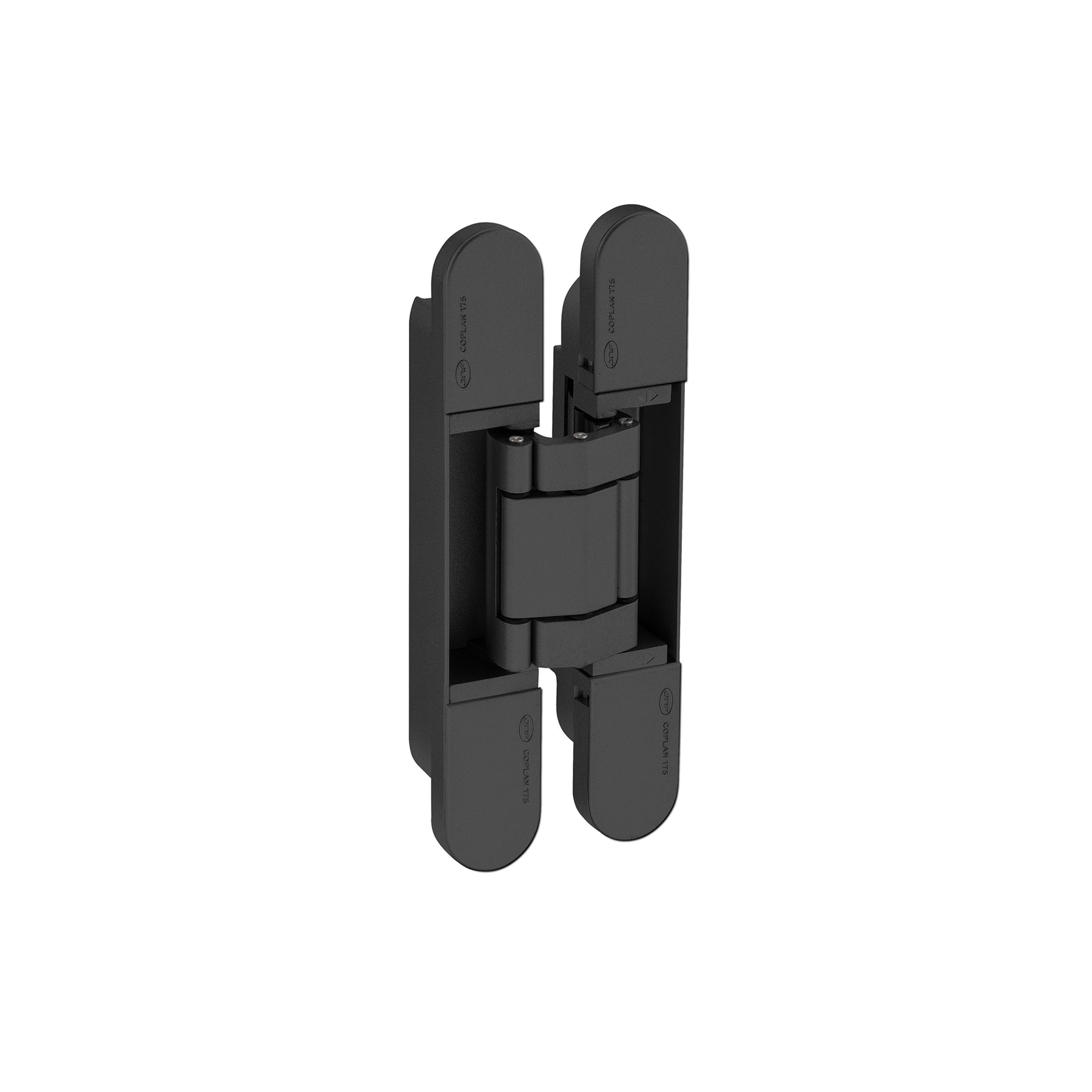

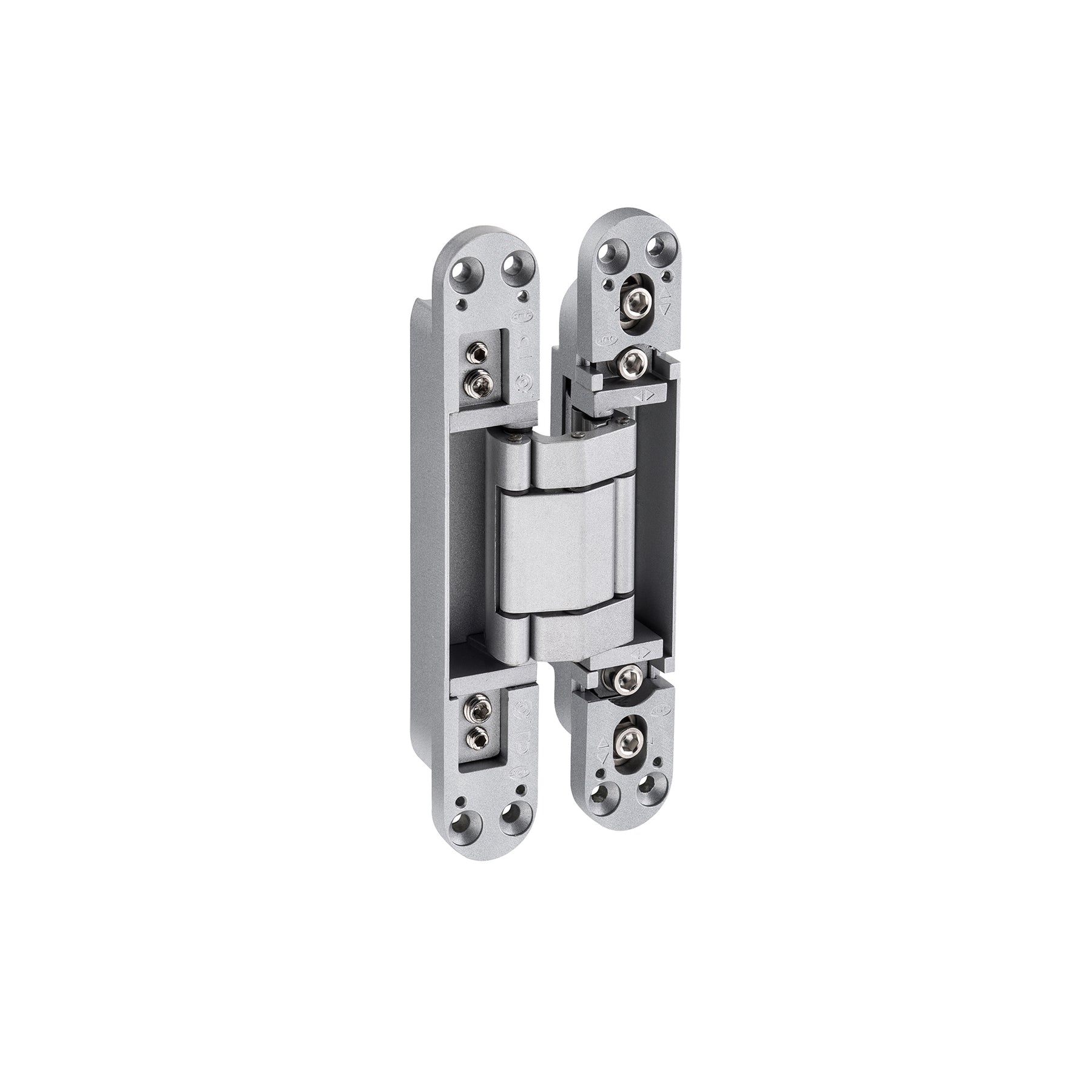

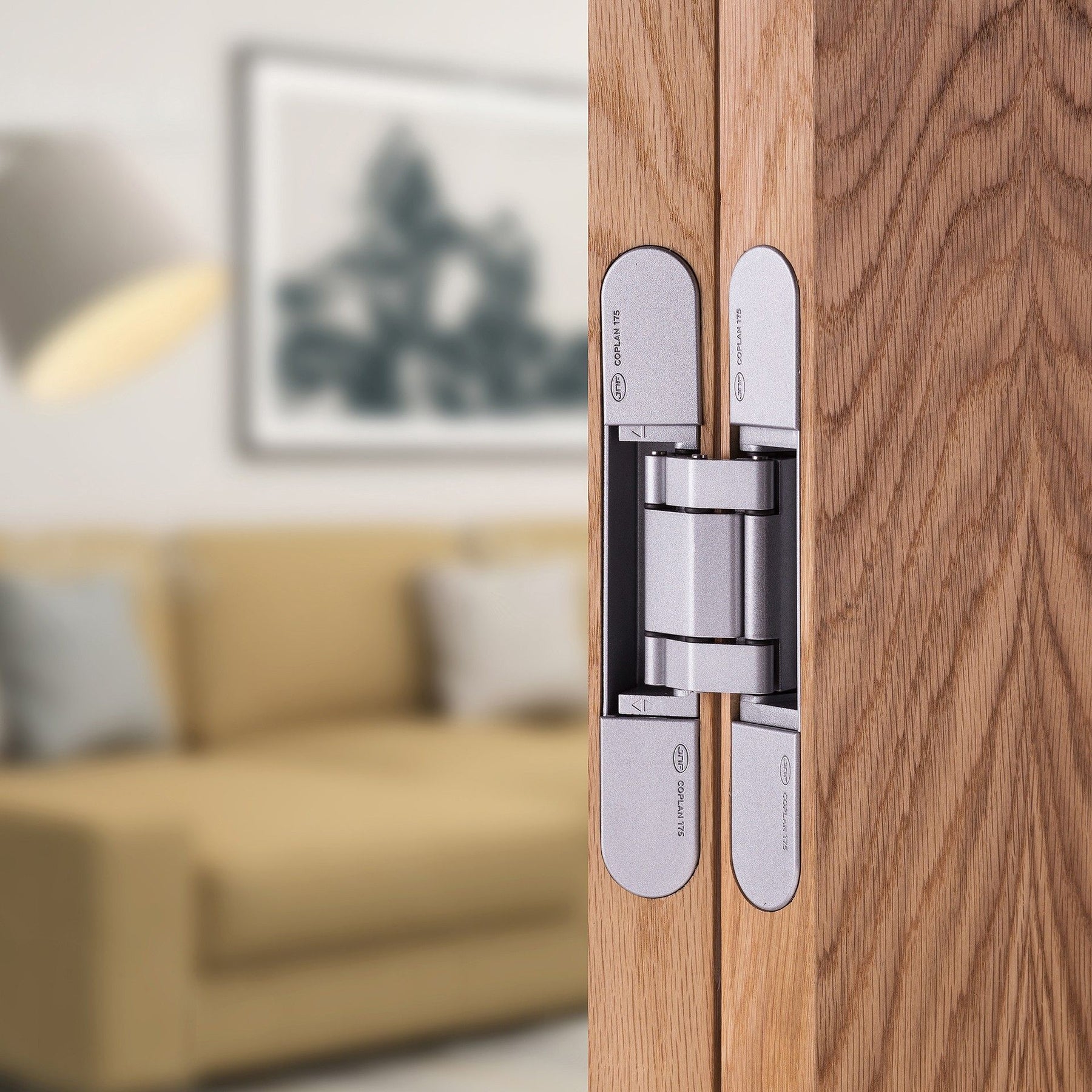

JNF Coplan Series 175 3D Single Concealed Hinge - 80/120kgs
The JNF Coplan 3D single concealed hinge, in powder coated finishes, suits doors up to 80kgs (two hinges per door) or 120kgs (three hinges per door), to suit max leaf size 2000mm high x 1000mm wide with a minimum door thickness of 34mm.

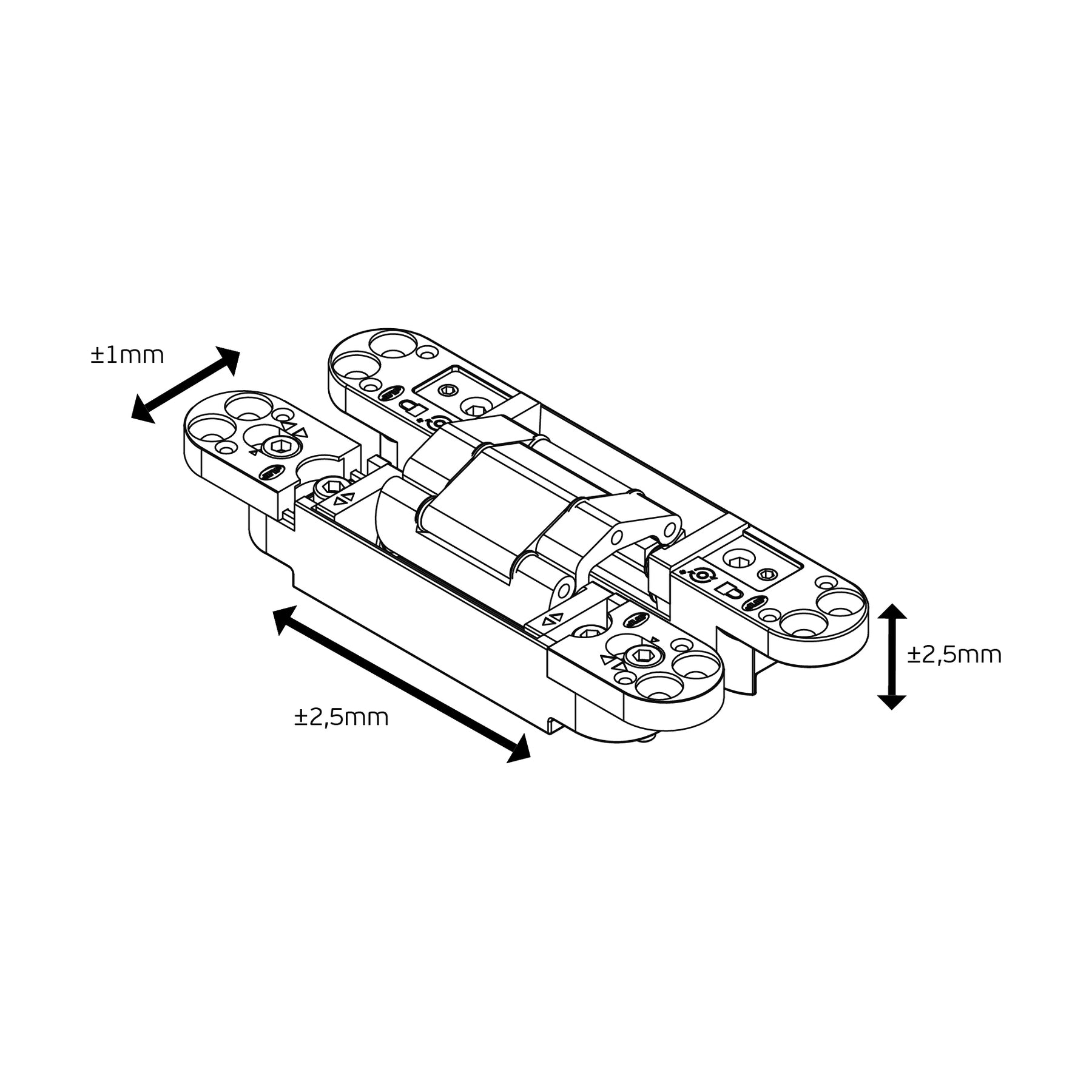

Suitable for timber, steel or aluminium frames with 3 dimensional adjustment (+/-2.5mm side and height and +/-1.5mm compression). 120 degree opening angle.

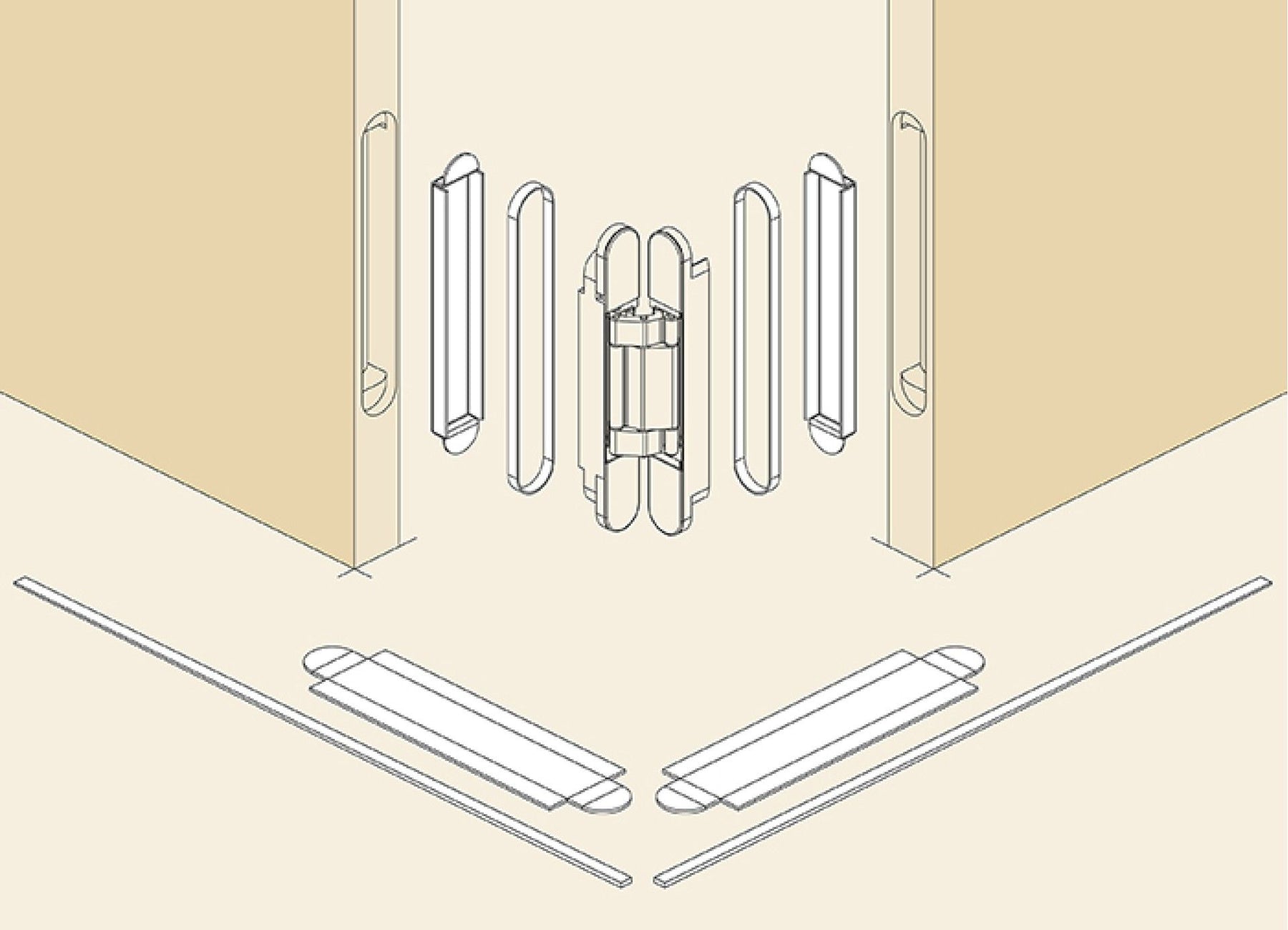

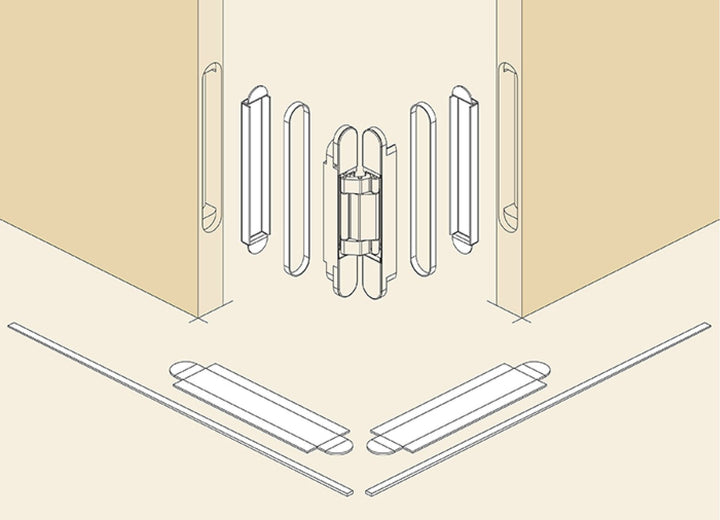

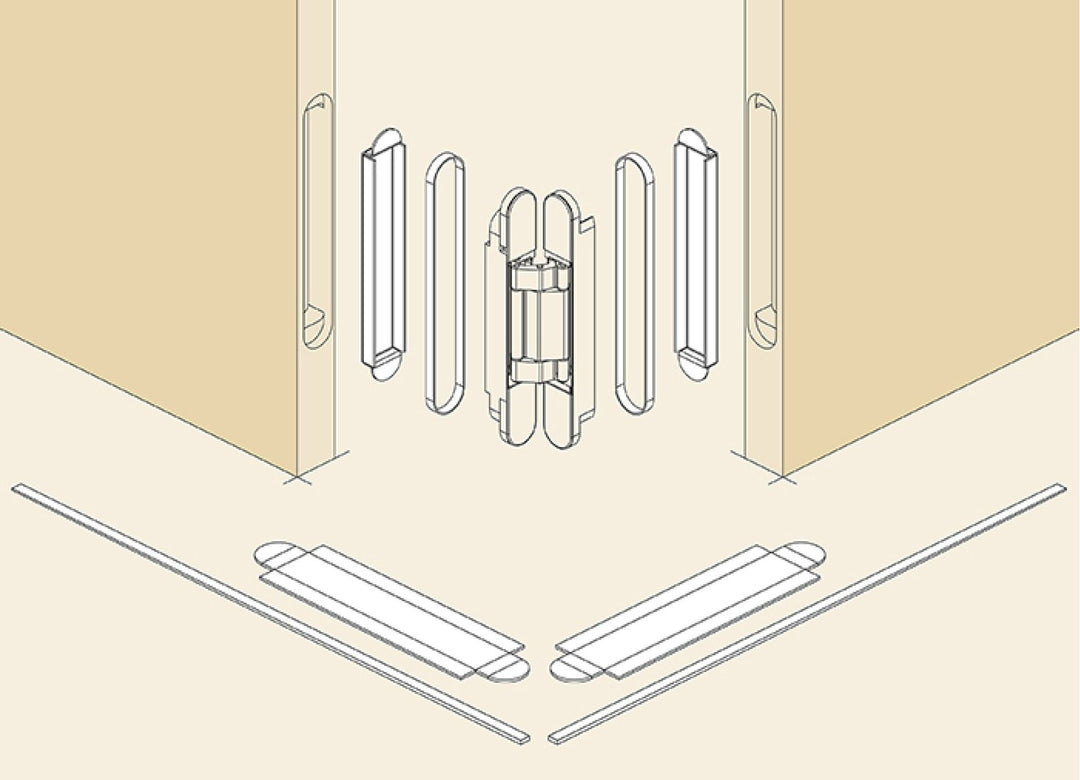

Also available is a FD30 intumescent pack to suit each single hinge.
Please note that three hinges must be fitted when used on fire doors
Please note that these are sold singly

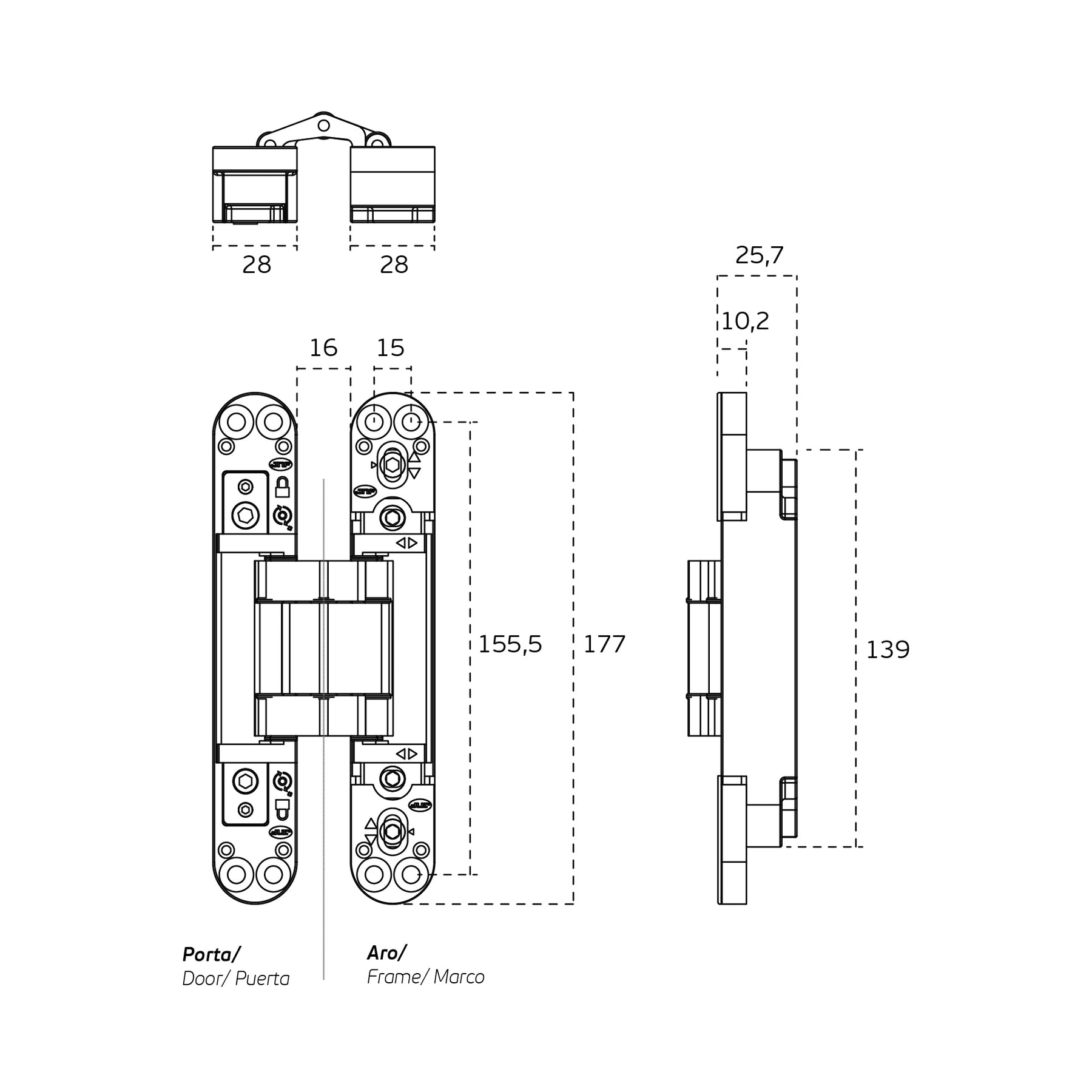

DIMENSIONS:
177mm Door Height
155.5mm Frame Height
28mm Frame Width
28mm Door Width
FINISH:

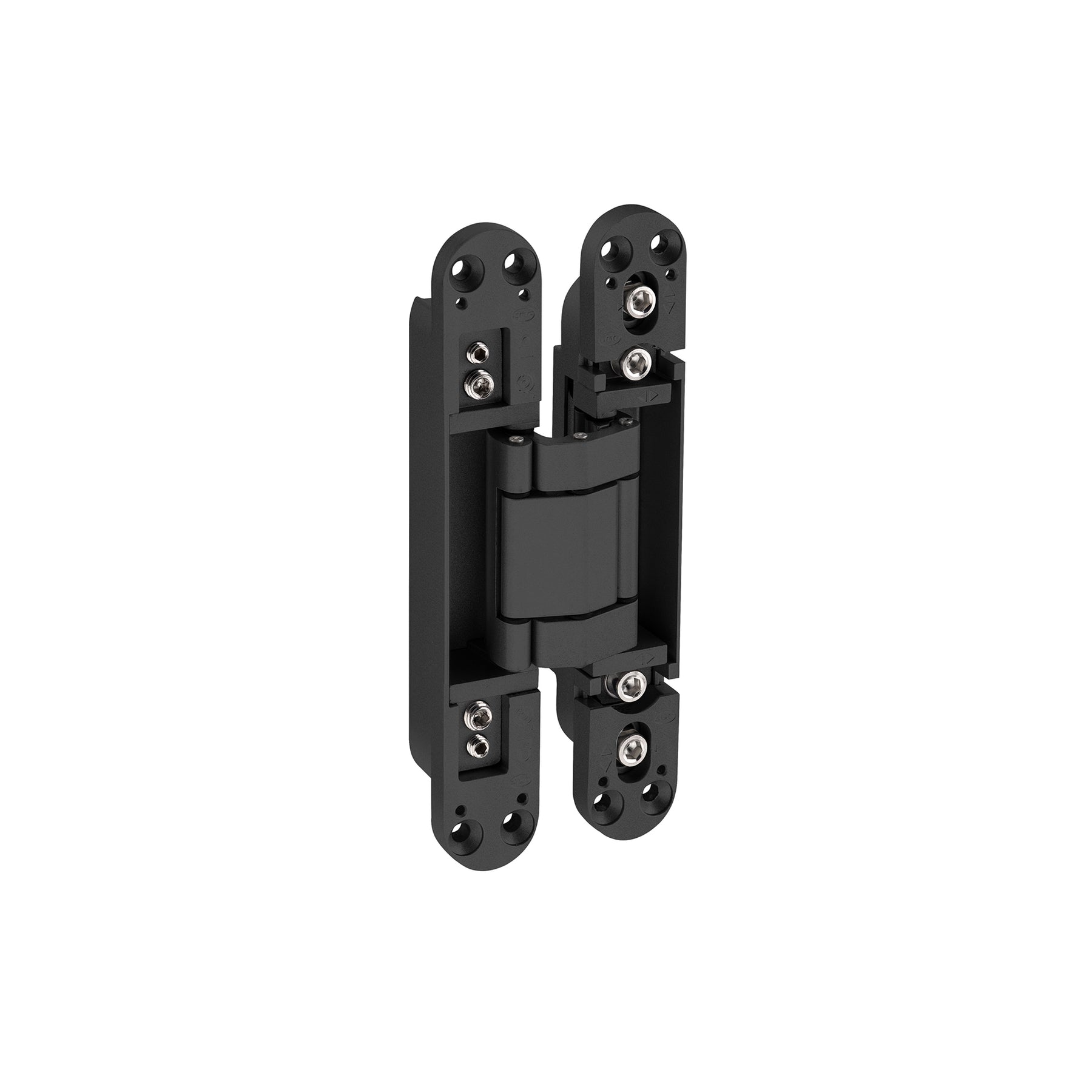

Black (RAL 9005)

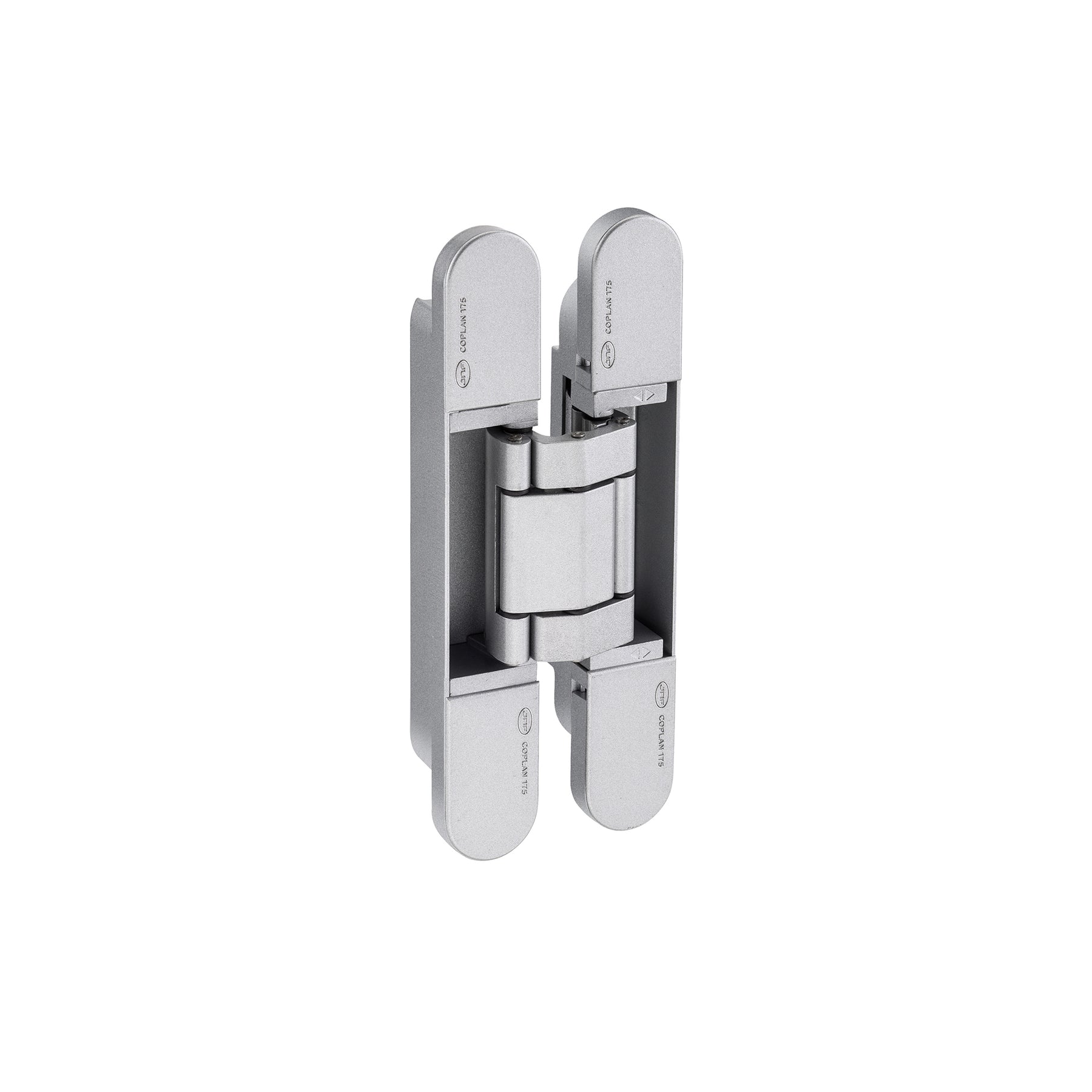

Grey (RAL 9006)
Please select files below to view more information about this product
