JNF 100kgs hydraulic wall to glass door hinge set

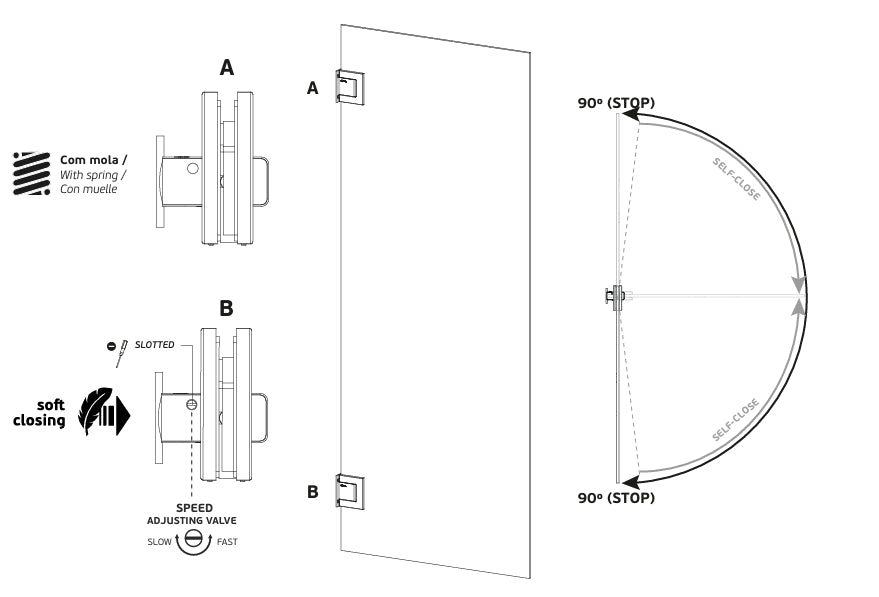

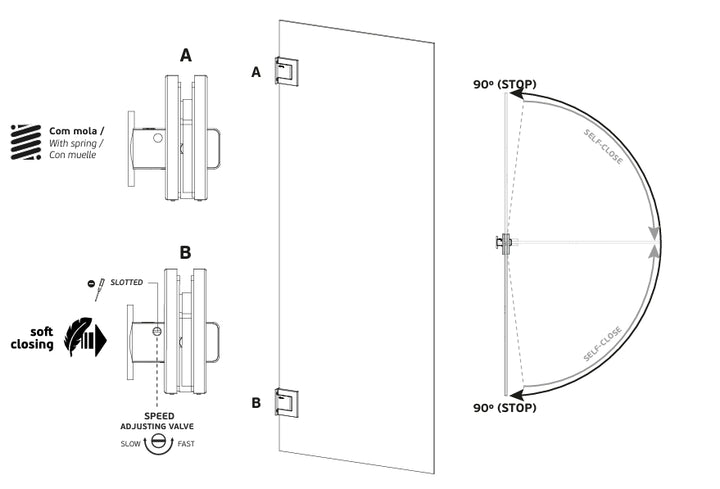

The JNF hydraulic wall to glass hinge set is suitable for glass doors weighing up to 100kgs/1000mm wide to suit 8-12.7mm Tempered glass thickness (GC127 cut-out). The pivot has selectable on/off hold open at 90 degrees with soft close and power adjustable within the last 10 degrees.

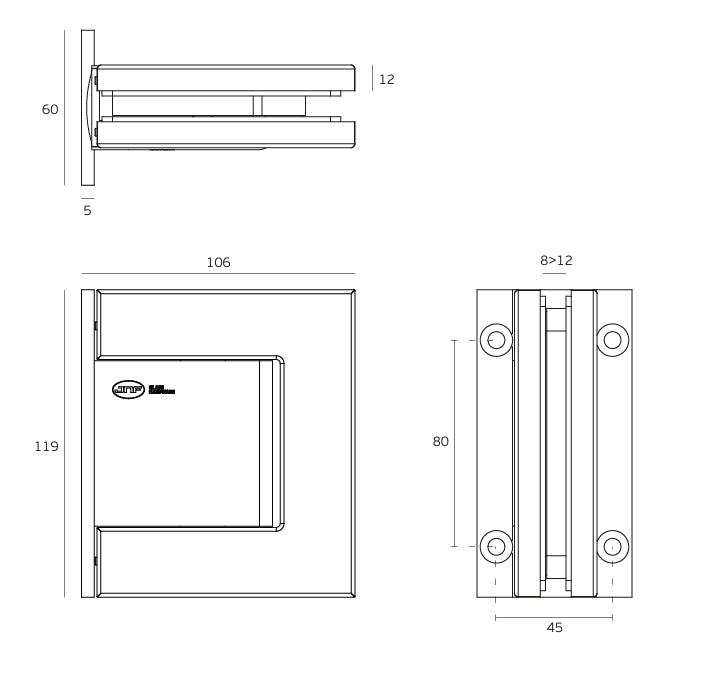

DIMENSIONS:
106mm Projection
119mm High
60mm Wide x 5mm Thick Mounting pate
12mm Thick Cover plates to either side
FINISHES:
Satin Stainless Steel
Polished Stainless Steel
PVD Black
PVD Chocolate
PVD Copper
PVD Gold
Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
