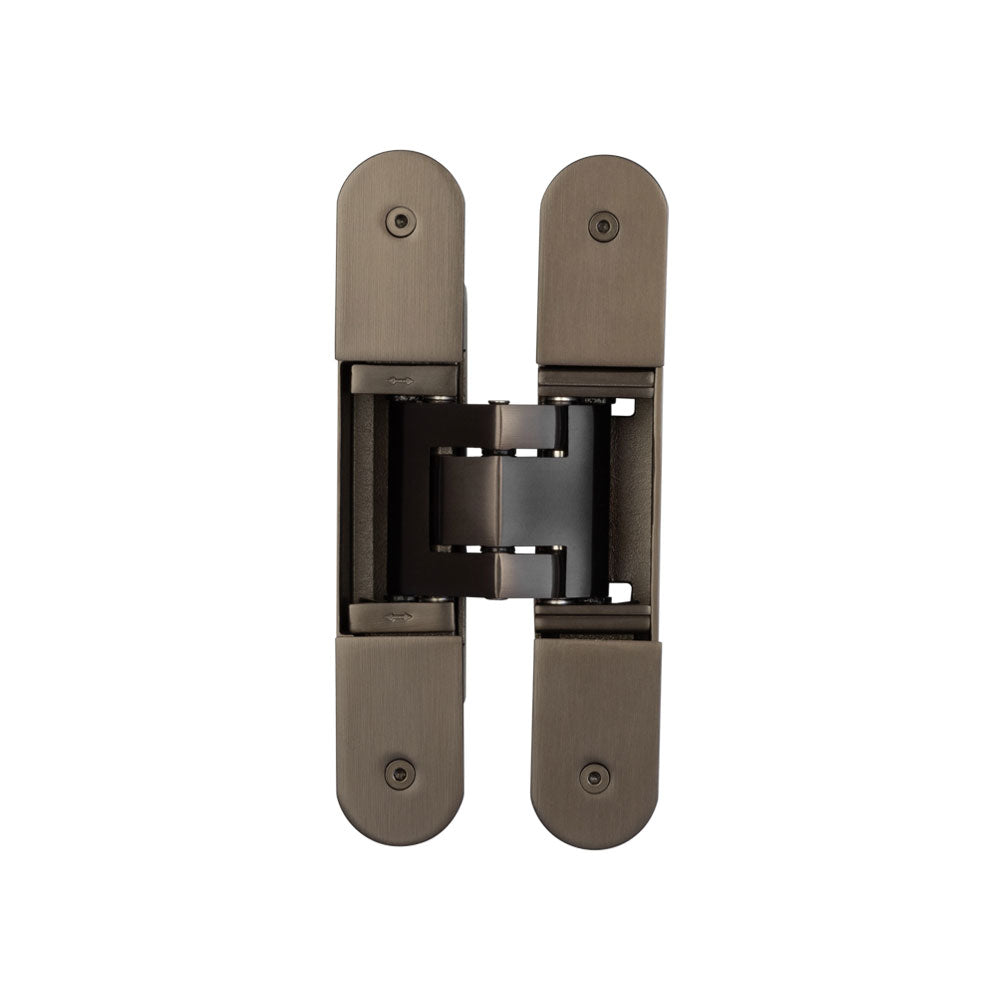

Frelan Ghost 160 3D Single Concealed Hinge - 80/120kgs

Frelan Ghost 160 3D Single Concealed Hinge - 80/120kgs

A single Frelan Ghost 160 concealed invisible hinge offers a premium, fully hidden solution for internal residential and commercial doors

You can adjust these hinges with precision easily, flexibly, and quickly, thanks to their built-in horizontal and vertical adjustment system with removable covers which hide the adjustment and screw fixings.

Suitable for Left and Right hand opening doors with simplified height adjustment with 180 Degree opening angle 3D adjustable (height, width, and depth) without taking the door off.

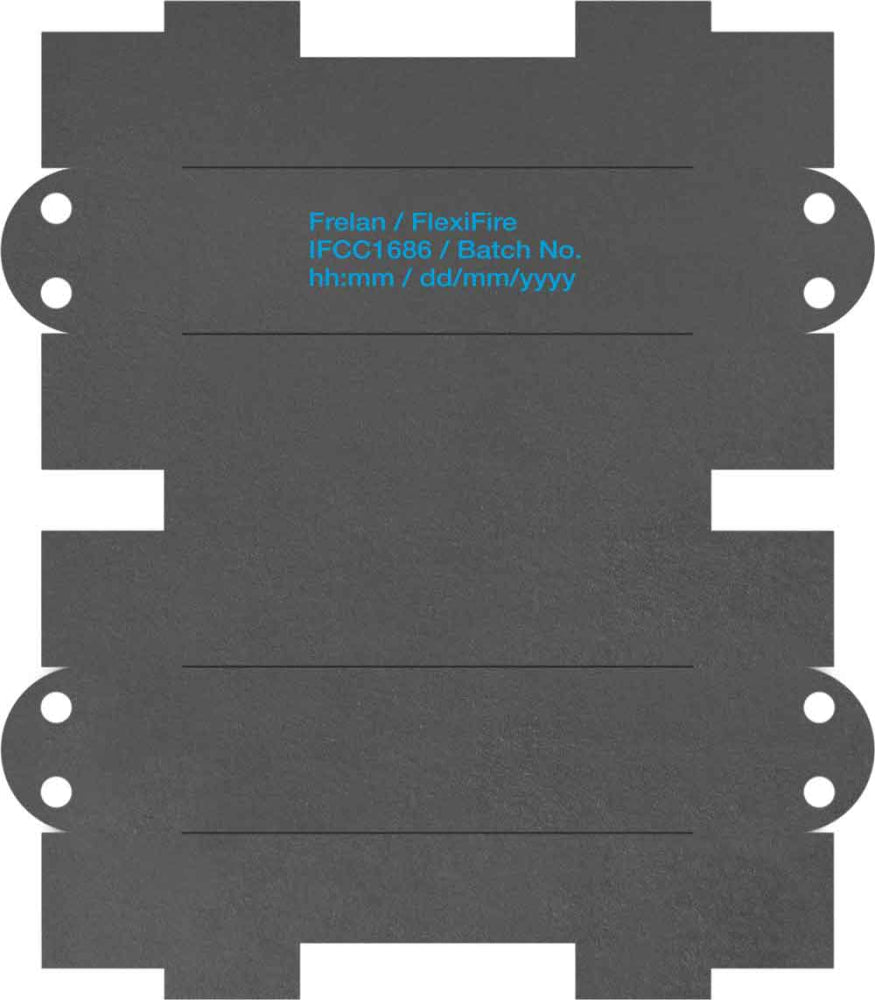

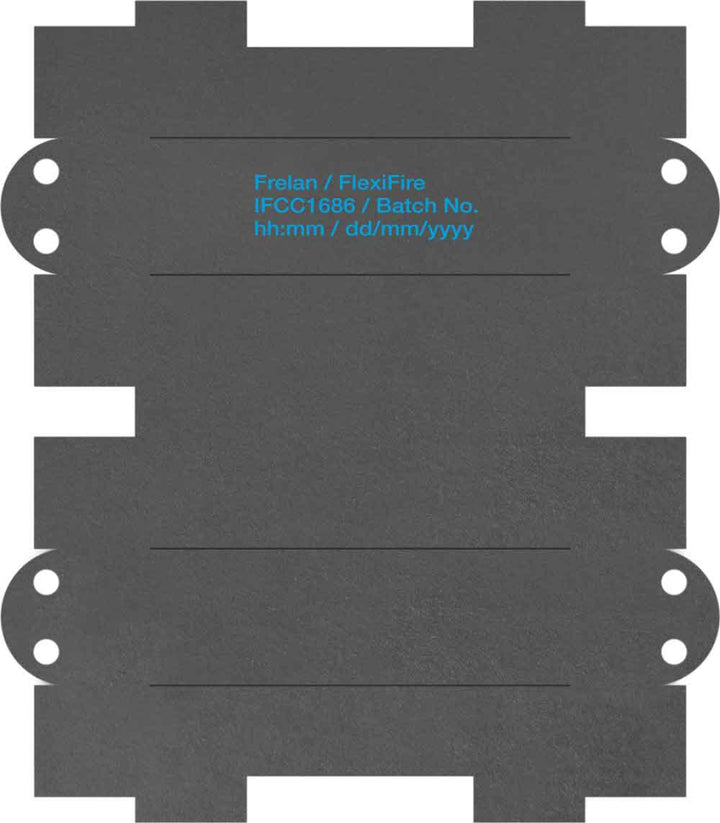

The standard version is non-fire rated but when used in conjunction with the optional intumescent fire kit, to work in conjunction with a single hinge, these will meet FD60 fire door requirements where three hinges must be fitted. This option can be chosen above.

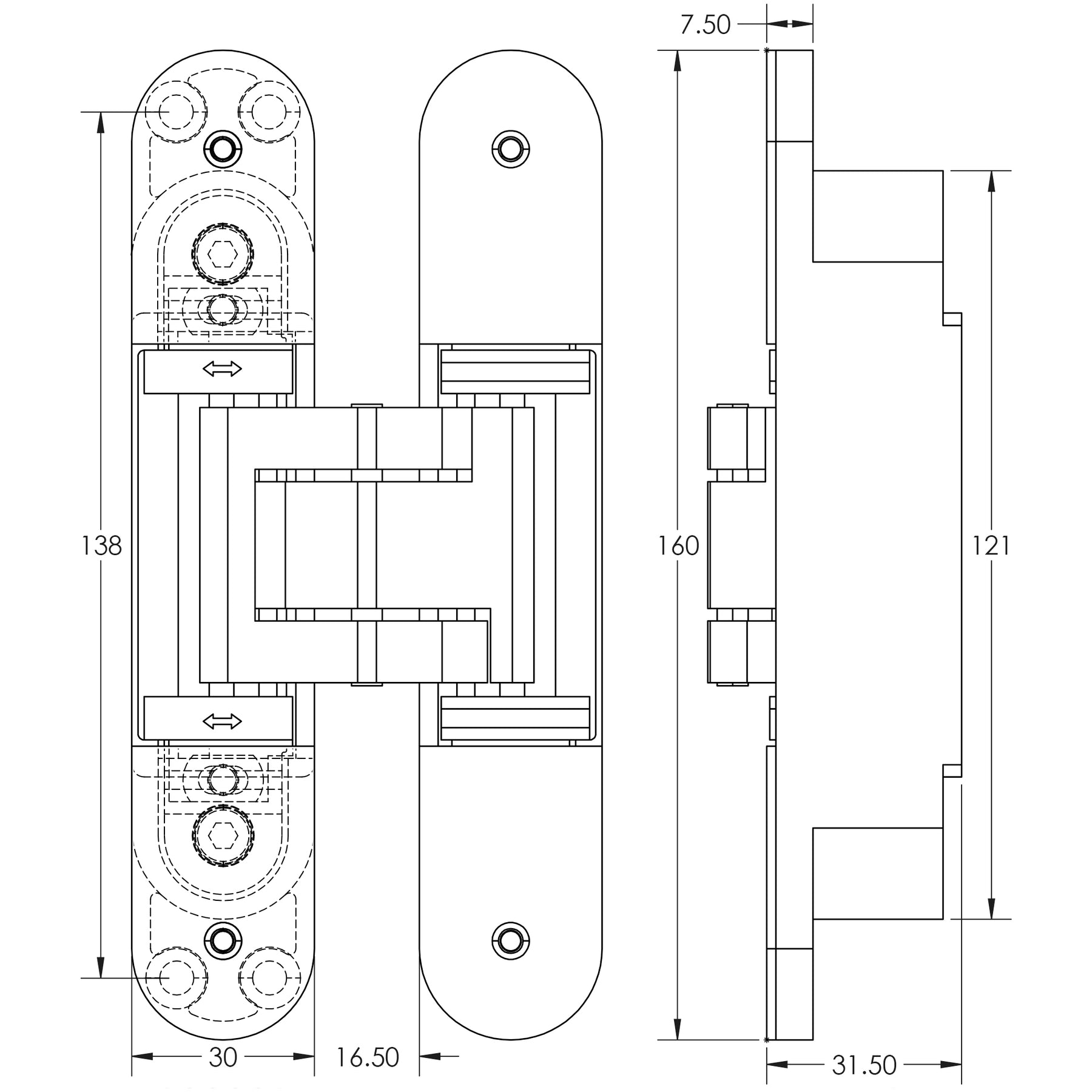

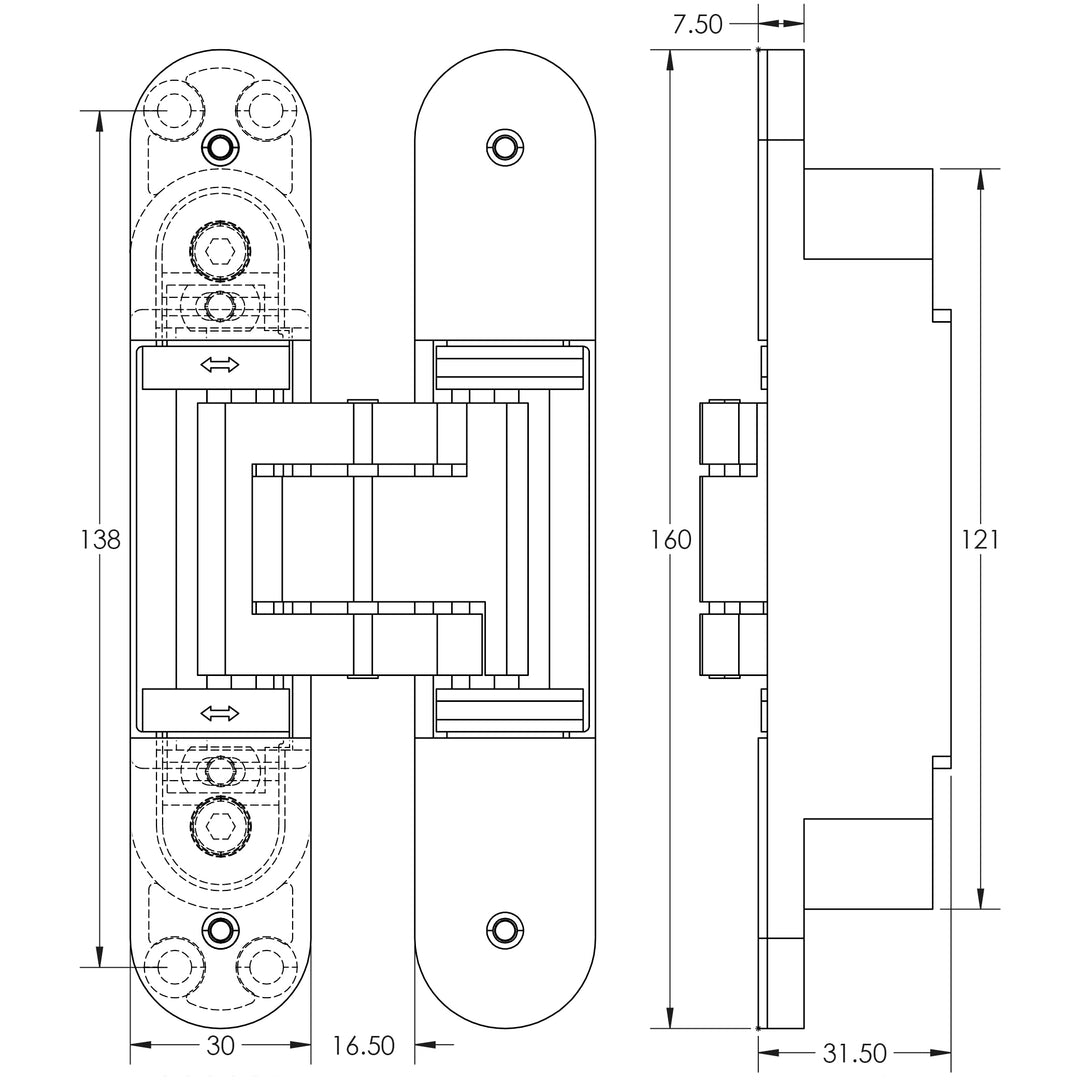

DIMENSIONS:
160mm Long x 30mm Wide
Door Thickness: 35 - 54mm
Door/Frame Recess Depth: 31.5mm
Door Weight (2 pcs) : up to 80kg
Door Weight (3 pcs) : up to 120kg
Up/Down Adjustment: -2.5 / +2.5mm
Left/Right Adjustment: -1.5 / +1.5mm
Depth Adjustment: -1,0 / +1,0mm

Please note that these are sold singly

FINISH:

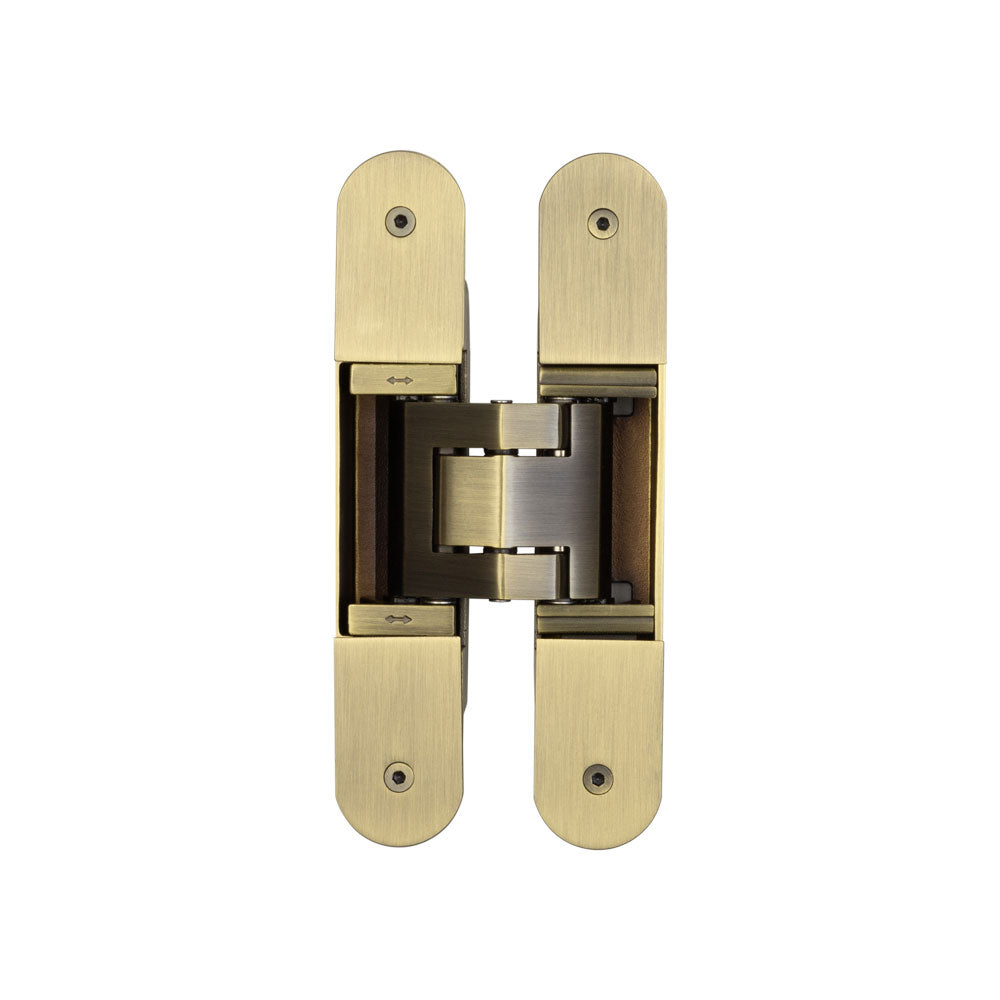

Antique Brass
Dark Bronze

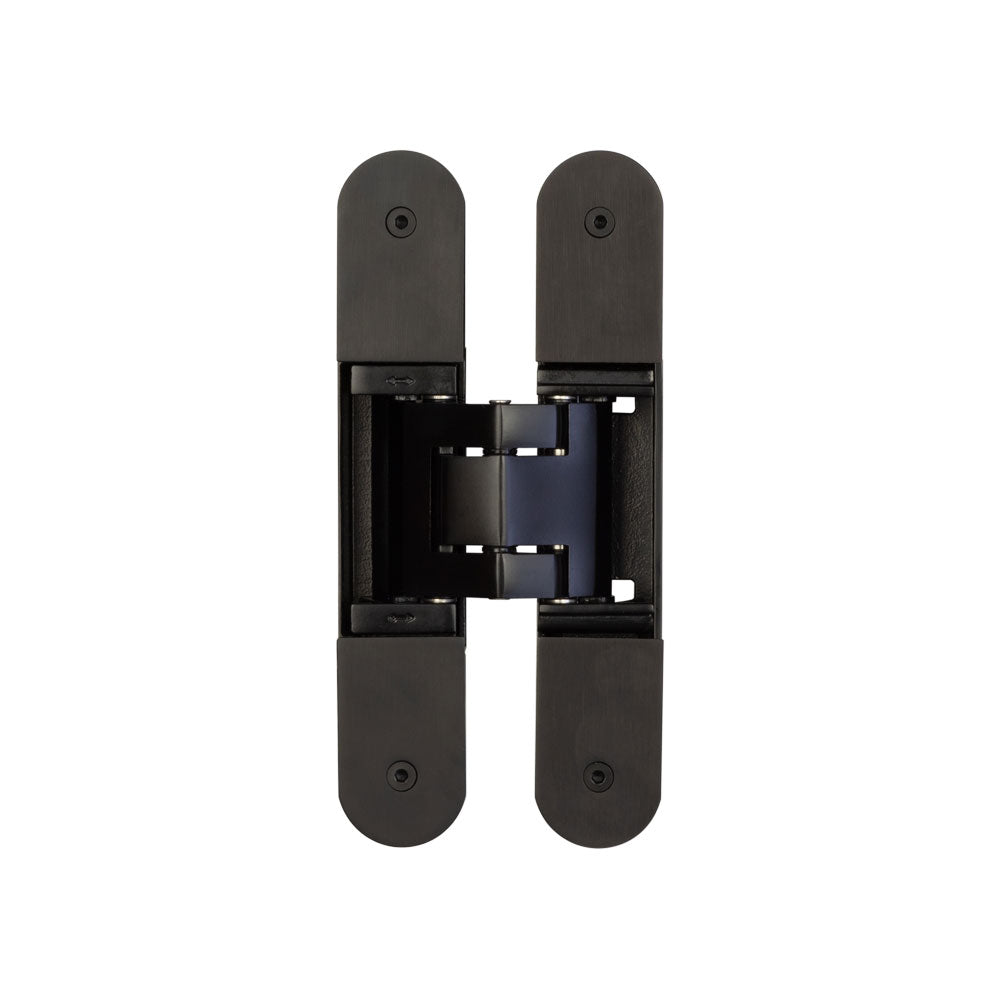

Black

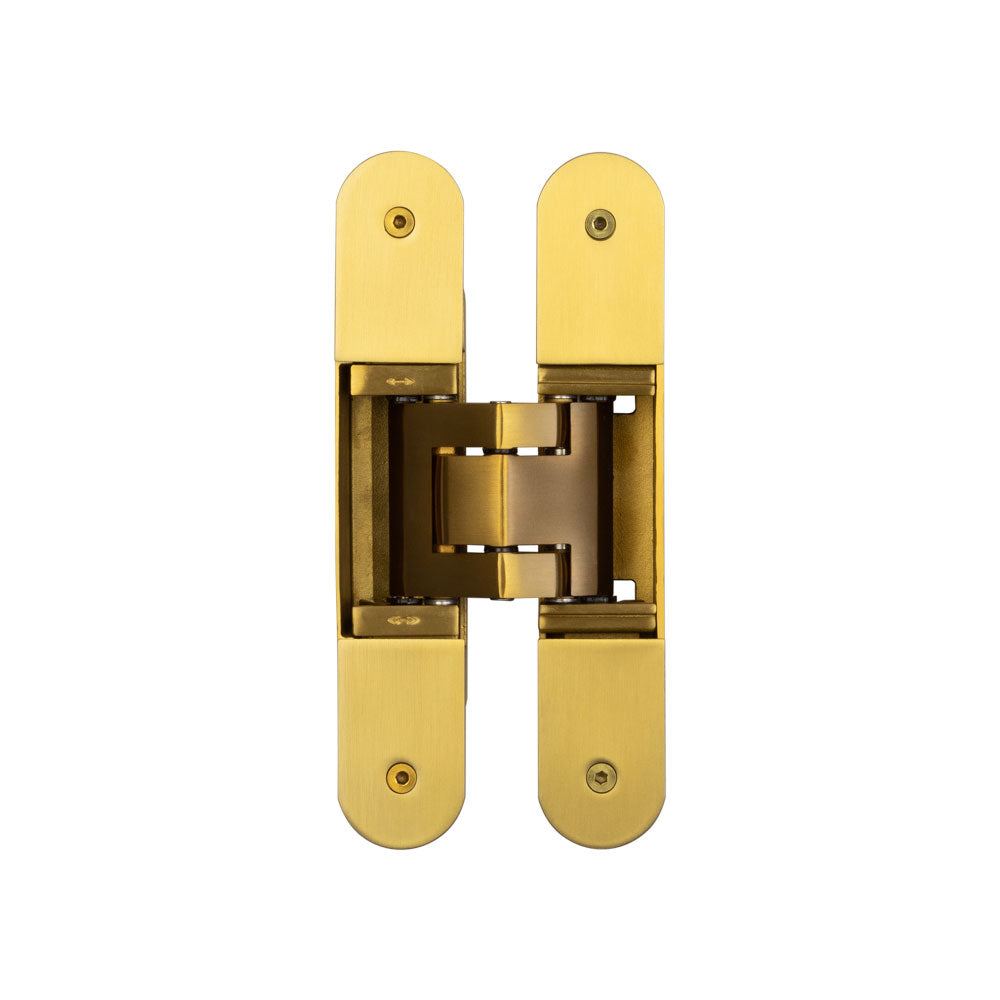

Satin Brass

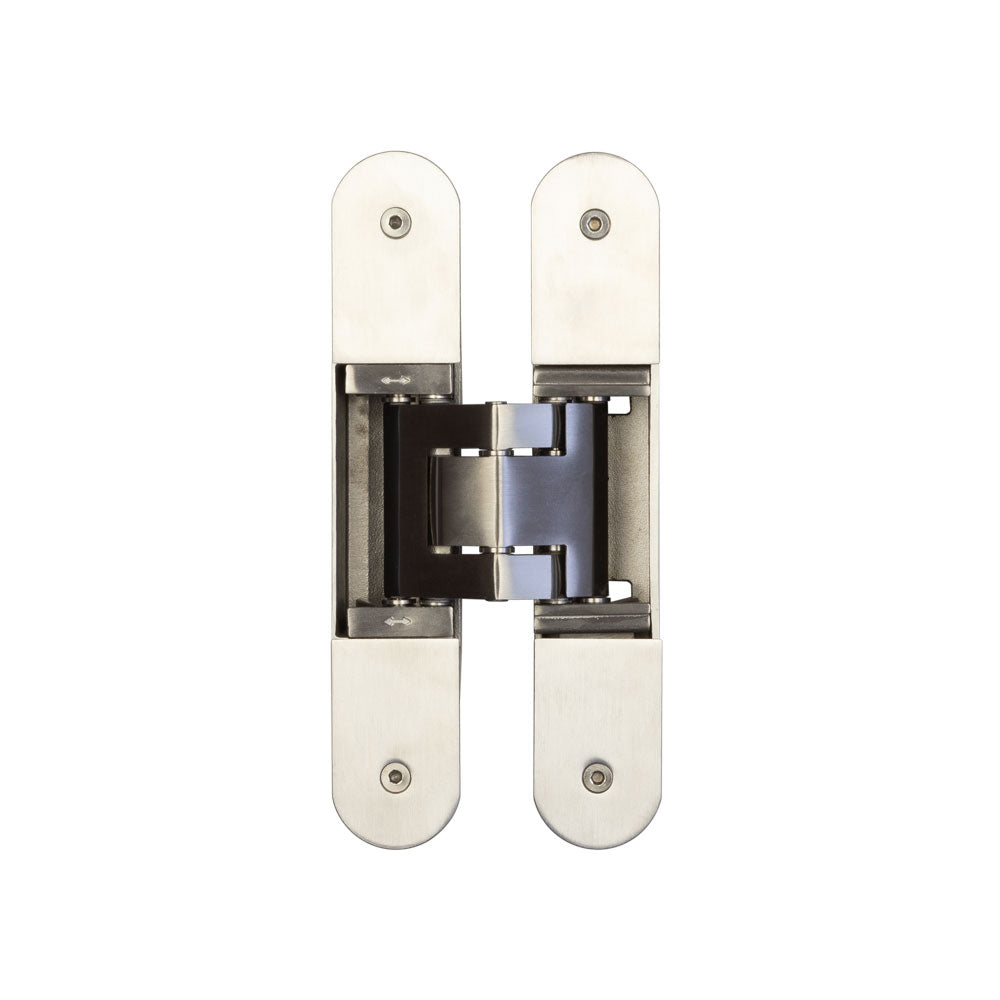

Satin Stainless

Please select file below to view more information about this product
