Frelan Jedo European DIN Square Cylinder Sashlock
Heavy duty European mortice strongly sprung euro profile cylinder sash lock case with grade 304 stainless steel 22mm wide square forend and anti-rattle strike plate with stainless steel latch and deadbolt; is suitable for domestic and commercial projects.
The cylinder sashlock has a backset (distance from edge of door to handle/cylinder) of 60mm both with 20mm double throw (two cylinder turns) deadbolt and is suitable for un-sprung lever handles and euro-profile cylinders.
The distance between the centre of the lever handle and cylinder is 72mm which aesthetically when viewed on a door is less cramped than conventional UK locks. This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.
This sashlock is CE Marked and conforms to European standard EN12209:2003, Grade 3 corrosion resistance, Classification 3-X-8-1-0-G-2-B-C-2-0 and conforms to the dimensional characteristics of DIN 18251 and comes with a 15 year mechanical guarantee.
Certifire approved (CF5423) for use on 30 and 60 minute fire rated doors, when used in conjunction with the correct intumescent pack.

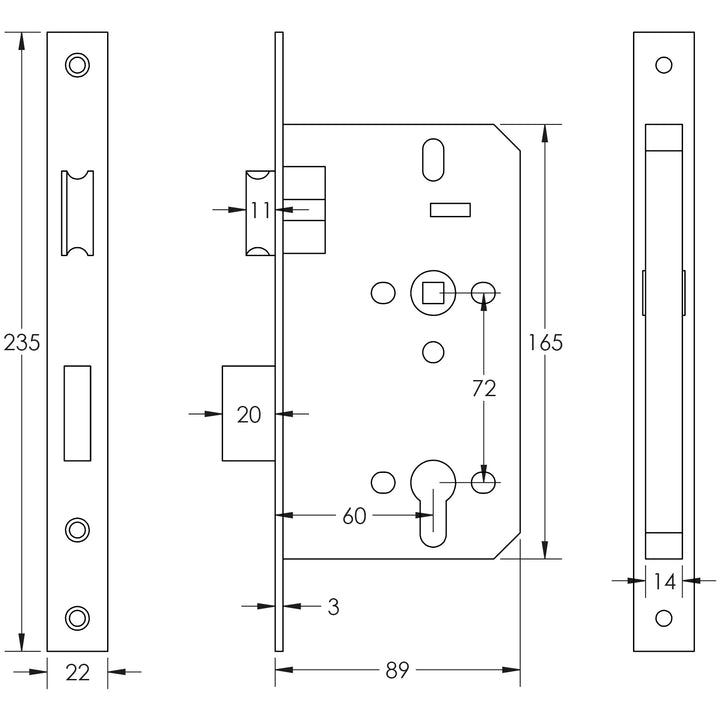

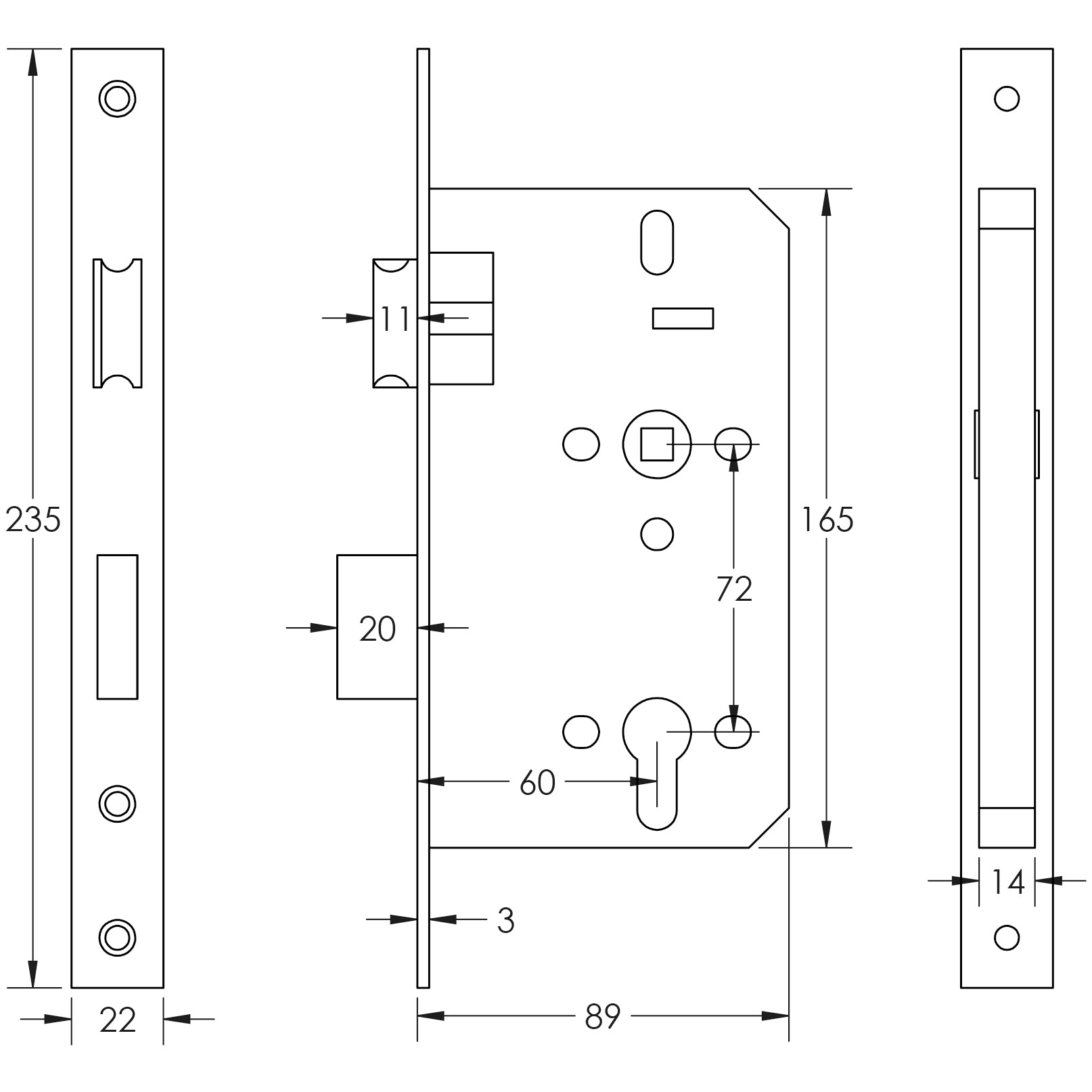

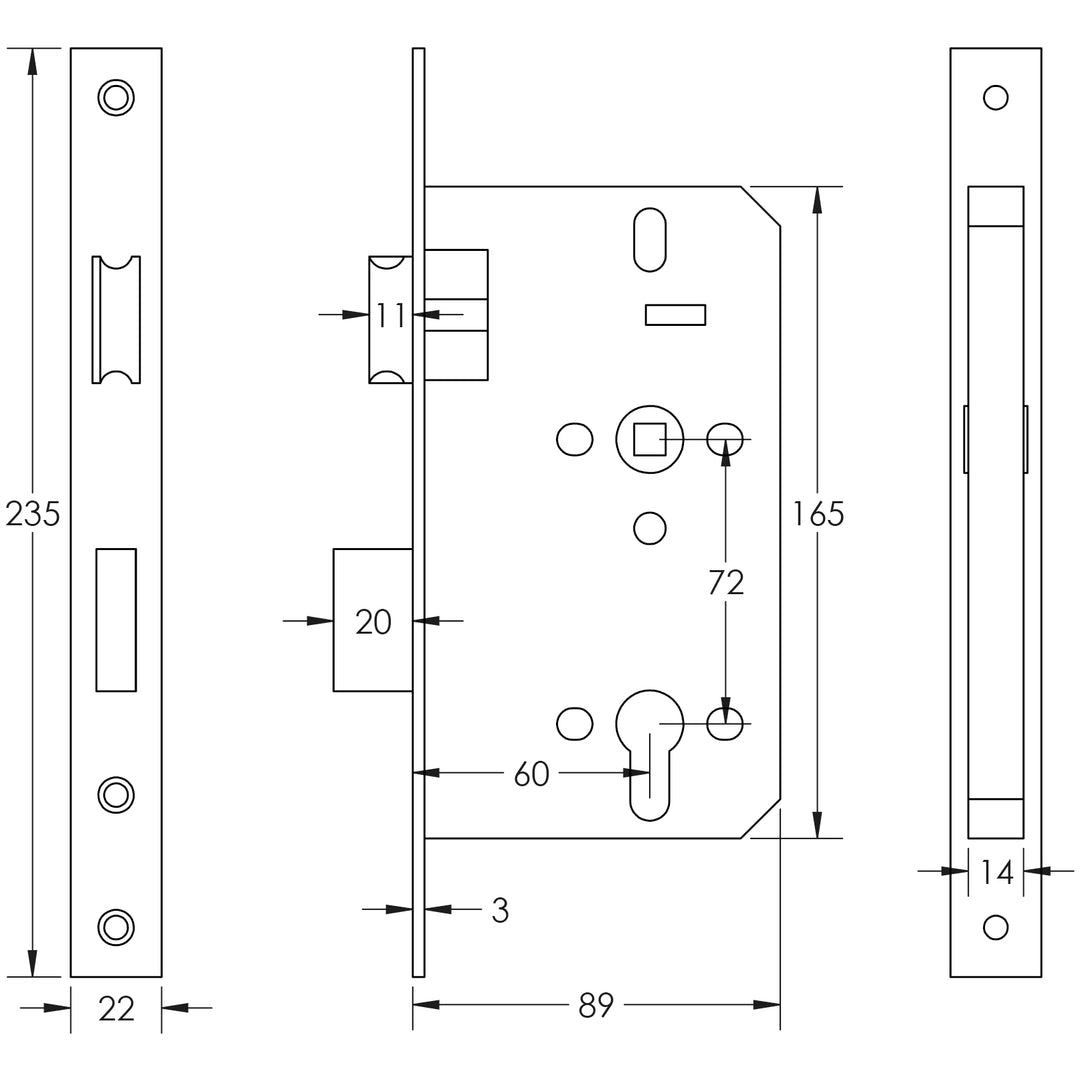

DIMENSIONS:
Backset 60mm
Case depth 89mm
235mm x 22mm Forend plate
165mm high x 14mm thick case
FINISHES:

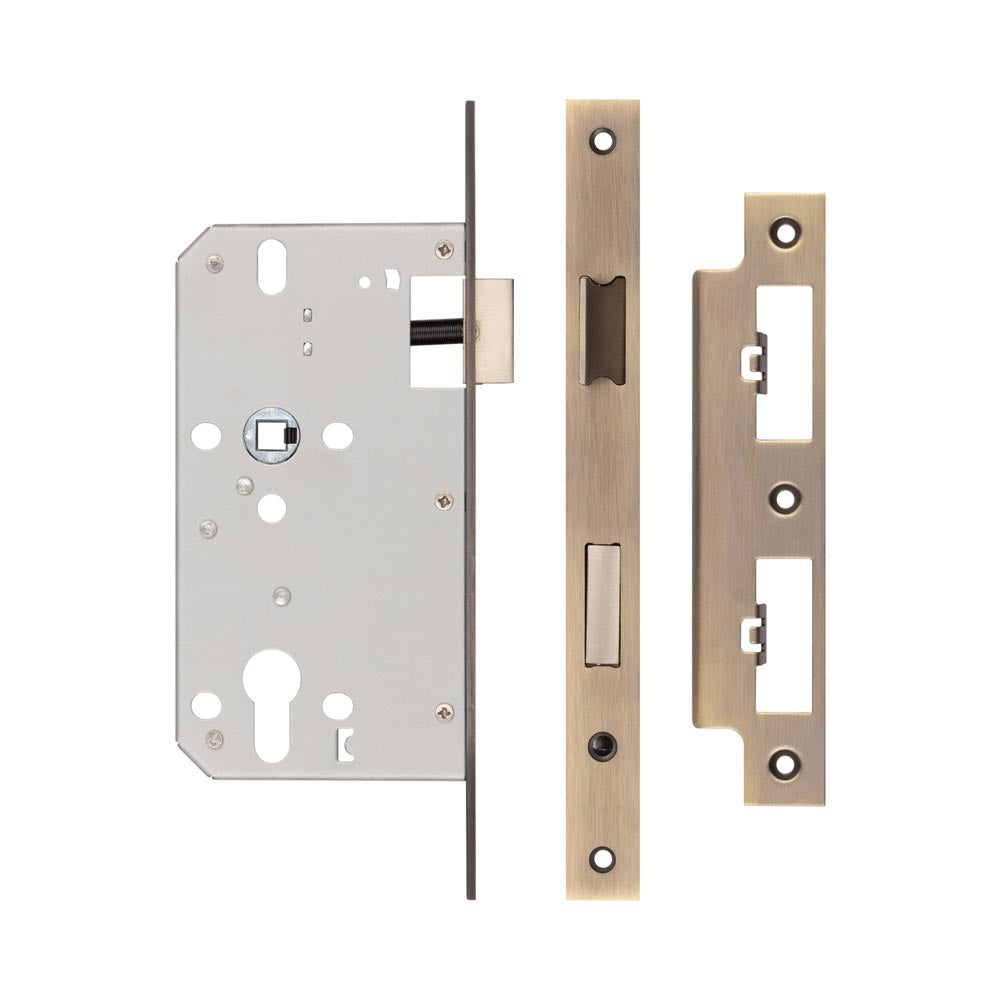

Antique Brass

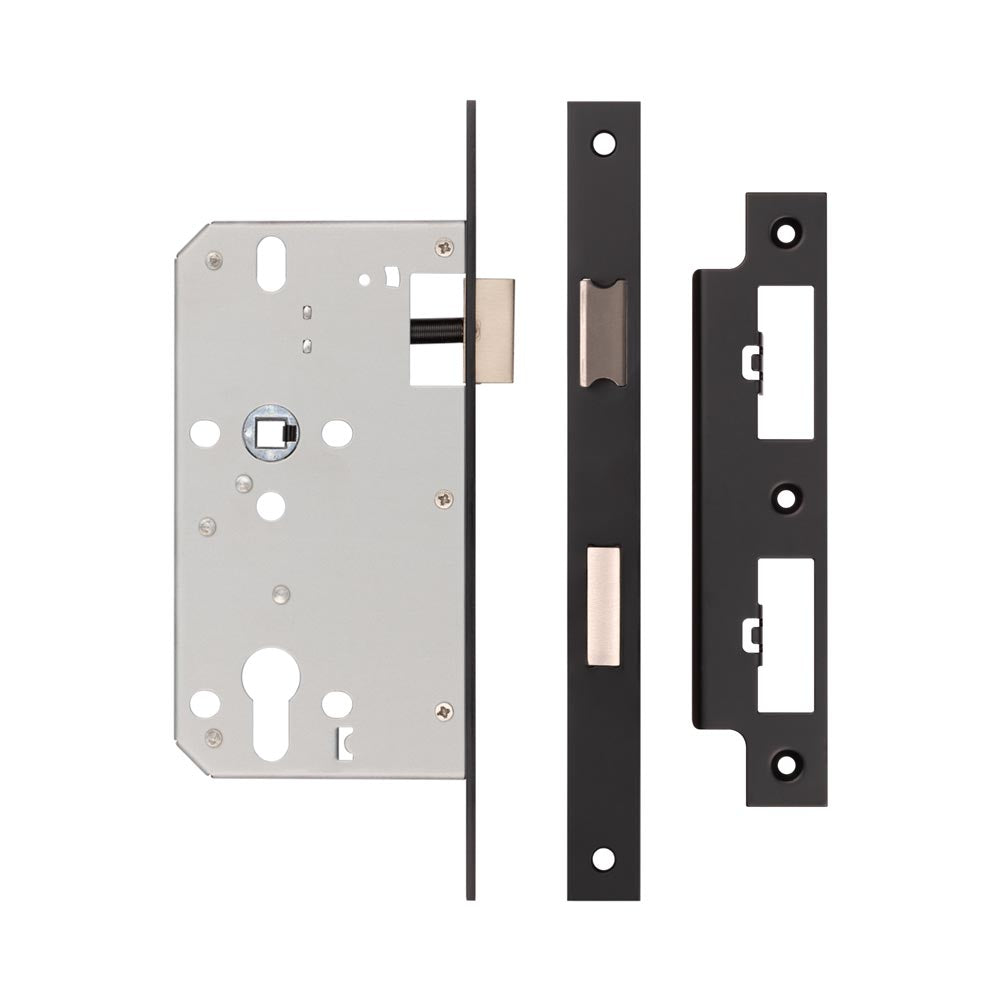

Black

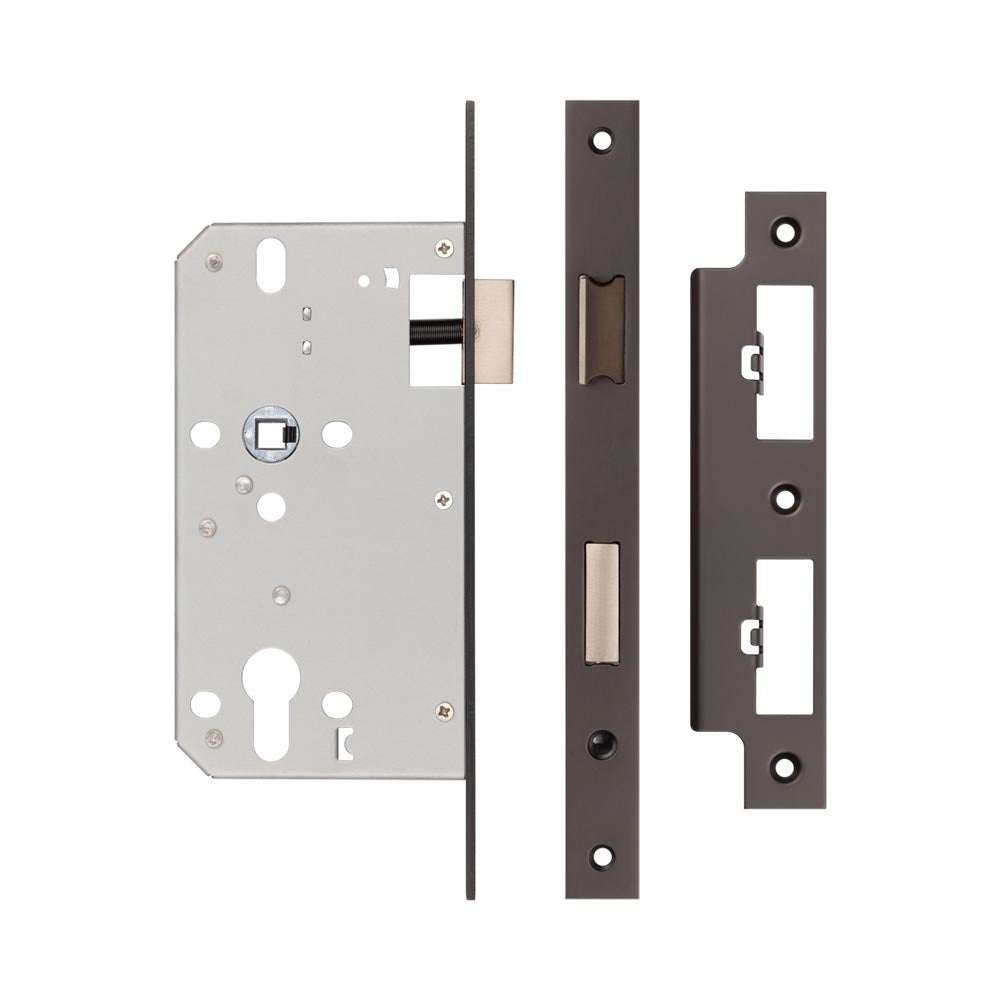

Dark Bronze

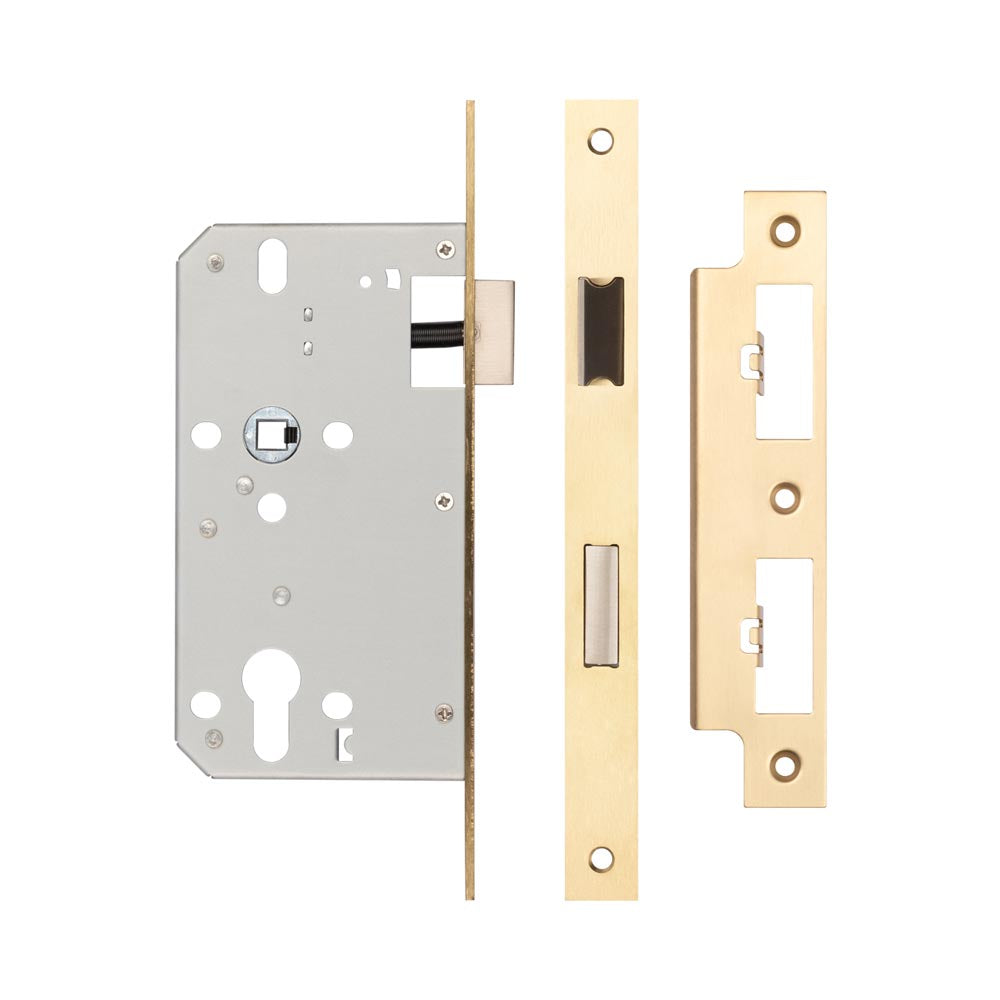

Satin Brass

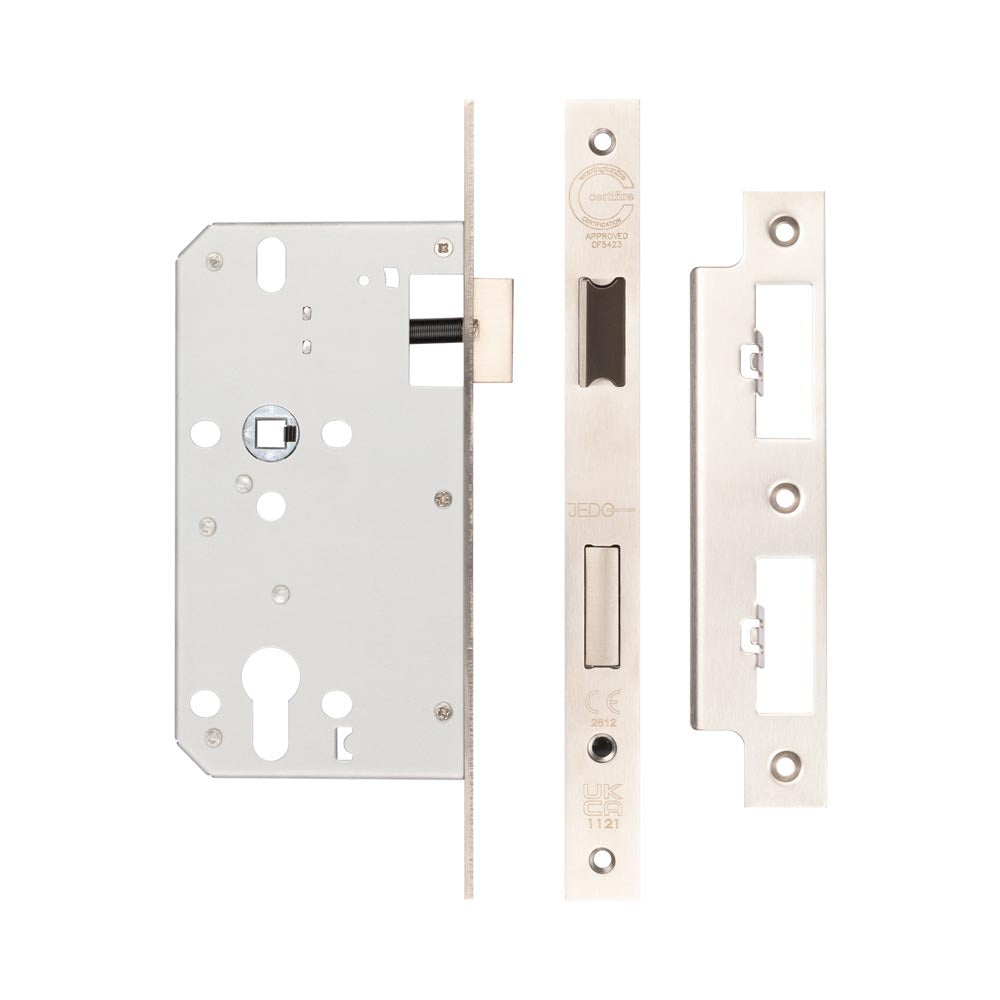

Satin Stainless Steel
