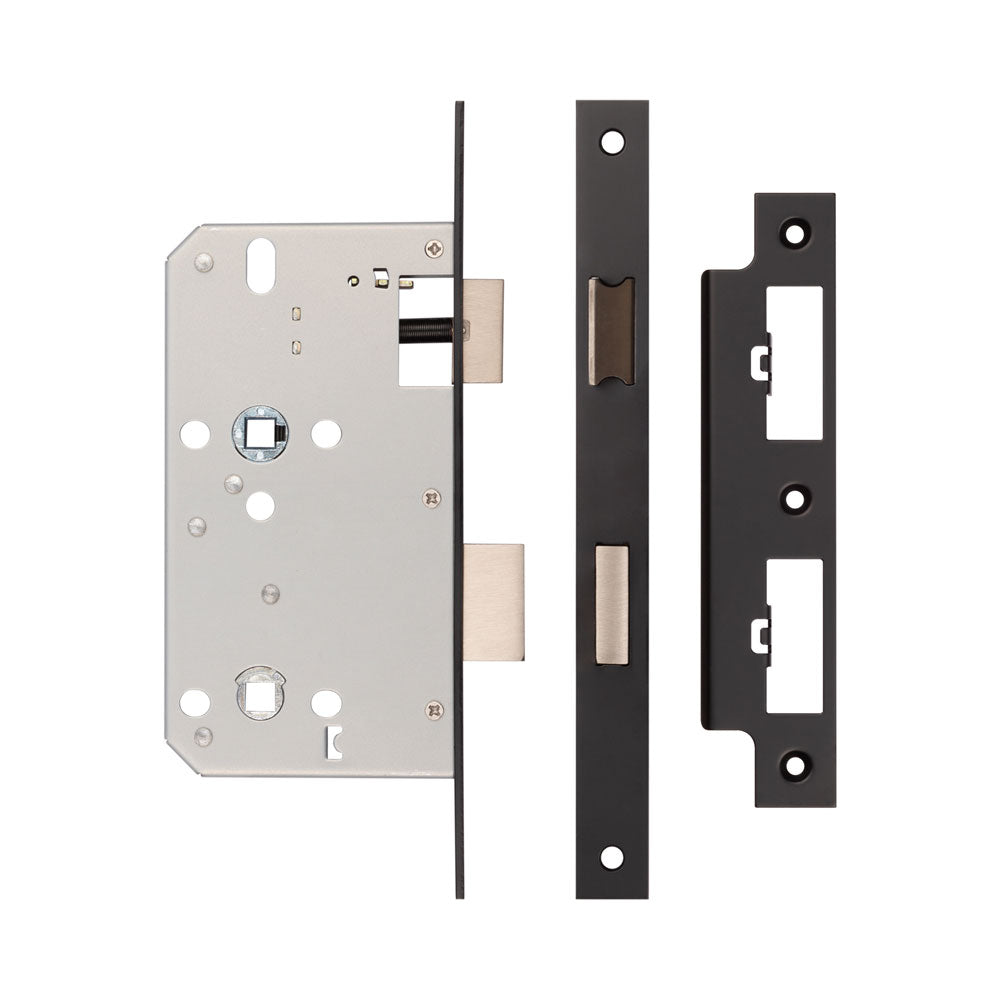

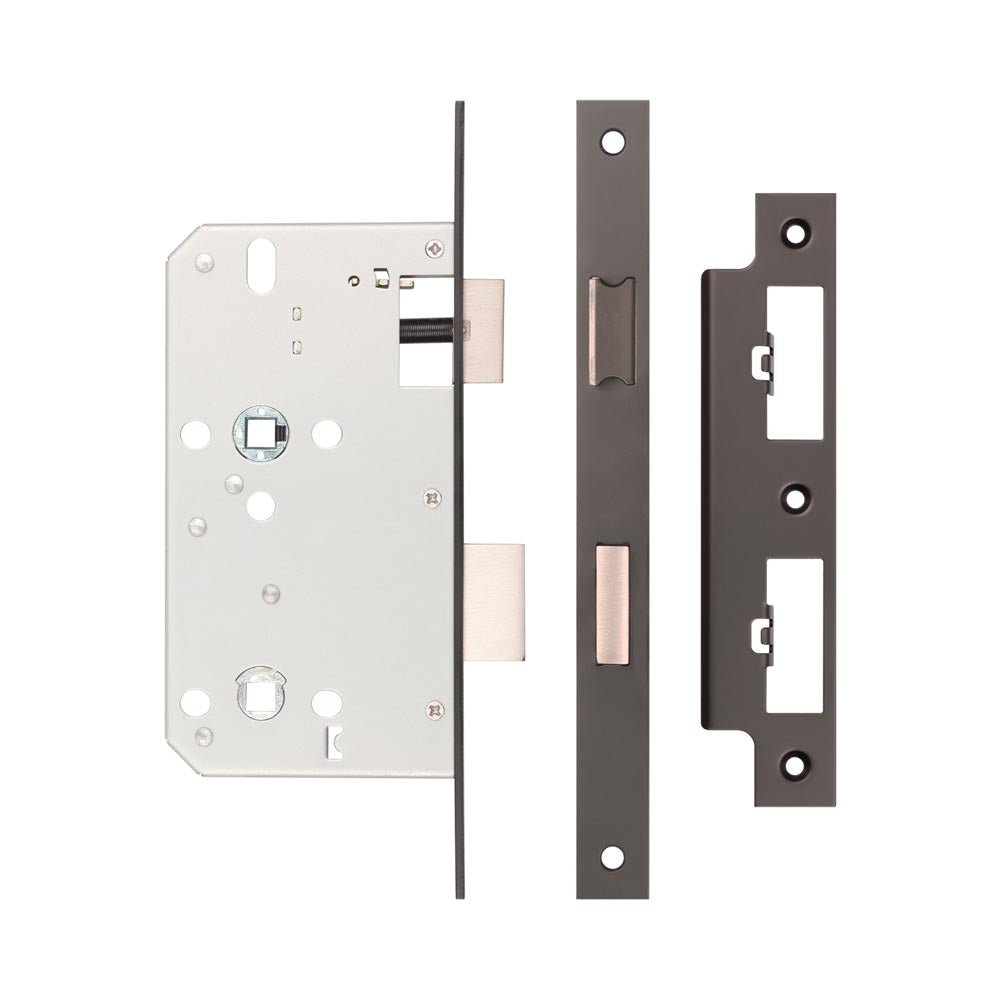

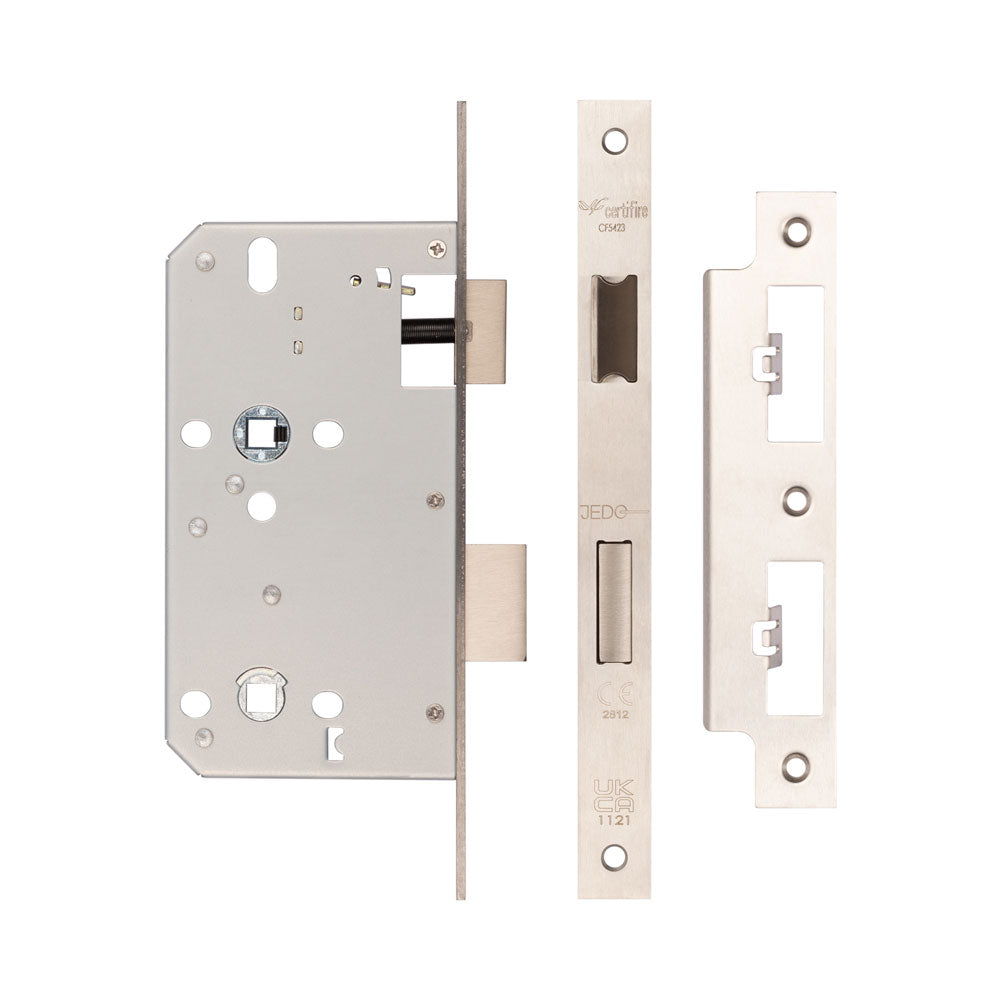

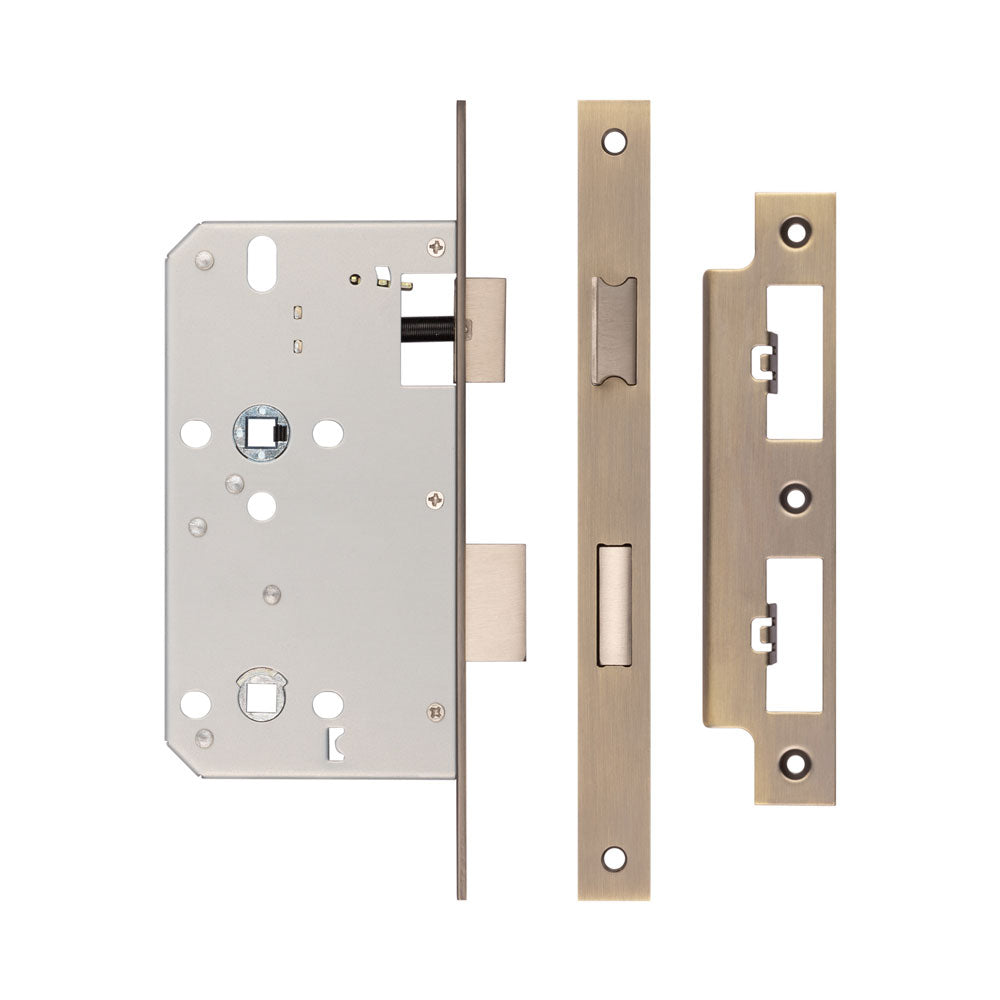

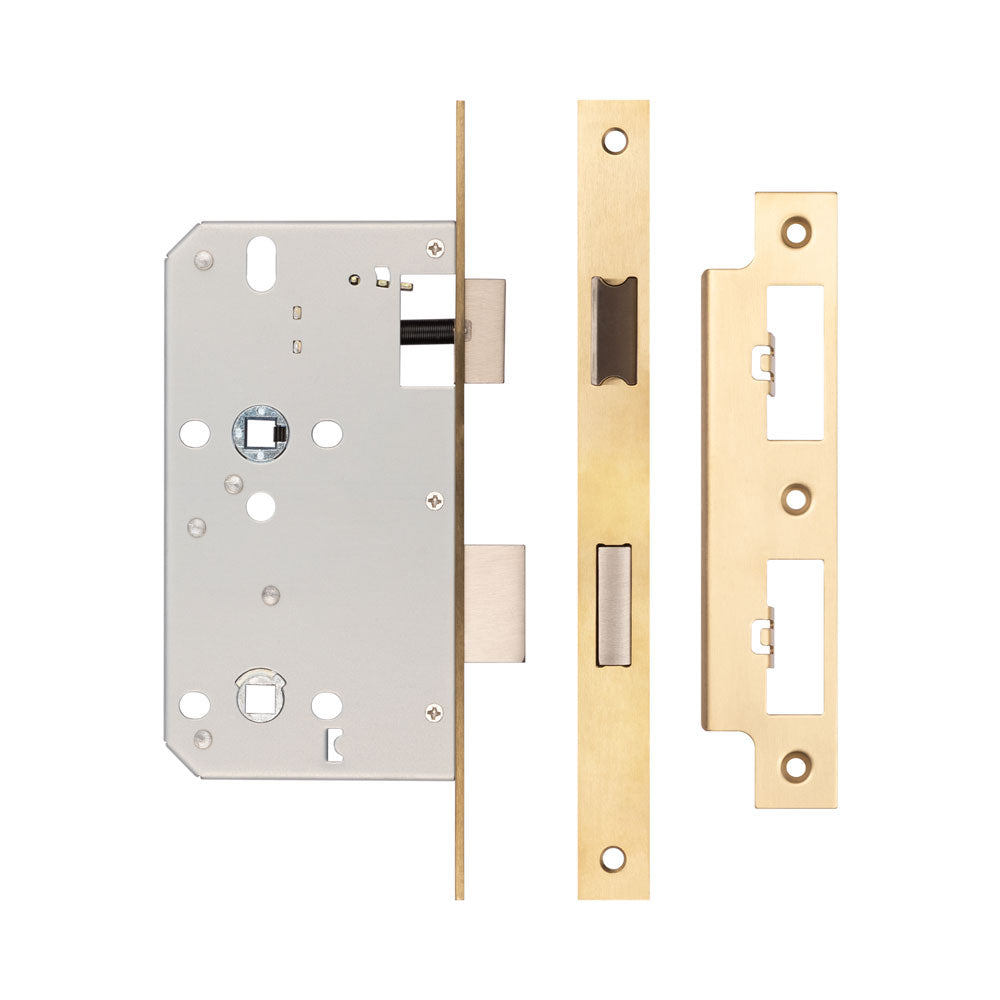

Frelan Jedo European DIN Square Bathlock

Frelan Jedo European DIN Square Bathlock

Heavy duty European mortice strongly sprung bathlock with grade 304 satin stainless steel 22mm wide square forend and anti-rattle striking plate, with stainless steel latch and deadbolt; is suitable for domestic and commercial projects.

The bathlock has a backset (distance from edge of door to handle/cylinder) of 60mm with 20mm throw deadbolt and is suitable for un-sprung lever handles and with 8mm spindle bar follower; which can be changed to 5mm with spindle converter.

The distance between the centres of the lever handle and WC set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks. This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.

This bathlock is CE Marked and conforms to European standard EN12209:2003, Corrosion resistance Grade 3, Classification 3X810G2BG20 and conforms to the dimensional characteristics of DIN 18251 and comes with a 15 year mechanical guarantee.

Certifire approved (CF5423) for use on 30 and 60 minute fire rated doors, when used in conjunction with the correct intumescent pack.

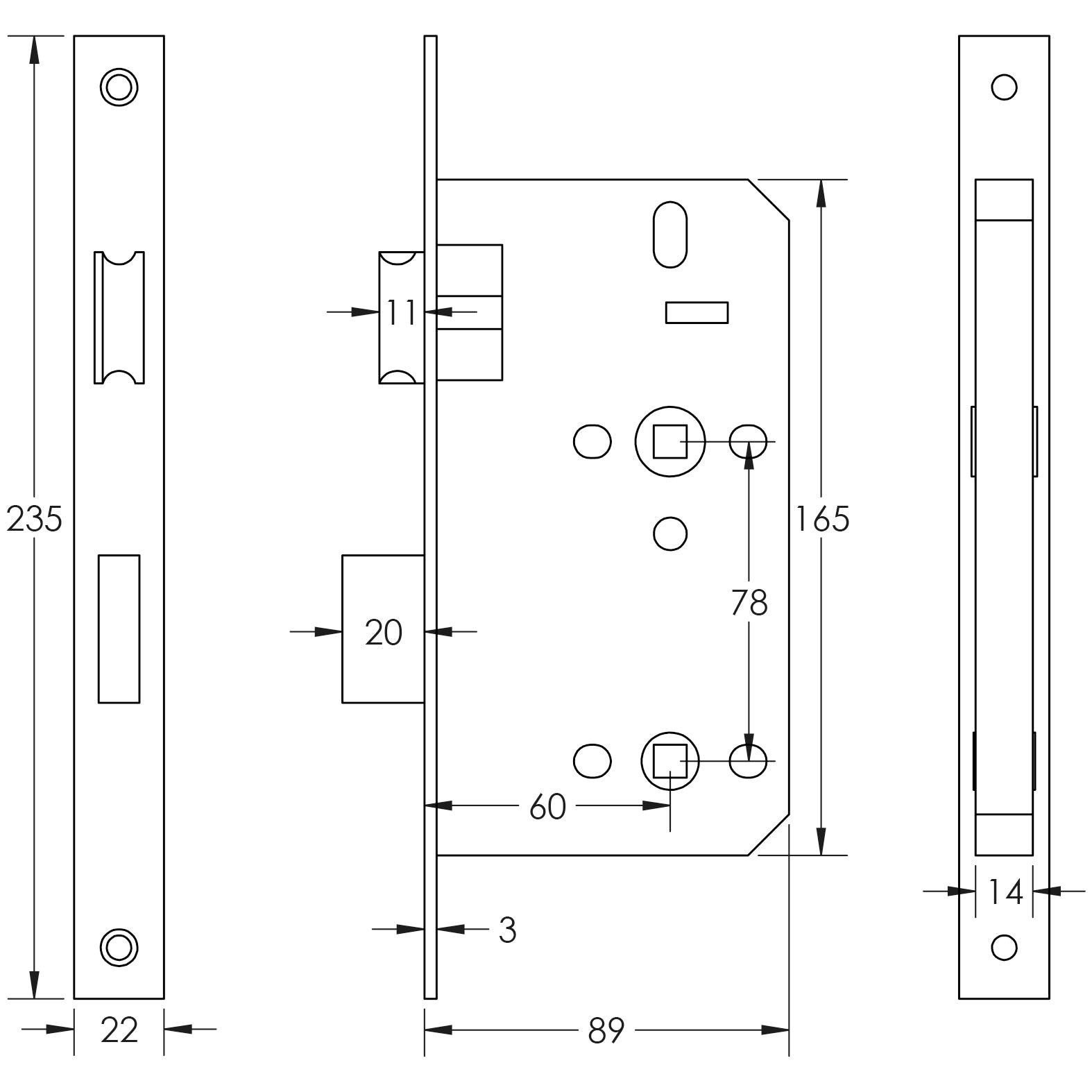

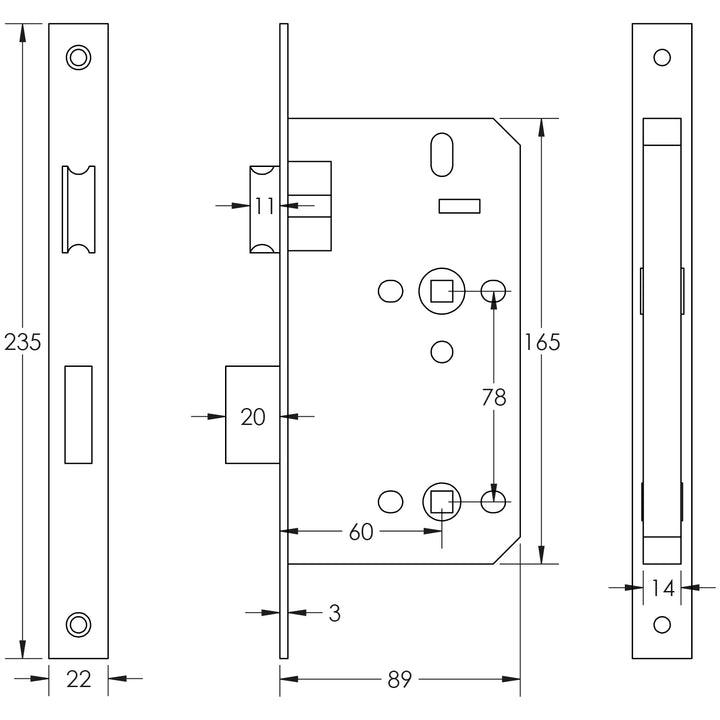

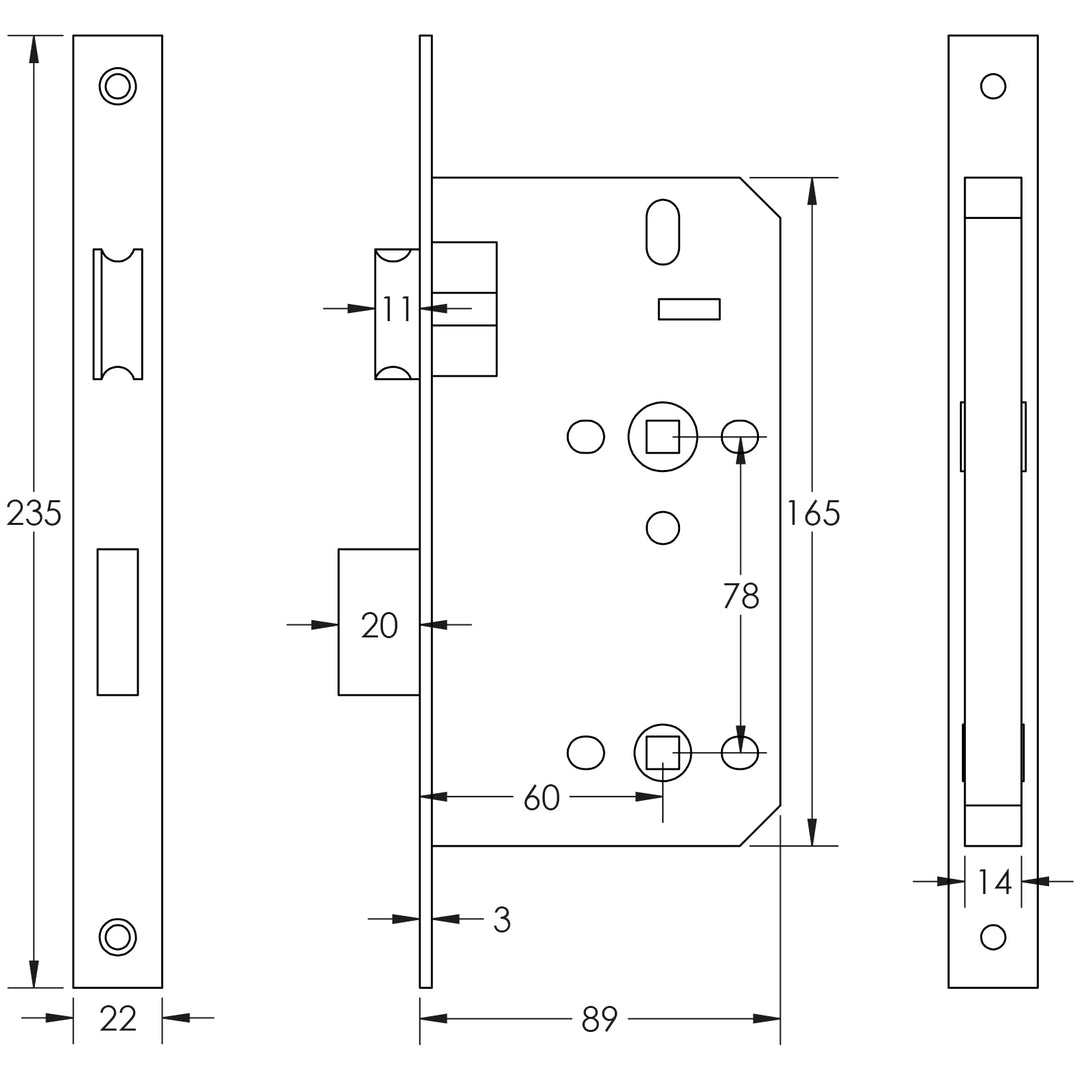

DIMENSIONS:
Backset 60mm
Case depth 89mm
235mm x 22mm Forend plate
165mm high x 14mm thick case

FINISHES:
Antique Brass
Black
Dark Bronze
Satin Brass
Satin Stainless Steel
