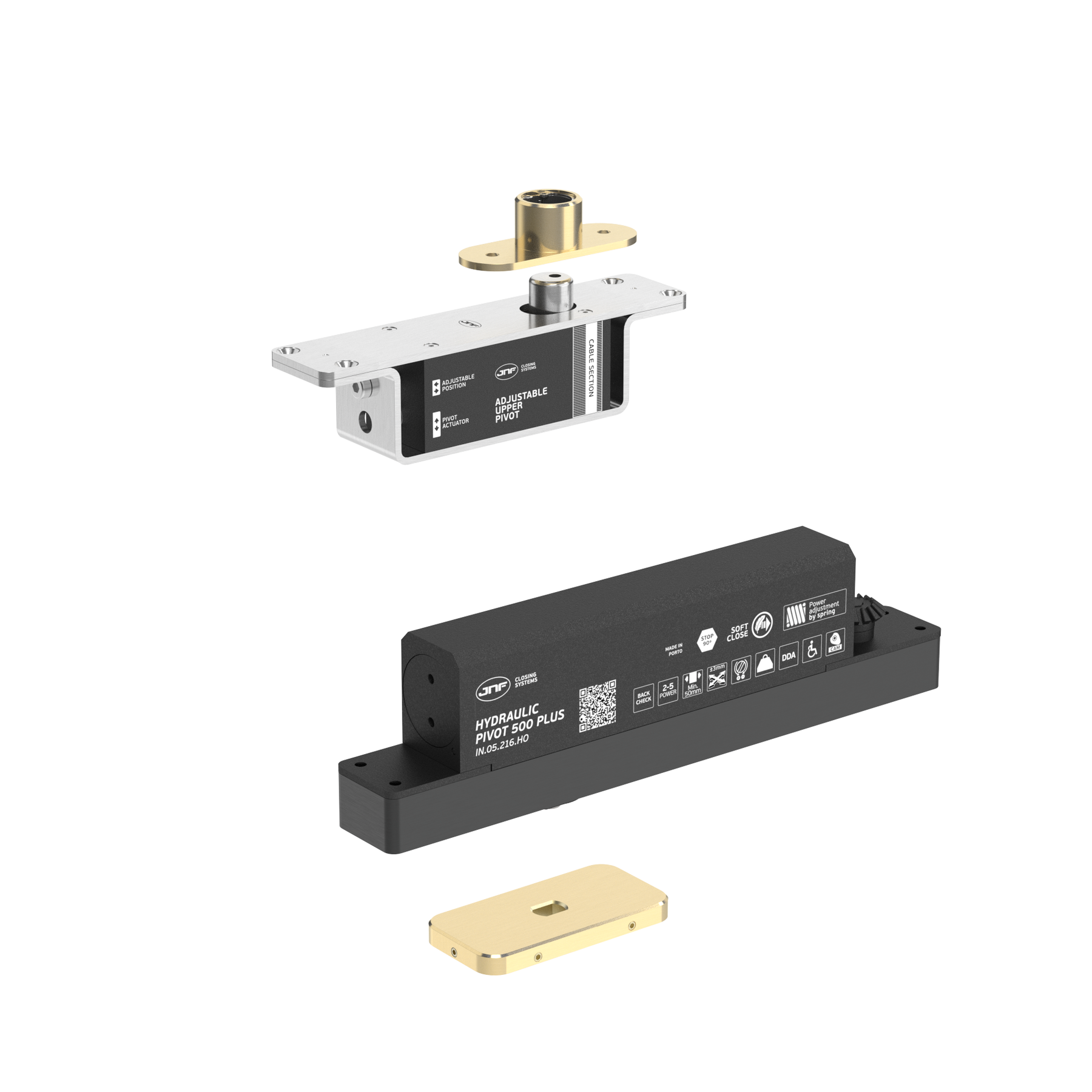

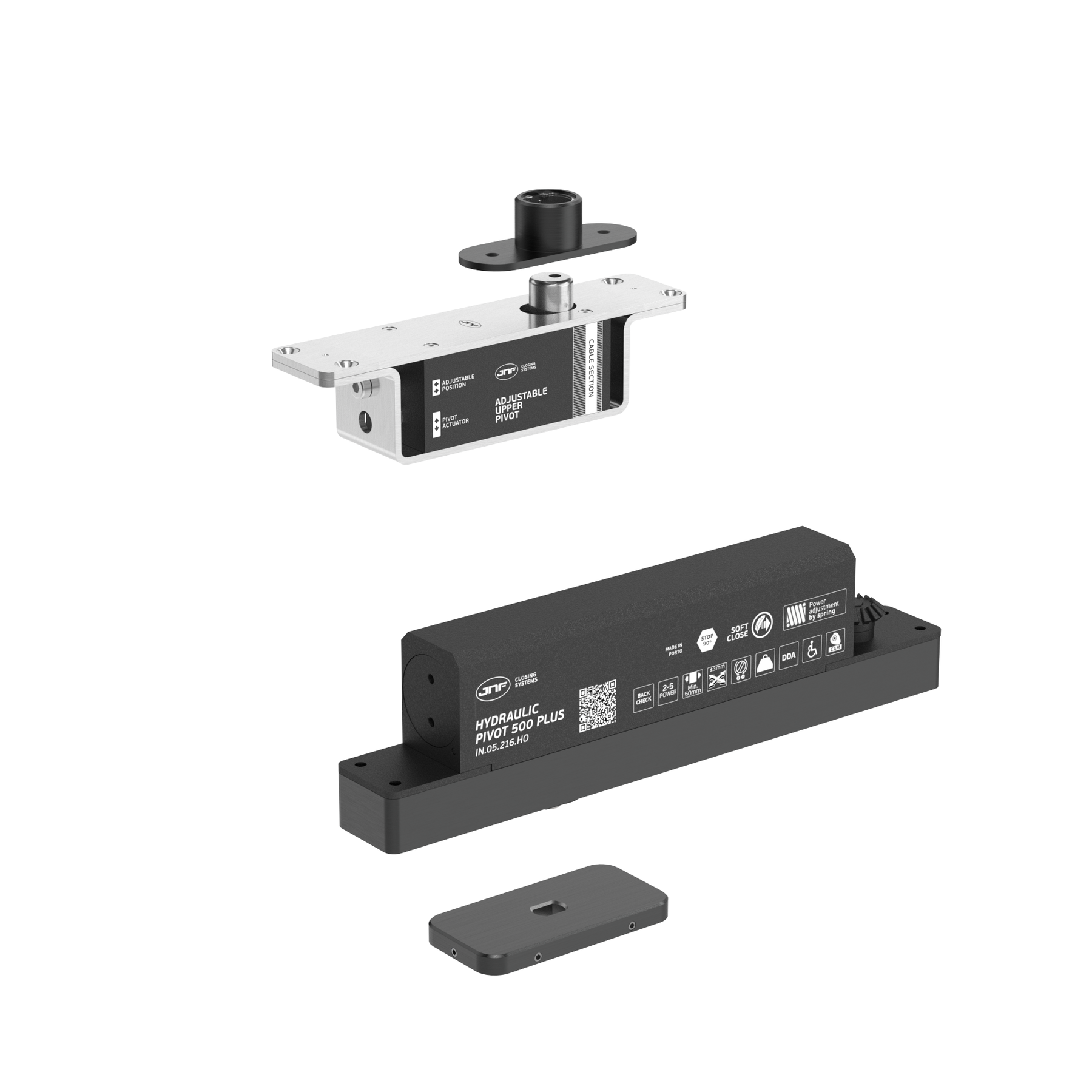

JNF IN.05.216.HO.BH2HUP2 double action 500kgs CAM hydraulic timber door pivot set - Hold Open

JNF IN.05.216.HO.BH2UP2 Double action 500kgs CAM hydraulic timber door pivot set - Hold Open

The JNF double action CAM action DDA Compliant hydraulic pivot set, power adjustable Size 3-5, to EN 1154, is suitable for timber doors weighing from 100 to 500kgs/3000mm wide/4000mm high and with a minimum 50mm door thickness.

The minimum position for the top (with 5mm wiring cable pass through channel) and bottom pivot is 40mm from the door edge although it can be positioned anywhere towards the centre line of the door (see diagram shown above).

The stainless steel or PVD finished covered BH2 100 x 50mm bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 6mm top and 14mm bottom gap.

The pivot can rotate through 120 degrees in both directions with hold open at 90 degrees in either direction with both closing speed (between 110-15 degrees) and soft closing (last 15 degrees) adjustment made at the door edge.

The JNF Dualmag Pro magnet with 52kgs holding force can be used in order to assist in keeping the door closed at 0 degrees in case of high pressure variations.

View the Technical-Details Tab above for more information or check out the new JNF PivotLab selector website here

FINISHES:
Satin Stainless Steel
PVD Black
PVD Chocolate
PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
