JNF IN.81.203 Double action 100kgs CAM hydraulic glass door pivot patch set
The JNF double action fixed power Size 3, to EN1154, smooth CAM action DDA approved hydraulic sprung pivot patch set is suitable for glass doors weighing up to 100kgs/1000mm wide and 10-13mm glass thickness (GC40 cut-out).
The stainless steel covered bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the glass door to go tight to the ceiling noting that there will be a 7mm top and 11.5mm bottom gap.

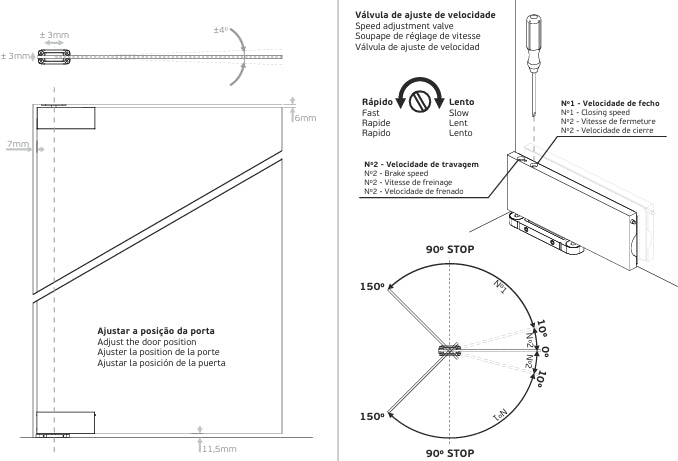

The pivot can rotate through 150 degrees in both directions with hold open at 90 degrees in either direction with both closing speed (between 110-15 degrees) and soft closing (last 15 degrees), both of which can be made on the top of the bottom patch fitting.
See Technical-Details Tab for more information
DIMENSIONS:
Top and Bottom Patch Fitting
190mm Long
71mm High
32mm Thick (without cover)
40mm Thick (with cover)
Bottom Floor Pivot
110mm Long
9mm High
48mm Wide
Frame Pivot
80mm Long
23mm High
25mm Wide
3mm Thick
FINISHES:
Satin Stainless Steel
PVD Black
PVD Chocolate
PVD Copper
PVD Gold
Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
