Boss Door Controls TS5225BCDA ADM/BS8300 Door Closer and Cover Size 2-5

Boss Door Controls TS5-225.BCDA Door Closer - Power Size 2-5

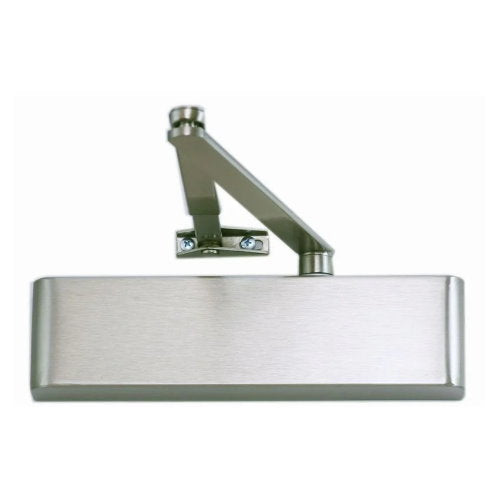

An efficient, durable and stylish adjustable power rack and pinion overhead door closer. Suitable for most applications particularly those with constant use where a backcheck (breaking action) is required.  Supplied with an architectural quality slimline semi-radius cover with matching finish arm as standard and supplied with additional parallel arm bracket to allow you to mount the closer on push side of your door .

This closer has adjustable power, backcheck, delayed action and adjustments for latching and closing speed. Spring strength is adjustable by spring once fixed on a door from size 2-5 for doors up to 1250mm wide/100kgs weight.

This closer has been included in a successful fire test to EN1634-120min , CE Marked and Certifire Approved Certificate Number CF689, meets ADM/BS8300 opening force requirements on doors 796mm and above.

DIMENSIONS:
238mm Case Length
56mm Case Width
38mm Case Thickness
1250mm Maximum Door Width
100kgs Maximum Door Weight

FINISHES:
Antique Brass
Polished Brass
Satin Brass
Dark Bronze
Light Bronze
Mid Bronze
Silver
Polished Stainless Steel
Satin Stainless Steel

+ PLEASE ALLOW 10 DAYS FOR PLATED FINISHES +
