Carlisle Brass Eurospec DIN DLX European Radius Bathroom Lock - 60mm

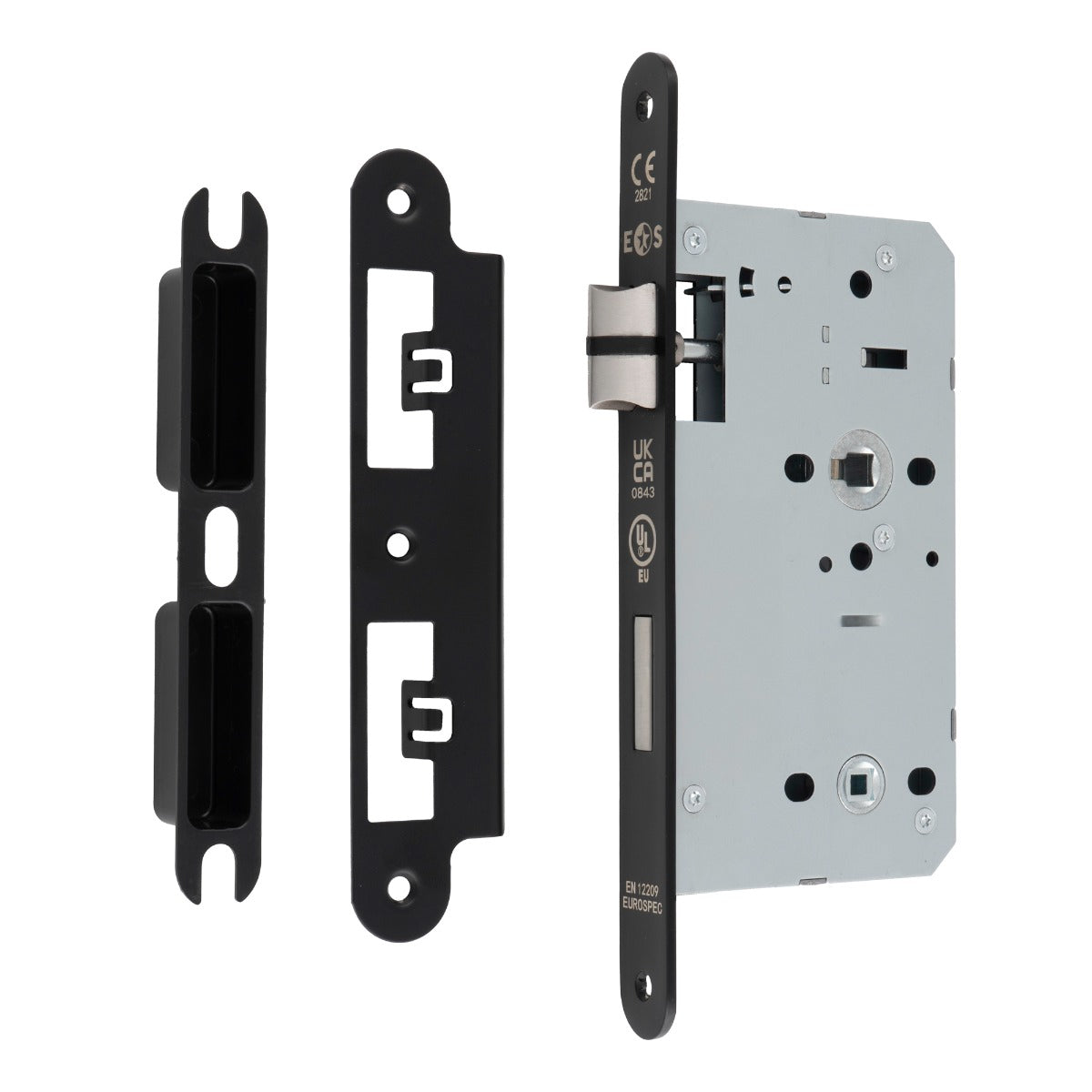

Heavy duty DIN European mortice strongly sprung (Grade X) bathroom lock case with 22mm wide radiused forend and anti-rattle striking plate (with black boxed keeps), with stainless steel silent ABS insert latch bolt and deadbolt; suitable for domestic and commercial projects. and deadbolt; suitable for domestic and commercial projects.
The bathroom lock has a backset (distance from edge of door to handle/toilet set) of 60mm and is suitable for un-sprung lever handles and only toilet sets with 5mm spindle bar.
The distance between the centre of the lever handle and toilet set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks.
This bathroom lock also has a "grip-tight" follower that eliminates the wobble that can felt when operating the lever handles with other makers bathroom locks.
This bathlock is CE and UKCA Marked and conforms to European standard EN12209:2003 Classification 3X810G2BC00 and conforms to the dimensional characteristics of DIN 18251, Third party accredited using the UL-EU safety mark and comes with a 10 year mechanical guarantee.
Approved for use on 30/60/120 minute timber and 120/240 minute fire rated doors when used in conjunction with available intumescent packs.

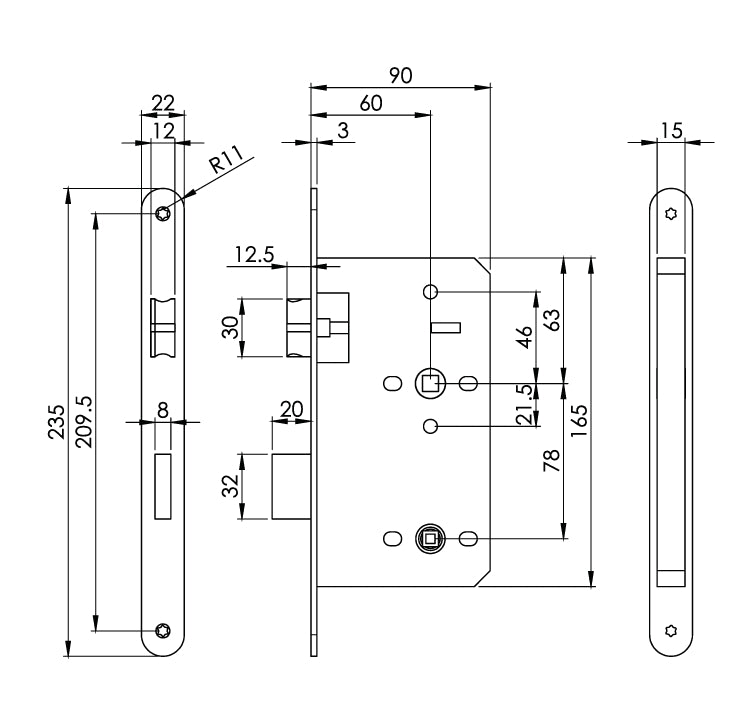

DIMENSIONS:
60mm Backset
90mm Case
78mm Centres
FINISHES:

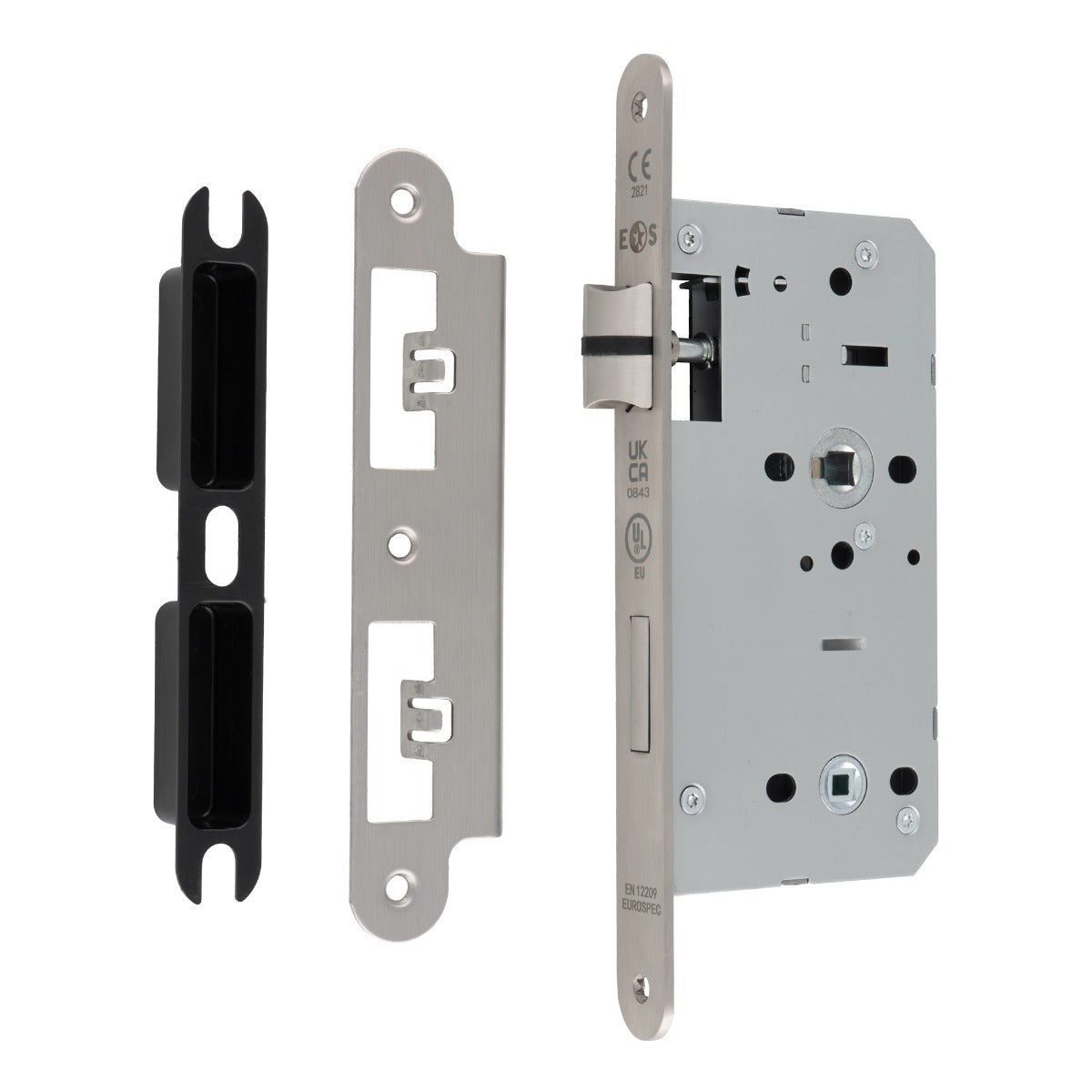

Satin Stainless Steel
Matt Black
