Atlantic Hardware European DIN Square Bathlock - 2 Piece

Atlantic Hardware European DIN Square Bathlock - 2 Piece

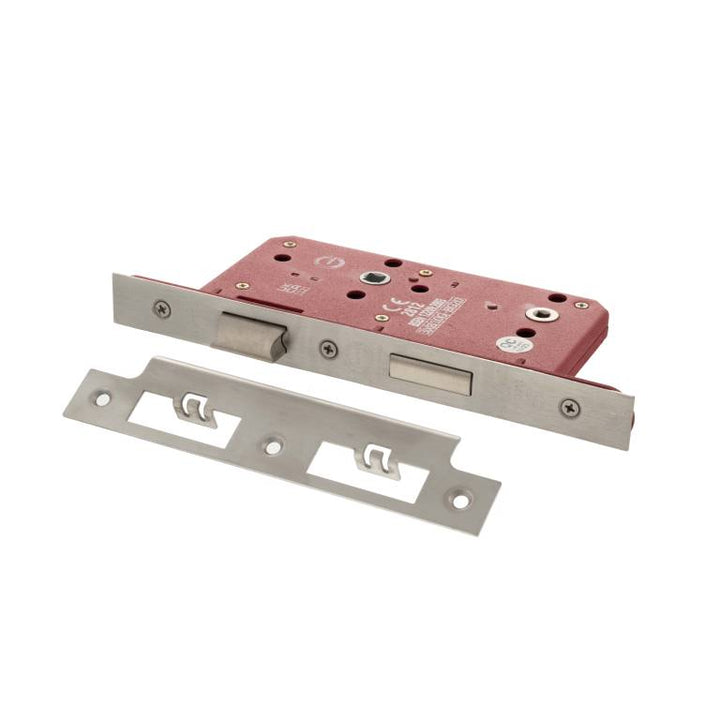

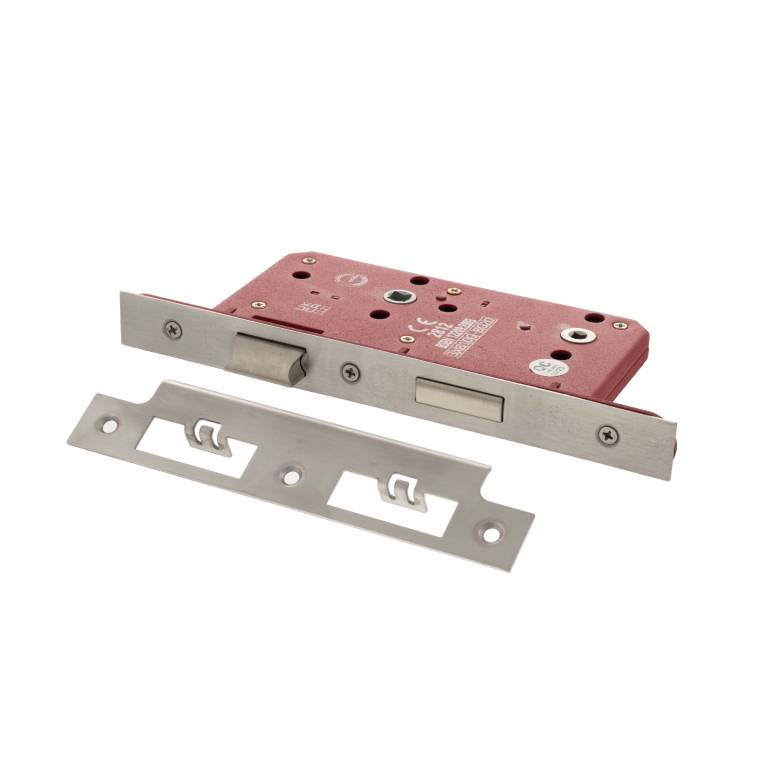

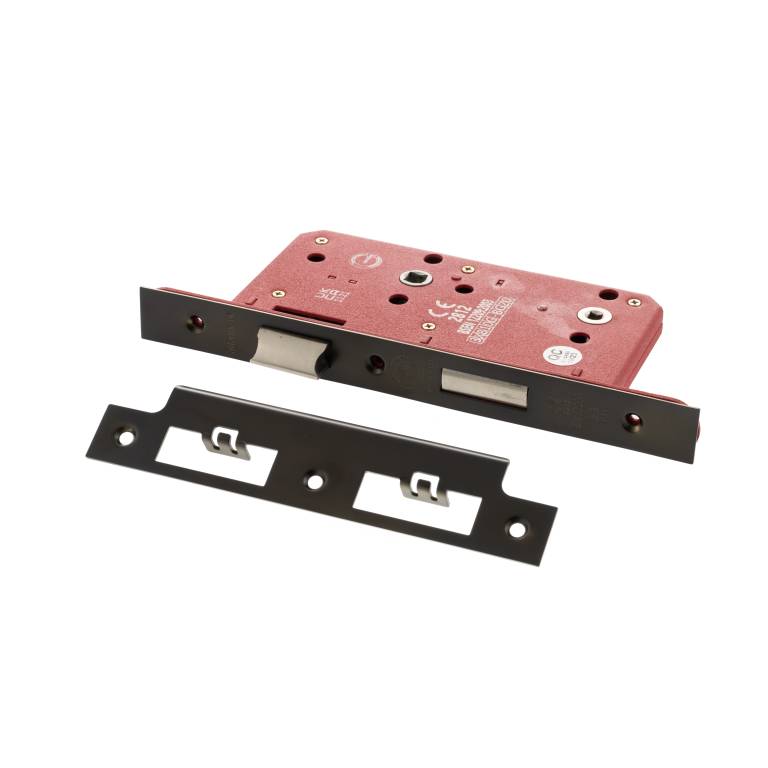

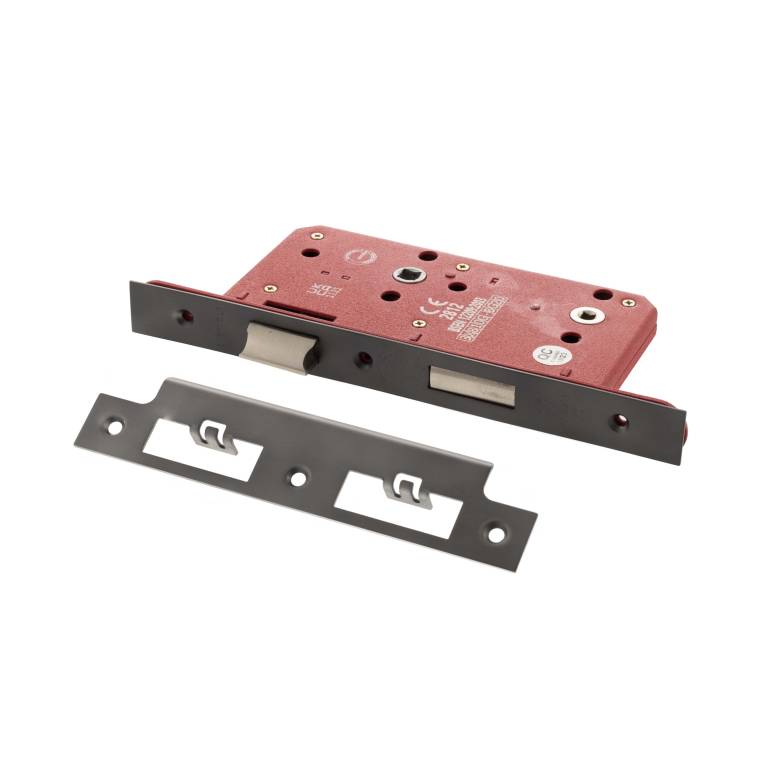

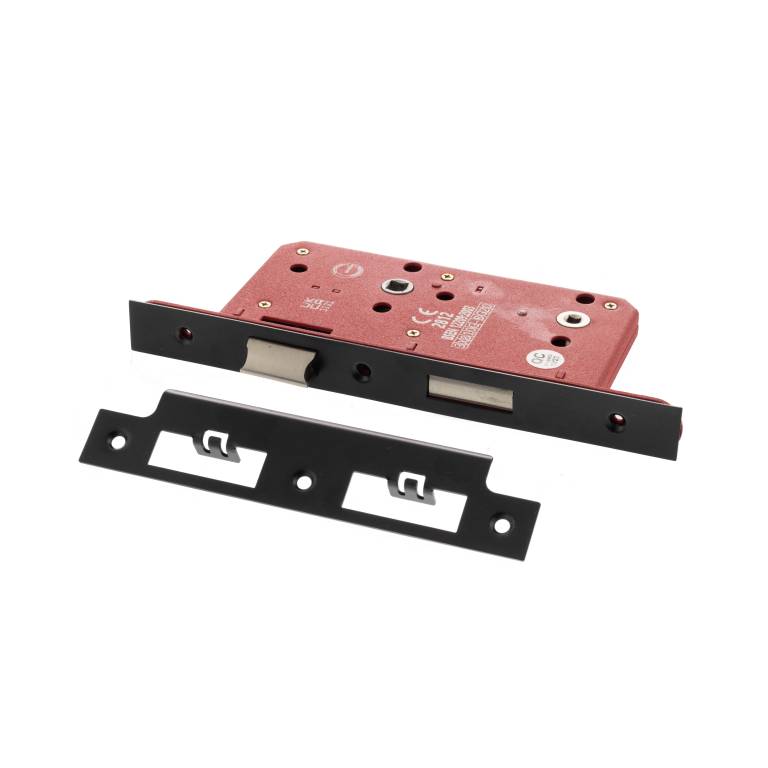

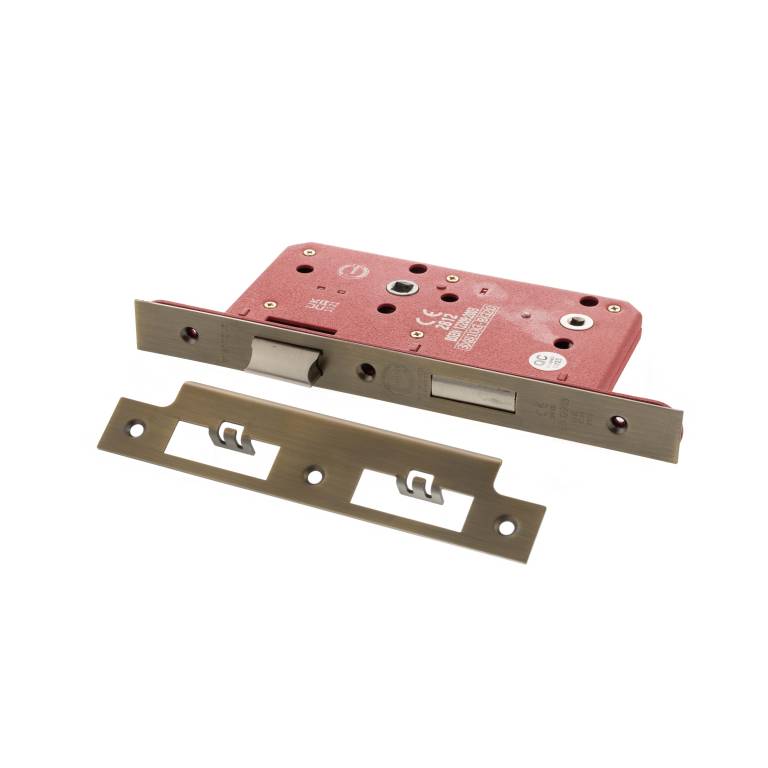

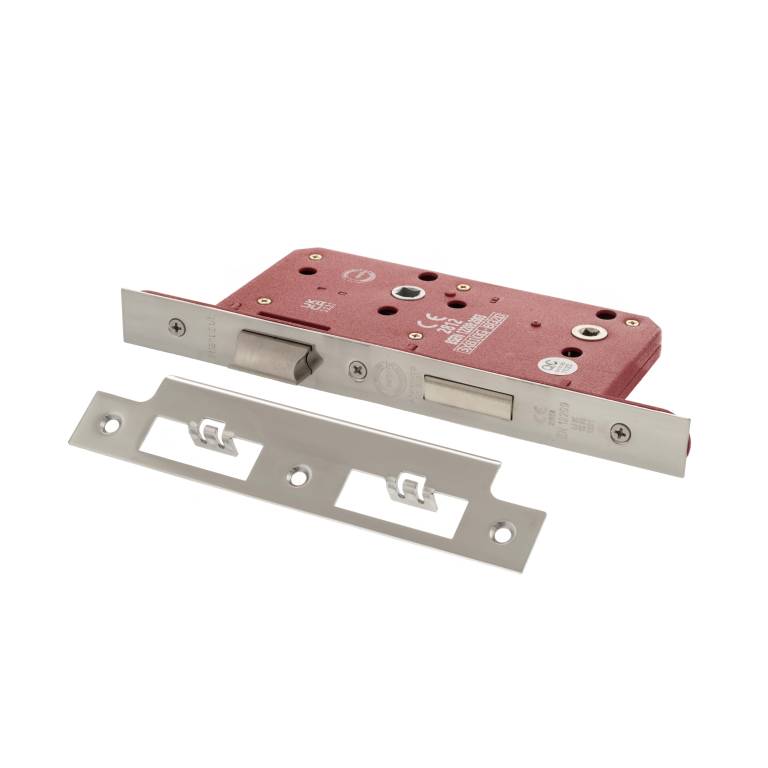

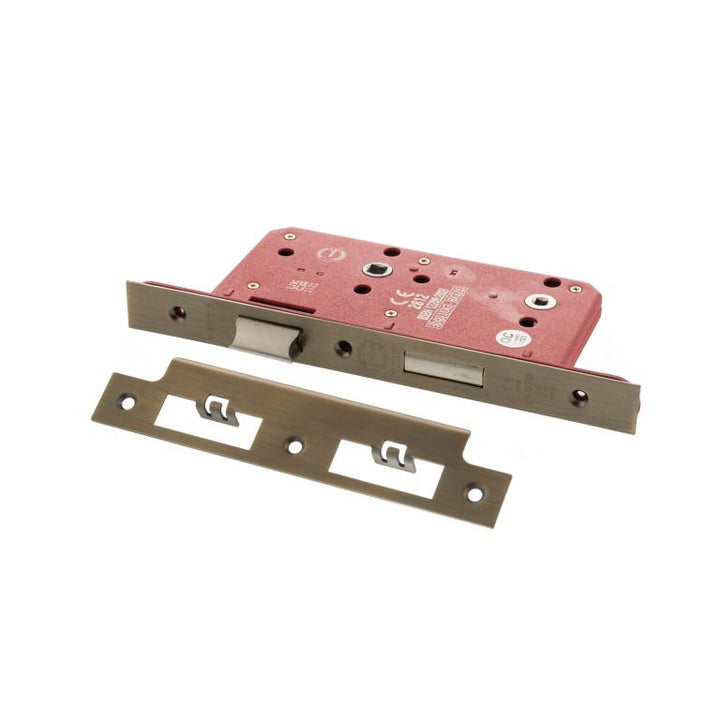

Atlantic Hardware European mortice DIN bathlock with 25mm wide square forend and dust box striking plate with stainless steel latch and deadbolt; is suitable for domestic and commercial projects.

The bathlock has a backset (distance from edge of door to handle/cylinder) of 60mm with a double throw deadbolt and is suitable for sprung lever handles only and toilet sets with 5 mm spindle bar.

The distance between the centres of the lever handle and WC set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks.

This bathlock is CE Marked and conforms to European standard EN12209:2003 Classification 3X810G2BG20 and conforms to the dimensional characteristics of DIN 18251and comes with a 10 year mechanical guarantee.

Certifire approved (CF6131) for use on 30 and 60 minute fire rated doors, when used in conjunction with the correct intumescent pack.

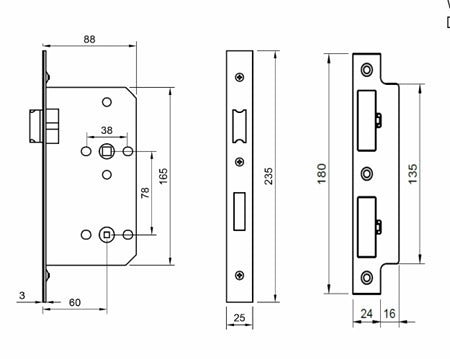

DIMENSIONS:
60mm backset
88mm case
Strike Plate
180mm High
24mm Wide
40mm Overall

FINISHES:

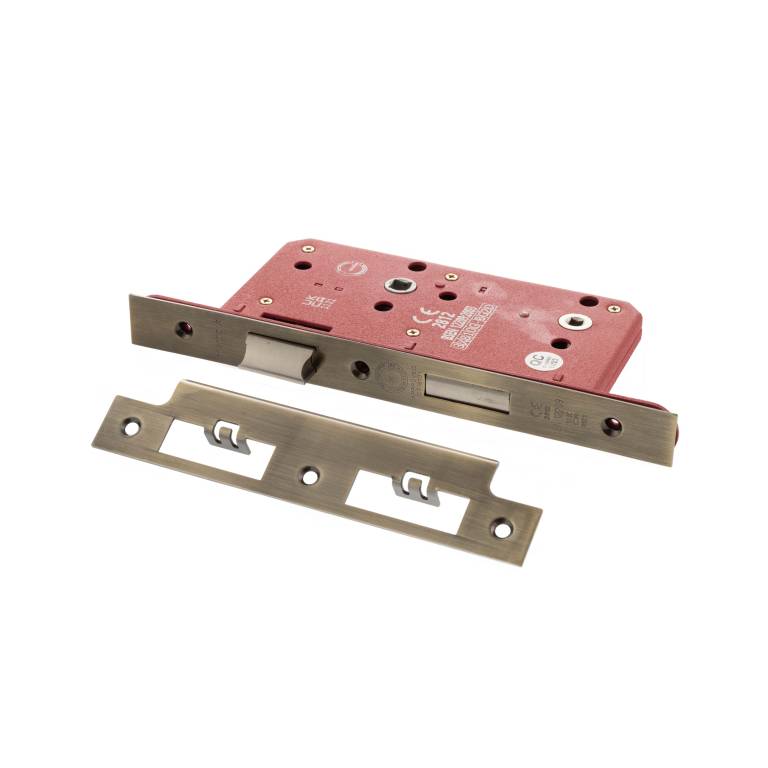

Antique Brass
Matt Antique Brass

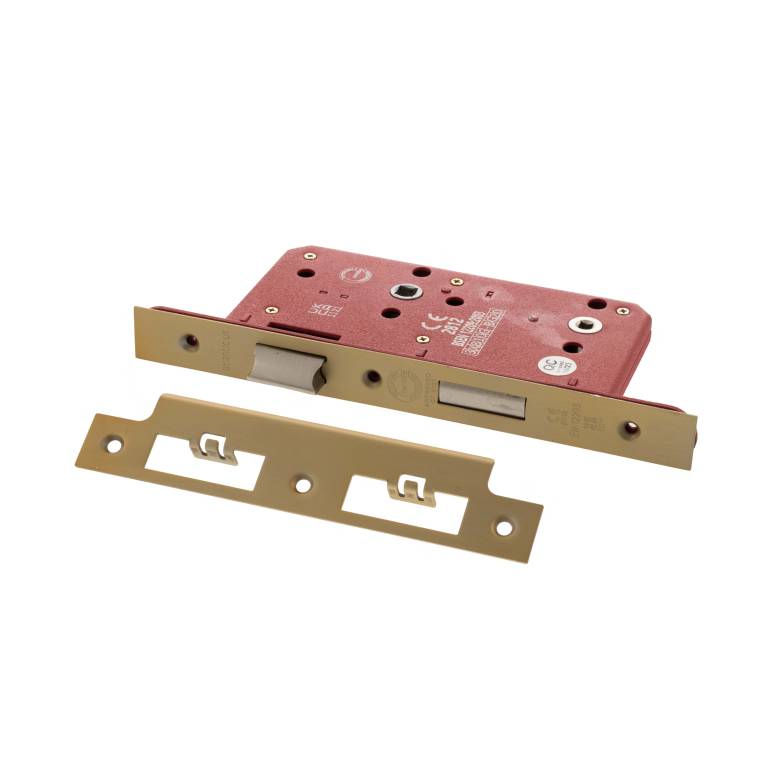

Satin Brass

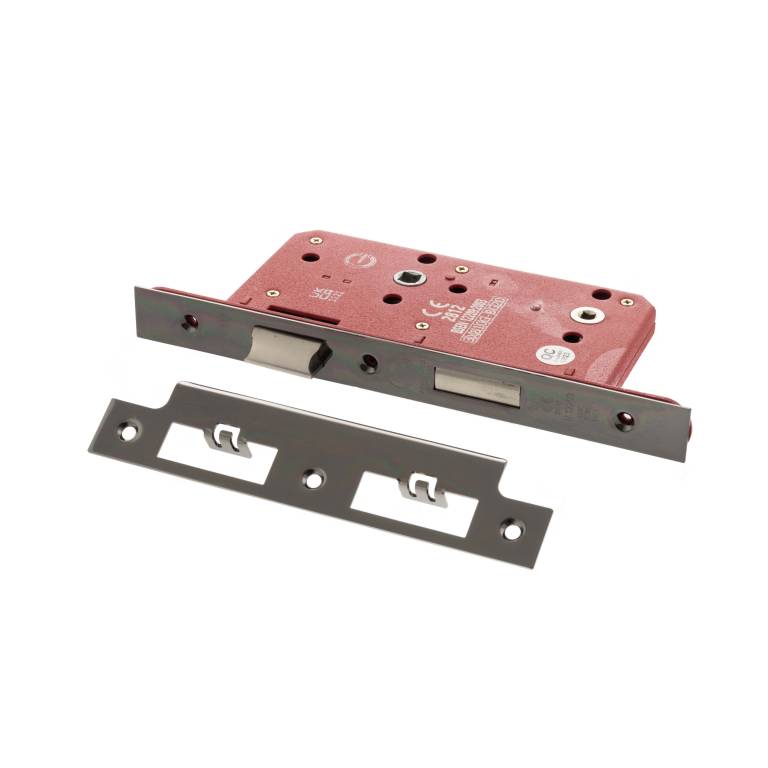

Black Nickel
Matt Black
Urban Dark Bronze
Matt Gun Metal
Satin Stainless Steel
Polished Stainless Steel

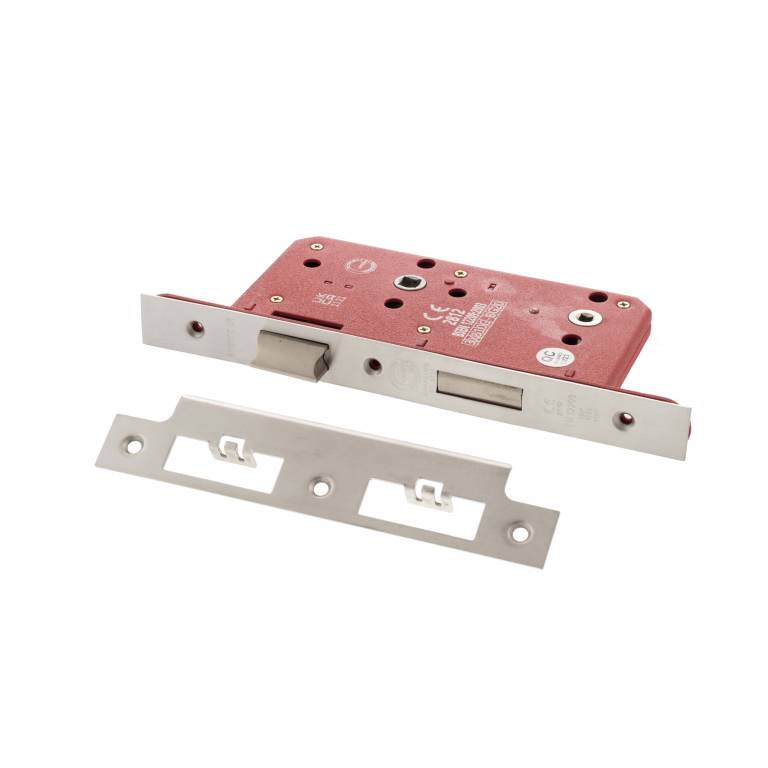

Satin Chrome

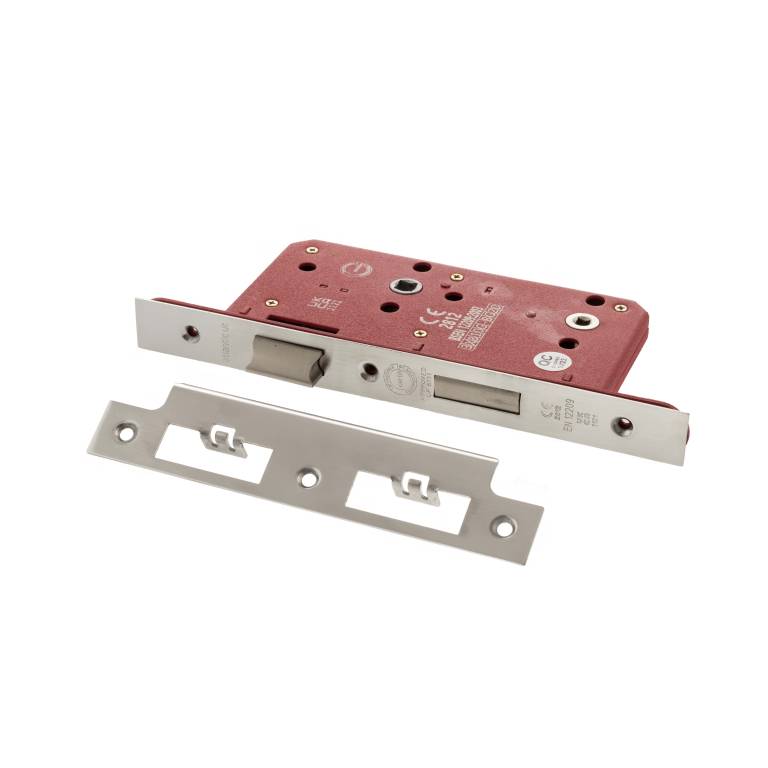

Polished Chrome
