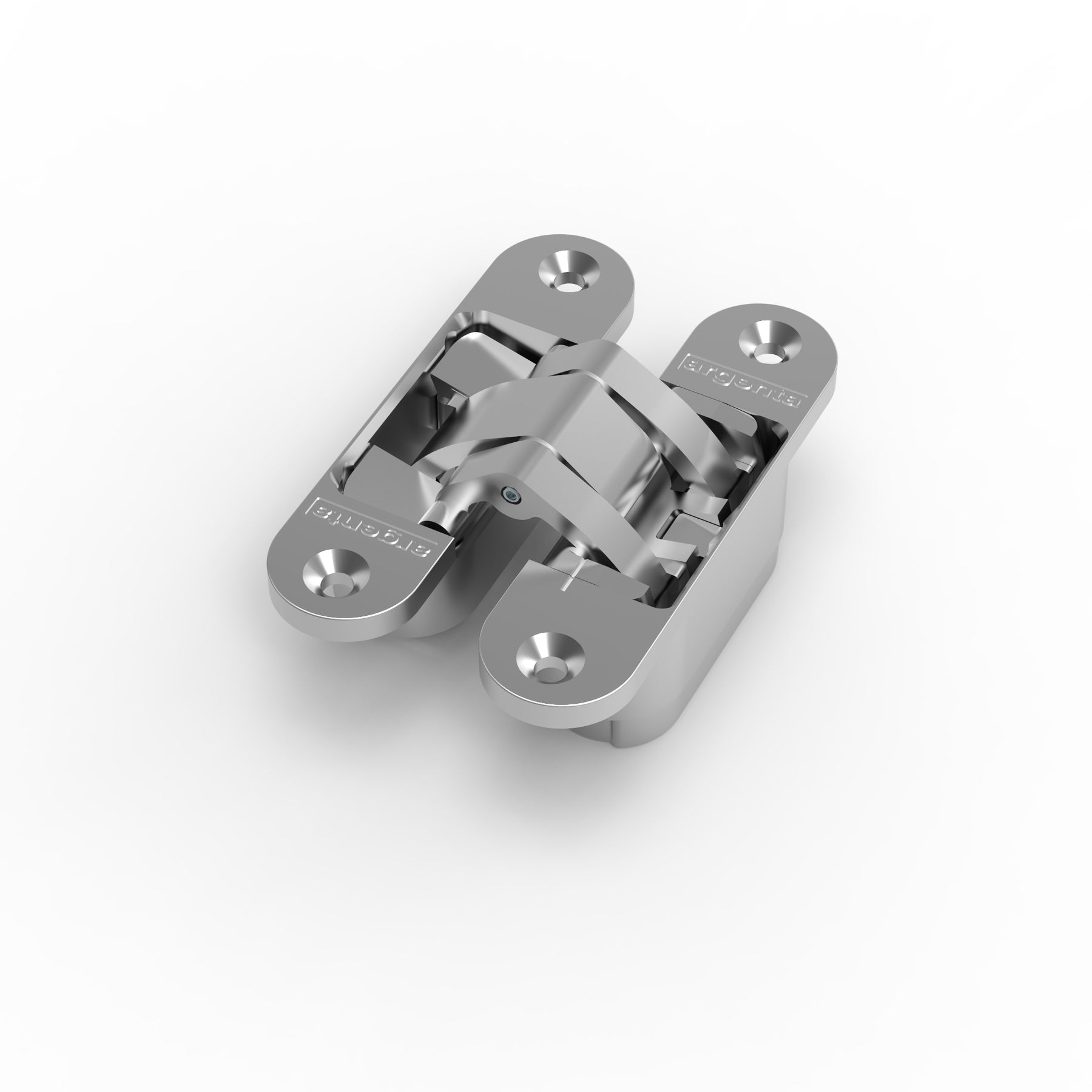

ARGENTA Medium 3D Concealed Hinge - 40/55kgs
The Argenta Medium matt chrome hinges with an exceptionally high and sublime finish; with visible screw fixings to give these hinges a technical look.
You can adjust these hinges with precision easily, flexibly, and quickly, thanks to the built-in height-adjustment system. This unique system means you no longer need to put any wedges under the door to set the height.
Pure and qualitative design
Visible screws
Universal: For Left and Right hand opening doors
Extra simplified height adjustment: No wedge required
180 Degree opening angle
3D adjustable (height, width, and depth) without removing the door

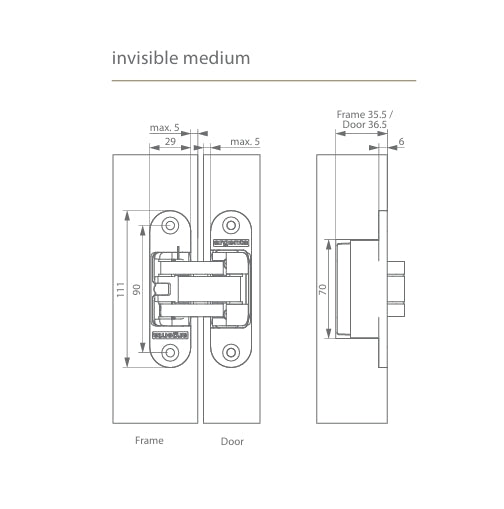

DIMENSIONS:
111mm Long x 29mm Wide
Door Thickness: min. 37 mm
Door Weight (2 pcs) : up to 40kg
Door Weight (3 pcs) : up to 55kg
Height Adjustment: -1,5 / +1,5 mm
Width Adjustment: -2,5 / +2,5 mm
Depth Adjustment: -1,5 / +1,5mm
Fire Resistant: EI30 3 hinges required
Screw Diameter: max. 5mm

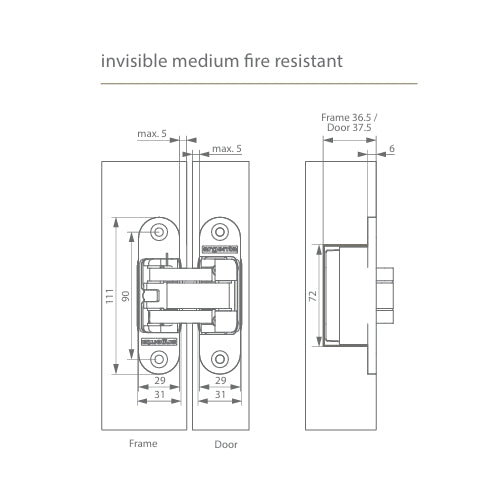

There are two versions available for selection - Non-fire rated and fire rated to suit FD30 fire doors (with integrated intumescent kit where three hinges must be fitted) which can be chosen above.
Please note that these are sold singly
FINISH:
Matt Chrome
