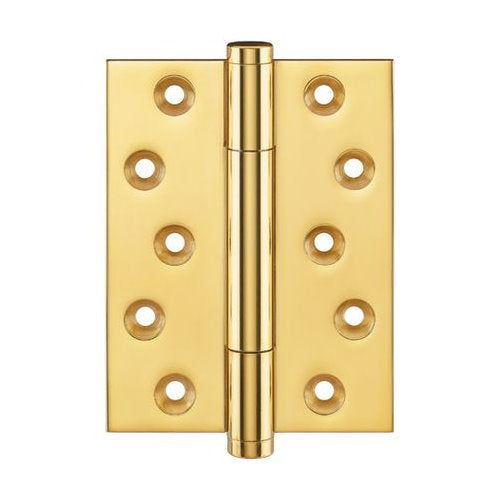

Simonswerk Tritech 1750 - 100x75 Concealed Bearing Hinge
A single refinished solid brass heavy duty Grade 14 concealed bearing hinge with square corners to suit maximum door weight 160kgs (when using three hinges), suitable for use on fire doors and commercial buildings, tested and conforming to BSEN 1935:2002 CE Marked, supplied with matching finished screws. Maintenance free with 25 year performance guarantee.
Available as either fire rated up to 60min (CE marked) or non-fire rated.
Please note that these are sold singly and supplied with matching finished countersunk posidrive screws as standard. Should you require Slotted screws, please comment in "add order note" in basket.

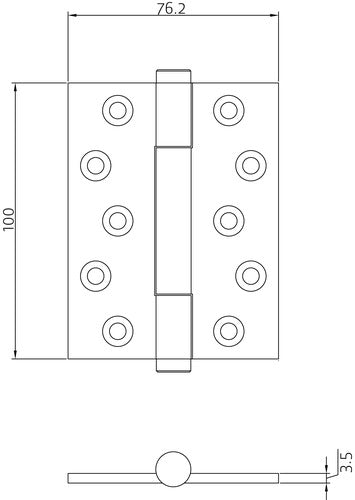

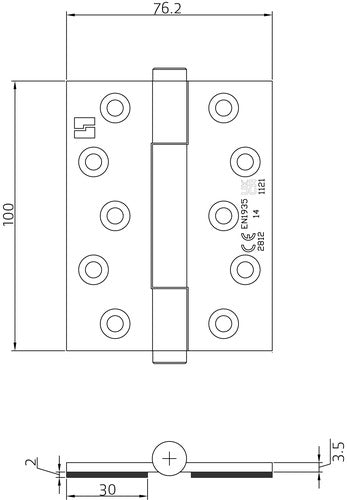

DIMENSIONS:
100mm High
75mm Wide (when open)
3.5mm Thick/5.5mm Thick CE Marked
13mm Knuckle Diameter
FINISH:
Aged Brass (UK 501)
Antique Brass (UK 502)
Burnished Brass (UK522)
Antique Nickel (UK 503)
Copper Bronze (UK 505)
Copper (UK 506)
Honeycombe (UK 507)
Imitation Bronze (UK 508)
Polished Imitation Bronze (UK523)
Midnight (UK 509)
Polished Chrome (UK 511)
Polished Lacquered Brass (UK 512)
Polished Nickel (UK 513)
Satin Lacquered Brass (UK 514)
Satin Chrome (UK 515)
Satin Nickel (UK 516)
