JNF IN.81.206 W 360º CAM hydraulic 200kgs glass door pivot patch set

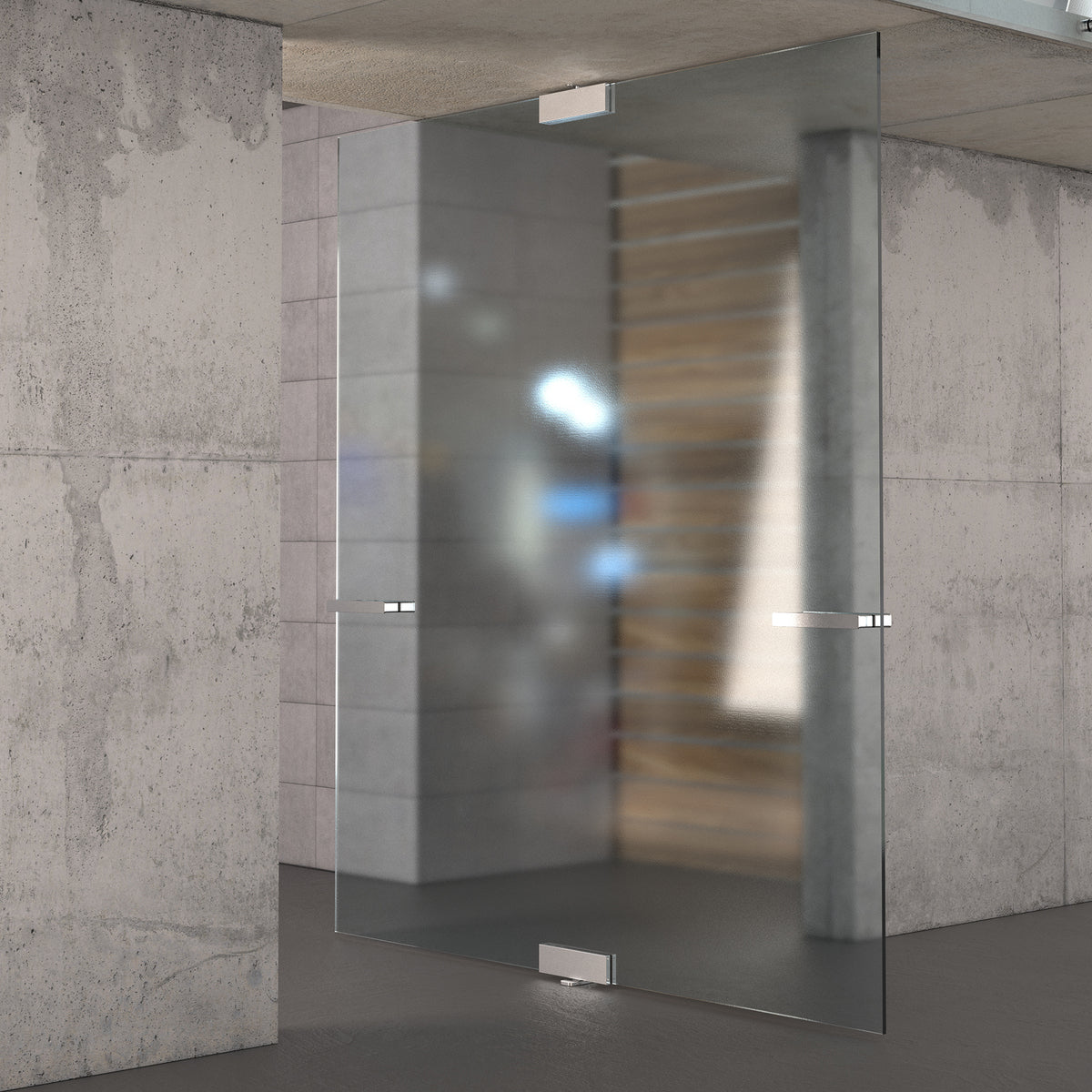

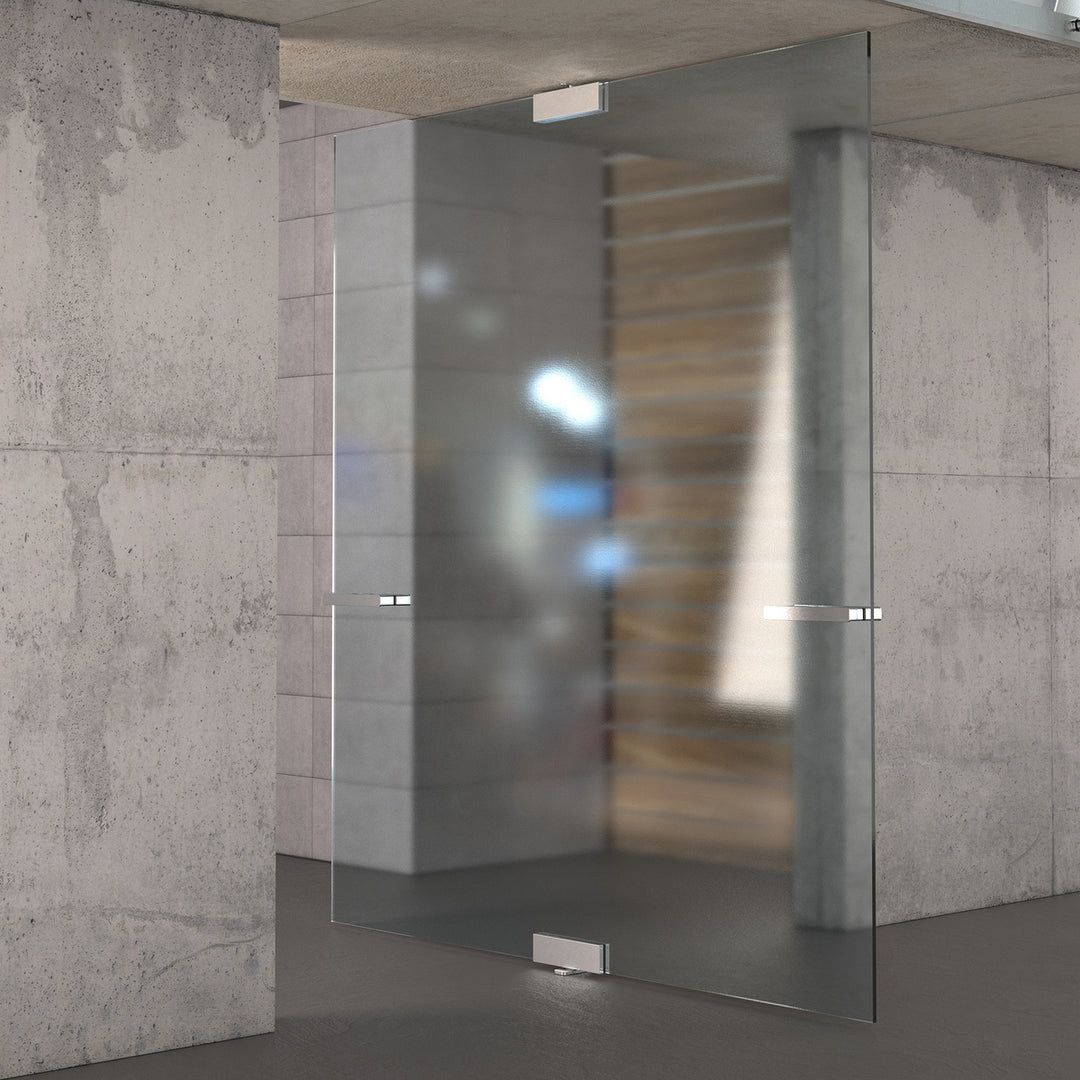

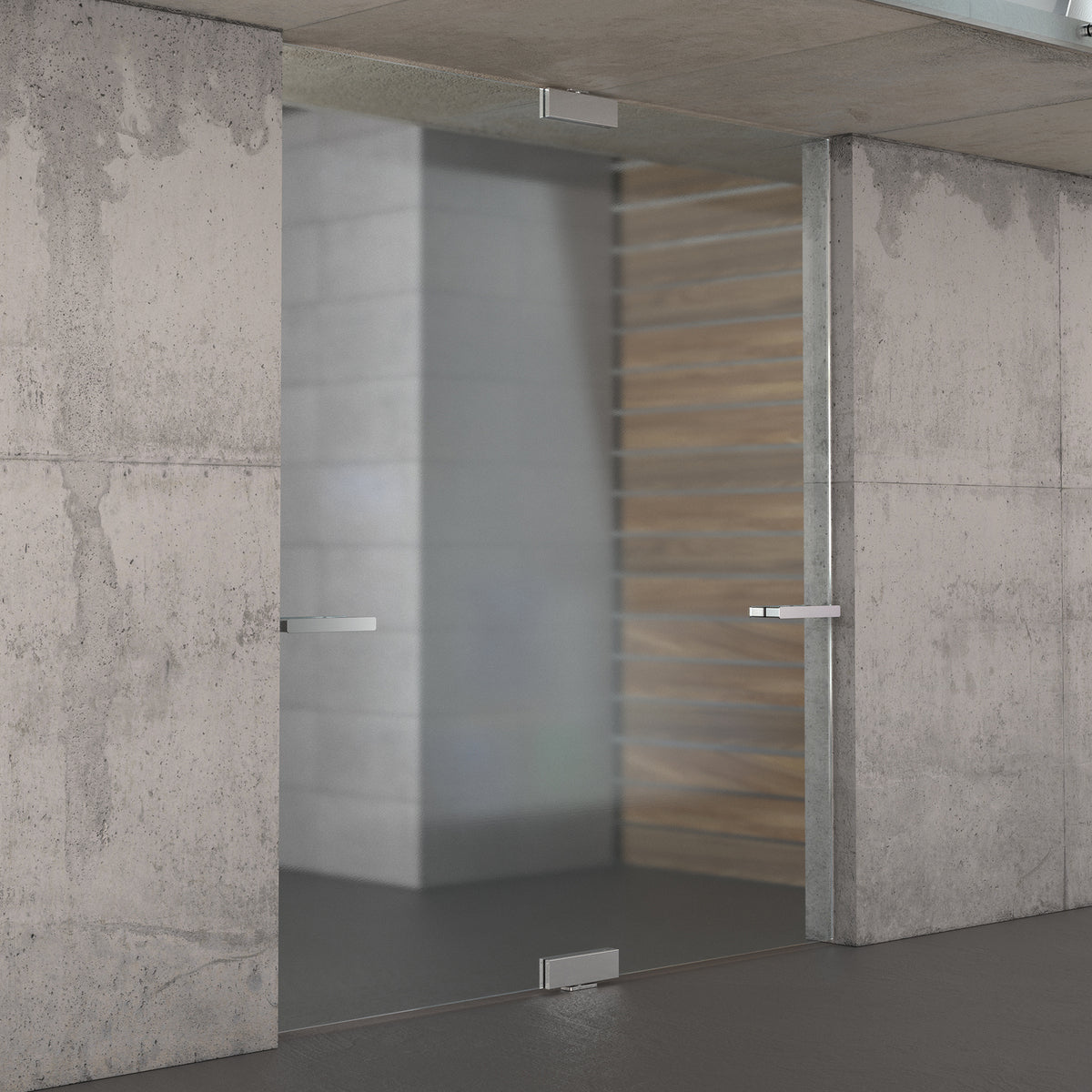

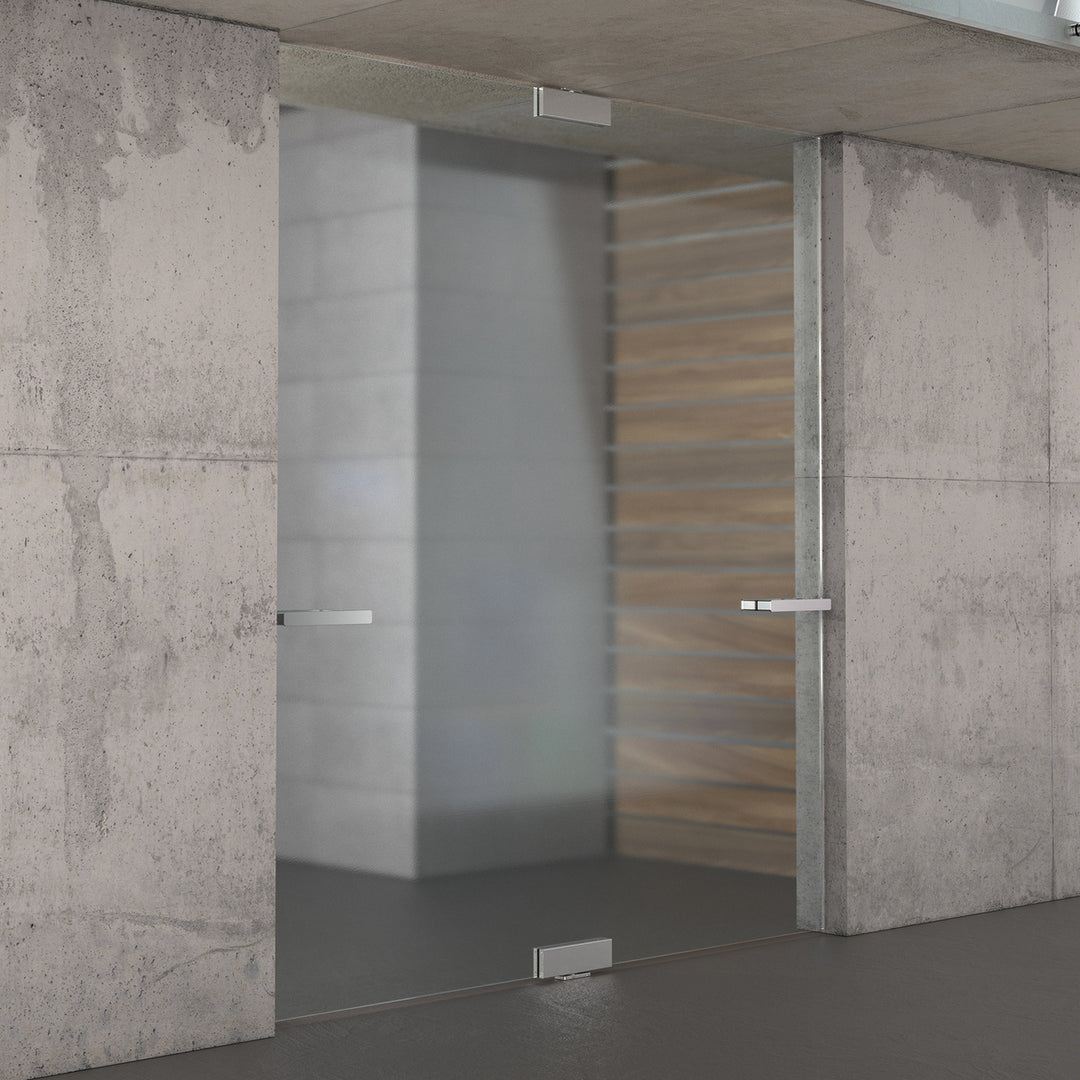

The JNF W 360º double action fixed power Size 5, to EN1154, smooth CAM action hydraulic sprung pivot patch set which is suitable for glass doors weighing up to 200kgs/2000mm wide and 10-13mm glass thickness (GC128 cut-out).

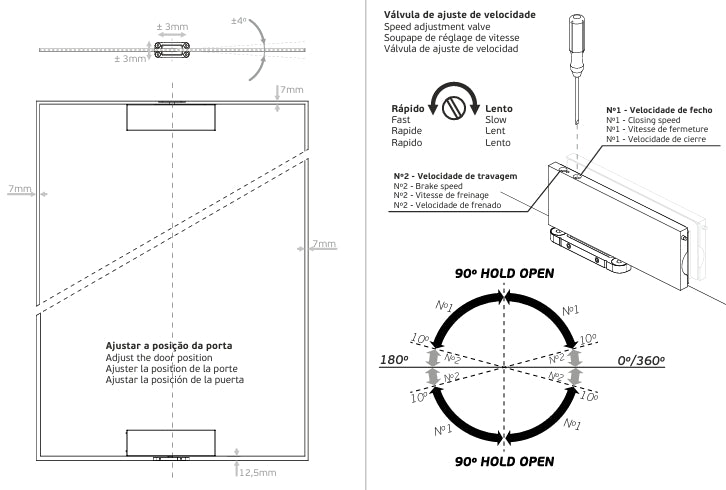

The stainless steel covered bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the glass door to go tight to the ceiling noting that there will be a 7mm top and 12.5mm bottom gap.
The pivot can rotate through 360 degrees in both directions with hold open at 90 degrees in either direction with both closing speed (between 110-15 degrees) and soft closing (last 15 degrees), both of which can be made on the top of the bottom patch fitting.
See Technical-Details Tab for more information

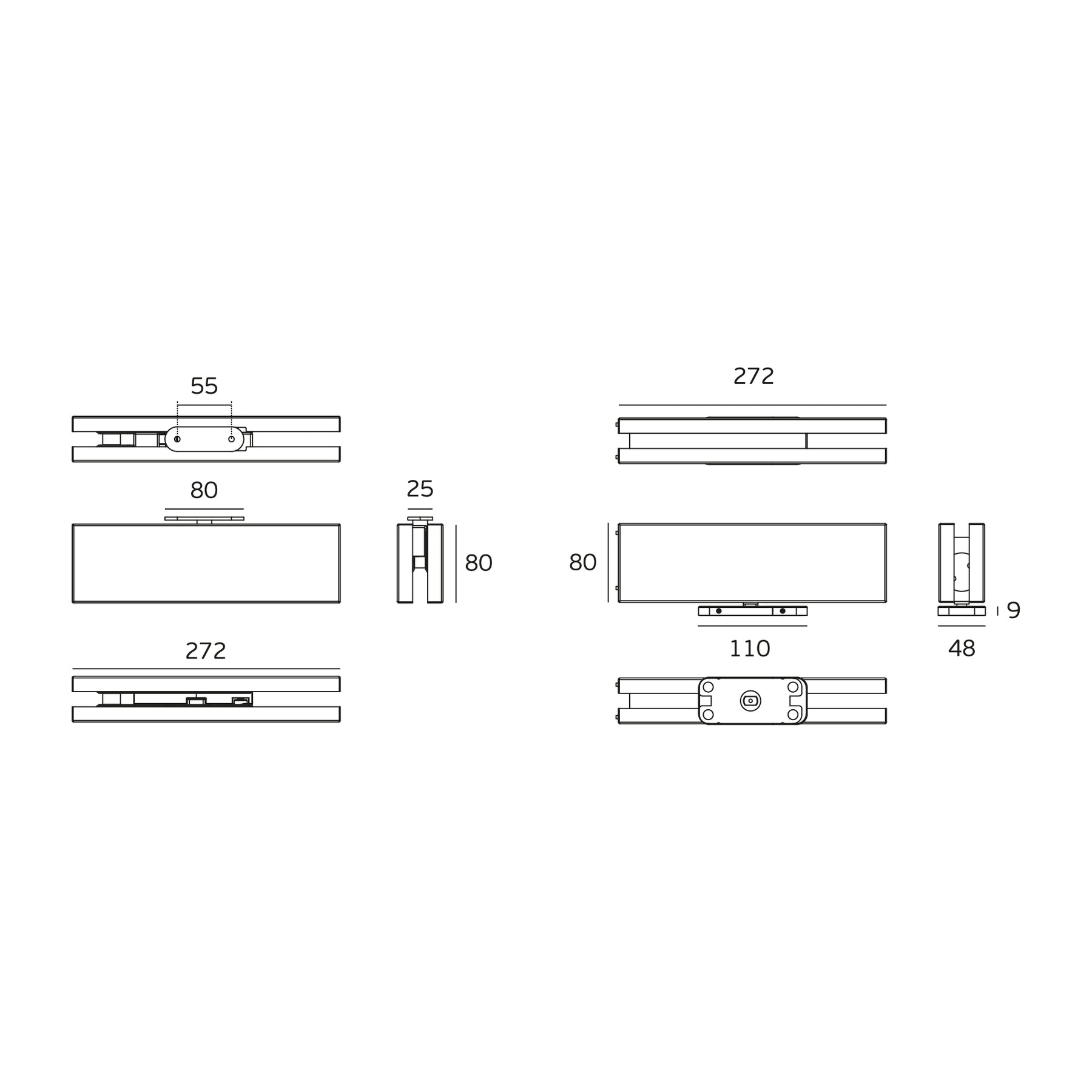

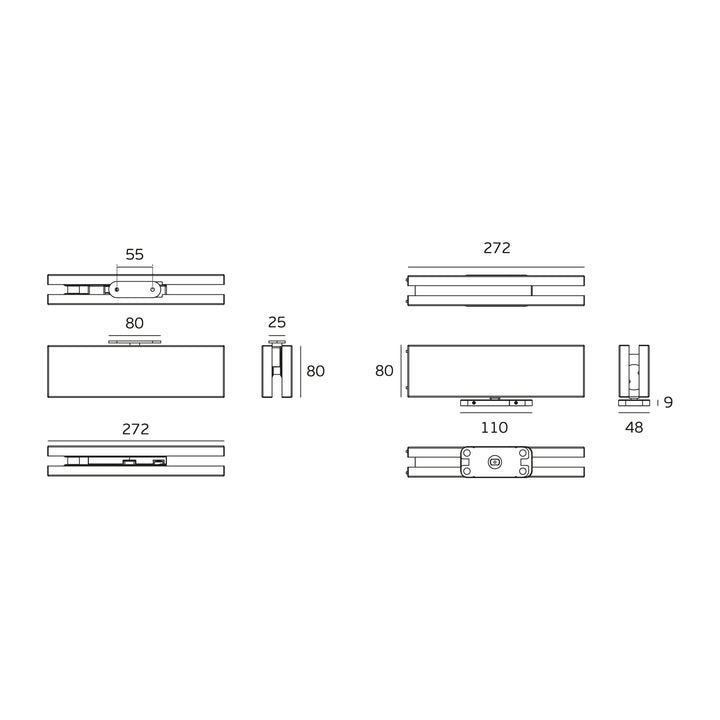

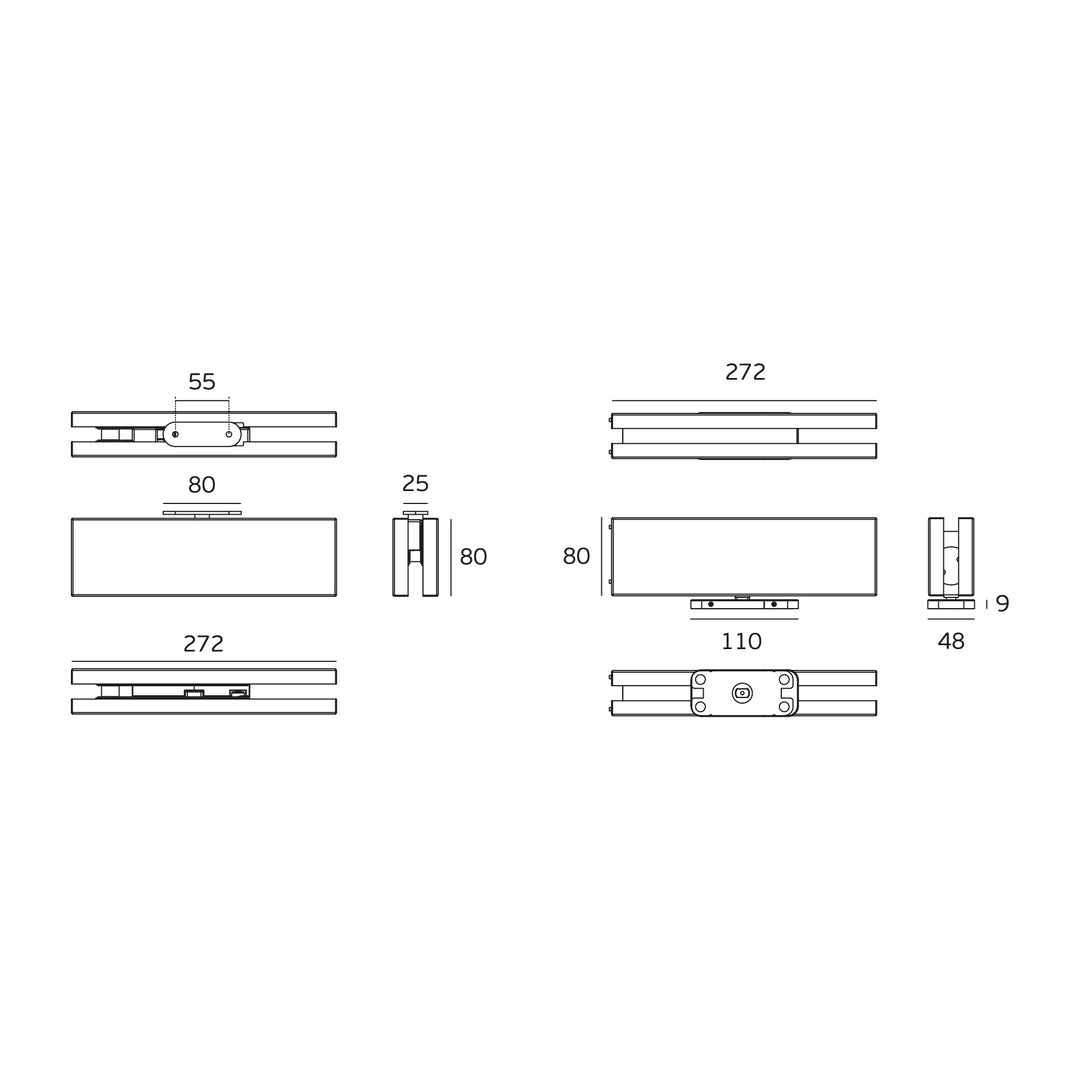

DIMENSIONS:
Top and Bottom Patch Fitting
272mm Long
80mm High
40mm Thick (with cover)
Bottom Floor Pivot
110mm Long
9mm High
48mm Wide
Frame Pivot
80mm Long
23mm High
25mm Wide
3mm Thick
FINISHES:
Satin Stainless Steel
PVD Black
PVD Chocolate
PVD Copper
PVD Gold
Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
