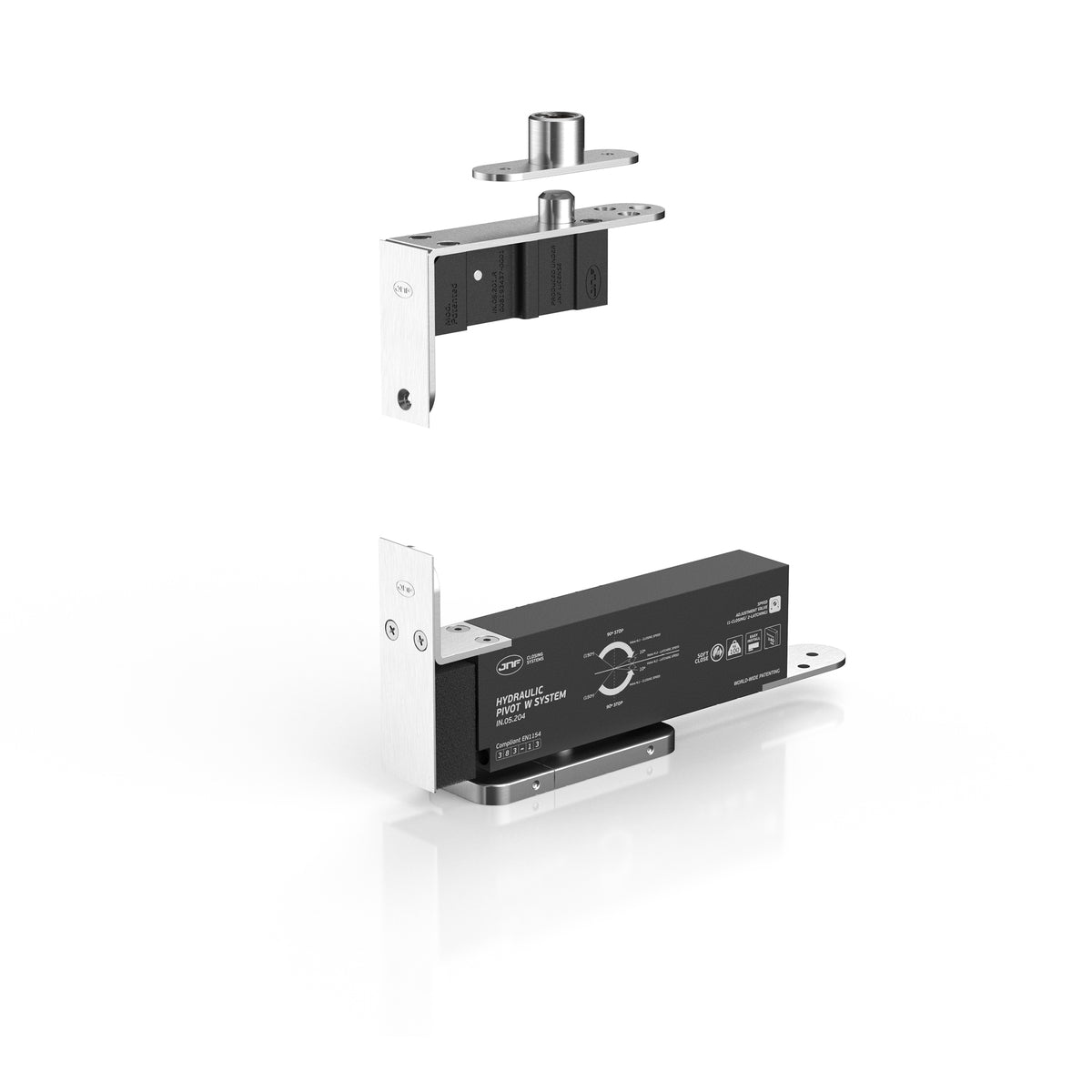

JNF IN.05.204.HO Double action 100kgs hydraulic timber door pivot set - Hold Open

JNF IN.05.204.HO Double action 100kgs hydraulic pivot set - Hold Open

The JNF double action hydraulic hold open heal pivot set is suitable for timber doors weighing up to 100kgs/1000mm wide and with a minimum 40mm/maximum 50mm thickness.

The minimum position for the top and bottom pivot is 40mm from the door edge.

The stainless steel covered bottom plate is suitable for concrete floors with door adjustment +/- 3mm and also 4 degrees which enables the door to go tight to the ceiling noting that there will be a 6mm top and 11.5mm bottom gap.

The pivot can be held open at 90 degrees and also rotate through 150 degrees with with both closing speed and soft closing (last 10 degrees) adjustment made at the door edge.

See Technical-Details Tab for more information

FINISHES:

Satin Stainless Steel
PVD Black
PVD Chocolate
PVD Copper
PVD Gold

Please note that should you opt for a PVD finish, the lead time may extend to 10-12 weeks owing to the refinishing process.
