AGB Eclipse FD60 Concealed/Invisible Hinge
The AGB Eclipse concealed invisible hinge has an exceptionally high and sublime finish: Not a single screw is visible. You can adjust these hinges with precision easily, flexibly, and quickly, thanks to their built-in horizontal and vertical adjustment system with no visible screws.
Suitable for Left and Right hand opening doors with simplified height adjustment with 180 Degree opening angle 3D adjustable (height, width, and depth) without taking the door off. To suit doors up to 2100mm.
DIMENSIONS:
115mm Long x 23mm Wide
Door Thickness: min. 33 mm
Door Weight (2 pcs) : up to 40kg
Door Weight (3 pcs) : up to 60kg
Height Adjustment: -2 / +2mm
Width Adjustment: -1.5 / +1.5mm
Depth Adjustment: -1,0 / +1,0mm
Fire Resistant: EI60 3 hinges required
Please note that these are sold singly
FINISH:

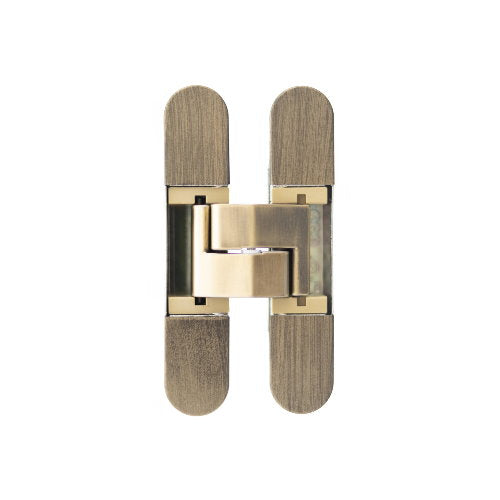

Antique Brass

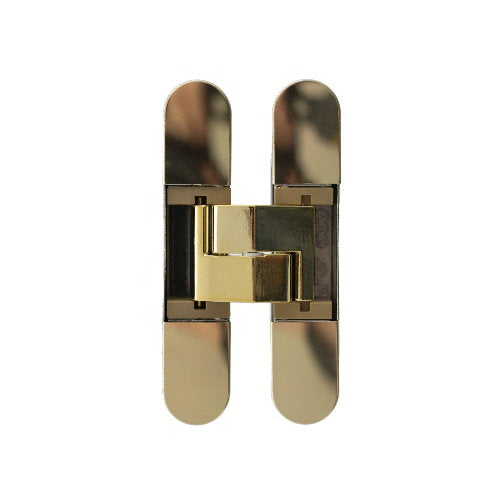

Polished Brass

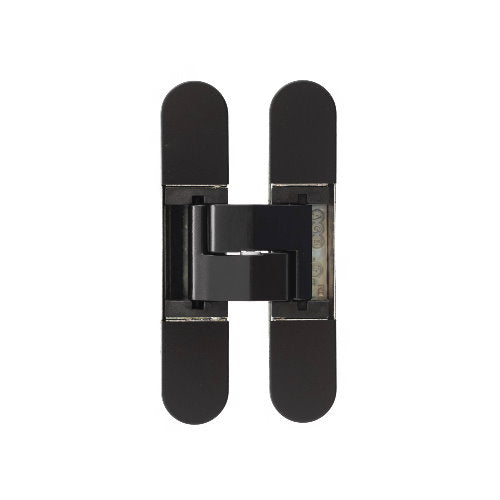

Matt Black

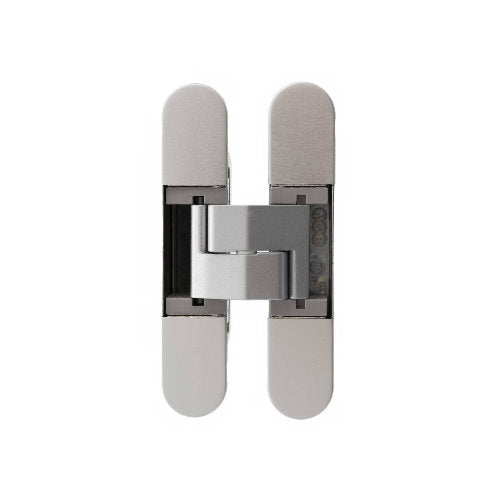

Satin Chrome

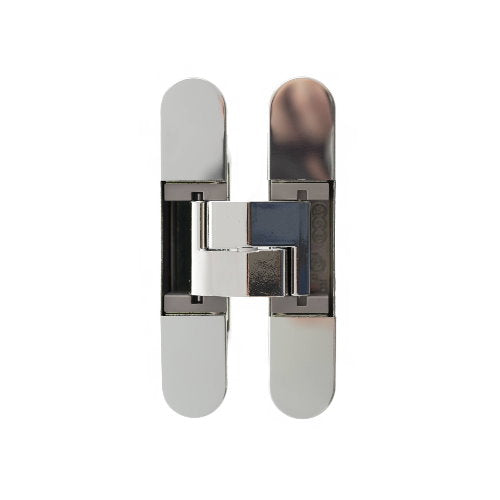

Polished Nickel

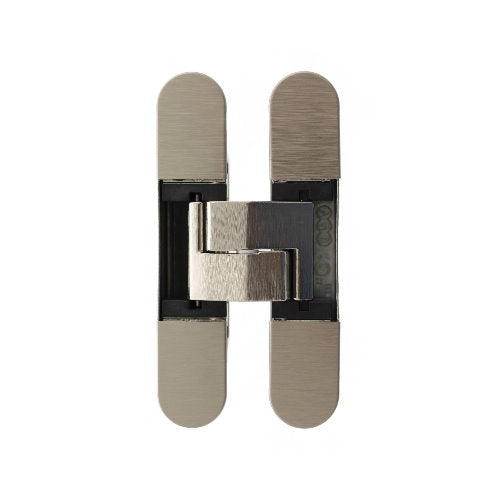

Satin Nickel

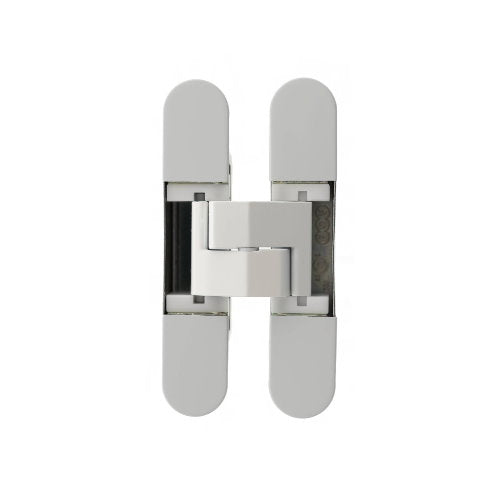

White
